Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

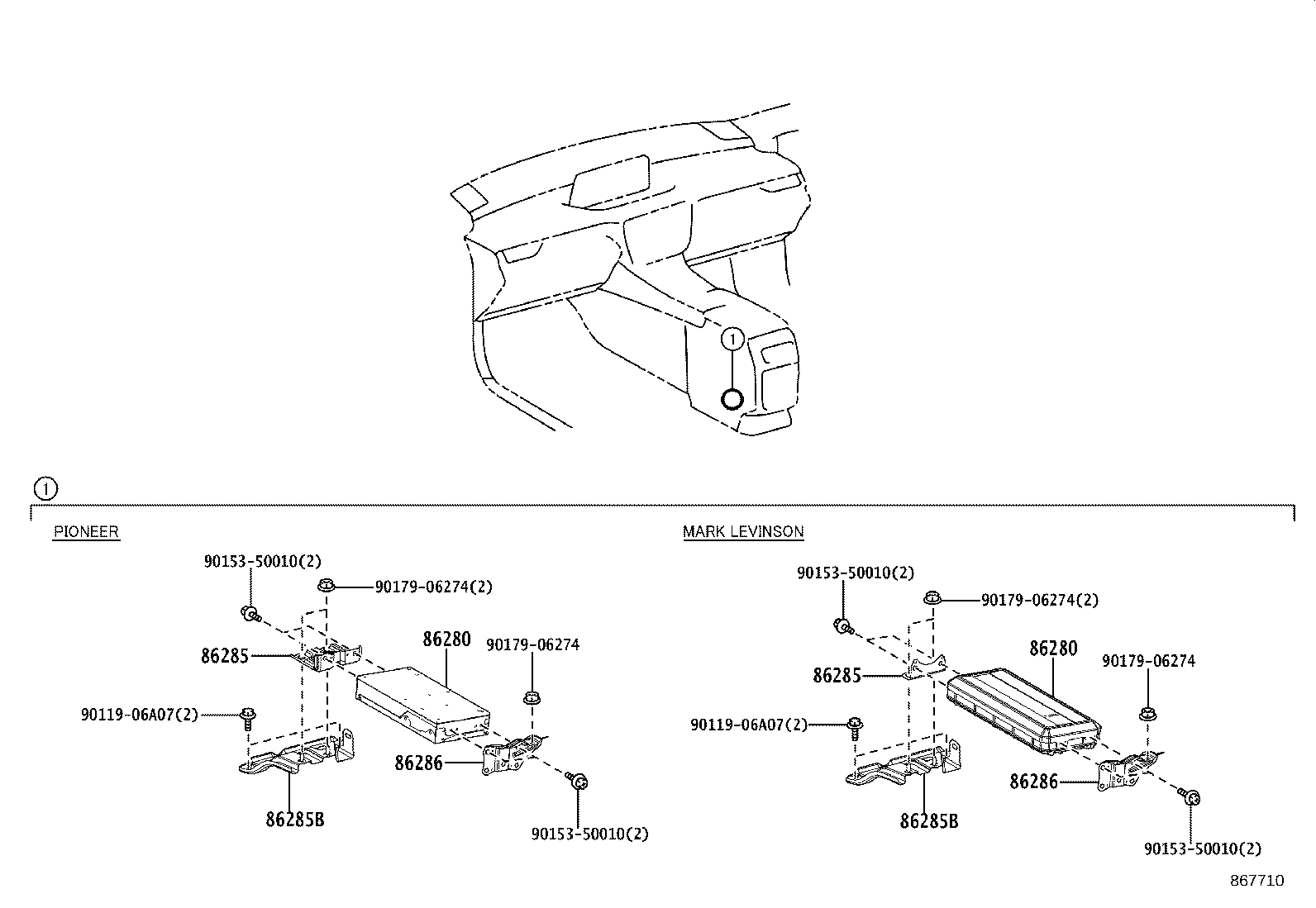

Exploded illustration 867710 86286 — BRACKET, AMPLIFIER, NO.2 (4 parts) 86285B — BRACKET, AMPLIFIER, NO.1 (2 parts) 86280 — AMPLIFIER ASSY, STEREO COMPONENT (15 parts) 86285 — BRACKET, AMPLIFIER, NO.1 (5 parts) 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9015350010 — not listed in this catalogue 9015350010 — not listed in this catalogue 86285B — BRACKET, AMPLIFIER, NO.1 (2 parts) 86286 — BRACKET, AMPLIFIER, NO.2 (4 parts) 86280 — AMPLIFIER ASSY, STEREO COMPONENT (15 parts) 86285 — BRACKET, AMPLIFIER, NO.1 (5 parts) 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9015350010 — not listed in this catalogue 9015350010 — not listed in this catalogue 9011906A07 — not listed in this catalogue 9011906A07 — not listed in this catalogue
867710 · 8 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
26 parts on this figure
Part number Description Fitment Price
86280 — Amplifier Assy, Stereo Component
86280-0WF10 note Amplifier Assy, Stereo Component
2017-12 → 2019-08 ended
GGL26,GYL26 —
86280-48211 note Amplifier Assy, Stereo Component
2017-12 → 2019-08 ended
GGL26,GYL26 —
86280-48271 Amplifier Assy, Stereo Component
2017-12 → 2019-08 ended
GGL26,GYL26 —
86280-48281 note Amplifier Assy, Stereo Component
2017-12 → 2019-08 ended
GGL26,GYL26 —
86280-48291 note Amplifier Assy, Stereo Component
2017-12 → 2019-08 ended
GGL26,GYL26 —
86280-0WG00 note Amplifier Assy, Stereo Component
2019-08 → 2019-09 ended
GGL26,GYL26 LHD —
86280-0WG00 note Amplifier Assy, Stereo Component
2019-08 → 2019-09 ended
GYL26 RHD —
86280-48340 Amplifier Assy, Stereo Component
2019-08 → —
GYL26 RHD —
86280-48340 note Amplifier Assy, Stereo Component
2019-08 → —
GGL26,GYL26 LHD —
86280-48350 Amplifier Assy, Stereo Component
2019-08 → —
GGL26,GYL26 LHD —
86280-48360 note Amplifier Assy, Stereo Component
2019-08 → —
GGL26,GYL26 LHD —
86280-48360 note Amplifier Assy, Stereo Component
2019-08 → —
GYL26 RHD —
86280-48370 note Amplifier Assy, Stereo Component
2019-08 → —
GGL26,GYL26 LHD —
86280-48430 note Amplifier Assy, Stereo Component
2019-10 → —
GGL26,GYL26 LHD —
86280-48430 note Amplifier Assy, Stereo Component
2019-10 → —
GYL26 RHD —
86285 — Bracket, Amplifier, NO.1
86285-48120 Bracket, Amplifier, NO.1
2017-12 → 2019-08 ended
GGL26,GYL26 —
86285-48130 note Bracket, Amplifier, NO.1
2017-12 → 2019-08 ended
GGL26,GYL26 —
86285-48130 note Bracket, Amplifier, NO.1
2019-08 → —
GGL26,GYL26 LHD —
86285-48130 note Bracket, Amplifier, NO.1
2019-08 → —
GYL26 RHD —
86285-48180 Bracket, Amplifier, NO.1
2019-08 → —
GGL26,GYL26 —
86285B — Bracket, Amplifier, NO.1
86285-48150 Bracket, Amplifier, NO.1
2017-12 → 2019-08 ended
GGL26,GYL26 —
86285-48150 Bracket, Amplifier, NO.1
2019-08 → —
GGL26,GYL26 —
86286 — Bracket, Amplifier, NO.2
86286-48100 Bracket, Amplifier, NO.2
2017-12 → 2019-08 ended
GGL26,GYL26 —
86286-48100 note Bracket, Amplifier, NO.2
2019-08 → —
GGL26,GYL26 LHD —
86286-48100 note Bracket, Amplifier, NO.2
2019-08 → —
GYL26 RHD —
86286-48110 Bracket, Amplifier, NO.2
2019-08 → —
GGL26,GYL26 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
