Toyota Lexus RX450HL/350L
2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe
Supported model
Data version 2023-05

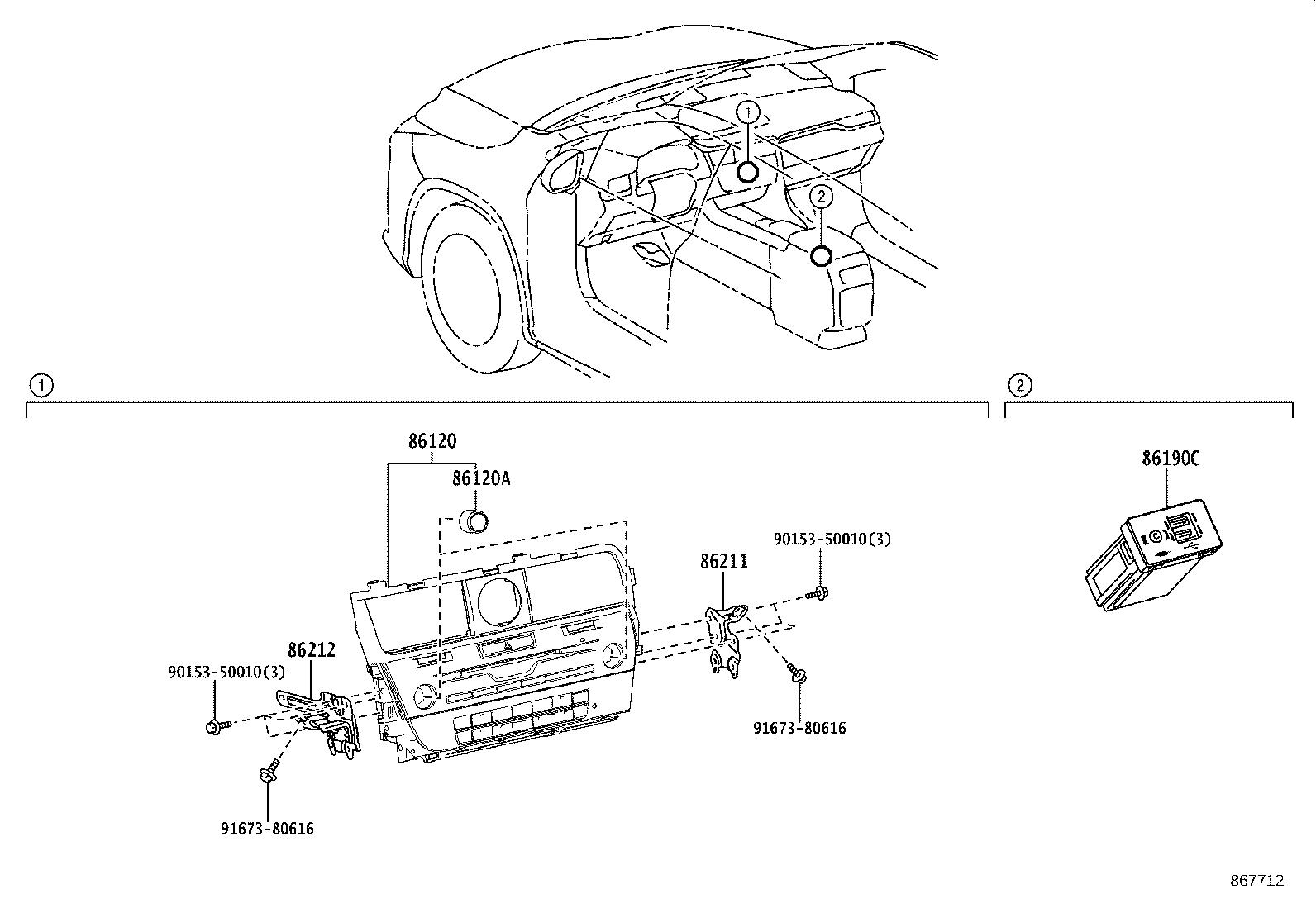

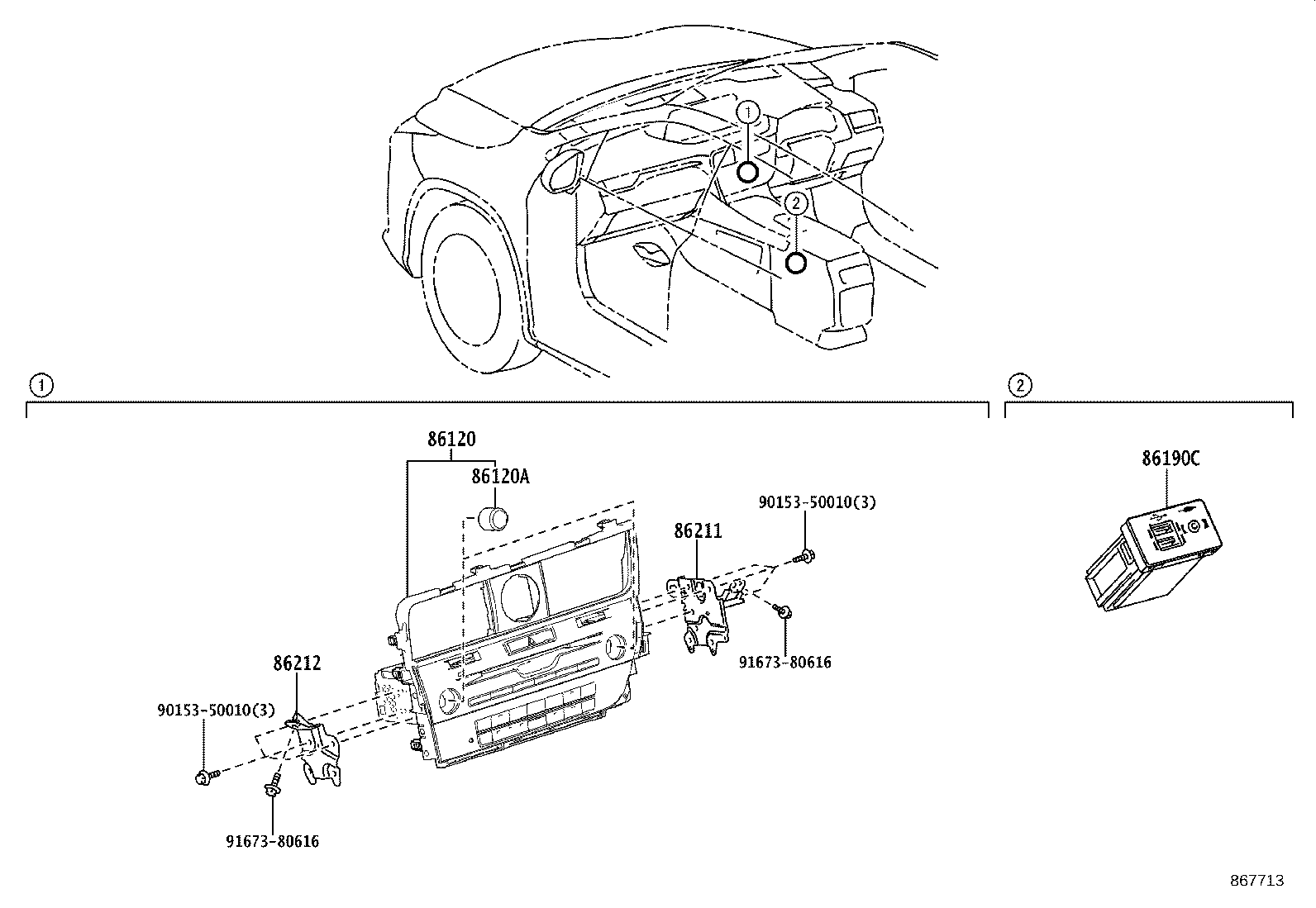

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86120 — Receiver Assy, Radio | ||||
| 86140-48500 note |
Receiver Assy, Radio
2017-12 → 2018-11
ended
|
GGL26 | — | |
| 86140-48501 note |
Receiver Assy, Radio
2018-12 → 2019-08
ended
|
GGL26 | — | |
| 86140-48510 note |
Receiver Assy, Radio
2018-03 → 2019-08
ended
|
GYL26 LHD | — | |
| 86140-48550 note |
Receiver Assy, Radio
2018-03 → 2019-08
ended
|
GYL26 RHD | — | |
| 86140-48570 note |
Receiver Assy, Radio
2017-12 → 2018-11
ended
|
GGL26 | — | |
| 86140-48571 note |
Receiver Assy, Radio
2018-12 → 2019-08
ended
|
GGL26 | — | |
| 86140-48580 note |
Receiver Assy, Radio
2018-03 → 2019-08
ended
|
GYL26 LHD | — | |
| 86140-48590 note |
Receiver Assy, Radio
2018-03 → 2019-08
ended
|
GYL26 RHD | — | |
| 86804-48E80 note |
Receiver Assy, Radio
2017-12 → 2019-08
ended
|
GGL26 | — | |
| 86804-48E90 note |
Receiver Assy, Radio
2017-12 → 2019-08
ended
|
GGL26 | — | |
| 86804-48F00 note |
Receiver Assy, Radio
2018-03 → 2019-08
ended
|
GYL26 LHD | — | |
| 86804-48F10 note |
Receiver Assy, Radio
2018-03 → 2019-08
ended
|
GYL26 LHD | — | |
| 86804-48G00 note |
Receiver Assy, Radio
2018-03 → 2019-08
ended
|
GYL26 RHD | — | |
| 86804-48G10 note |
Receiver Assy, Radio
2018-03 → 2019-08
ended
|
GYL26 RHD | — | |
| 86804-48J20 note |
Receiver Assy, Radio
2018-03 → 2019-08
ended
|
GYL26 LHD | — | |
| 86804-48J30 note |
Receiver Assy, Radio
2018-03 → 2019-08
ended
|
GYL26 LHD | — | |
| 86120-48X50 note |
Receiver Assy, Radio
2019-08 → 2020-07
ended
|
GGL26 | — | |
| 86120-48X50 note |
Receiver Assy, Radio
2019-08 → 2020-07
ended
|
GGL26 | — | |
| 86120-48X50 note |
Receiver Assy, Radio
2019-08 → 2020-07
ended
|
GGL26 | — | |
| 86120-48X70 note |
Receiver Assy, Radio
2019-08 → 2021-02
ended
|
GYL26 LHD | — | |
| 86120-48X71 note |
Receiver Assy, Radio
2021-03 → 2022-09
ended
|
GYL26 LHD | — | |
| 86120-48X80 note |
Receiver Assy, Radio
2019-08 → 2021-02
ended
|
GYL26 LHD | — | |
| 86120-48X81 note |
Receiver Assy, Radio
2021-03 → 2022-09
ended
|
GYL26 LHD | — | |
| 86120-48Y50 note |
Receiver Assy, Radio
2019-08 → 2021-02
ended
|
GYL26 RHD | — | |
| 86120-48Y51 note |
Receiver Assy, Radio
2021-03 → 2022-09
ended
|
GYL26 RHD | — | |
| 86120-48Y60 note |
Receiver Assy, Radio
2019-08 → 2021-02
ended
|
GYL26 RHD | — | |
| 86120-48Y61 note |
Receiver Assy, Radio
2021-03 → 2022-09
ended
|
GYL26 RHD | — | |
| 86120-4D170 note |
Receiver Assy, Radio
2022-01 → 2022-09
ended
|
GGL26 | — | |
| 86120-4D170 note |
Receiver Assy, Radio
2022-01 → 2022-09
ended
|
GGL26 | — | |
| 86120-4D170 note |
Receiver Assy, Radio
2022-01 → 2022-09
ended
|
GGL26 | — | |
| 86120-4D350 note |
Receiver Assy, Radio
2019-08 → 2020-07
ended
|
GGL26 | — | |
| 86120-4D360 note |
Receiver Assy, Radio
2019-08 → 2020-07
ended
|
GGL26 | — | |
| 86120-4D450 note |
Receiver Assy, Radio
2019-08 → 2022-09
ended
|
GYL26 RHD | — | |
| 86120-4D460 note |
Receiver Assy, Radio
2019-08 → 2022-09
ended
|
GYL26 RHD | — | |
| 86120-4D710 note |
Receiver Assy, Radio
2020-07 → 2021-02
ended
|
GGL26 | — | |
| 86120-4D711 note |
Receiver Assy, Radio
2021-03 → 2022-01
ended
|
GGL26 | — | |
| 86120-4D720 note |
Receiver Assy, Radio
2020-07 → 2021-02
ended
|
GGL26 | — | |
| 86120-4D721 note |
Receiver Assy, Radio
2021-03 → 2022-01
ended
|
GGL26 | — | |
| 86120-4D730 note |
Receiver Assy, Radio
2020-07 → 2022-01
ended
|
GGL26 | — | |
| 86120-4D730 note |
Receiver Assy, Radio
2020-07 → 2022-01
ended
|
GGL26 | — | |
| 86120-4D730 note |
Receiver Assy, Radio
2020-07 → 2022-01
ended
|
GGL26 | — | |
| 86120-4D740 note |
Receiver Assy, Radio
2020-07 → 2022-01
ended
|
GGL26 | — | |
| 86120-4D740 note |
Receiver Assy, Radio
2020-07 → 2022-01
ended
|
GGL26 | — | |
| 86120-4D740 note |
Receiver Assy, Radio
2020-07 → 2022-01
ended
|
GGL26 | — | |
| 86120-4DA10 note |
Receiver Assy, Radio
2022-01 → 2022-09
ended
|
GGL26 | — | |
| 86120-4DA10 note |
Receiver Assy, Radio
2022-01 → 2022-09
ended
|
GGL26 | — | |
| 86120-4DA10 note |
Receiver Assy, Radio
2022-01 → 2022-09
ended
|
GGL26 | — | |
| 86120-4DA20 note |
Receiver Assy, Radio
2022-01 → 2022-09
ended
|
GGL26 | — | |
| 86120-4DA30 note |
Receiver Assy, Radio
2022-01 → 2022-09
ended
|
GGL26 | — | |
| 86140-48890 note |
Receiver Assy, Radio
2019-08 → 2020-07
ended
|
GGL26 | — | |
| 86140-48890 note |
Receiver Assy, Radio
2019-08 → 2020-07
ended
|
GGL26 | — | |
| 86140-48890 note |
Receiver Assy, Radio
2019-08 → 2020-07
ended
|
GGL26 | — | |
| 86140-48890 note |
Receiver Assy, Radio
2019-08 → 2020-07
ended
|
GGL26 | — | |
| 86140-48890 note |
Receiver Assy, Radio
2019-08 → 2020-07
ended
|
GGL26 | — | |
| 86140-48A00 note |
Receiver Assy, Radio
2019-08 → 2020-06
ended
|
GYL26 LHD | — | |
| 86140-48A01 note |
Receiver Assy, Radio
2020-07 → 2022-01
ended
|
GGL26 | — | |
| 86140-48A01 note |
Receiver Assy, Radio
2020-07 → 2022-01
ended
|
GYL26 LHD | — | |
| 86140-48A01 note |
Receiver Assy, Radio
2020-07 → 2022-01
ended
|
GGL26 | — | |
| 86140-48A01 note |
Receiver Assy, Radio
2020-07 → 2022-01
ended
|
GGL26 | — | |
| 86140-48A01 note |
Receiver Assy, Radio
2020-07 → 2022-01
ended
|
GGL26 | — | |
| 86140-48A01 note |
Receiver Assy, Radio
2020-07 → 2022-01
ended
|
GGL26 | — | |
| 86140-48A60 note |
Receiver Assy, Radio
2019-08 → 2020-07
ended
|
GGL26 | — | |
| 86140-48A70 note |
Receiver Assy, Radio
2019-08 → 2020-06
ended
|
GYL26 LHD | — | |
| 86140-48A70 note |
Receiver Assy, Radio
2019-08 → 2020-06
ended
|
GYL26 LHD | — | |
| 86140-48A70 note |
Receiver Assy, Radio
2019-08 → 2020-06
ended
|
GYL26 LHD | — | |
| 86140-48A70 note |
Receiver Assy, Radio
2019-08 → 2020-06
ended
|
GYL26 LHD | — | |
| 86140-48A70 note |
Receiver Assy, Radio
2019-08 → 2020-06
ended
|
GYL26 LHD | — | |
| 86140-48A71 note |
Receiver Assy, Radio
2020-07 → 2022-01
ended
|
GGL26 | — | |
| 86140-48A71 note |
Receiver Assy, Radio
2020-07 → 2022-01
ended
|
GYL26 LHD | — | |
| 86140-48A71 note |
Receiver Assy, Radio
2020-07 → 2021-07
ended
|
GYL26 LHD | — | |
| 86140-48A71 note |
Receiver Assy, Radio
2020-07 → 2022-01
ended
|
GYL26 LHD | — | |
| 86140-48B80 note |
Receiver Assy, Radio
2022-01 → 2022-09
ended
|
GYL26 LHD | — | |
| 86140-48B80 note |
Receiver Assy, Radio
2022-01 → 2022-09
ended
|
GGL26 | — | |
| 86140-48B80 note |
Receiver Assy, Radio
2022-01 → 2022-09
ended
|
GGL26 | — | |
| 86140-48B80 note |
Receiver Assy, Radio
2022-01 → 2022-09
ended
|
GGL26 | — | |
| 86140-48B80 note |
Receiver Assy, Radio
2022-01 → 2022-09
ended
|
GGL26 | — | |
| 86140-48B80 note |
Receiver Assy, Radio
2022-01 → 2022-09
ended
|
GGL26 | — | |
| 86140-48J90 note |
Receiver Assy, Radio
2022-01 → 2022-09
ended
|
GGL26 | — | |
| 86140-48J90 note |
Receiver Assy, Radio
2022-01 → 2022-09
ended
|
GYL26 LHD | — | |
| 86140-48J90 note |
Receiver Assy, Radio
2022-01 → 2022-09
ended
|
GYL26 LHD | — | |
| 86120A — Knob, Radio Receiver Switch | ||||
| 90010-22113 |
Knob, Radio Receiver Switch
2017-12 → 2019-08
ended
|
GGL26,GYL26 | — | |
| 90010-22134 |
Knob, Radio Receiver Switch
2019-08 → 2022-09
ended
|
GGL26,GYL26 | — | |
| 86190C — Adapter Assy, Stereo Jack, NO.1 | ||||
| 86190-78010 |
Adapter Assy, Stereo Jack, NO.1
2017-12 → 2019-08
ended
|
GGL26,GYL26 | — | |
| 86190-24030 |
Adapter Assy, Stereo Jack, NO.1
2019-08 → —
|
GGL26,GYL26 | — | |
| 86211 — Bracket, Radio, NO.1 | ||||
| 86211-48160 note |
Bracket, Radio, NO.1
2018-03 → 2019-08
ended
|
GYL26 RHD | — | |
| 86211-48160 note |
Bracket, Radio, NO.1
2018-03 → 2019-08
ended
|
GYL26 RHD | — | |
| 86211-48200 note |
Bracket, Radio, NO.1
2017-12 → 2019-08
ended
|
GGL26,GYL26 LHD | — | |
| 86211-48200 note |
Bracket, Radio, NO.1
2017-12 → 2019-08
ended
|
GGL26,GYL26 LHD | — | |
| 86211-48200 note |
Bracket, Radio, NO.1
2018-03 → 2019-08
ended
|
GYL26 LHD | — | |
| 86211-48200 note |
Bracket, Radio, NO.1
2018-03 → 2019-08
ended
|
GYL26 LHD | — | |
| 86211-48210 |
Bracket, Radio, NO.1
2018-03 → 2019-08
ended
|
GYL26 RHD | — | |
| 86211-48220 |
Bracket, Radio, NO.1
2017-12 → 2019-08
ended
|
GGL26,GYL26 LHD | — | |
| 86211-48250 |
Bracket, Radio, NO.1
2019-08 → —
|
GYL26 RHD | — | |
| 86211-48260 |
Bracket, Radio, NO.1
2019-08 → —
|
GGL26,GYL26 LHD | — | |
| 86212 — Bracket, Radio, NO.2 | ||||
| 86212-48160 note |
Bracket, Radio, NO.2
2018-03 → 2019-08
ended
|
GYL26 RHD | — | |
| 86212-48160 note |
Bracket, Radio, NO.2
2018-03 → 2019-08
ended
|
GYL26 RHD | — | |
| 86212-48200 note |
Bracket, Radio, NO.2
2017-12 → 2019-08
ended
|
GGL26,GYL26 LHD | — | |
| 86212-48200 note |
Bracket, Radio, NO.2
2017-12 → 2019-08
ended
|
GGL26,GYL26 LHD | — | |
| 86212-48200 note |
Bracket, Radio, NO.2
2018-03 → 2019-08
ended
|
GYL26 LHD | — | |
| 86212-48200 note |
Bracket, Radio, NO.2
2018-03 → 2019-08
ended
|
GYL26 LHD | — | |
| 86212-48210 |
Bracket, Radio, NO.2
2018-03 → 2019-08
ended
|
GYL26 RHD | — | |
| 86212-48220 |
Bracket, Radio, NO.2
2017-12 → 2019-08
ended
|
GGL26,GYL26 LHD | — | |
| 86212-48240 |
Bracket, Radio, NO.2
2019-08 → —
|
GYL26 RHD | — | |
| 86212-48250 |
Bracket, Radio, NO.2
2019-08 → —
|
GGL26,GYL26 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
