Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

11 part groups · 2 illustrations

Illustrations

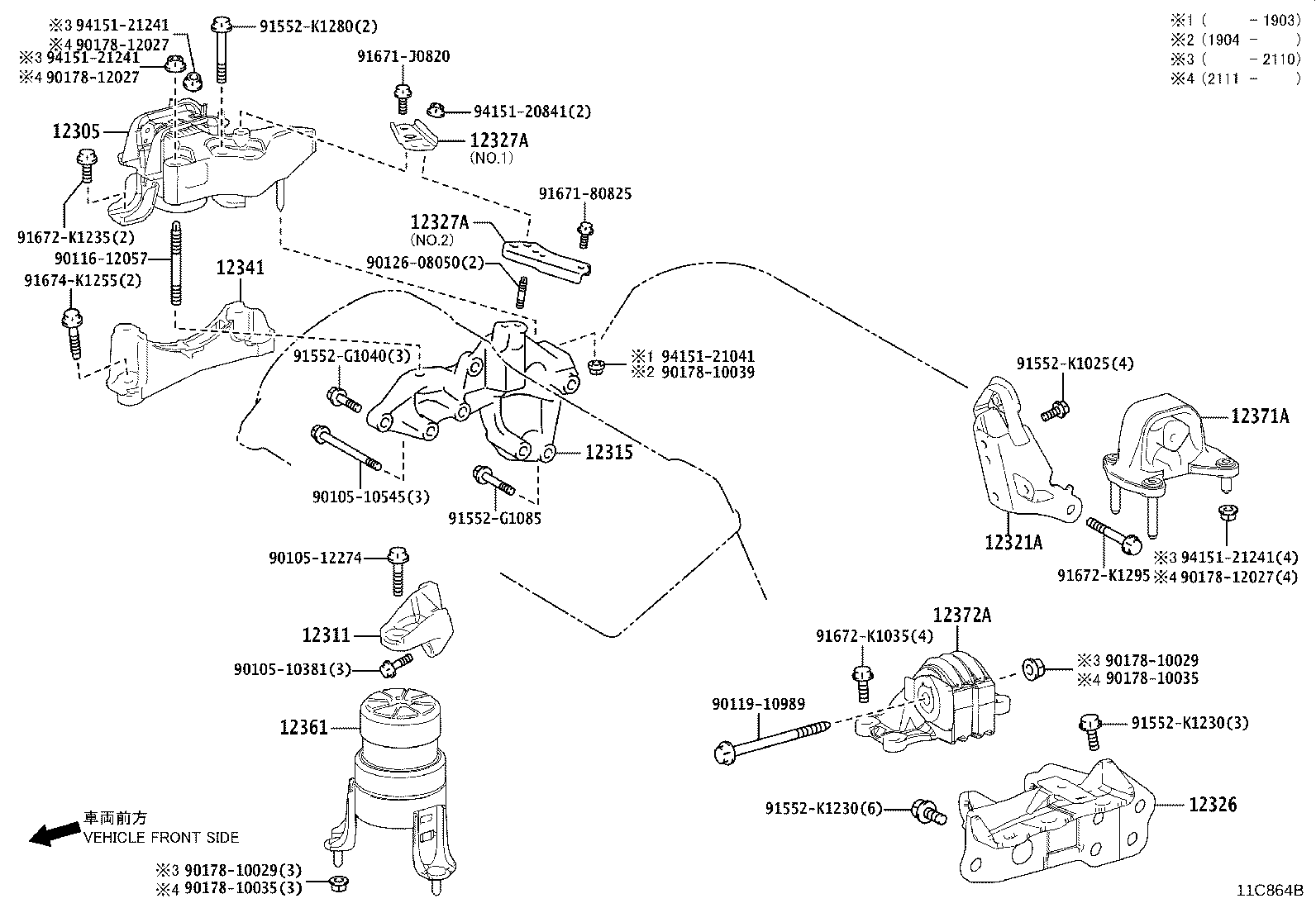

Figure 11C865B 11C865B 2017-12 → — Figure 11C864B 11C864B 2018-03 → —

Part groups

PNCDescription
12304 Bracket Sub-assy, Engine Mounting, LH
12305 Insulator Sub-assy, Engine Mounting, RH
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12326 Bracket, Engine Mounting Stay
12327A Stay, Engine Mounting, NO.2 RH
12341 Spacer, Engine Mounting
12361 Insulator, Engine Mounting, Front
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
