Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

14 part groups · 2 illustrations

Illustrations

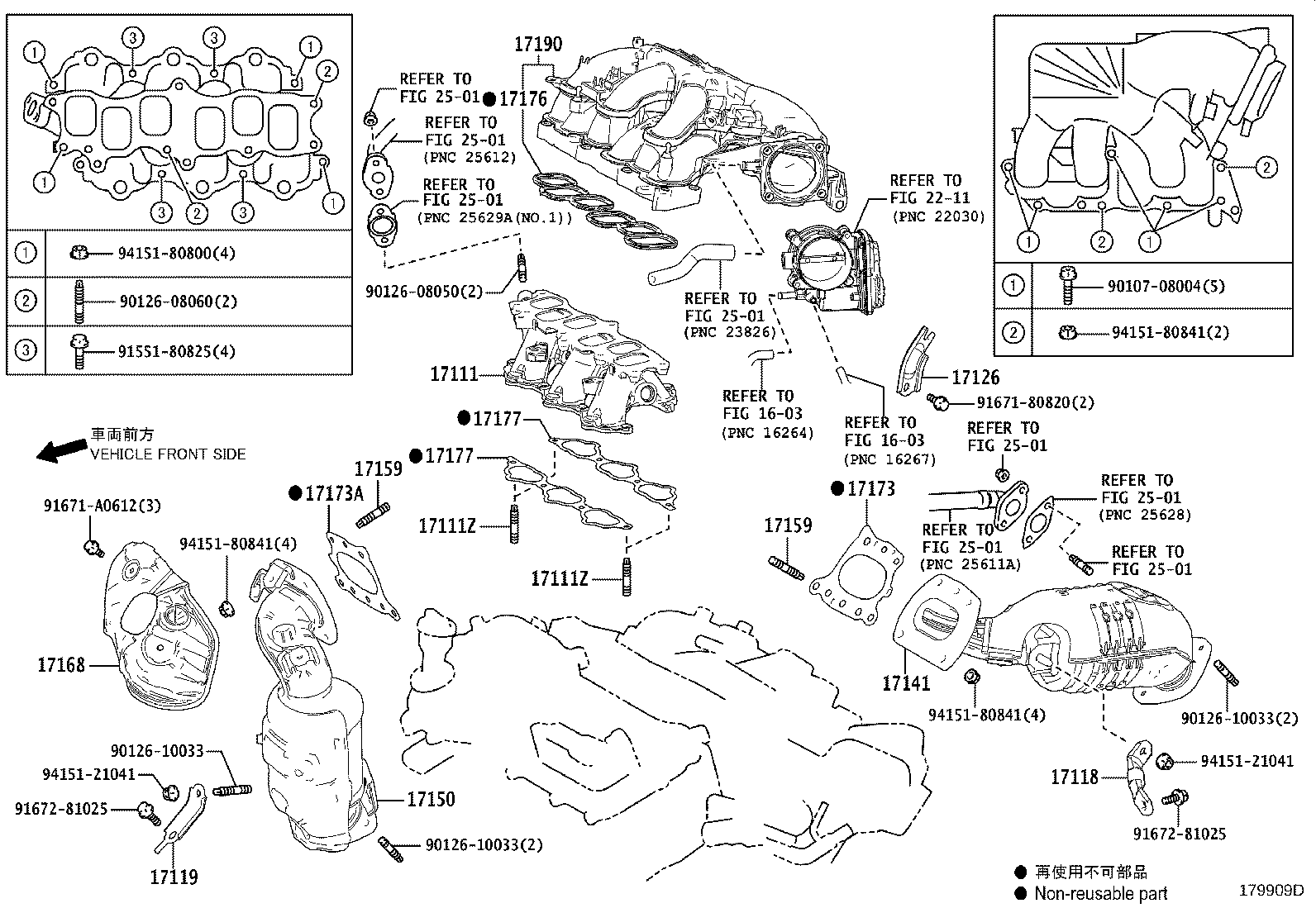

Figure 179908C 179908C 2017-12 → — Figure 179909D 179909D 2018-03 → —

Part groups

PNCDescription
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17126 Stay, Surge Tank, NO.2
17141 Manifold, Exhaust
17150 Manifold Assy, Exhaust, LH
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17190 Tank Assy, Intake Air Surge
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
