Toyota Lexus RX450HL/350L
2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe
Supported model
Data version 2023-05
Starter
10 part groups · 2 illustrations
Part groups

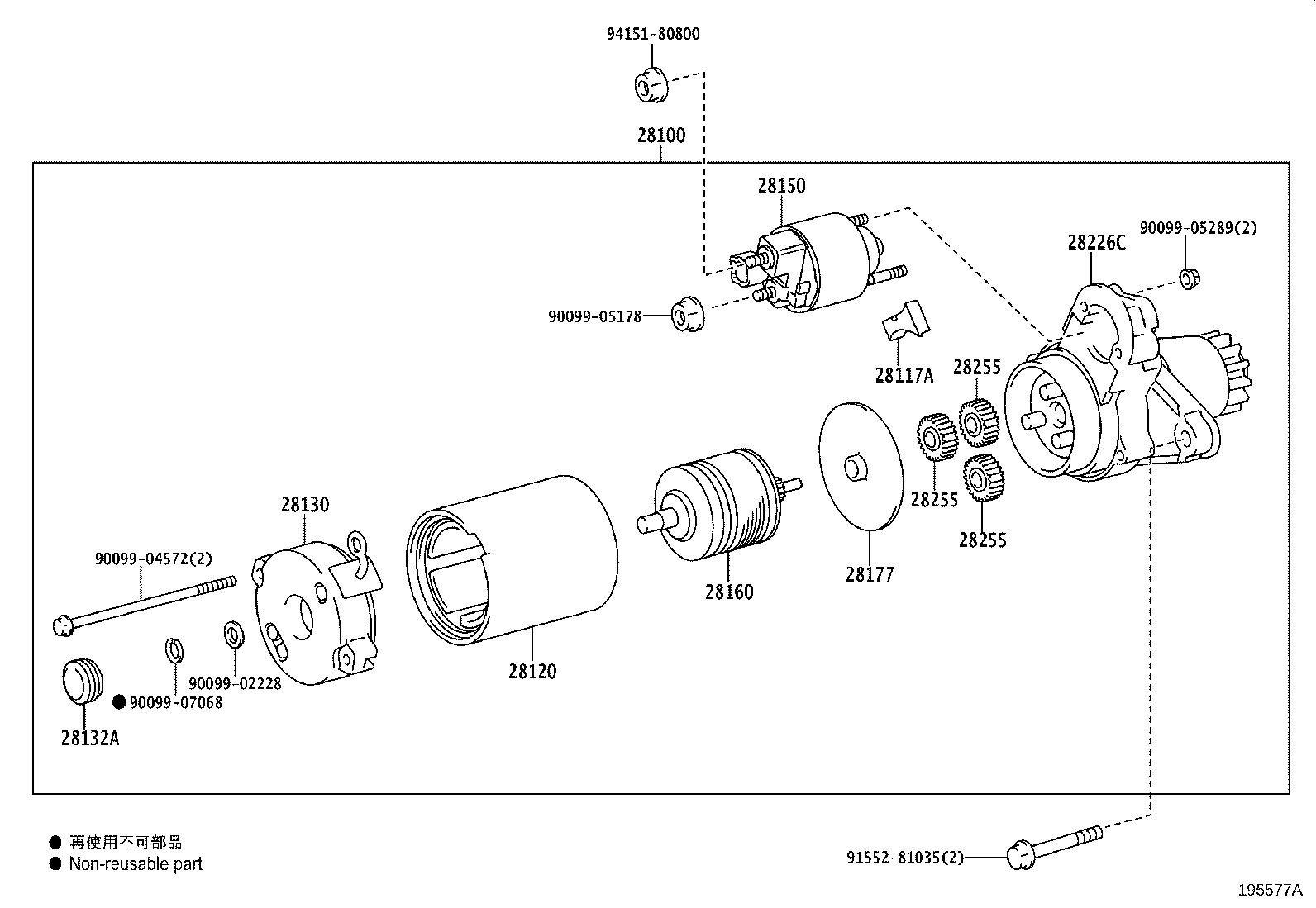

| PNC | Description |
|---|---|
| 28100 | Starter Assy |
| 28117A | Seal, Rubber |
| 28120 | Yoke Assy, Starter |
| 28130 | Frame Assy, Starter Commutator End |
| 28132A | Cover, Starter Commutator End Frame |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28177 | Plate(FOR STARTER ARMATURE) |
| 28226C | Starter Kit, Repair Service, NO.2 |
| 28255 | Gear, Planet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
