Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 2 illustrations

Illustrations

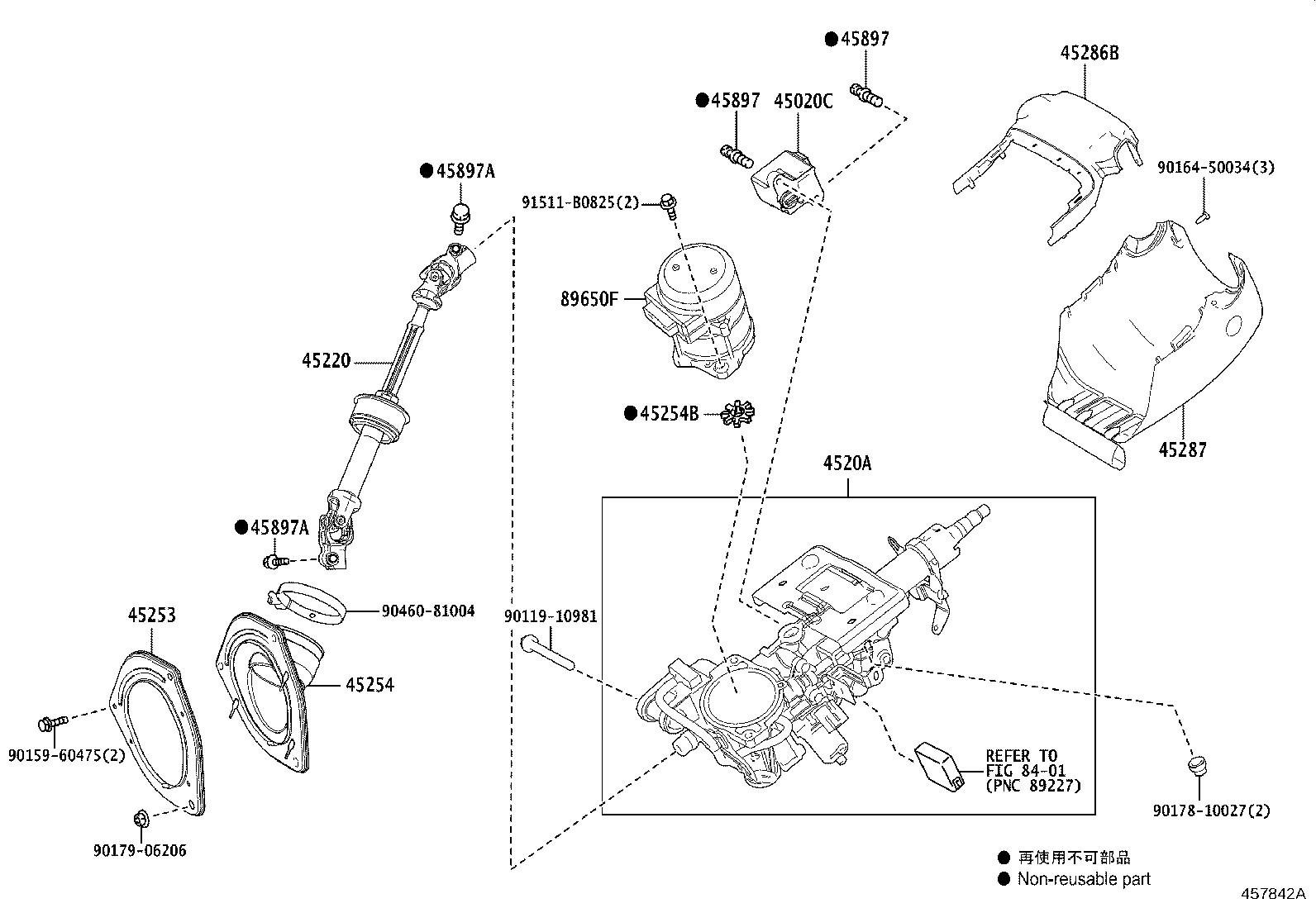

Figure 457333D 457333D 2017-12 → — Figure 457842A 457842A 2018-03 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
4520A Column Sub-assy, Electric Power Steering
45220 Shaft Assy, Steering Intermediate
45253 Cover, Steering Column Hole
45254 Shield, Steering Column Hole
45254B Damper, Electric Power Steering Motor Shaft
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45897 Bolt, Steering Lock Set
45897A Bolt, Tilt Steering Pawl Set
89650F Computer Assy, Power Steering W/Motor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
