Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

6 part groups · 3 illustrations

Illustrations

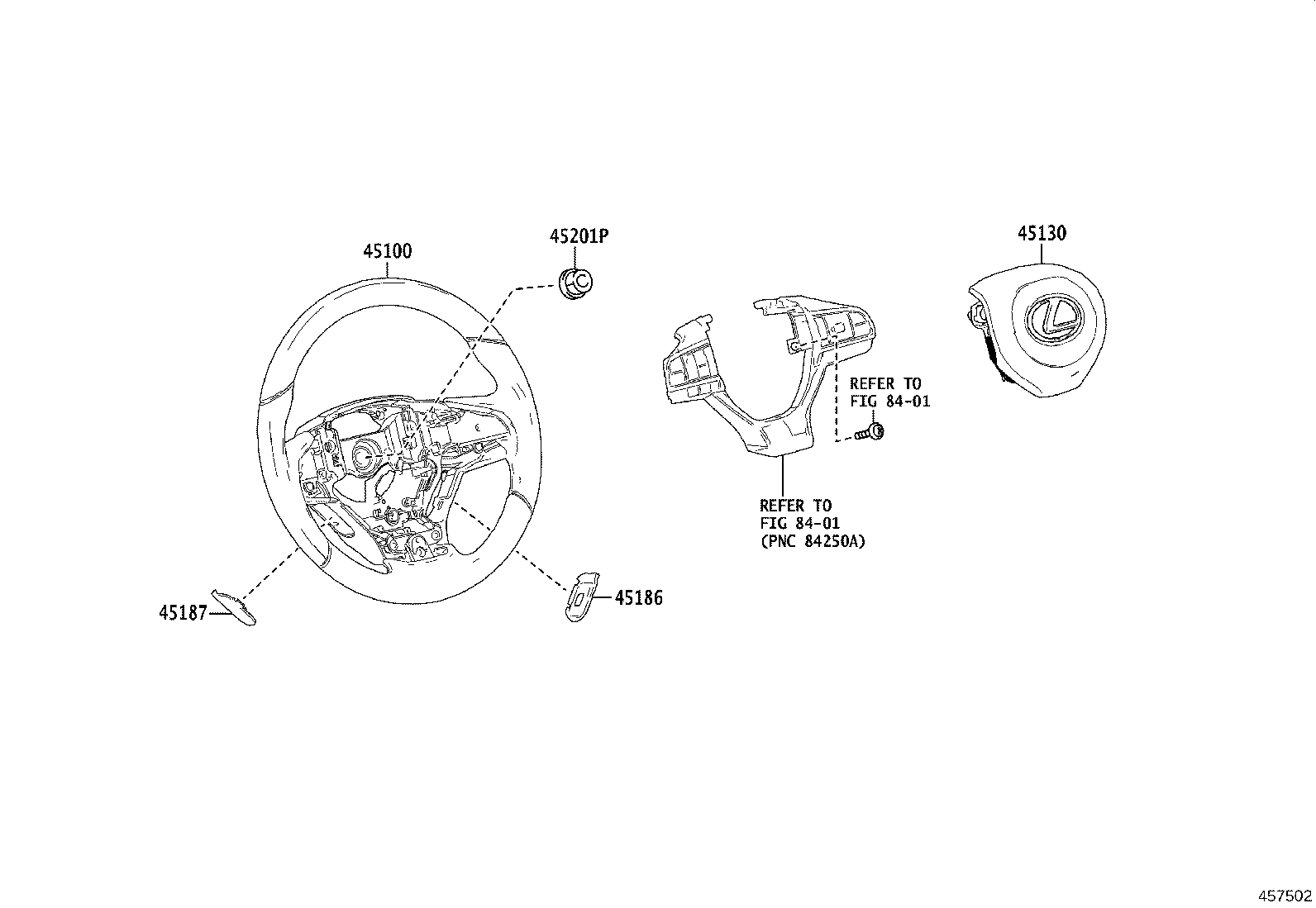

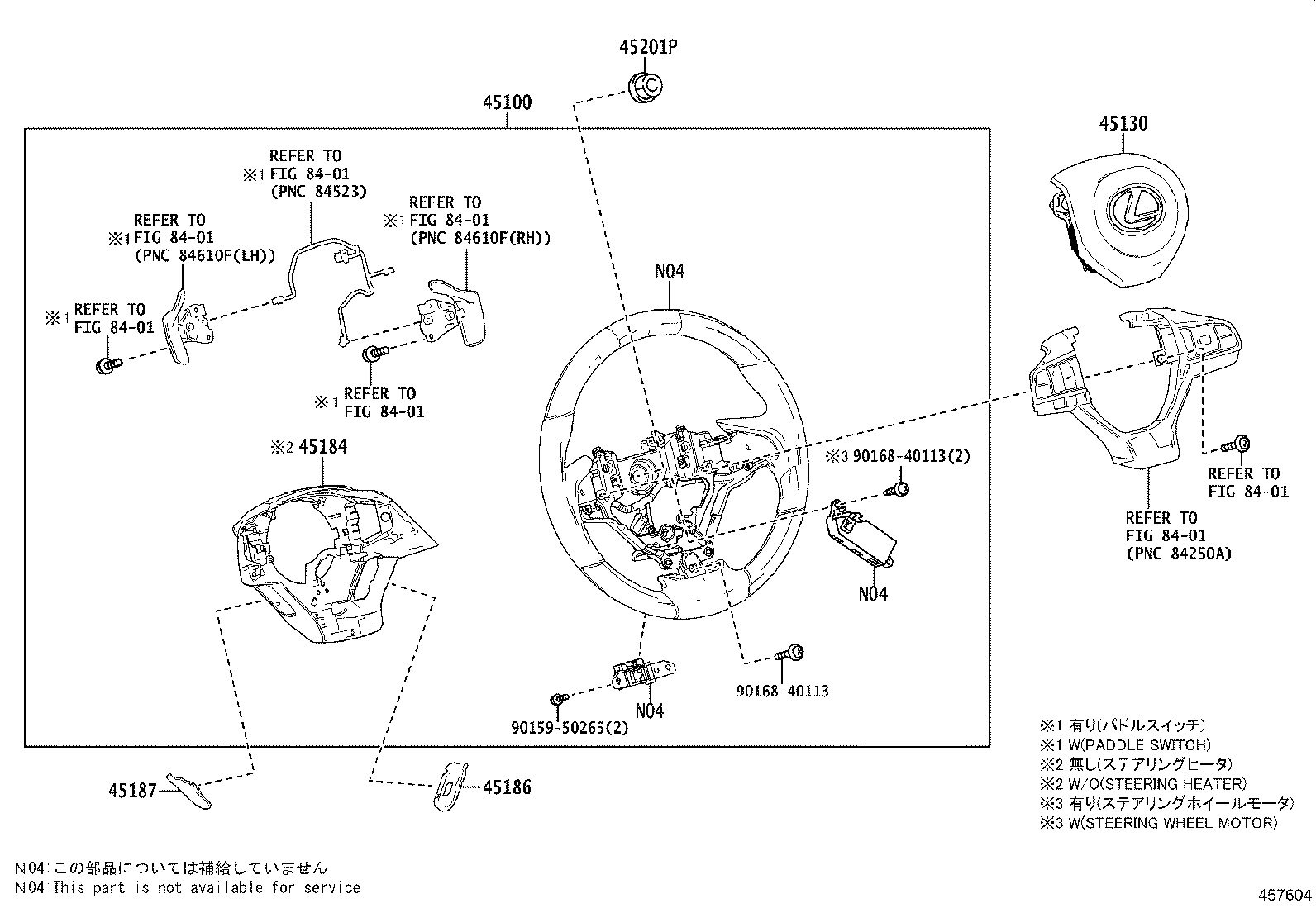

Figure 457603 457603 2017-12 → 2019-08 Figure 457502 457502 2019-02 → 2019-08 Figure 457604 457604 2019-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45130 Button Assy, Horn
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
