Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe

Supported model Data version 2023-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

8 part groups · 2 illustrations

Illustrations

Figure 457329B

457329B 2017-12 → —

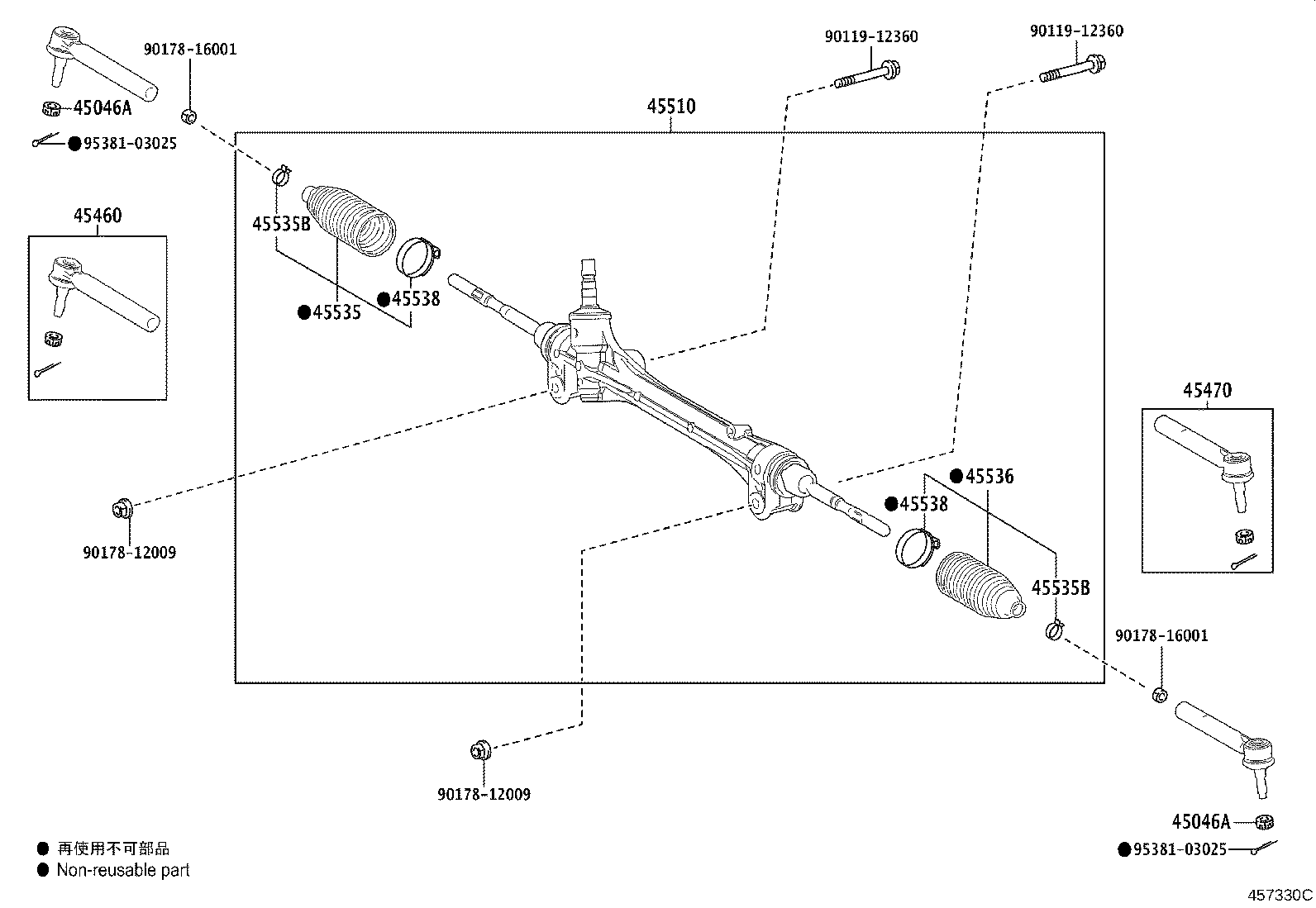

Figure 457330C

457330C 2018-03 → —

Part groups

PNC	Description
45046A	Nut, Castle(FOR TIE ROD END)
45460	Rod Assy, Tie, RH
45470	Rod Assy, Tie, LH
45510	Gear Assy, Steering
45535	Boot, Steering Rack, NO.1
45535B	Clip(FOR STEERING RACK BOOT)
45536	Boot, Steering Rack, NO.2
45538	Retainer, Steering Rack Boot

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
