Toyota Lexus RX450HL/350L
2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe
Supported model
Data version 2023-05

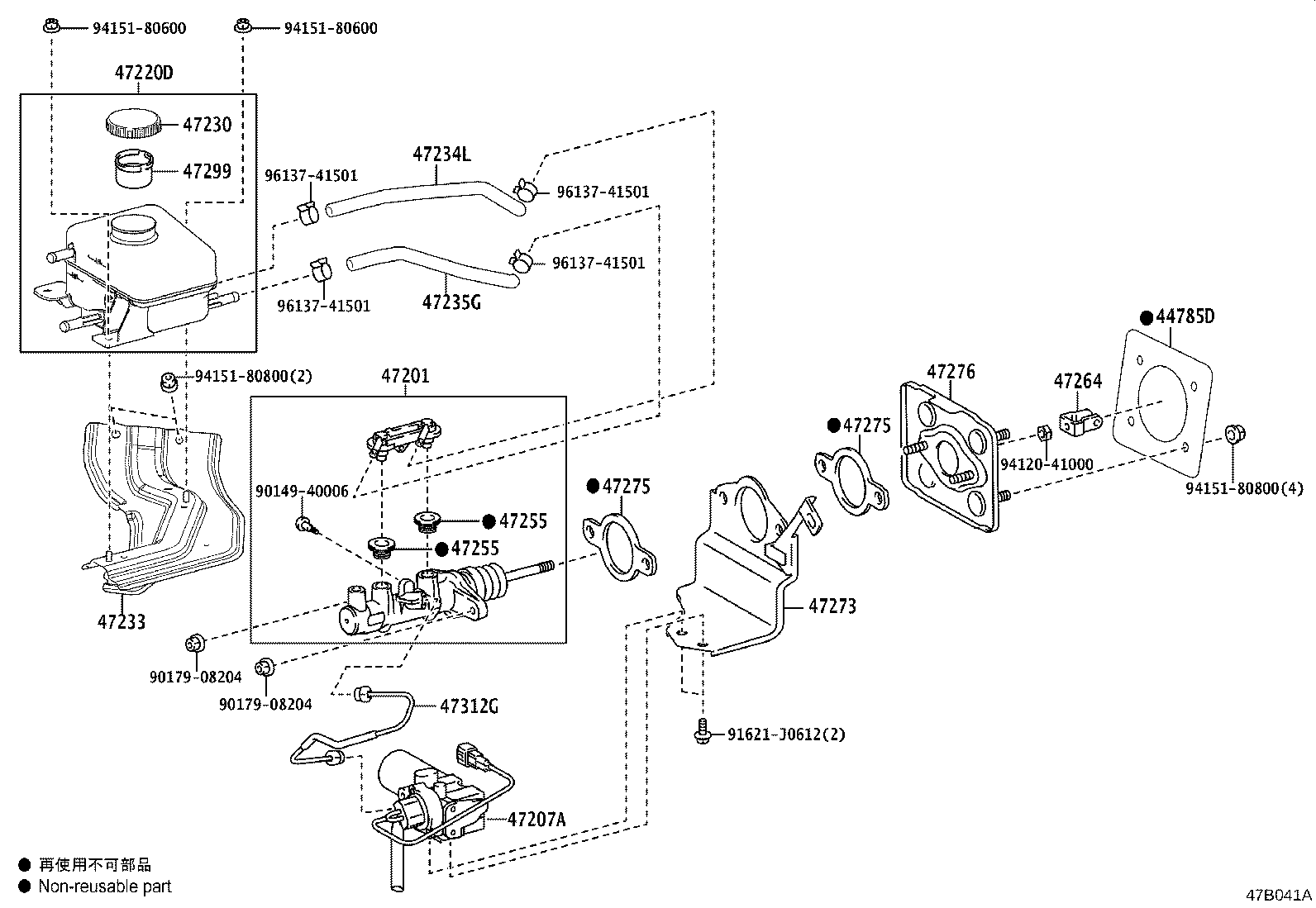

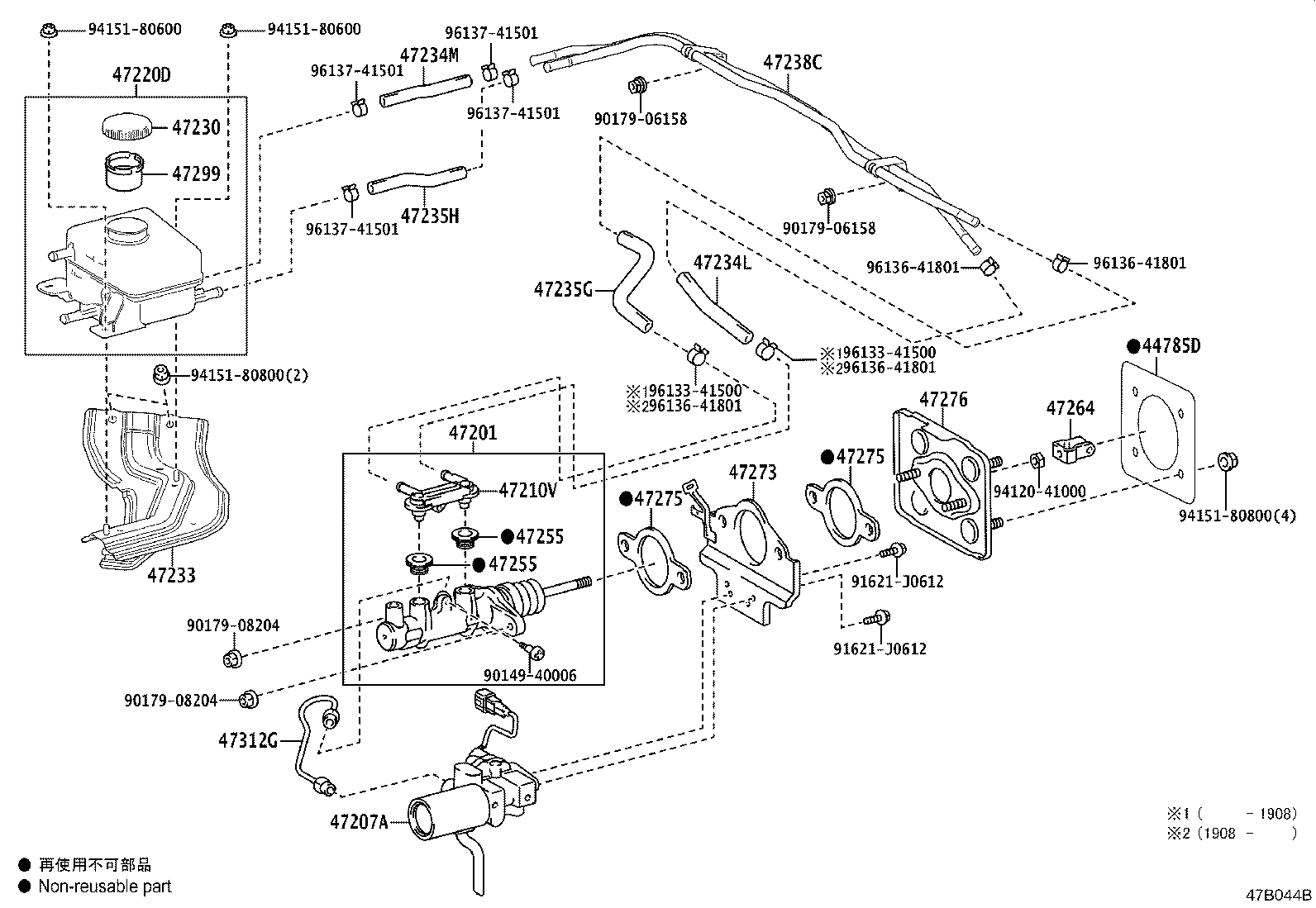

Brake Master Cylinder
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 44785D | Gasket, Brake Master Cylinder |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47201B | Ring, O(FOR BRAKE MASTER CYLINDER) |
| 47201C | Ring Pin, Brake Master Cylinder |
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47207A | Cylinder Sub-assy, Brake Stroke Simulator |
| 47210V | Union(FOR BRAKE MASTER CYLINDER) |
| 47220D | Reservoir Assy, Brake Master Cylinder |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47233 | Bracket, Reservoir |
| 47234L | Hose, Reservoir, NO.1 |
| 47234M | Hose, Reservoir, NO.1 |
| 47234U | Clip(FOR RESERVOIR HOSE NO.1) |
| 47235G | Hose, Reservoir, NO.2 |
| 47235H | Hose, Reservoir, NO.2 |
| 47238C | Tube, Reservoir |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47273 | Bracket, Brake Stroke Simulator |
| 47275 | Gasket, Brake Master Cylinder |
| 47276 | Bracket, Brake Master Cylinder |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
| 47312G | Tube, Brake Stroke Simulator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
