Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

35 part groups · 6 illustrations

Illustrations

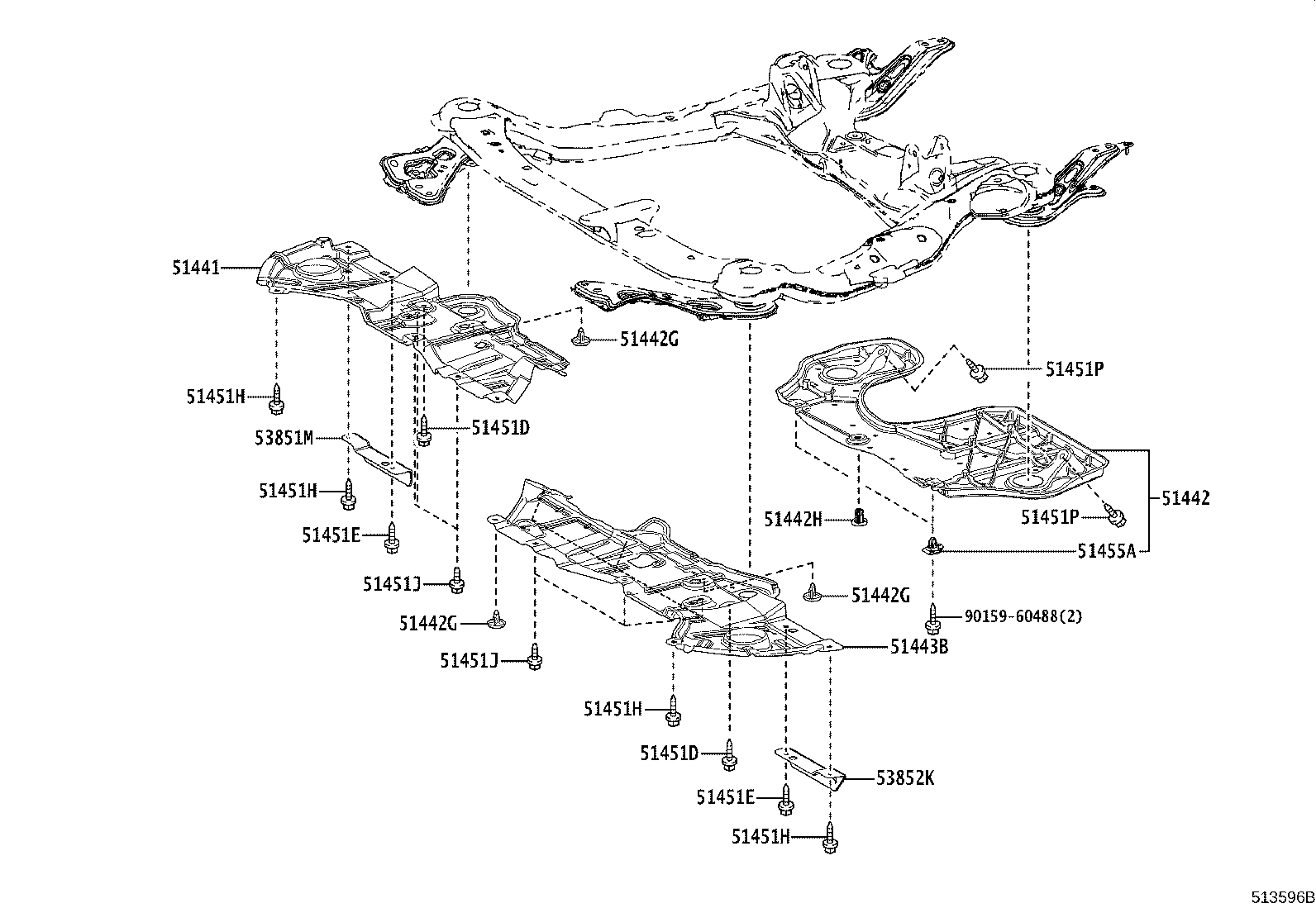

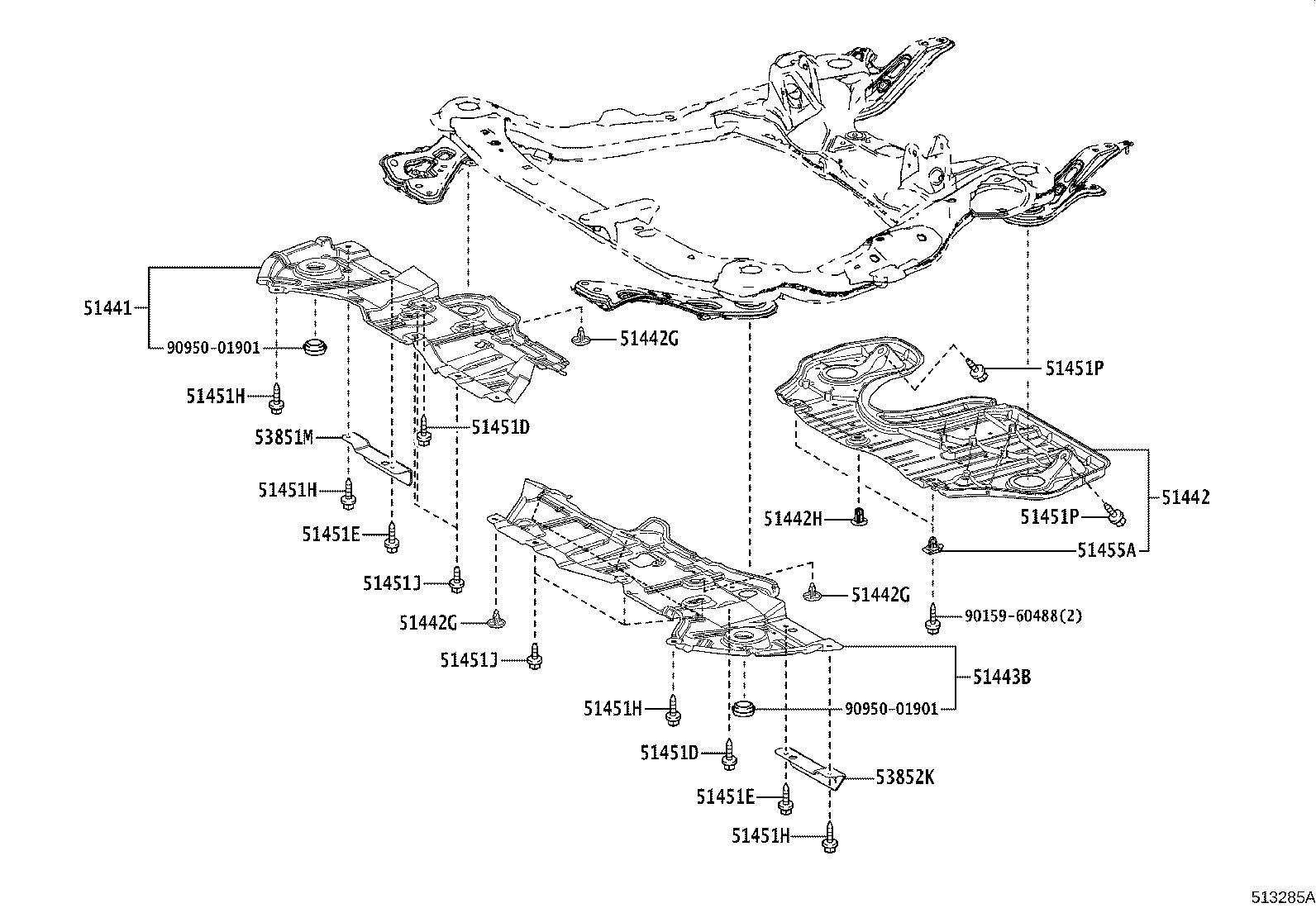

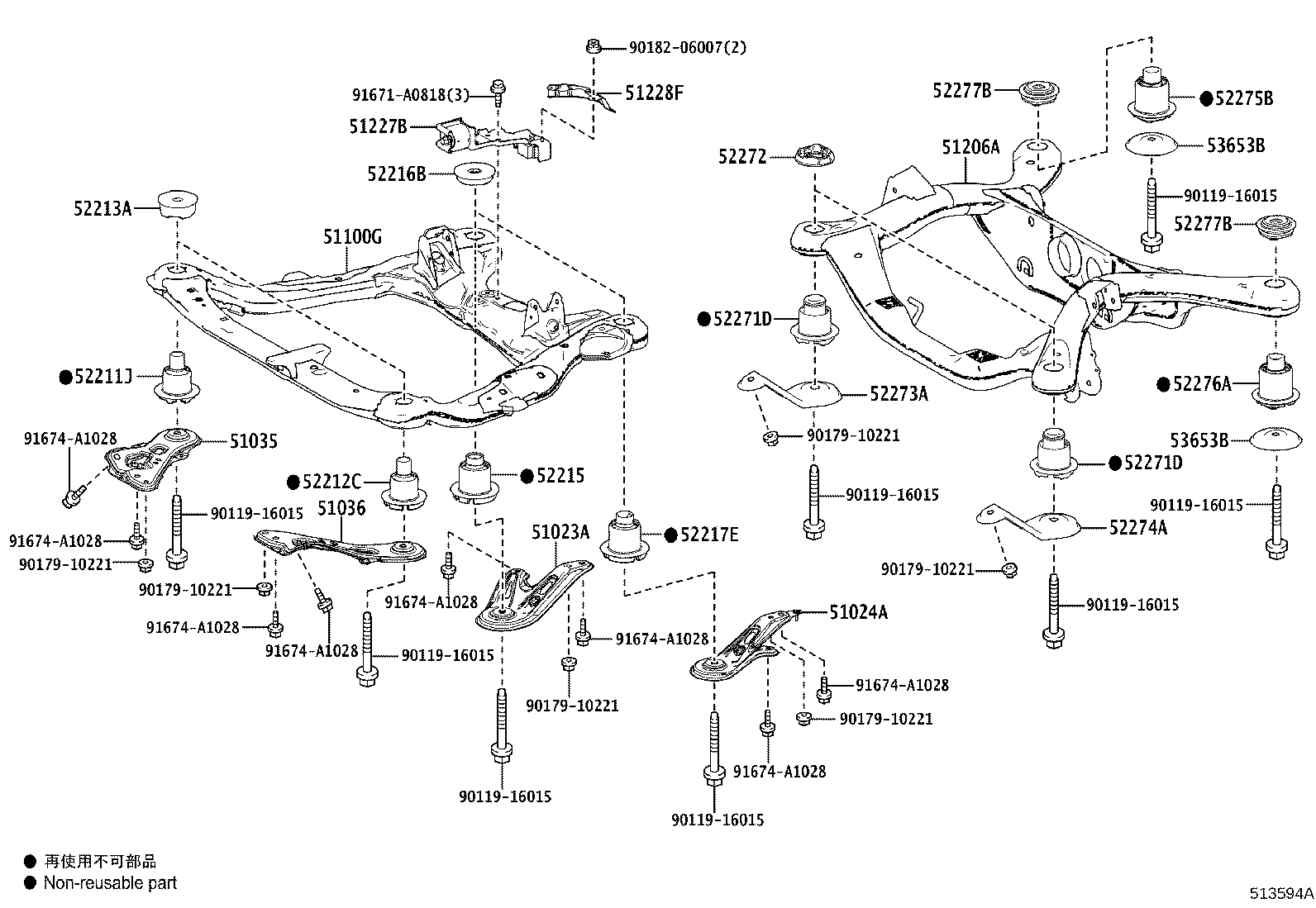

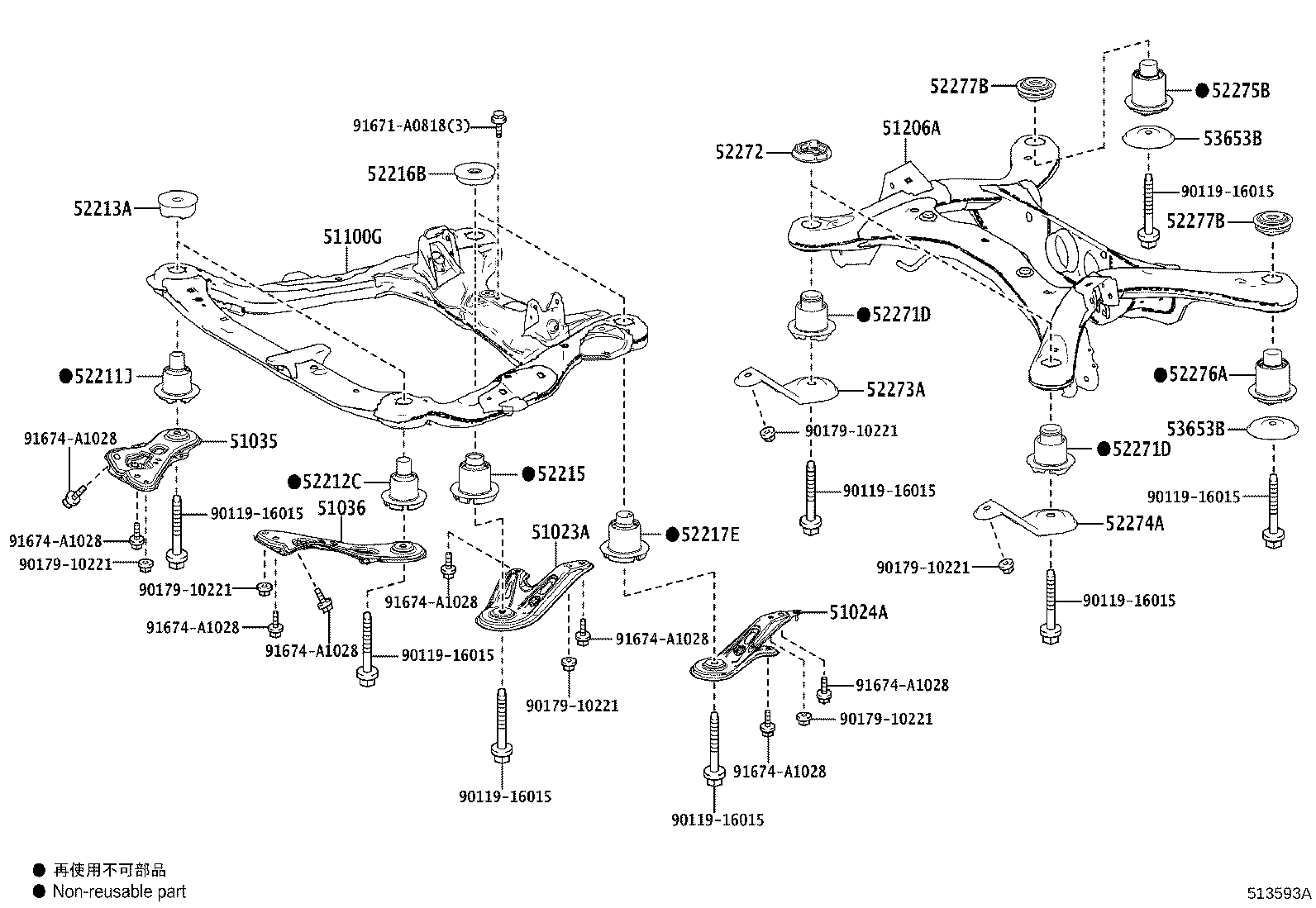

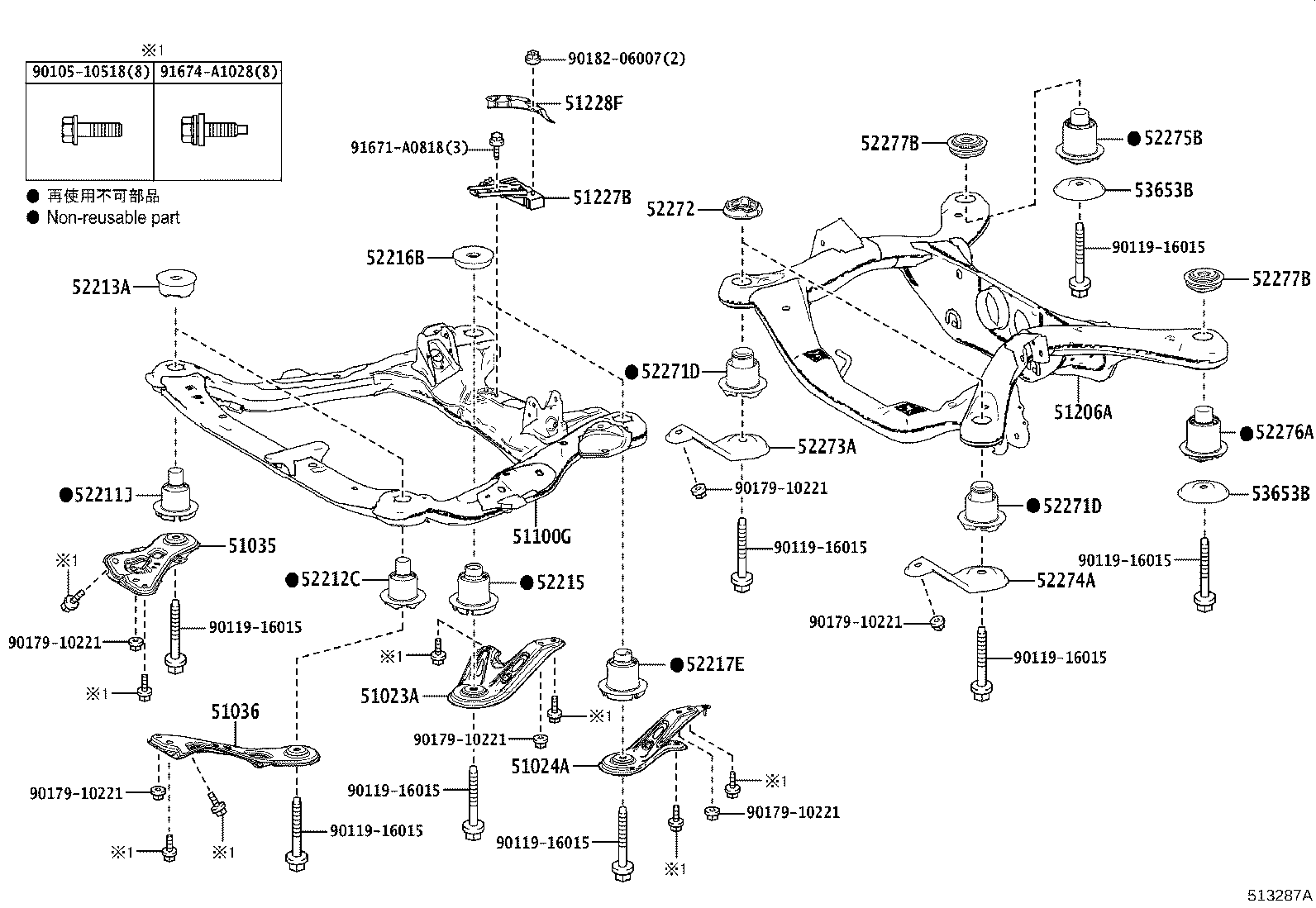

Figure 513288A 513288A 2017-12 → 2019-08 Figure 513287A 513287A 2018-03 → 2019-08 Figure 513593A 513593A 2019-08 → — Figure 513594A 513594A 2019-08 → — Figure 513285A 513285A 2017-12 → 2019-08 Figure 513596B 513596B 2019-08 → —

Part groups

PNCDescription
51023A Bracket Sub-assy, Front Suspension Member, RH
51024A Bracket Sub-assy, Front Suspension Member, LH
51035 Plate Sub-assy, Frame Side Rail, RH
51036 Plate Sub-assy, Frame Side Rail, LH
51100G Frame Assy, Front
51206A Member Sub-assy, Rear Suspension
51227B Damper, Front Suspension Member Dynamic
51228F Plate, Front Suspension Member Dumper
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51442G Clip, Engine Under Cover, NO.1
51442H Clip, Engine Under Cover, NO.2
51443B Cover, Engine Under, NO.3
51451D Screw, NO.1
51451E Screw, NO.2
51451H Screw, NO.3
51451J Bolt, NO.1
51451P Bolt, NO.2
51455A Seal, Engine Under Cover, NO.1
52211J Cushion, Front Suspension Member Body Mounting, Front
52212C Cushion, Front Suspension Member Body Mounting, Front LH
52213A Stopper, Front Suspension Member Body Mounting, Front
52215 Cushion, Front Suspension Member Body Mounting, Rear
52216B Stopper, Front Suspension Member Body Mounting, Rear
52217E Cushion, Front Suspension Member Body Mounting, Rear LH
52271D Cushion, Rear Suspension Member Body Mounting, Front
52272 Stopper, Rear Suspension Member, Upper
52273A Stopper, Rear Suspension Member, Lower RH
52274A Stopper, Rear Suspension Member, Lower LH
52275B Cushion, Rear Suspension Member Body Mount, Rear RH
52276A Cushion, Rear Suspension Member Body Mount, Rear LH
52277B Stopper, Rear Suspension Member, Rear Upper
53653B Brace, Rear Suspension, Lower
53851M Pad, Front Wheel Opening Extension, RH
53852K Pad, Front Wheel Opening Extension, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
