Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

15 part groups · 2 illustrations

Illustrations

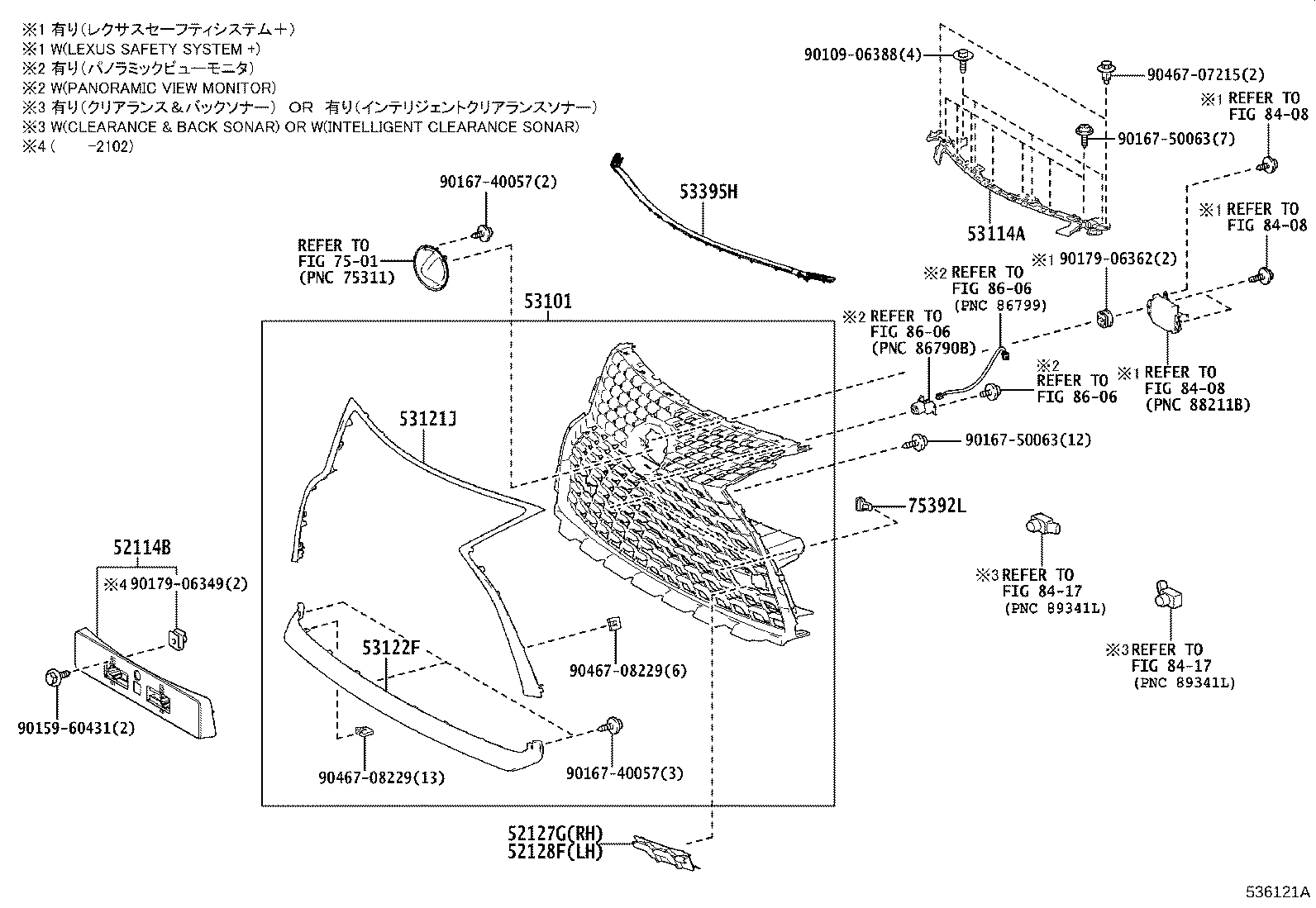

Figure 535498C 535498C 2017-12 → 2019-08 Figure 536121A 536121A 2019-08 → —

Part groups

PNCDescription
52114B Bracket, Front Bumper Extension Mounting
52127G Cover, Front Bumper Hole, RH
52128F Cover, Front Bumper Hole, LH
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53112A Grille, Radiator, Lower
53114A Grille, Radiator, Inner
53121A Moulding, Radiator Grille
53121J Moulding, Radiator Grille, NO.1
53122A Moulding, Radiator Grille, Lower
53122F Moulding, Radiator Grille, NO.2
53145G Clip, Radiator Grille
53395H Seal, Hood TO Radiator Grille
75392L Retainer, Outside Moulding
89C48G Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
