Toyota Lexus RX450HL/350L
2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe
Supported model
Data version 2023-05
Floor Pan & Lower Back Panel

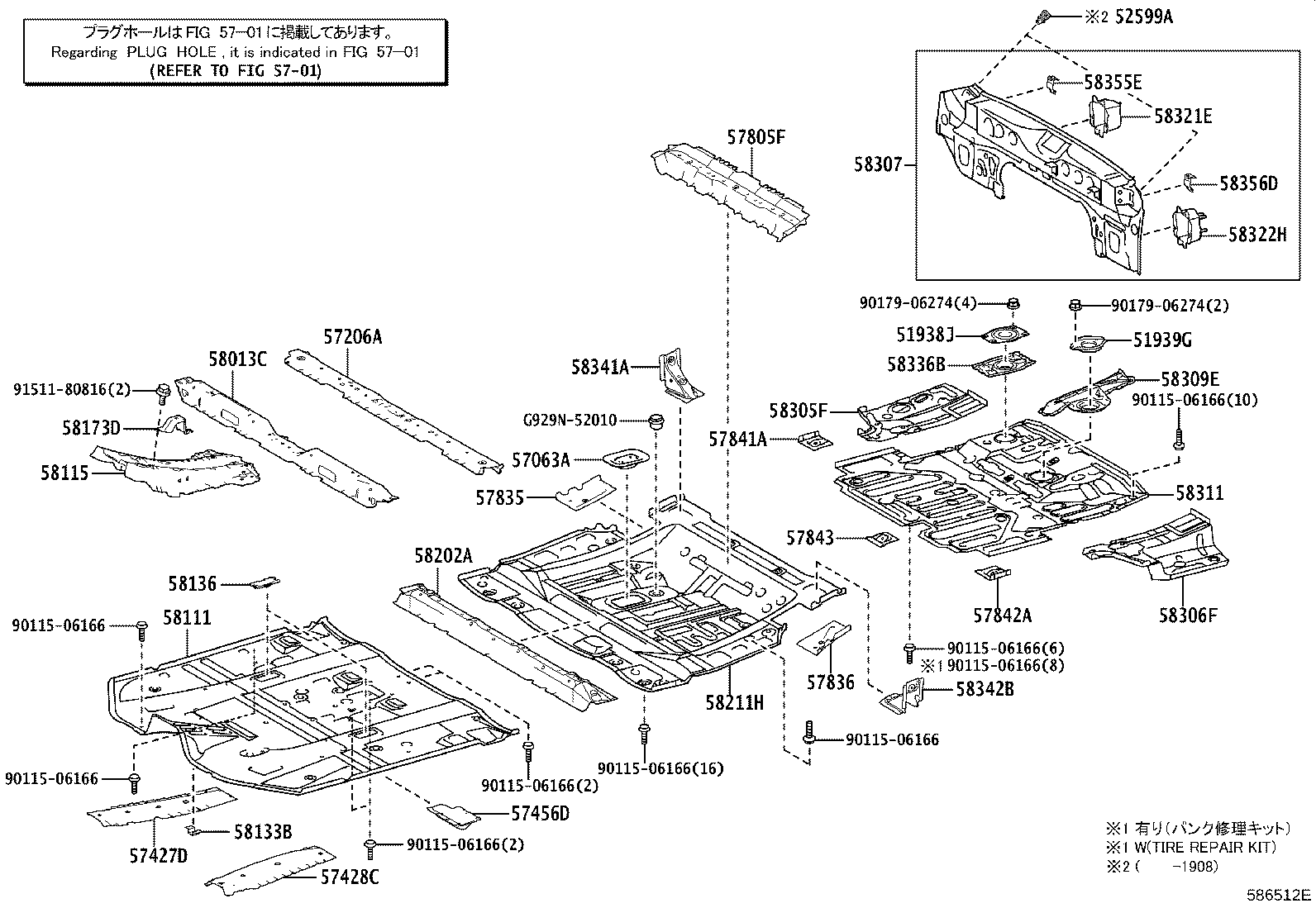

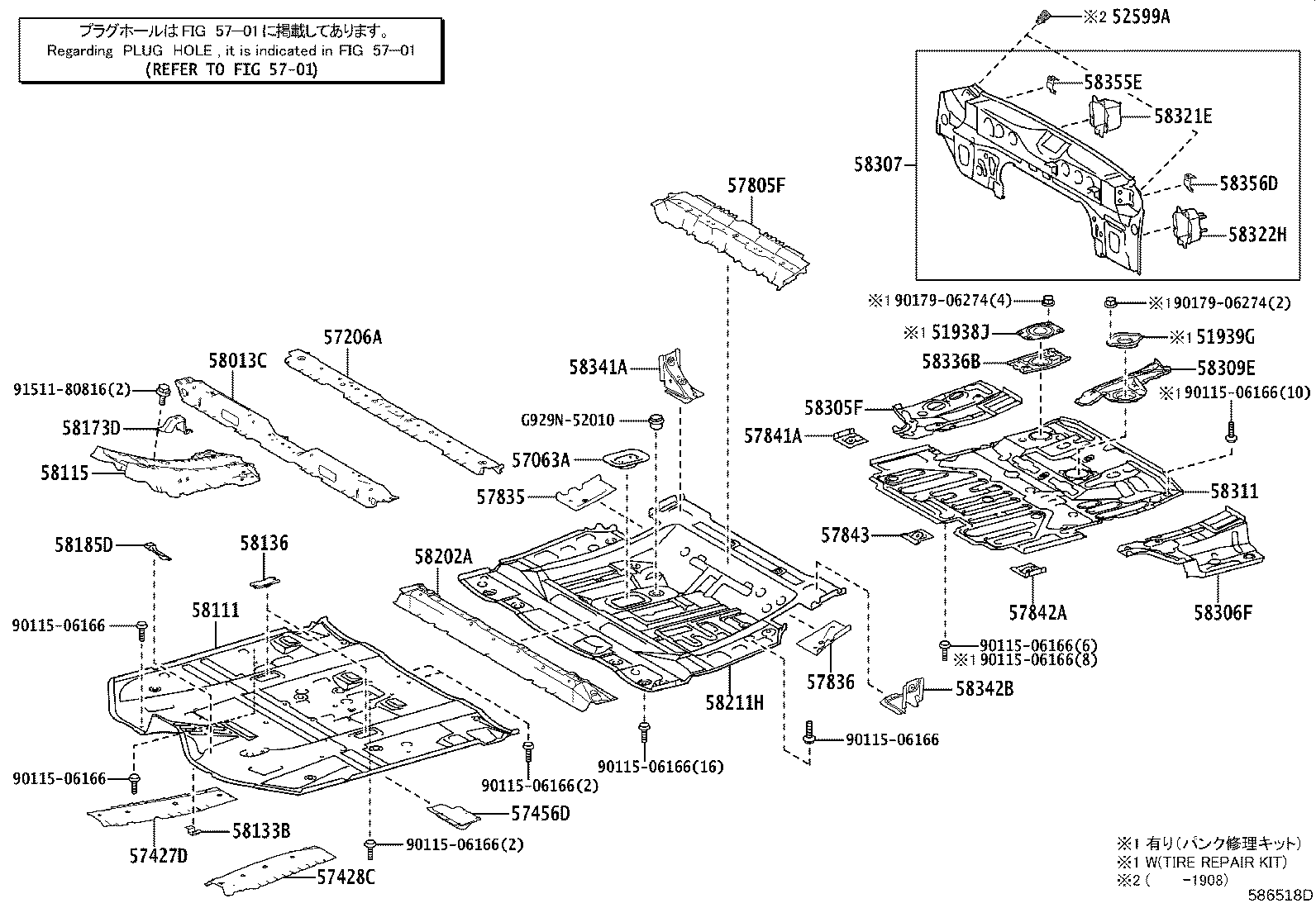

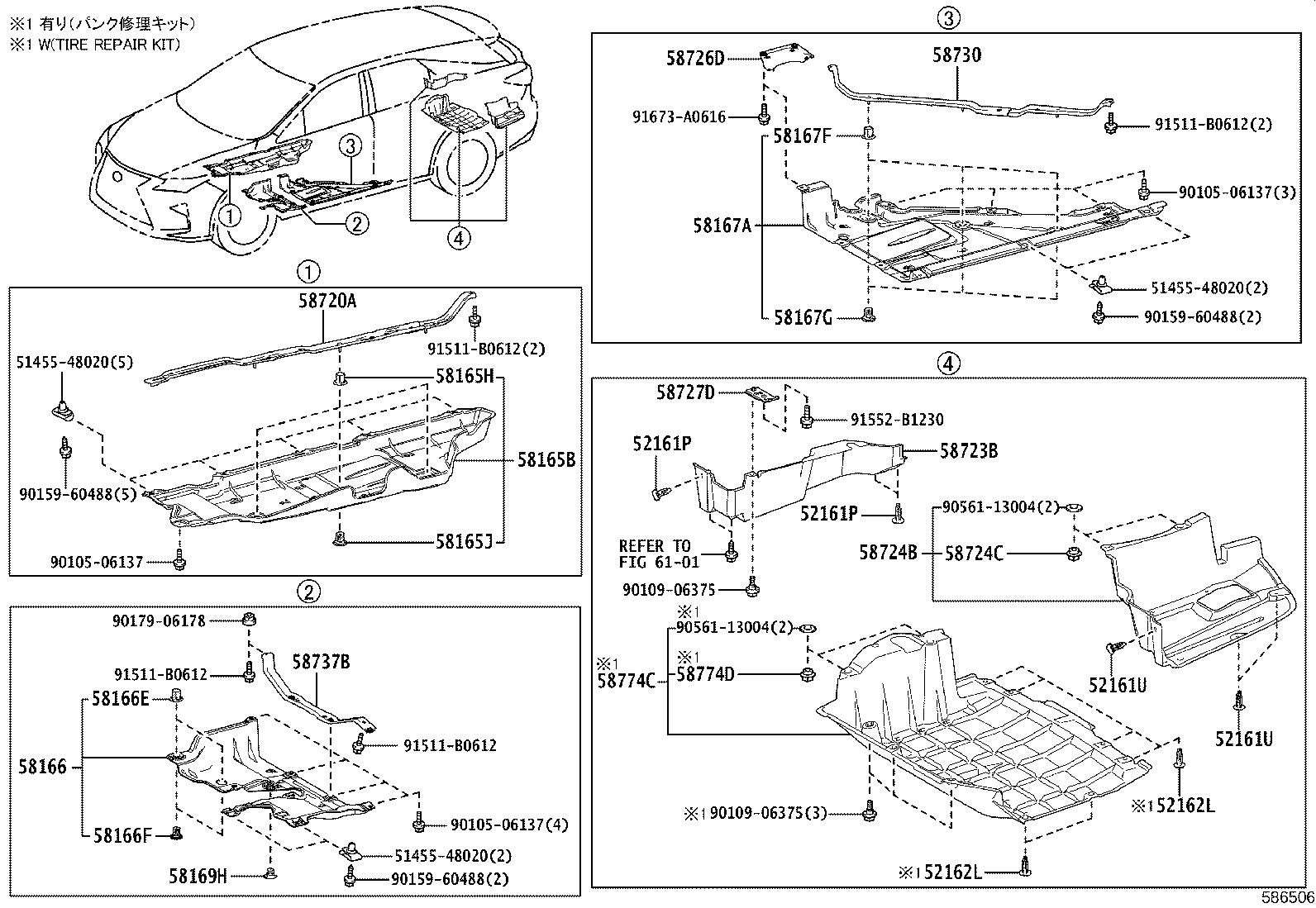

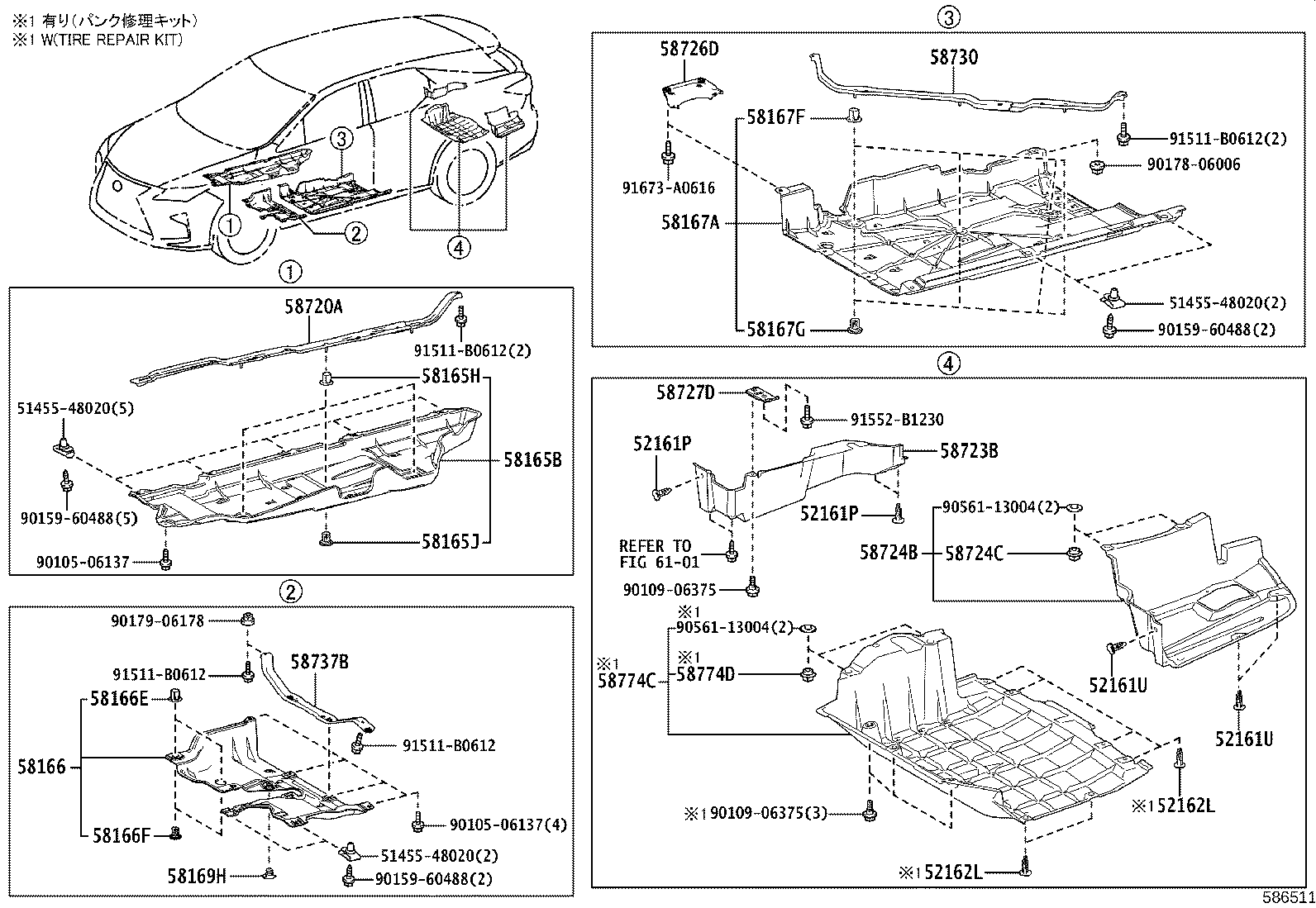

63 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 51938J | Bracket, Spare Wheel Carrier Mounting |
| 51939G | Plug, Spare Wheel Carrier |
| 52161P | Piece, Rear Bumper |
| 52161U | Piece, Rear Bumper |
| 52162L | Piece, Rear Bumper |
| 52599A | Stopper, Rear Bumper, Upper |
| 57063A | Bracket Sub-assy, Fuel Tank Mounting, Rear RH |
| 57206A | Member Sub-assy, Front Floor Cross, NO.2 |
| 57427D | Reinforcement, Front Floor, NO.3 RH |
| 57428C | Reinforcement, Front Floor, NO.3 LH |
| 57456D | Plate, Front Floor Crossmember, NO.3 LH |
| 57691B | Bracket, Fuel Tank Mounting, Front Center |
| 57805F | Reinforcement Sub-assy, Belt Anchor, NO.1 |
| 57835 | Reinforcement, Rear NO.1 Seat Leg, Rear NO.1 |
| 57836 | Reinforcement, Rear NO.1 Seat Leg, Rear NO.2 |
| 57841A | Reinforcement, Rear NO.2 Seat Leg, Front RH |
| 57842A | Reinforcement, Rear NO.2 Seat Leg, Front LH |
| 57843 | Reinforcement, Rear NO.1 Seat Leg, Front NO.5 |
| 58013C | Support Sub-assy, Shift & Select Lever |
| 58111 | Pan, Front Floor |
| 58115 | Reinforcement, Front Floor Panel, Front |
| 58133B | Bracket, Front Floor Heat Insulator, NO.3 |
| 58136 | Cover, Front Floor Hole |
| 58165B | Cover, Front Floor, RH |
| 58165H | Clip, Front Floor Cover, NO.1 |
| 58165J | Clip, Front Floor Cover, NO.2 |
| 58166 | Cover, Front Floor, LH |
| 58166E | Clip, Front Floor Cover, NO.1 |
| 58166F | Clip, Front Floor Cover, NO.2 |
| 58167A | Cover, Front Floor, Center |
| 58167F | Clip, NO.1(FOR FLOOR UNDER COVER) |
| 58167G | Clip, NO.2(FOR FLOOR UNDER COVER) |
| 58169H | Patch, Front Floor, Rear |
| 58173D | Bracket, Computer Mounting, NO.4 |
| 58185D | Plate, Accelerator Pedal Mounting |
| 58202A | Pan Sub-assy, Center Floor, Front |
| 58211H | Pan, Center Floor |
| 58219G | Patch, Seat Floor |
| 58249H | Bracket, Center Floor Board Support |
| 58279C | Protector, Fuel Tank, Upper NO.2 |
| 58305F | Panel Sub-assy, Rear Floor Side, RH |
| 58306F | Panel Sub-assy, Rear Floor Side, LH |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58309E | Plate Sub-assy, Rear Floor |
| 58311 | Pan, Rear Floor |
| 58321E | Plate, Rear Bumper Arm Support, RH |
| 58322H | Plate, Rear Bumper Arm Support, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58336B | Reinforcement, Rear Floor Pan |
| 58341A | Bracket, Rear Absorber Mounting, RH |
| 58342B | Bracket, Rear Absorber Mounting, LH |
| 58355E | Bracket, Rear Bumper Arm, RH |
| 58356D | Bracket, Rear Bumper Arm, LH |
| 58720A | Cover Assy, Engine Service |
| 58723B | Protector, Luggage Compartment Side Cover, NO.1 |
| 58724B | Protector, Luggage Compartment Side Cover, NO.2 |
| 58724C | Clip, Luggage Compartment Side Cover Protector, NO.1 |
| 58726D | Stay, Engine Service Cover Catch, Rear LH |
| 58727D | Plate, Engine Service Cover, NO.1 |
| 58730 | Cover Assy, Engine Service, Rear |
| 58737B | Bracket, Engine Service Cover |
| 58774C | Cover, Luggage Compartment Side, LH |
| 58774D | Clip, Luggage Compartment Side Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
