Toyota Lexus RX450HL/350L
2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe
Supported model
Data version 2023-05
Armrest & Visor
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74221 | Cover, Door Armrest, RH |
| 74222 | Cover, Door Armrest, LH |
| 74231C | Panel, Front Door Armrest Base, Upper Driver Side |
| 74232C | Panel, Front Door Armrest Base, Upper Passenger Side |
| 74261 | Cover, Rear Door Armrest, RH |
| 74262 | Cover, Rear Door Armrest, LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |

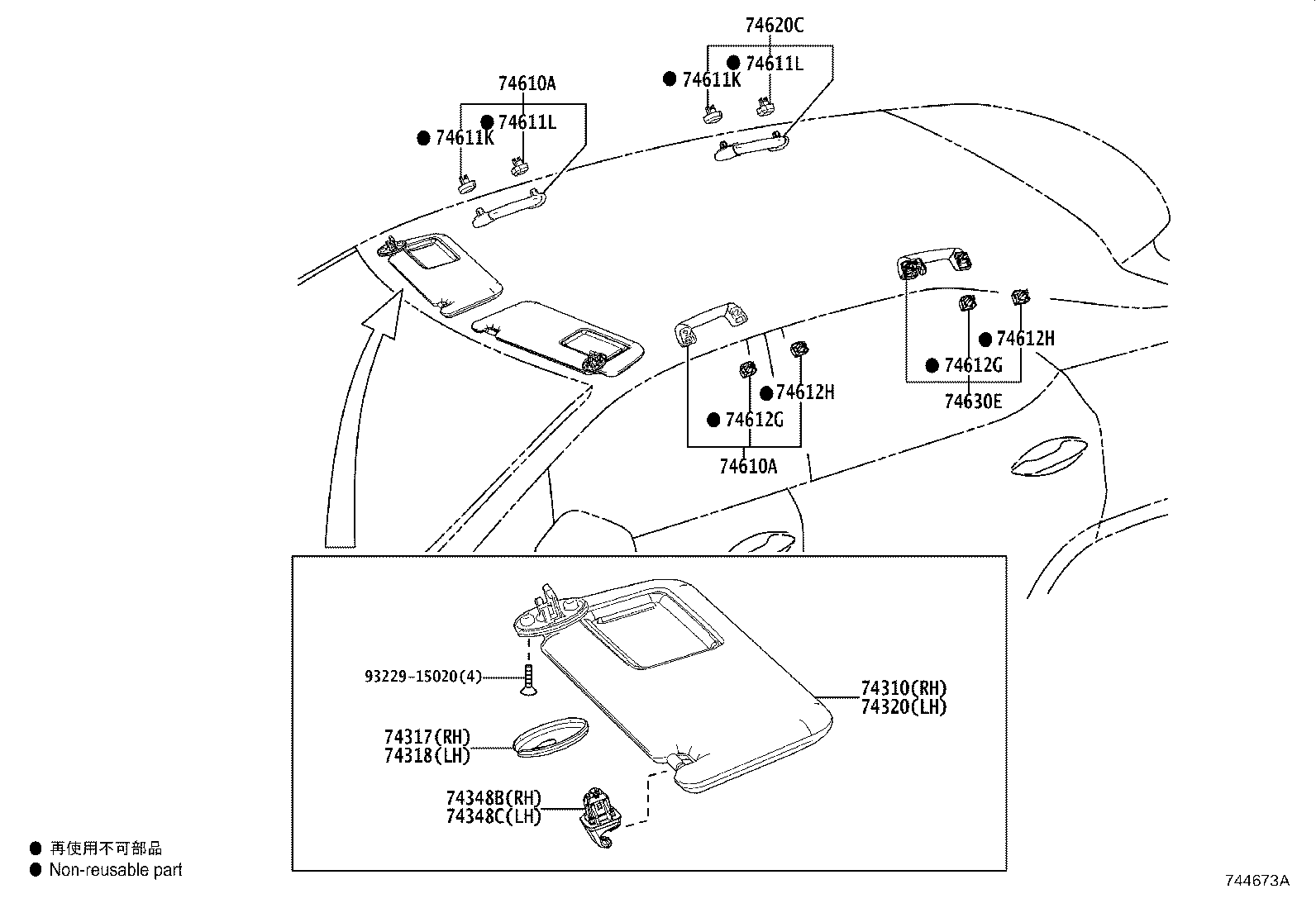

| 74310 | Visor Assy, RH |
| 74317 | Cover, Visor Bracket, RH |
| 74318 | Cover, Visor Bracket, LH |
| 74320 | Visor Assy, LH |
| 74348B | Holder, Visor, RH |
| 74348C | Holder, Visor, LH |
| 74610A | Grip Sub-assy, Assist |
| 74611K | Cover, Assist Grip, RH Front Side |
| 74611L | Cover, Assist Grip, RH Rear Side |
| 74612G | Cover, Assist Grip, LH Front Side |
| 74612H | Cover, Assist Grip, LH Rear Side |
| 74620C | Grip Assy, Assist, Rear RH |
| 74630E | Grip Assy, Assist, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
