Toyota Lexus RX450HL/350L
2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe
Supported model
Data version 2023-05

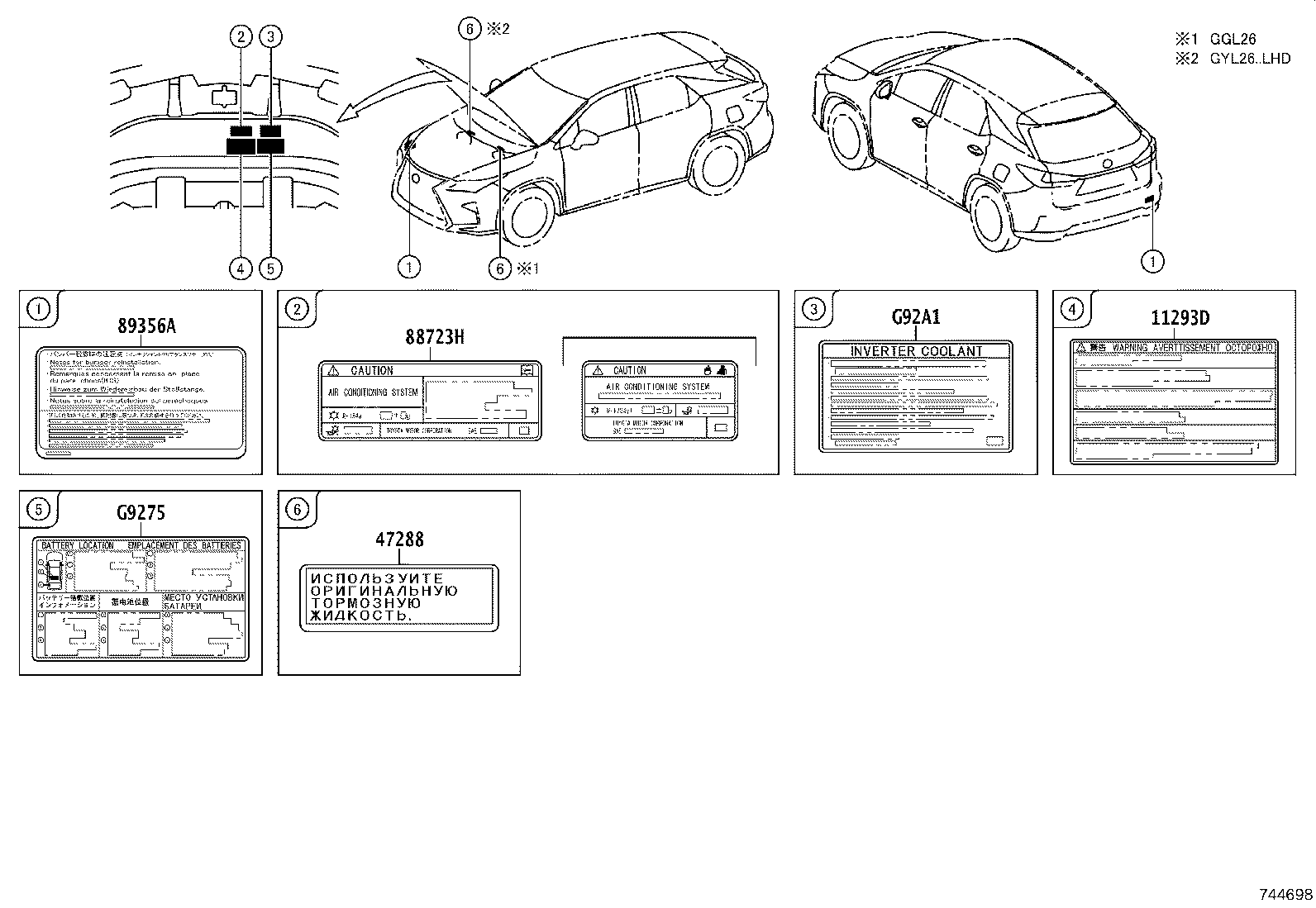

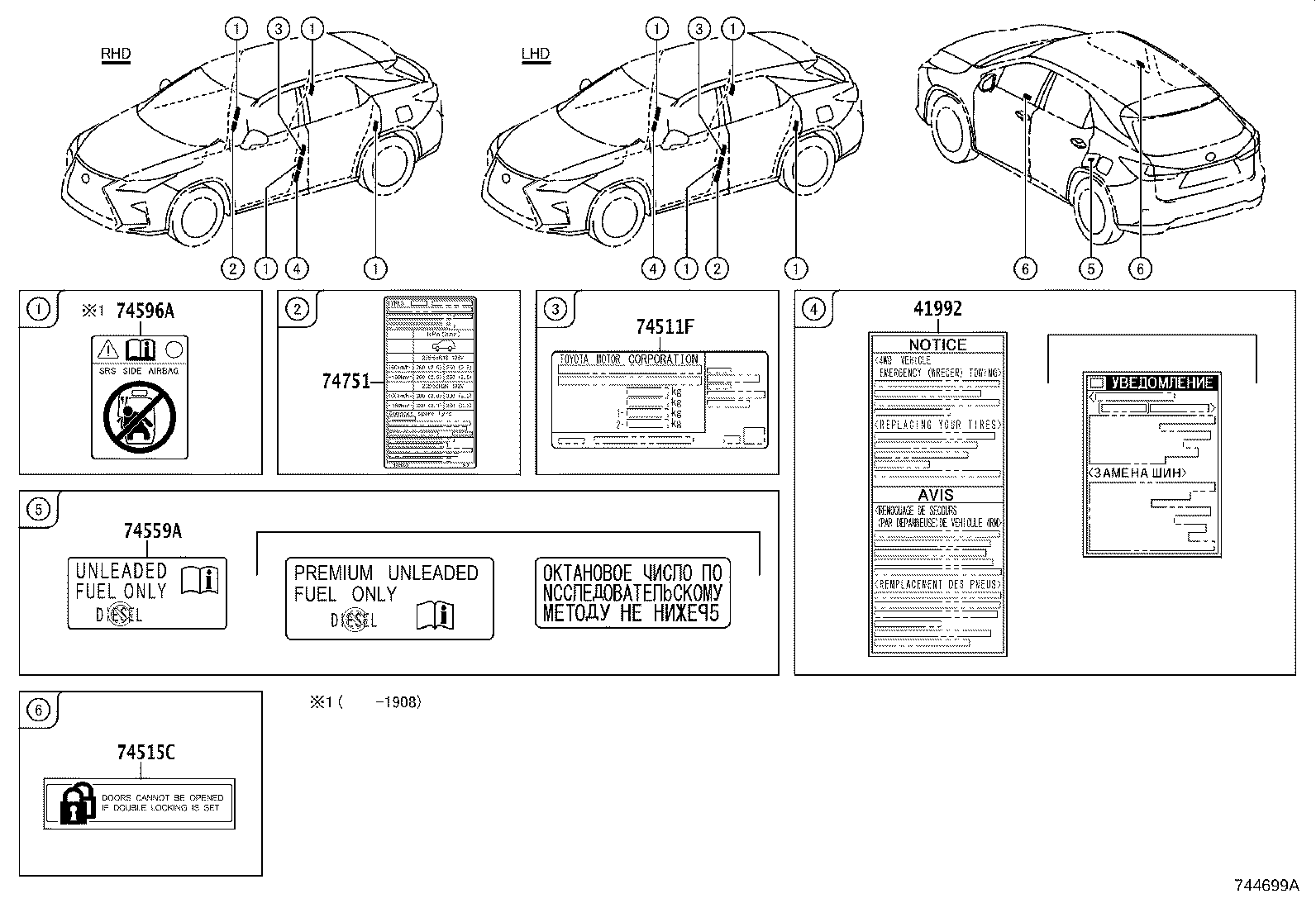

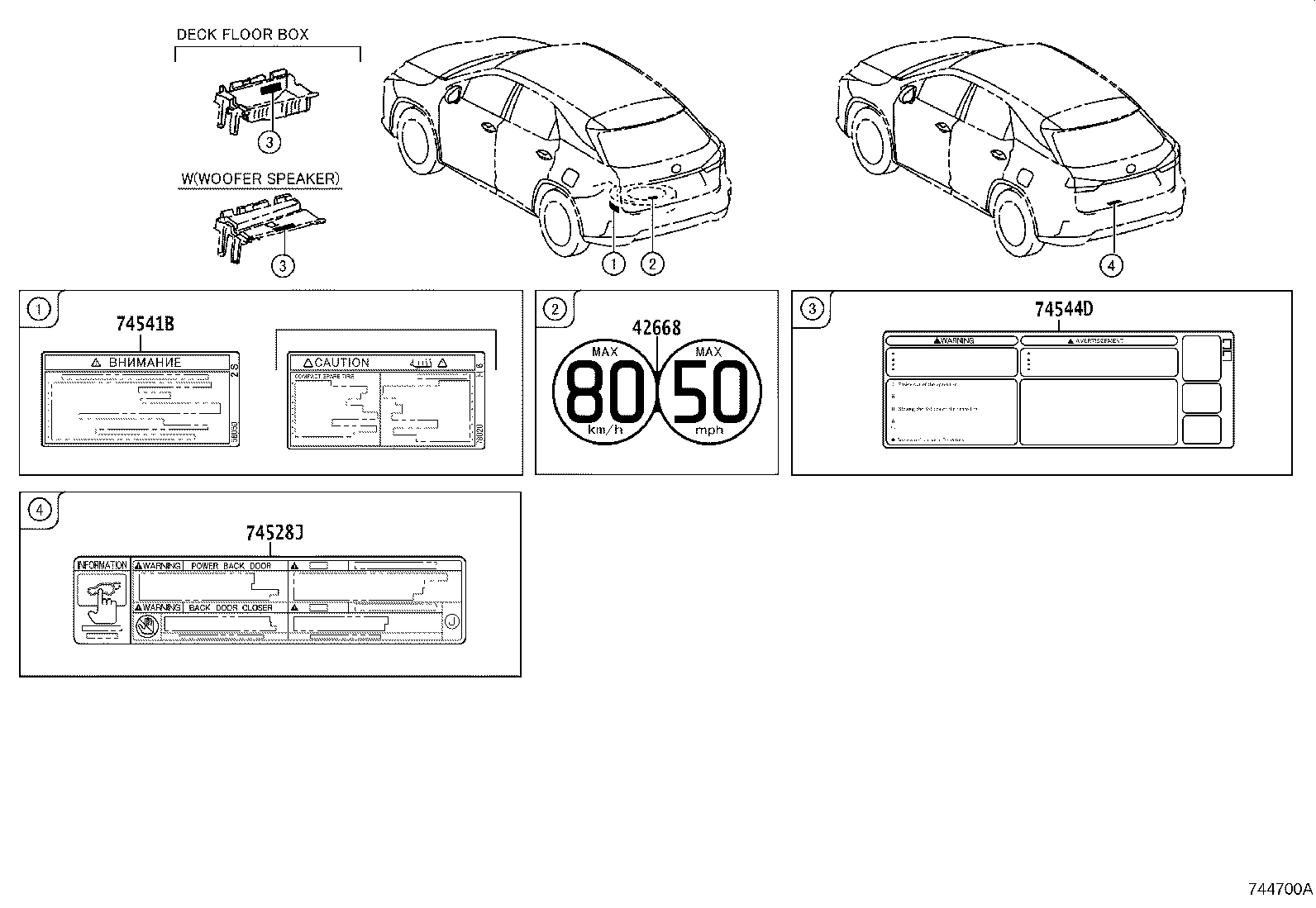

Caution Plate (EXTERIOR & INTERIOR)
17 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11293D | Label, Engine Caution |
| 16793E | Label, Cooling Fan Caution |
| 41992 | Label, Differential Notice |
| 42668 | Label, Compact Spare Tire Caution |
| 47288 | Label, Brake Fluid Notice |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515C | Label, Theft Warning Information |
| 74528J | Label, Power Back Door Caution |
| 74541B | Plate, Compact Spare Tire Caution |
| 74544D | Plate, Tire Carrier Caution |
| 74559A | Plate, Fuel Caution |
| 74596A | Label, Side Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 88723H | Label, Cooler Service Caution |
| 89356A | Label, Clearance Warning Information |
| G9275 | Label, Battery Caution, NO.1 |
| G92A1 | Label, Hybrid Coolant System Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
