Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

8 part groups · 2 illustrations

Illustrations

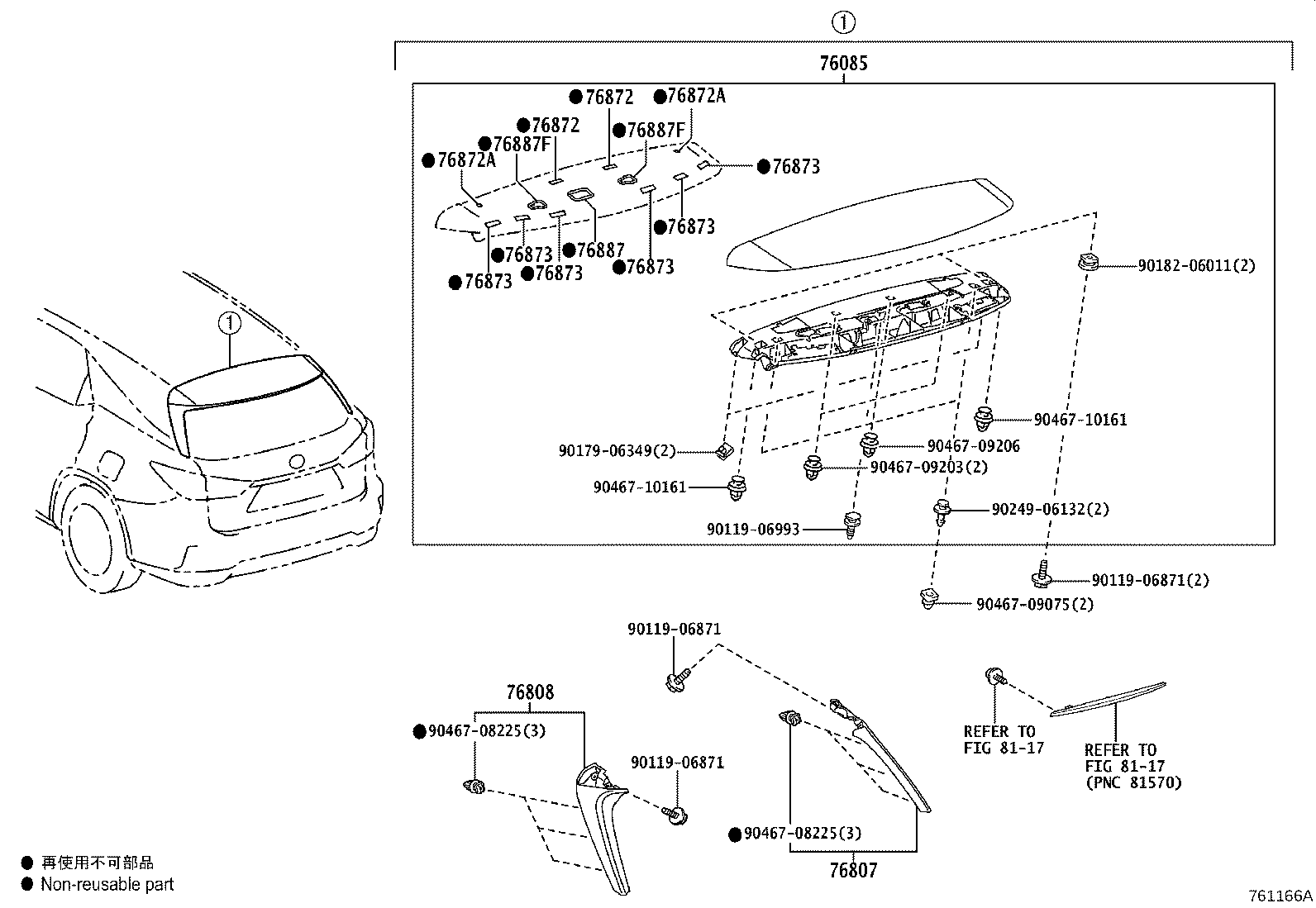

Figure 761093B 761093B 2017-12 → 2019-08 Figure 761166A 761166A 2019-08 → —

Part groups

PNCDescription
76085 Spoiler Sub-assy, Rear
76807 Protector Sub-assy, Rear Spoiler, Side RH
76808 Protector Sub-assy, Rear Spoiler, Side LH
76872 Protector, Rear Spoiler, NO.1
76872A Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76887 Seal, Rear Spoiler
76887F Seal, Rear Spoiler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
