Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

8 part groups · 2 illustrations

Illustrations

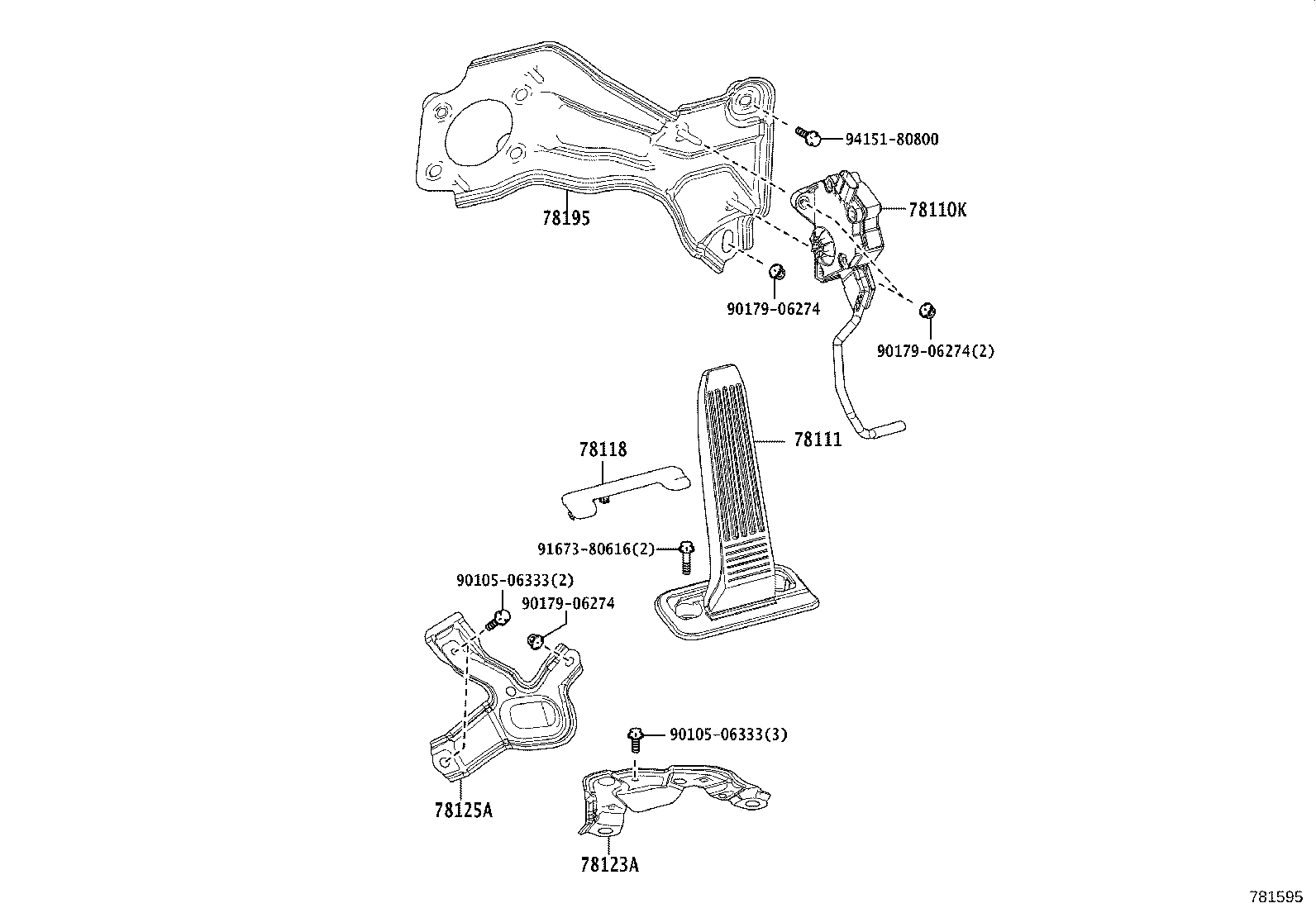

Figure 781594 781594 2017-12 → — Figure 781595 781595 2017-12 → —

Part groups

PNCDescription
78110K Rod Assy, Accelerator Pedal(W/SENSOR)
78111 Pedal, Accelerator
78118 Pad, Accelerator Pedal
78123A Reinforcement, Accelerator Pedal Rod
78124A Bracket, Accelerator Pedal Rod
78125A Bracket, Accelerator Pedal Rod, NO.2
78126 Bracket, Accelerator Pedal Rod
78195 Bracket, Accelerator Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
