Fog Lamp

4 part groups · 2 illustrations

Illustrations

Figure 818445B

818445B 2017-12 → 2019-08

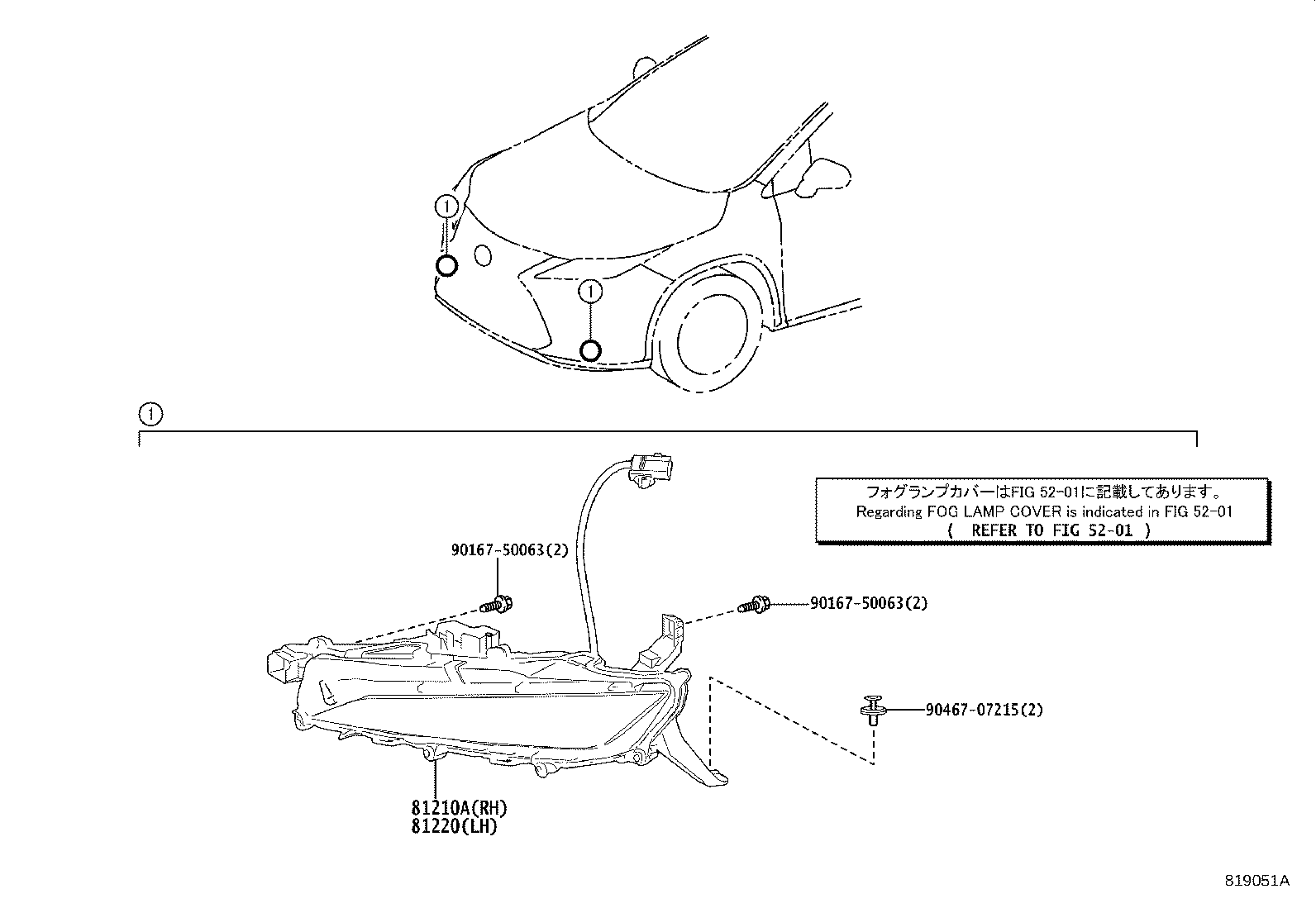

Figure 819051A

819051A 2019-08 → —

Part groups

PNC	Description
81210A	Lamp Assy, Fog, RH
81219A	Bracket, Fog Lamp, RH
81220	Lamp Assy, Fog, LH
81229A	Bracket, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
