Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

19 part groups · 4 illustrations

Illustrations

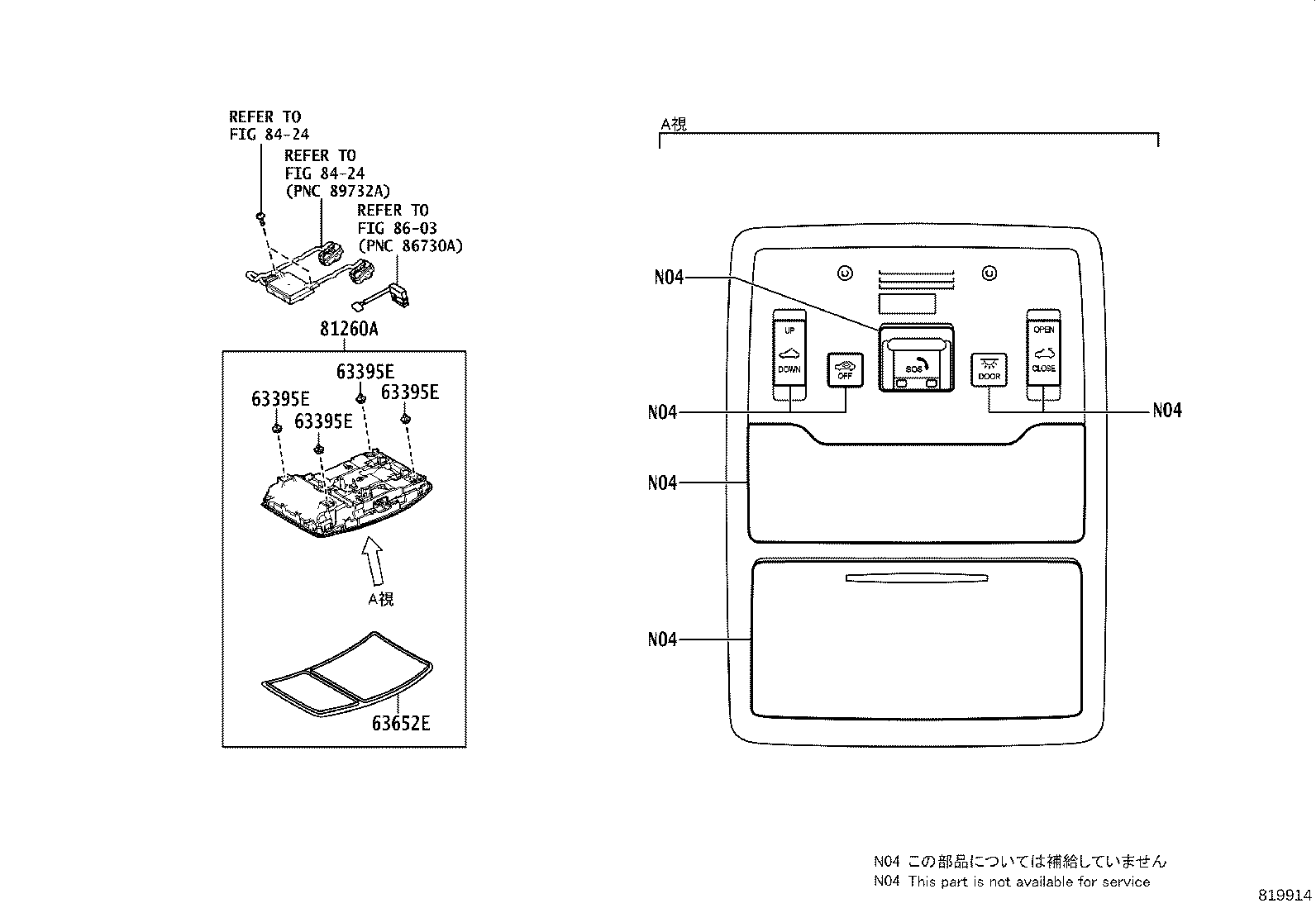

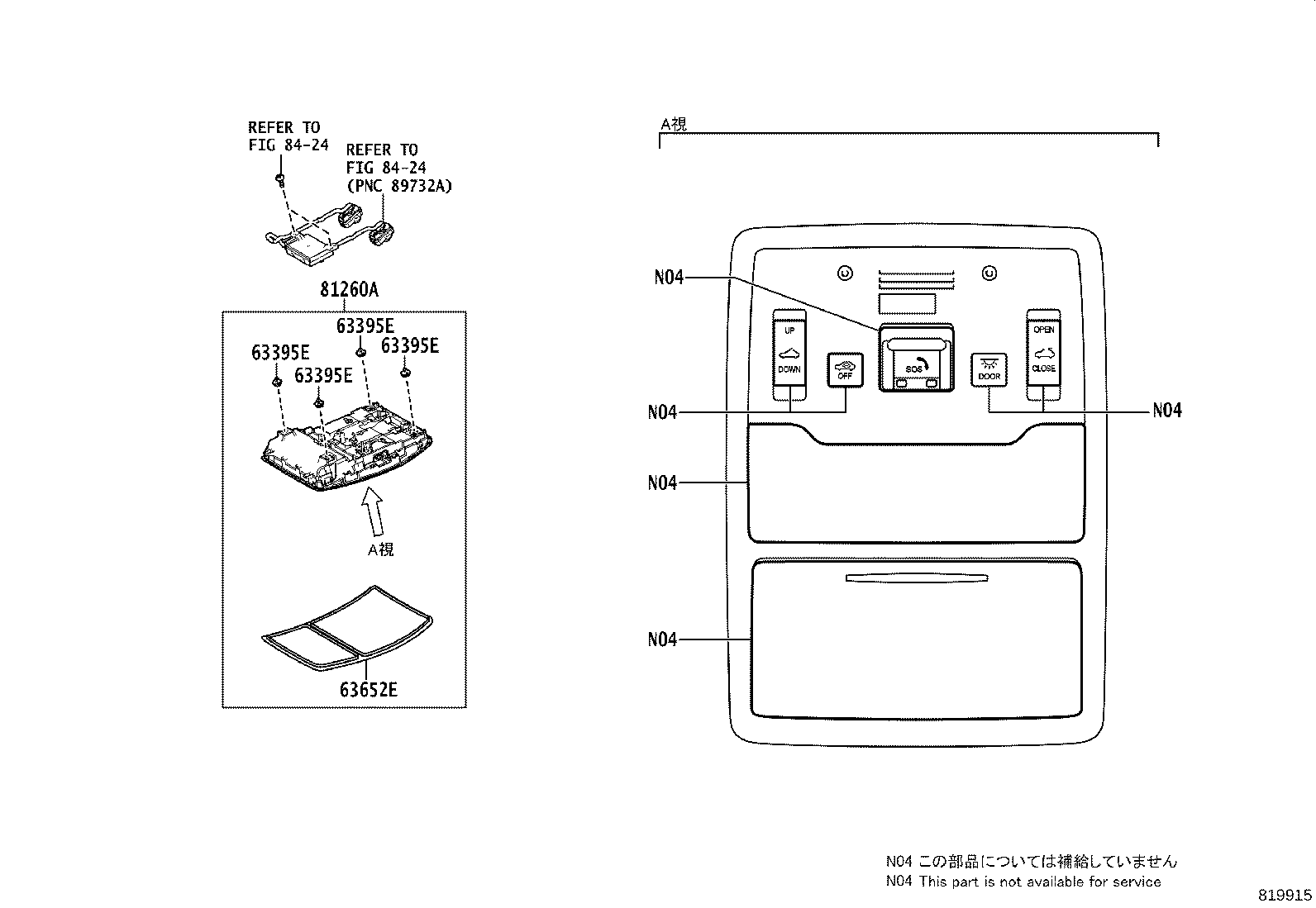

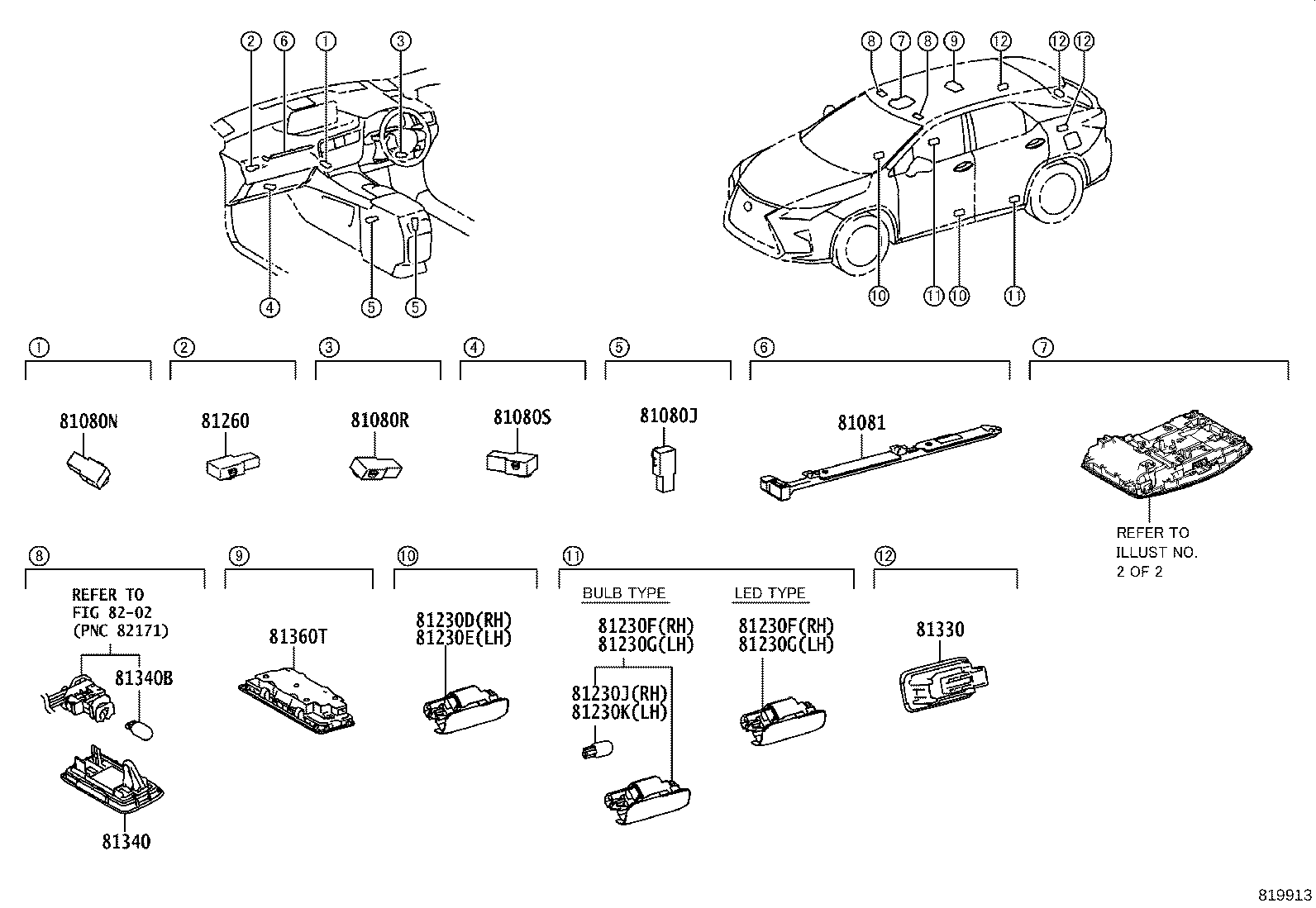

Figure 819912 819912 2017-12 → — Figure 819913 819913 2017-12 → — Figure 819914 819914 2017-12 → — Figure 819915 819915 2017-12 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
63652E Cover, Roof Console Box, NO.1
81080J Lamp Assy, Interior Illumination, NO.1
81080N Lamp Assy, Interior Illumination, NO.1
81080R Lamp Assy, Interior Illumination, NO.1 RH
81080S Lamp Assy, Interior Illumination, NO.1 LH
81081 Lamp Sub-assy, Interior Illumination
81230D Lamp Assy, Front Door Courtesy, RH
81230E Lamp Assy, Front Door Courtesy, LH
81230F Lamp Assy, Rear Door Courtesy, RH
81230G Lamp Assy, Rear Door Courtesy, LH
81230J Bulb(FOR REAR DOOR COURTESY LAMP RH)
81230K Bulb(FOR REAR DOOR COURTESY LAMP LH)
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81330 Lamp Assy, Luggage Compartment, NO.1
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81360T Lamp Assy, Spot
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
