Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

4 part groups · 3 illustrations

Illustrations

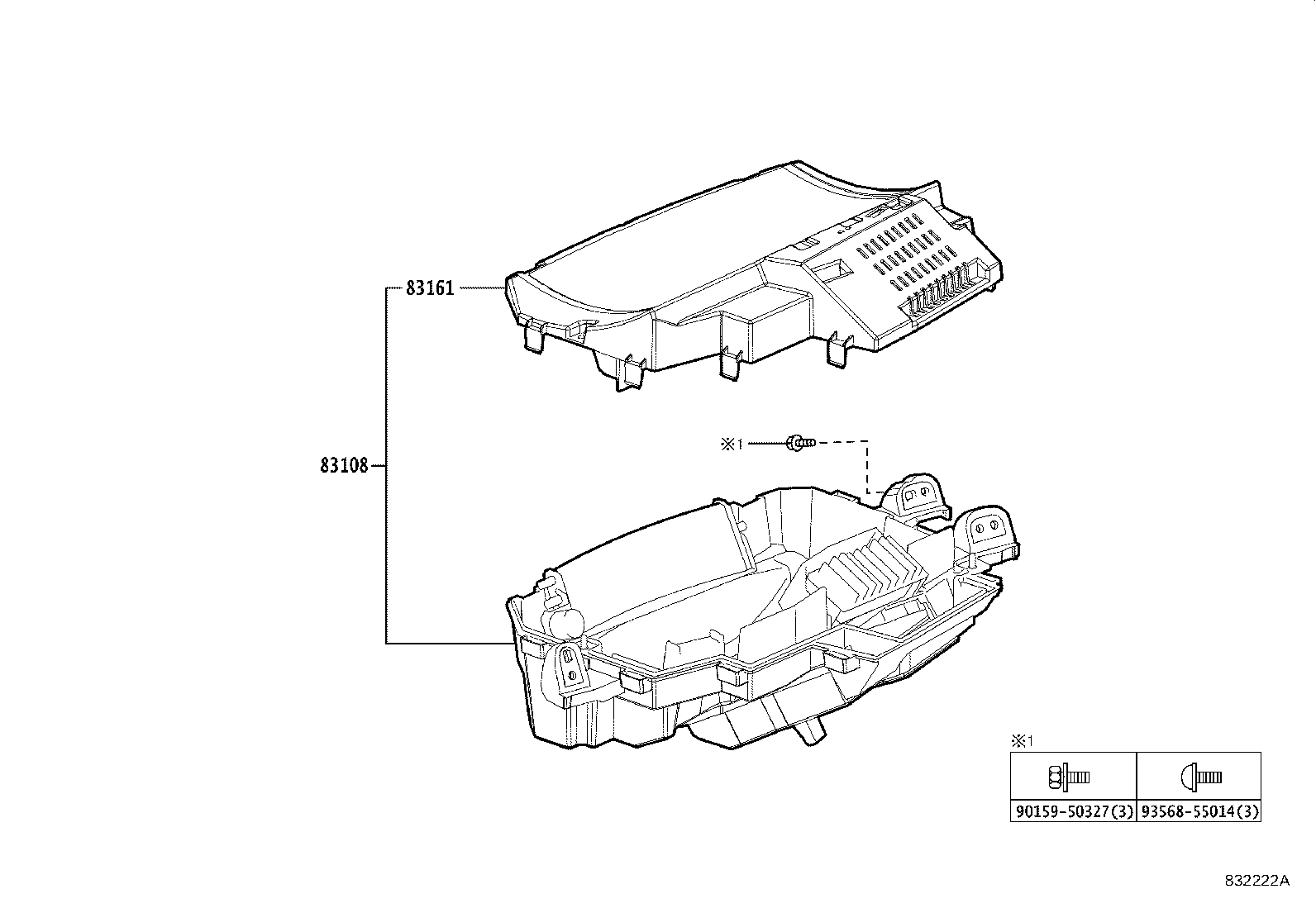

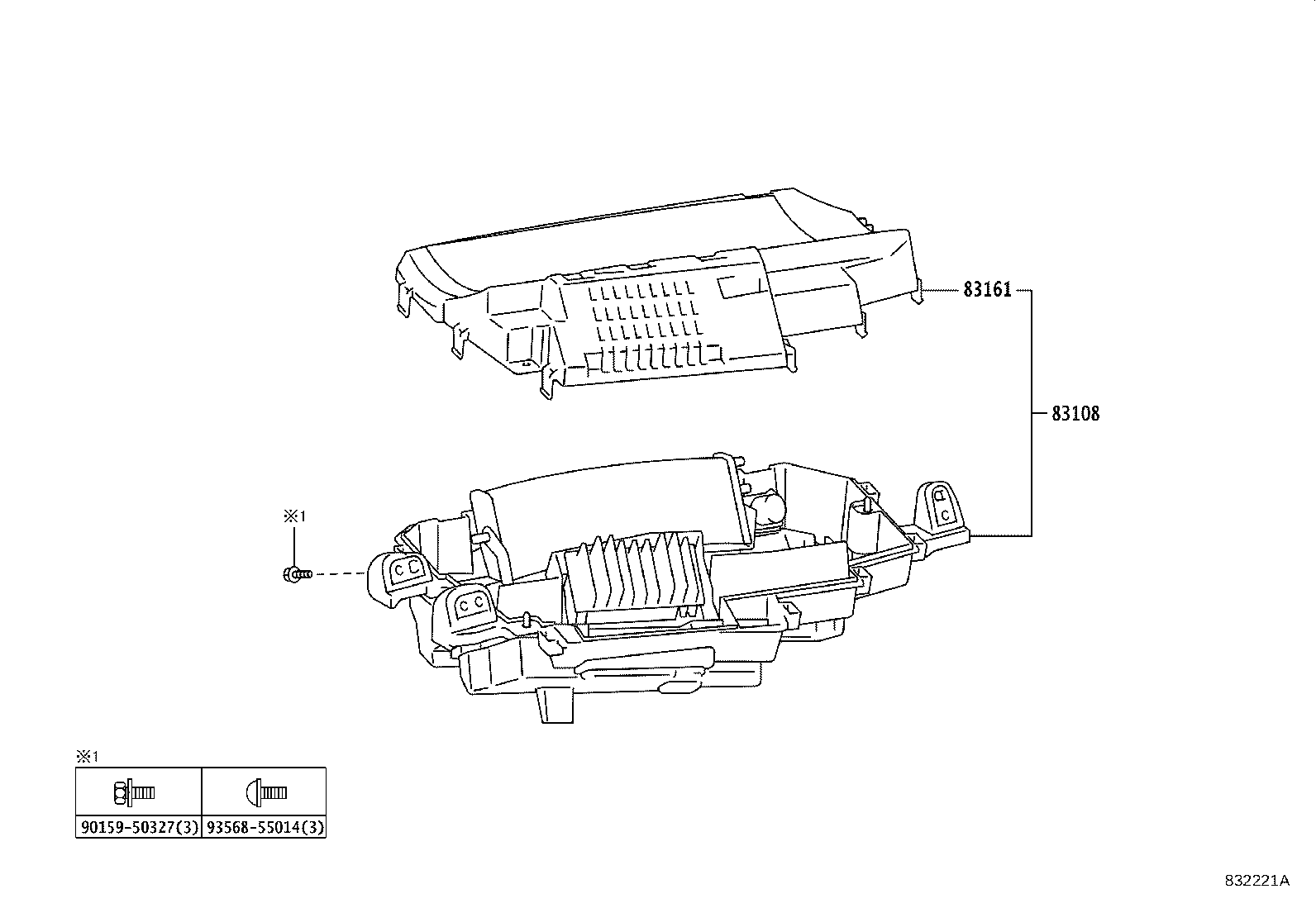

Figure 832220B 832220B 2017-12 → — Figure 832222A 832222A 2017-12 → — Figure 832221A 832221A 2018-03 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83100G Glass, Combination Meter
83108 Mirror Sub-assy, Meter
83161 Case, Combination Meter Mirror, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
