Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

8 part groups · 2 illustrations

Illustrations

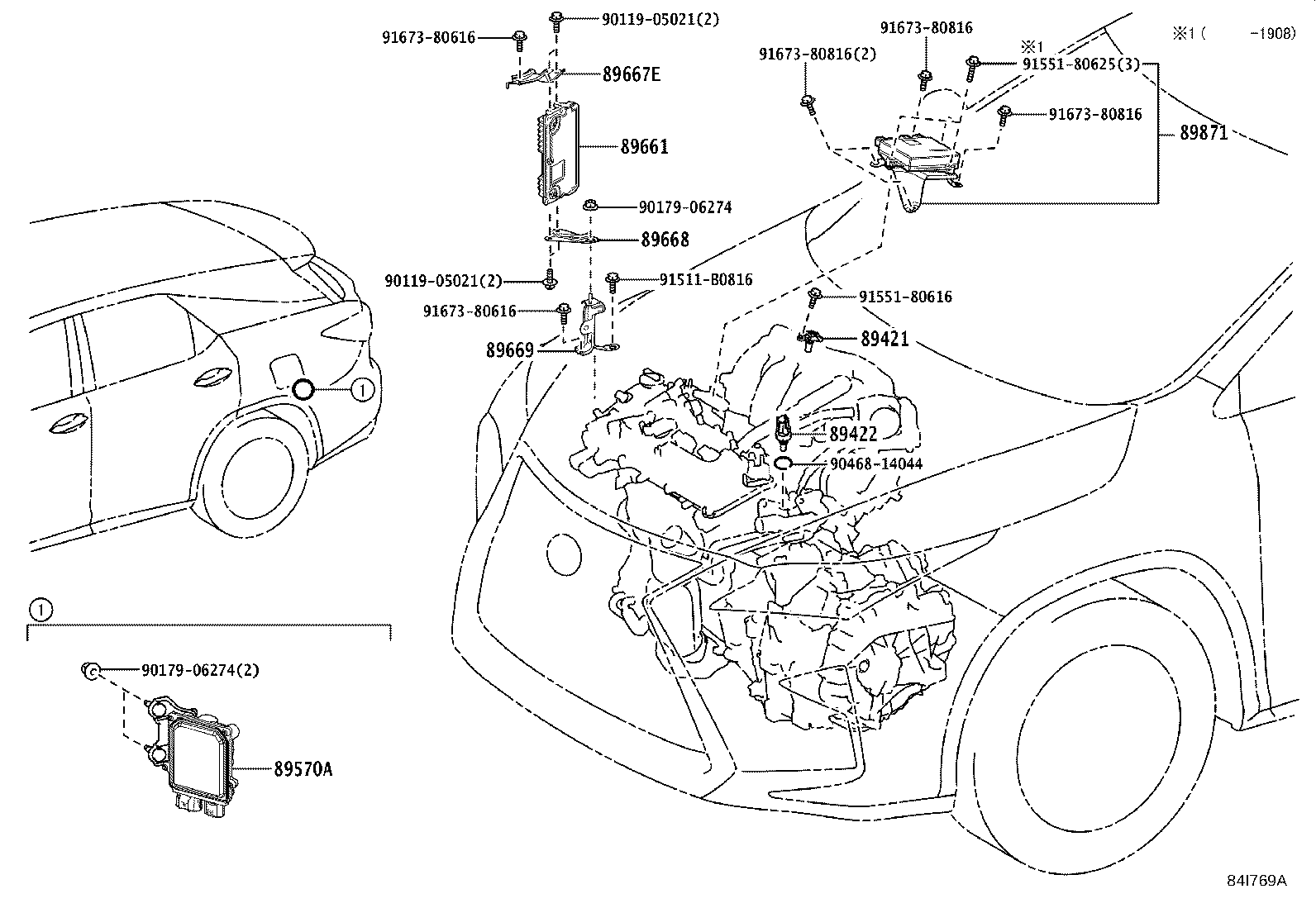

Figure 84I768 84I768 2017-12 → — Figure 84I769A 84I769A 2018-03 → —

Part groups

PNCDescription
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89570A Computer Assy, Fuel Pump Control
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
89669 Bracket, Engine Control Computer, NO.3
89871 Driver, Injector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
