Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

15 part groups · 3 illustrations

Illustrations

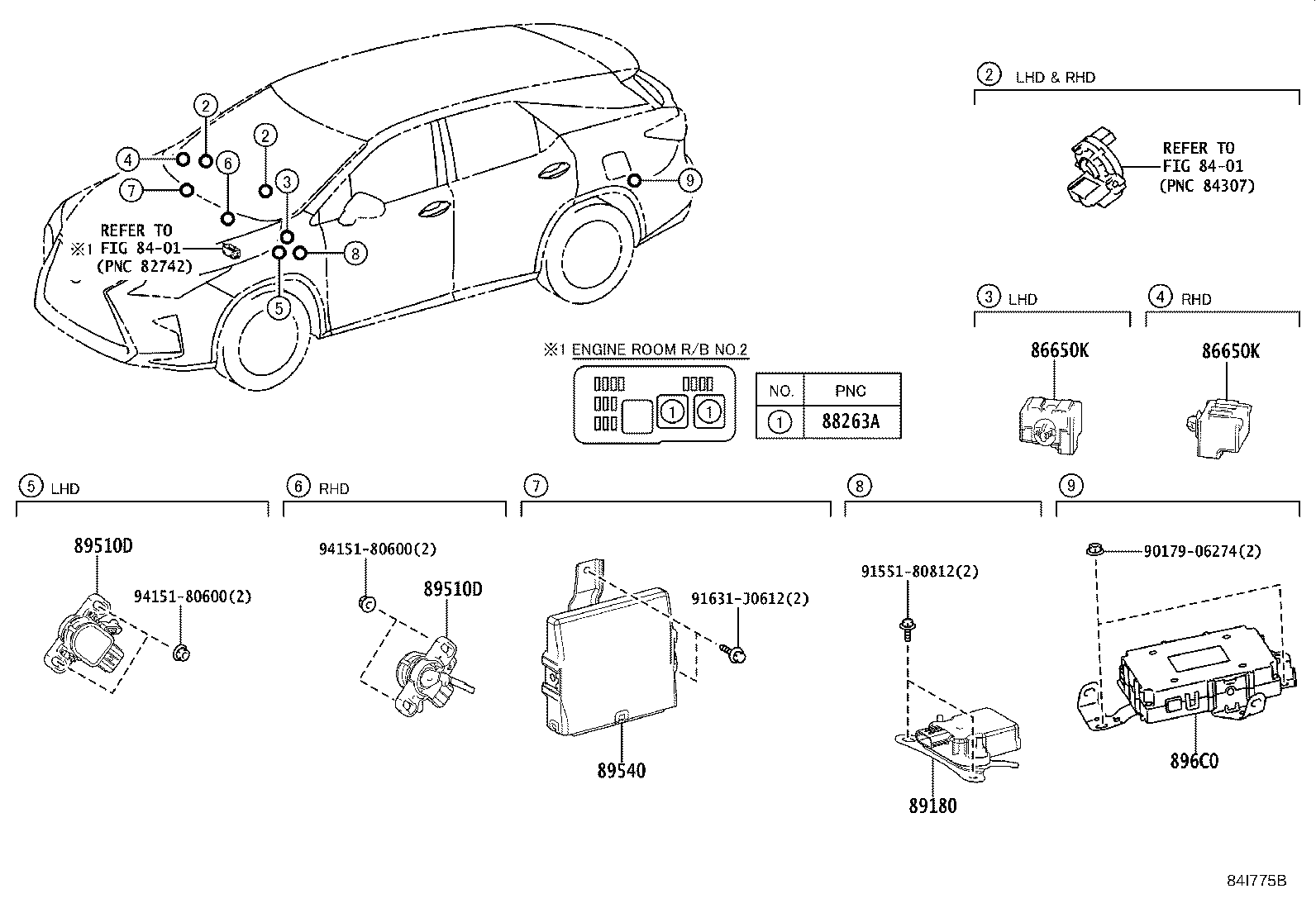

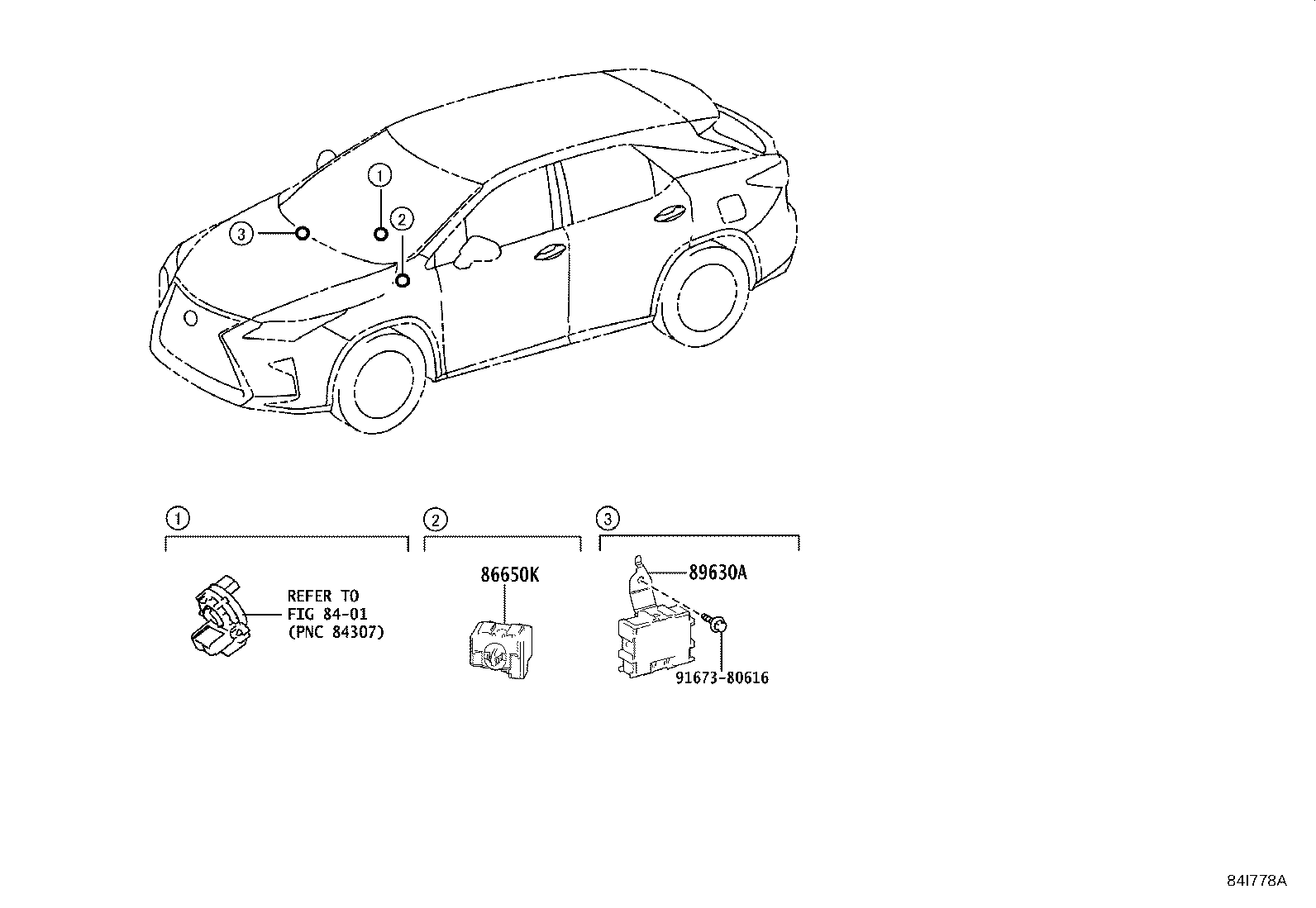

Figure 84I773 84I773 2017-12 → — Figure 84I778A 84I778A 2017-12 → — Figure 84I775B 84I775B 2018-03 → —

Part groups

PNCDescription
86650K Buzzer Assy, Skid Control
88263A Relay, Skid Control
89180 Sensor Assy, Yawrate
89510D Sensor Assy, Brake Pedal Stroke
89516E Wire, Skid Control Sensor, Front RH
89516F Wire, Skid Control Sensor, Front LH
89516J Wire, Skid Control Sensor, Rear RH NO.2
89516K Wire, Skid Control Sensor, Rear LH NO.2
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89630A Computer Assy, 4WD
896C0 Supply Assy, Brake Control Power W/Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
