Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

13 part groups · 2 illustrations

Illustrations

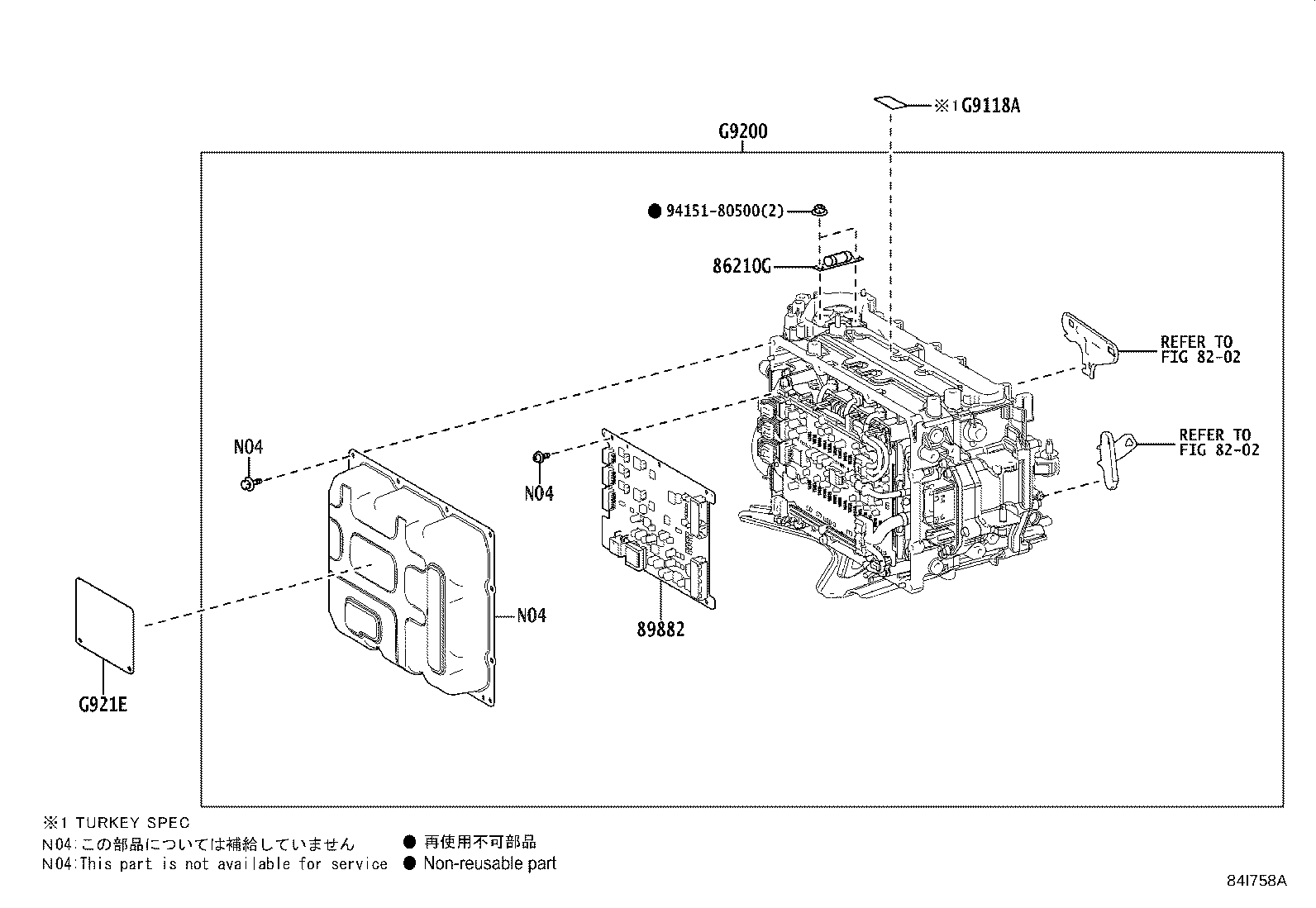

Figure 84I756B 84I756B 2018-03 → — Figure 84I758A 84I758A 2018-03 → —

Part groups

PNCDescription
86210G Fuse, High Voltage
89882 Computer, Motor Generator Control
G9019 Bracket Sub-assy, Inverter Tray
G9118A Label, HV Motor Control Inverter Caution
G9200 Inverter Assy, W/Converter
G9216 Bracket, Inverter, NO.3
G921E Protector, Inverter
G9223 Cover, Inverter Terminal
G9225J Hose, Inverter Cooling, NO.1
G922B Hose, Inverter Cooling Inlet, NO.2
G9237B Hose, Inverter Drain
G9238A Pipe, Inverter Cooling
G925B Bracket, Inverter, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
