Toyota Lexus RX450HL/350L
2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe
Supported model
Data version 2023-05

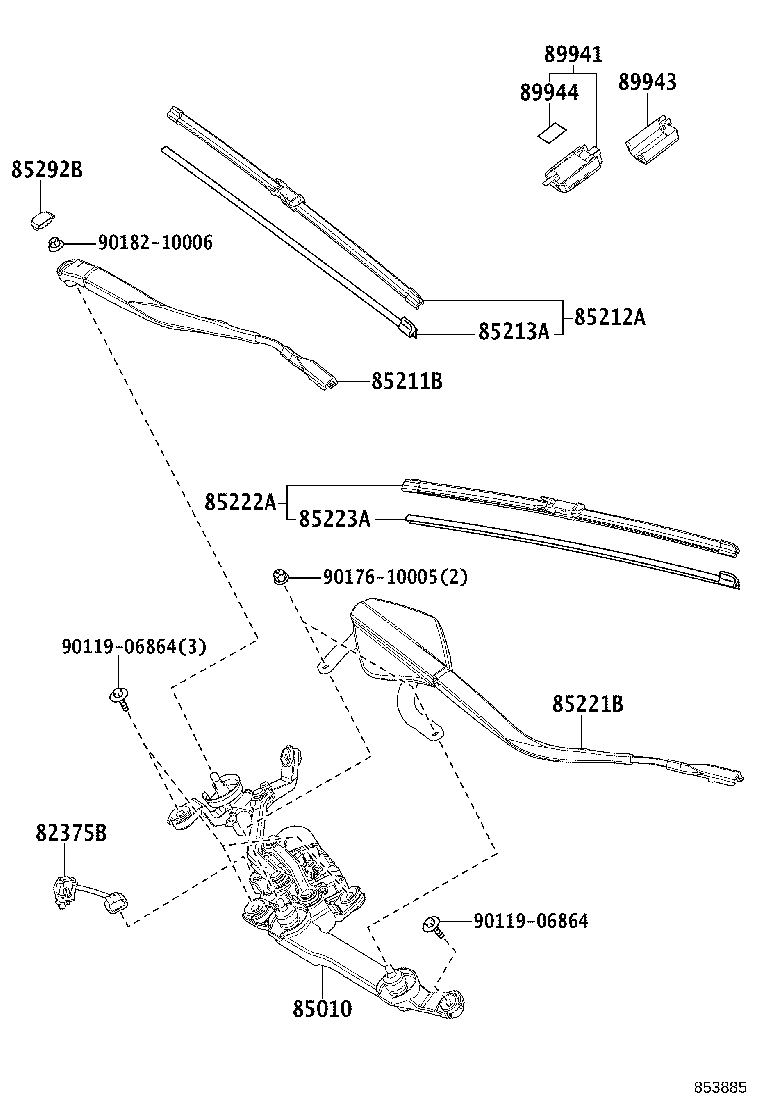

Windshield Wiper
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82375B | Wire, Wiper Motor |
| 85010 | Motor & Link Assy, FR Wiper |
| 85211B | Arm, Front Wiper, RH |
| 85212A | Blade, FR Wiper, RH |
| 85213A | Rubber, Wiper Blade, RH |
| 85221B | Arm, Front Wiper, LH |
| 85222A | Blade, FR Wiper, LH |
| 85223A | Rubber, Front Wiper Blade, LH |
| 85292B | Cap, Front Wiper Arm Head |
| 89941 | Sensor, Rain |
| 89943 | Cover, Rain Sensor |
| 89944 | Tape, Rain Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
