Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe

Supported model Data version 2023-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

7 part groups · 3 illustrations

Illustrations

Figure 867120A

867120A 2017-12 → —

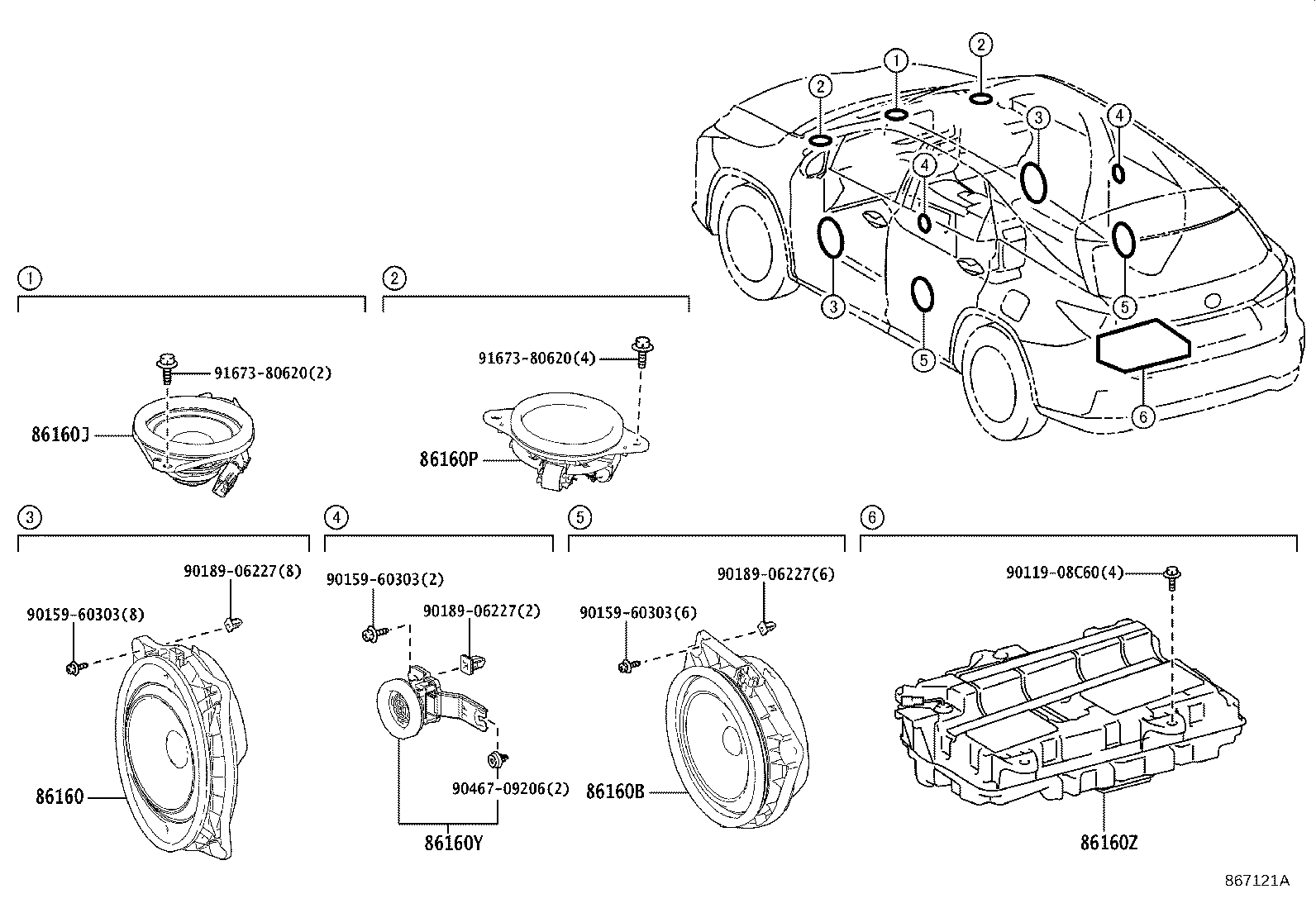

Figure 867121A

867121A 2017-12 → —

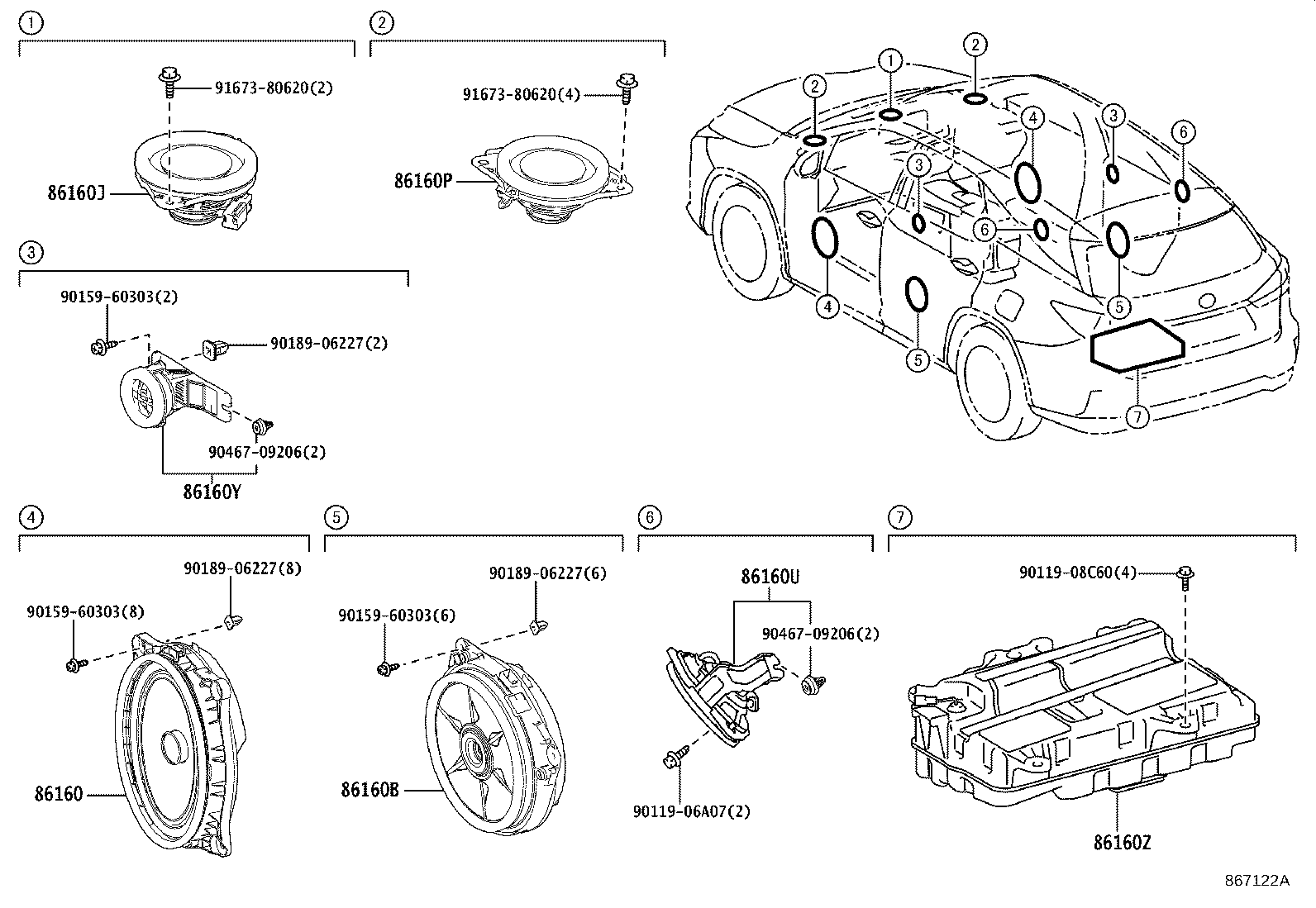

Figure 867122A

867122A 2017-12 → —

Part groups

PNC	Description
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86160J	Speaker Assy, Front NO.3
86160P	Speaker Assy, Front NO.2
86160U	Speaker Assy, Quarter Side
86160Y	Speaker Assy, Rear NO.2
86160Z	Speaker Assy, Rear NO.3

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
