Toyota Lexus RX450HL/350L
2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe
Supported model
Data version 2023-05

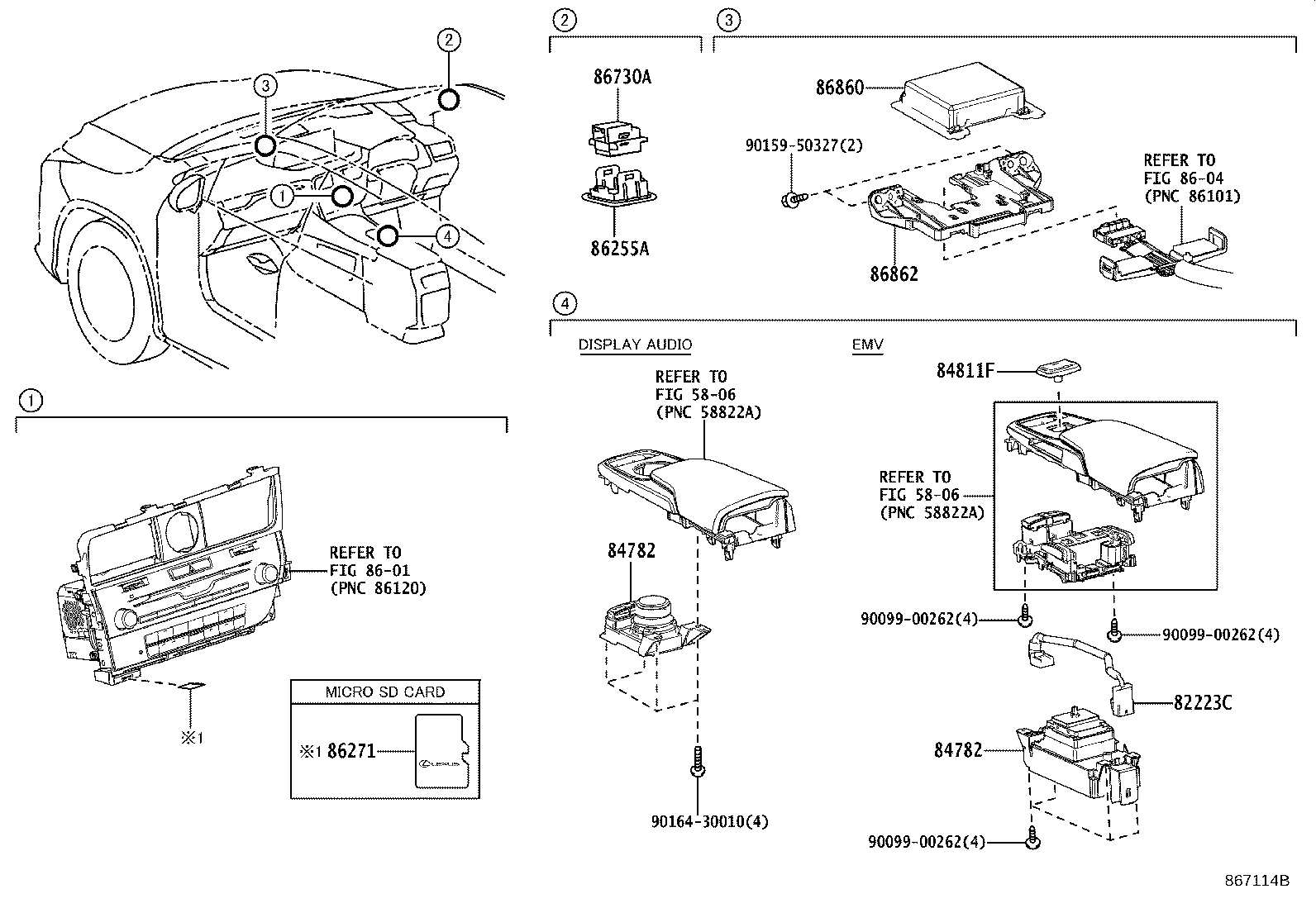

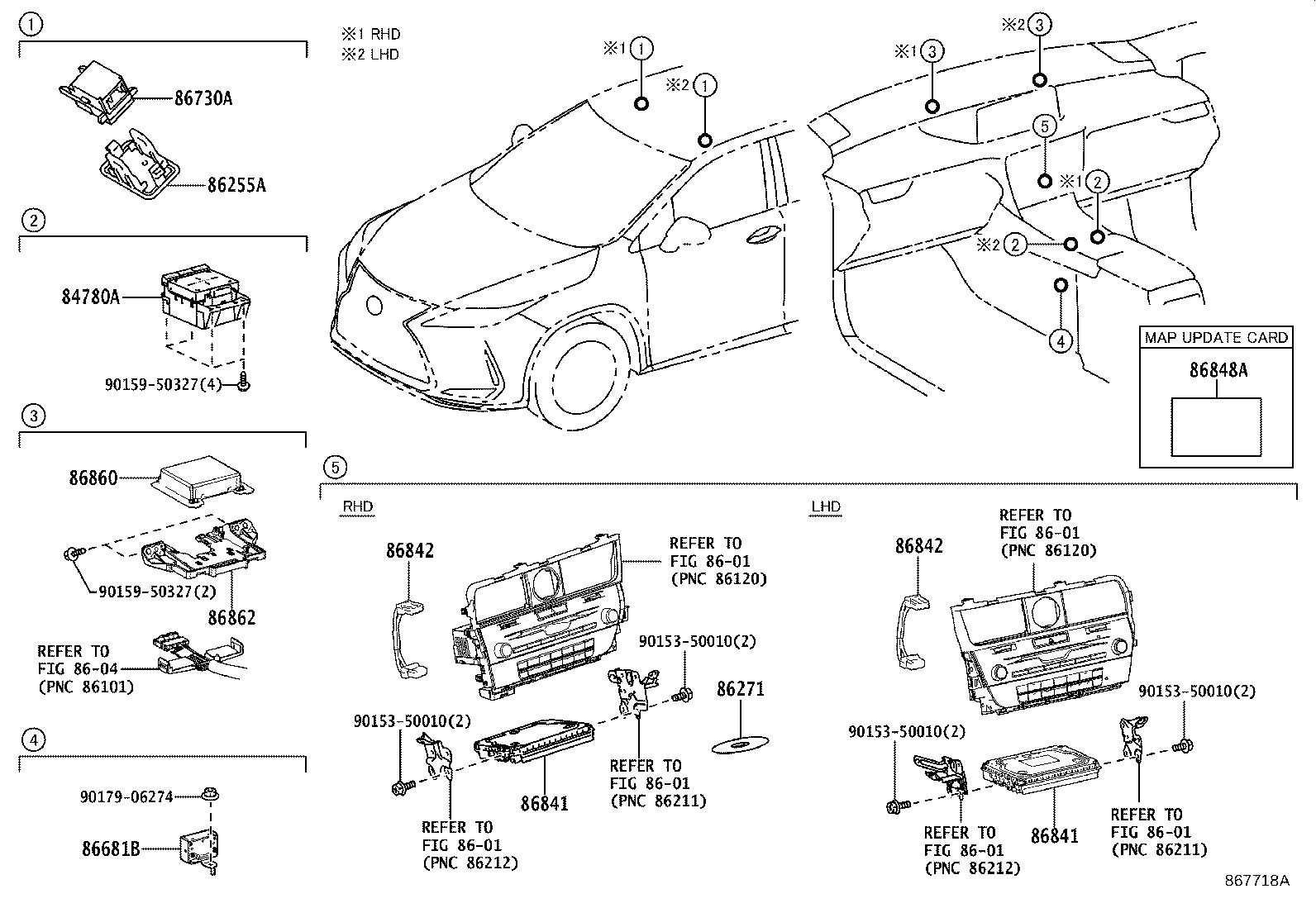

Navigation & Front Monitor Display
21 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 82223C | Wire, Switch |
| 82281A | Wire, Gauge |

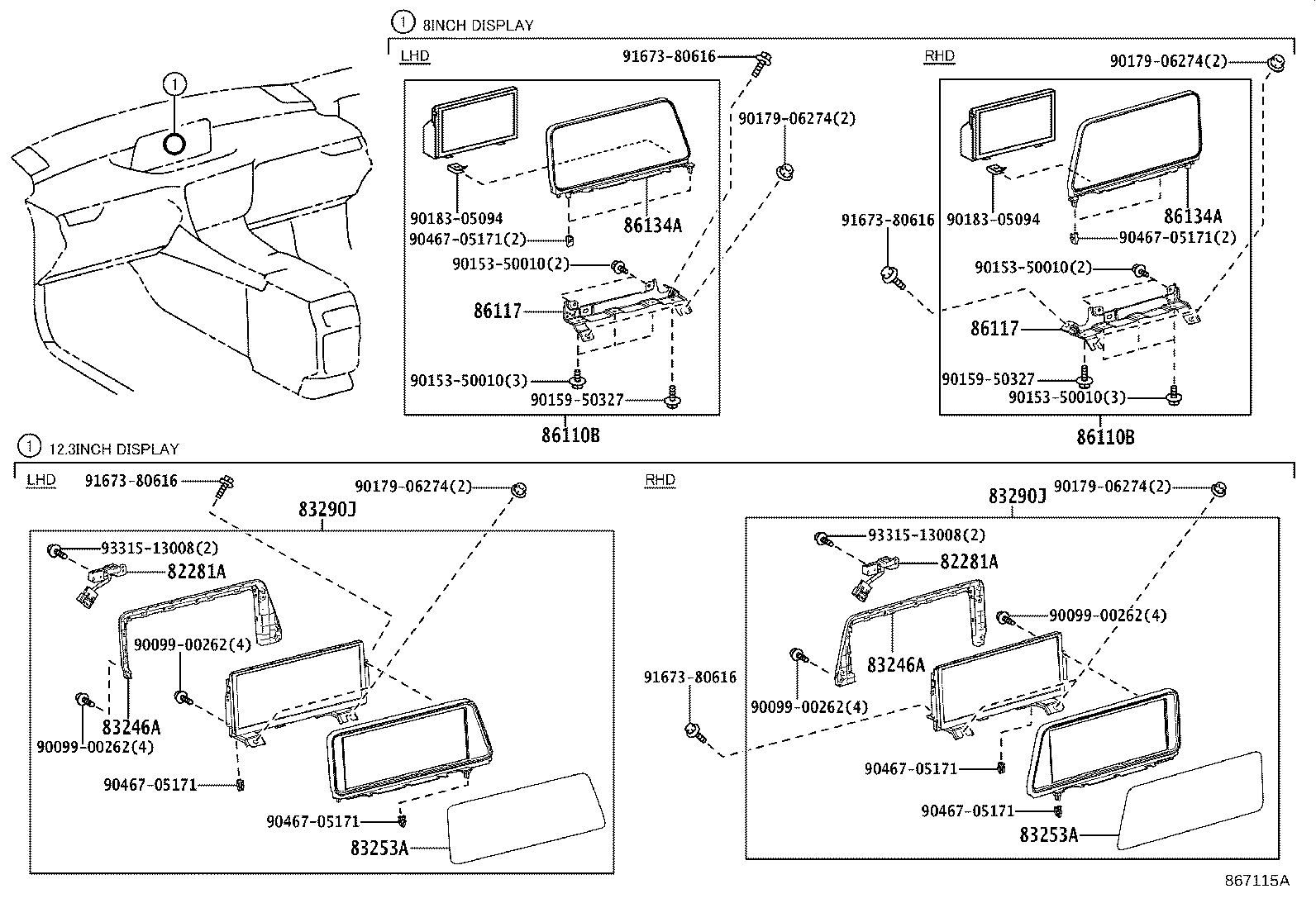

| 83246A | Panel, Multi Information Display |
| 83253A | Glass, Accessory Meter |
| 83290J | Meter Assy, Accessory |
| 84780A | Controller Assy, Remote Operation |
| 84782 | Board, Remote Operation |
| 84811F | Knob, Switch |

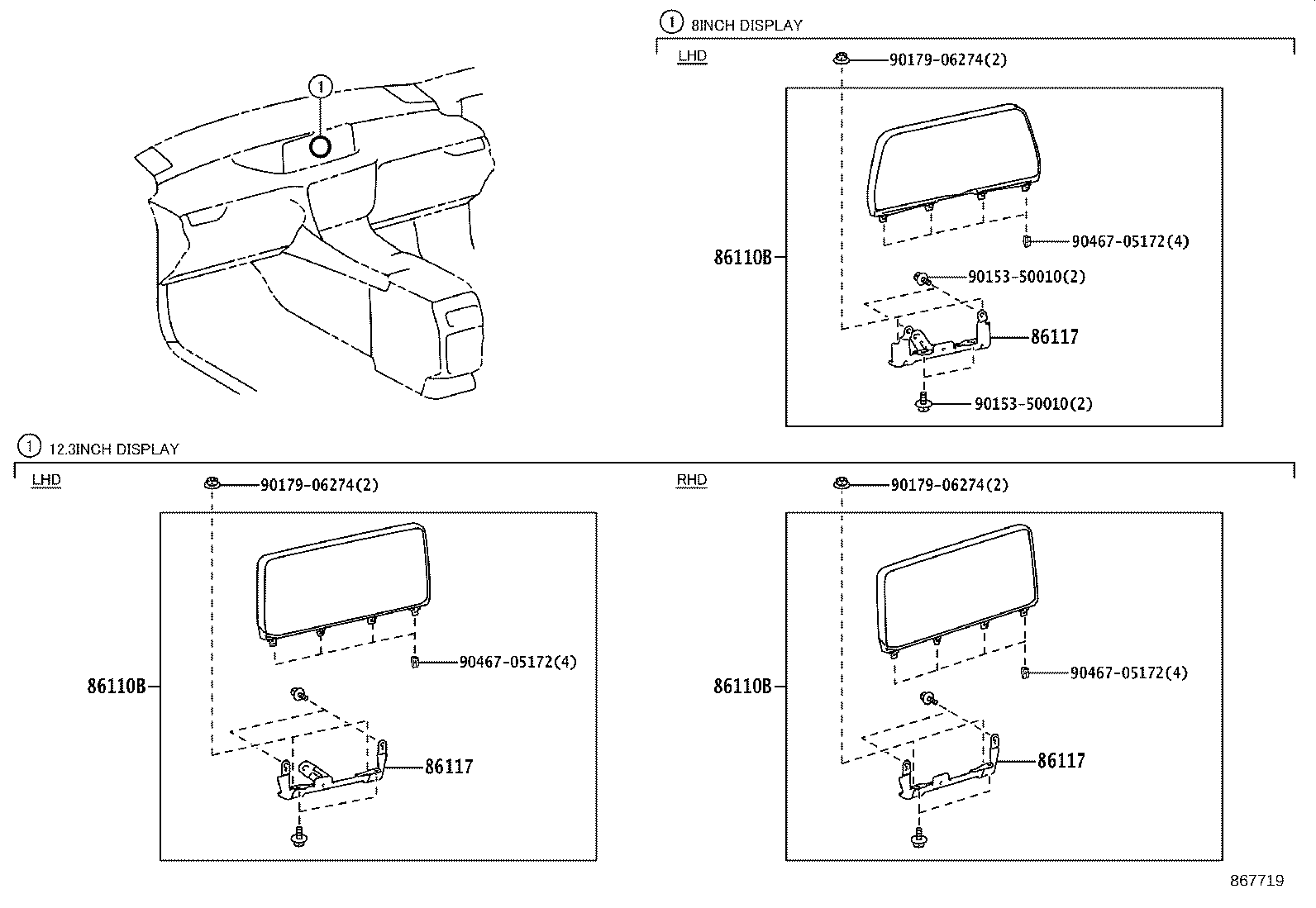

| 86110B | Multi-display Assy |
| 86117 | Bracket, Multi-display Controller, A |
| 86134A | Parts, Multi-display |
| 86255A | Case, Microphone, NO.1 |
| 86271 | Disc, Disc Player |
| 86681B | Divider, Antenna |
| 86730A | Microphone Assy, Telephone |
| 86730D | Microphone Assy, Telephone, NO.2 |
| 86841 | Computer, Navigation |
| 86842 | Wire, Navigation, NO.1 |
| 86848A | Card, Serial Number Map Update |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
