Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL26,GYL26 · catalogue 522530 · Europe

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

49 part groups · 8 illustrations

Illustrations

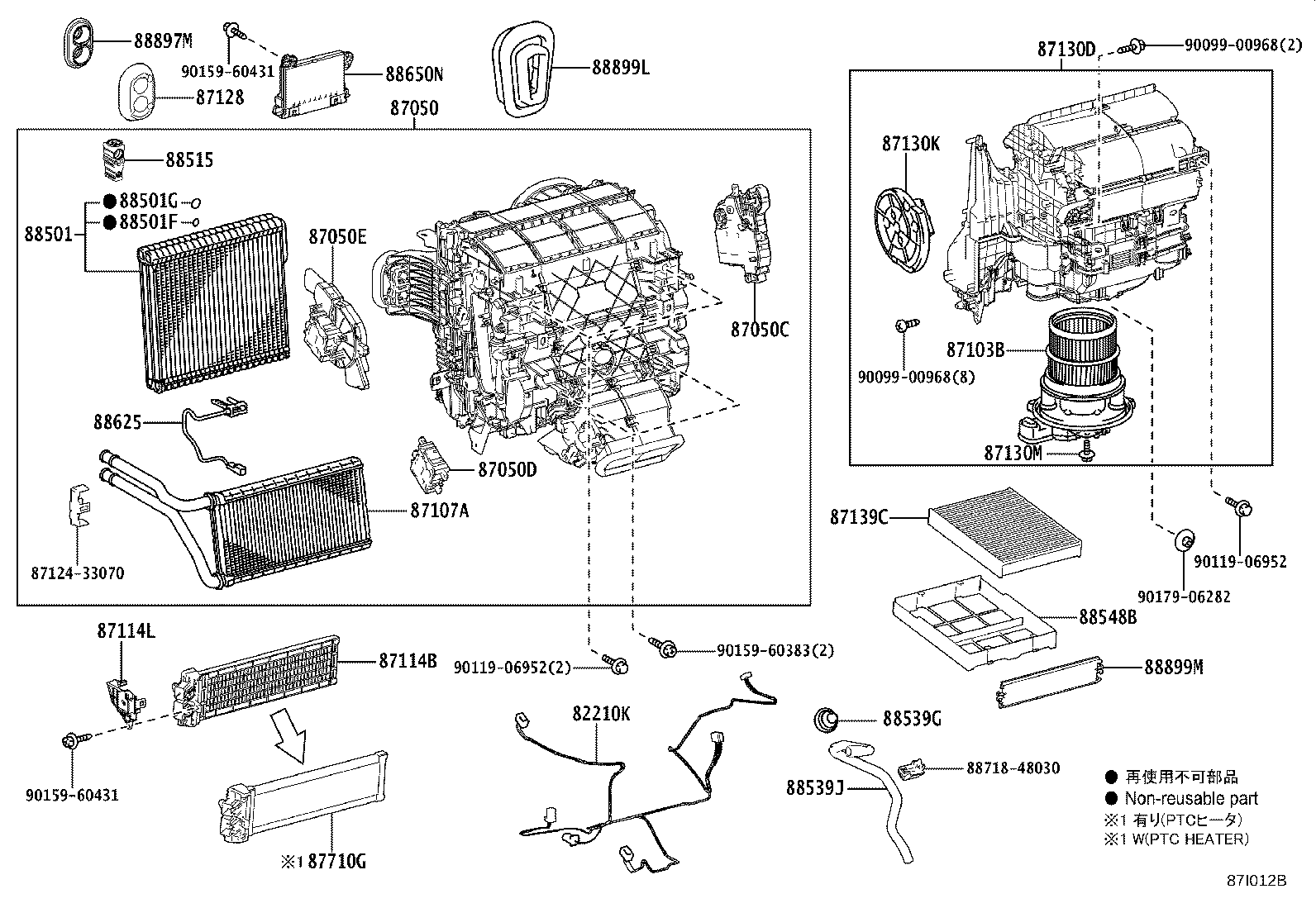

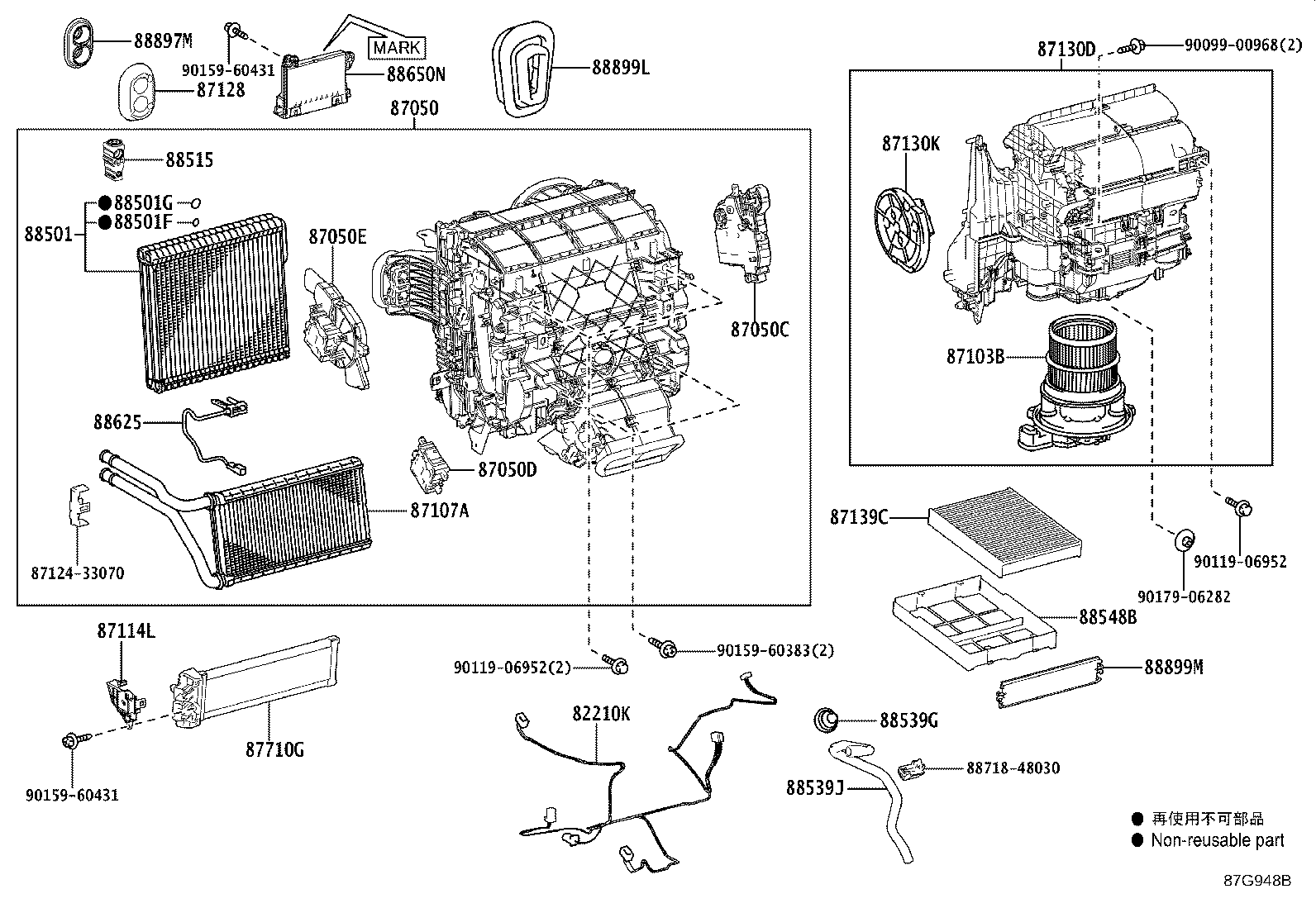

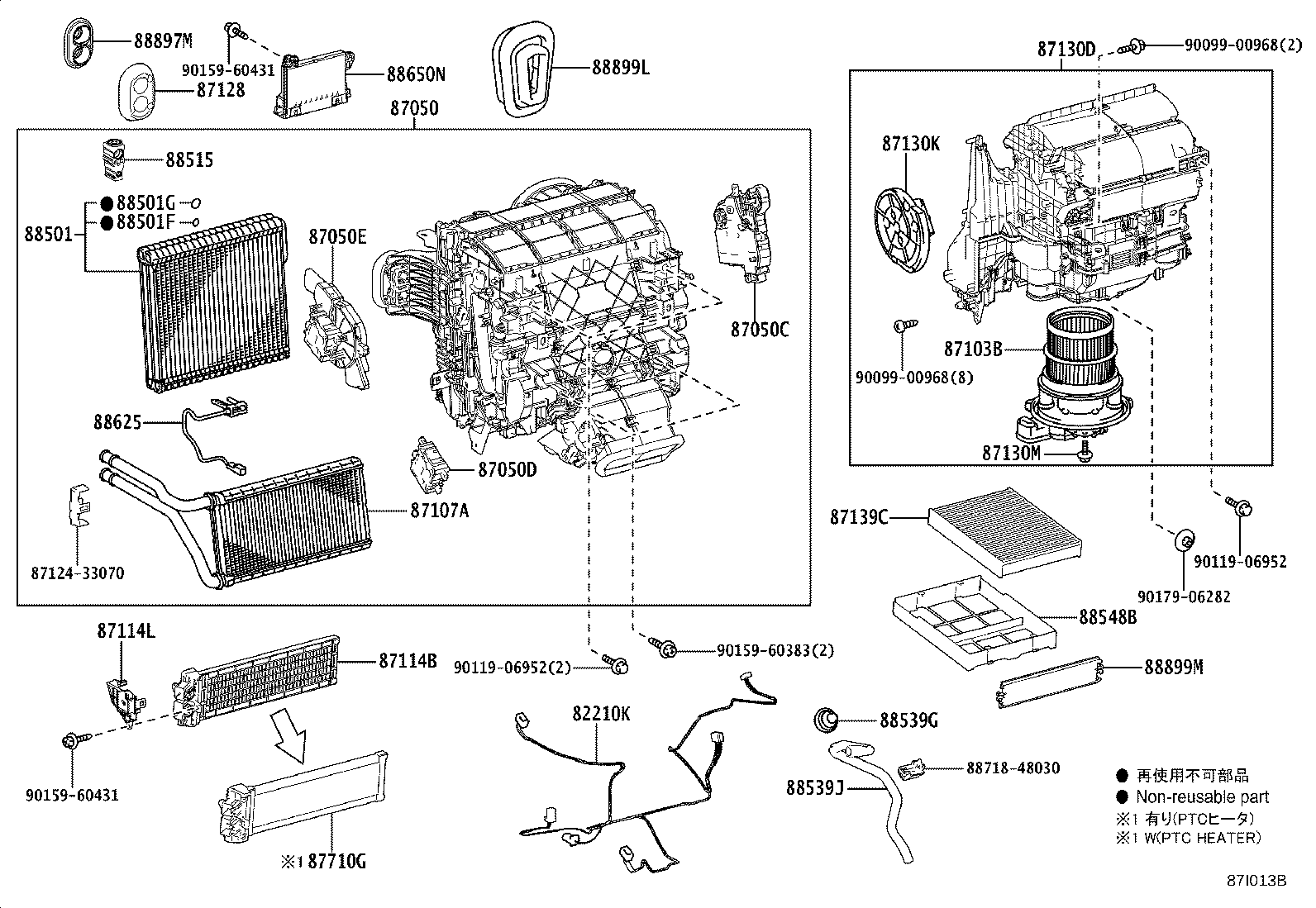

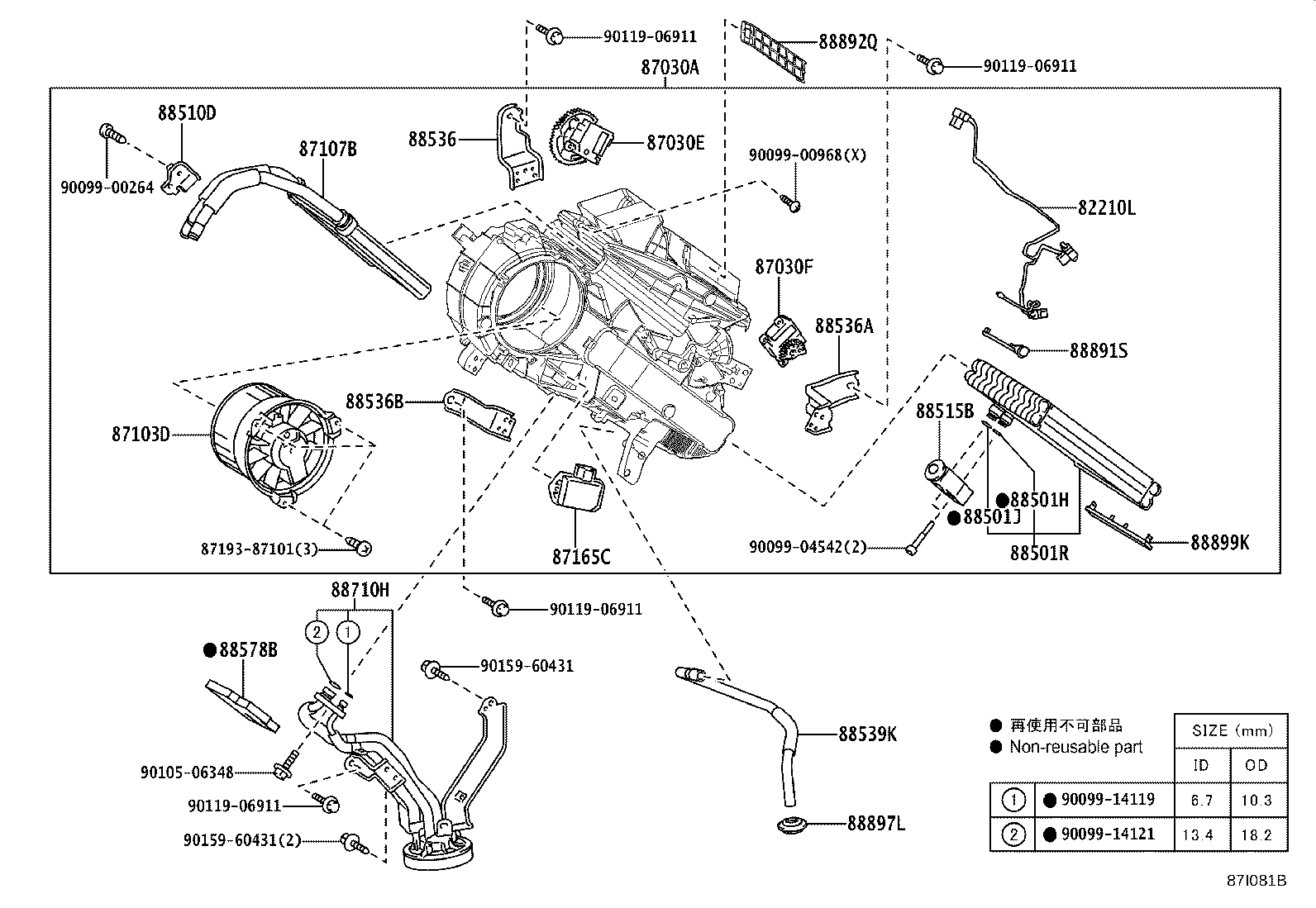

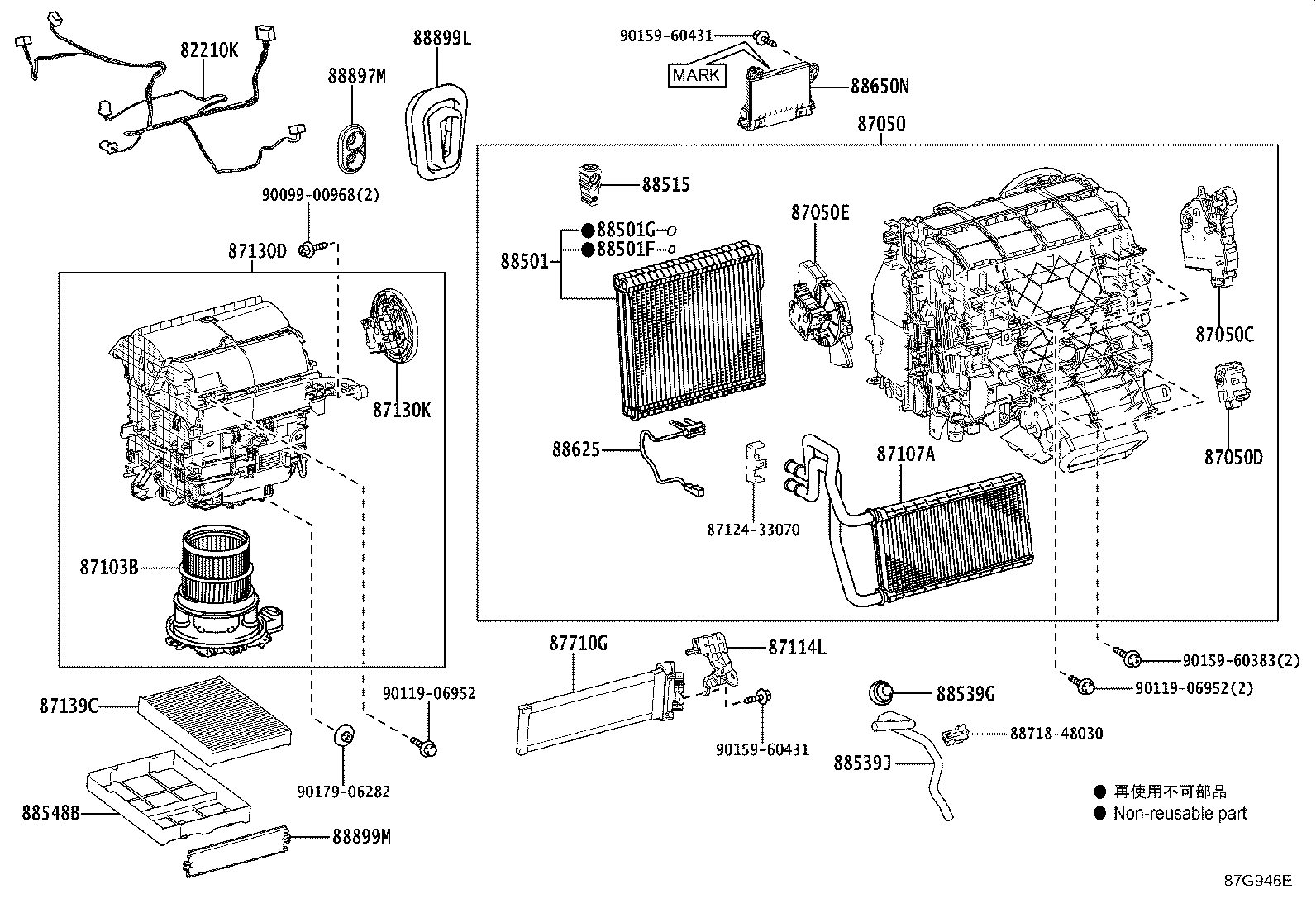

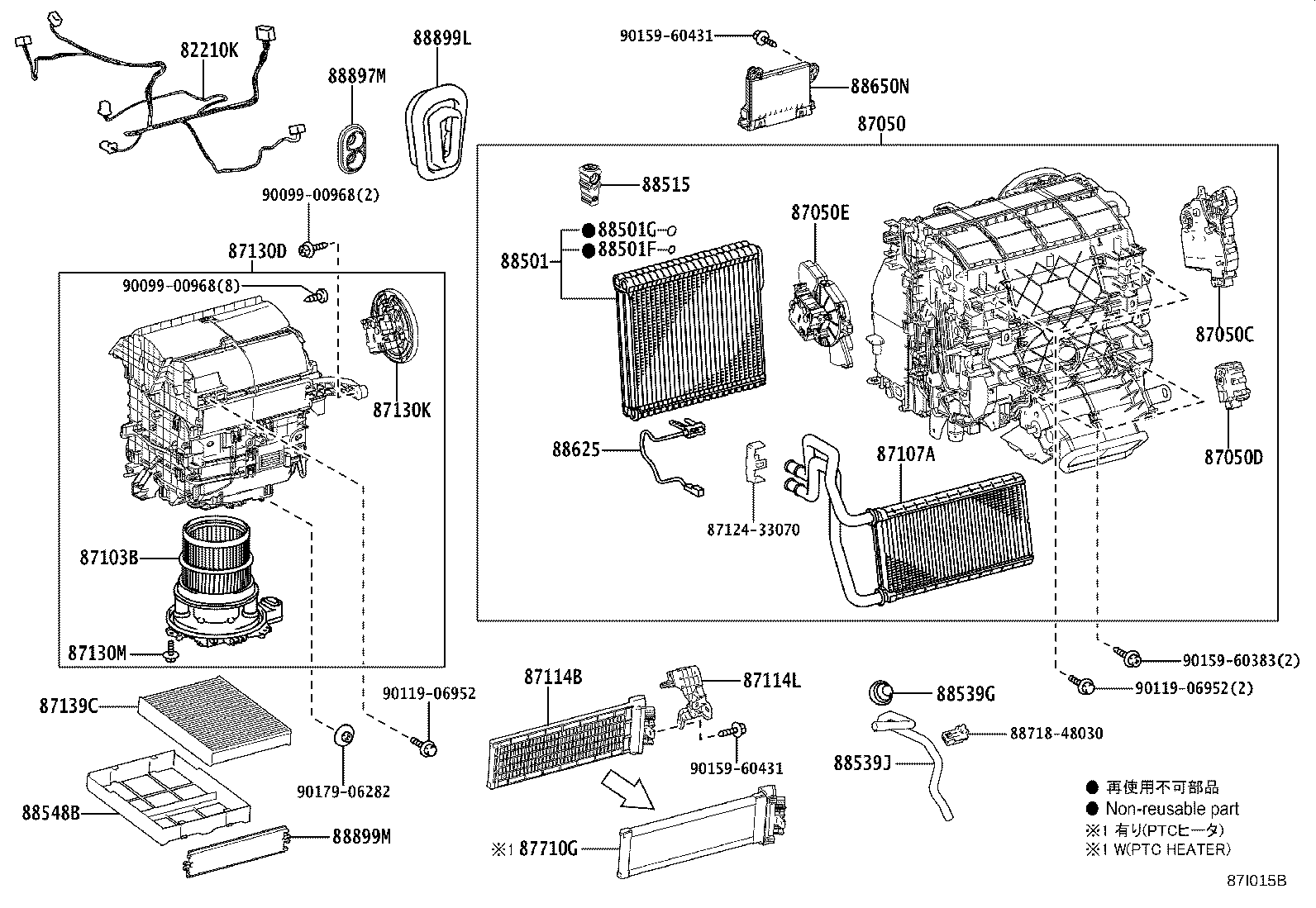

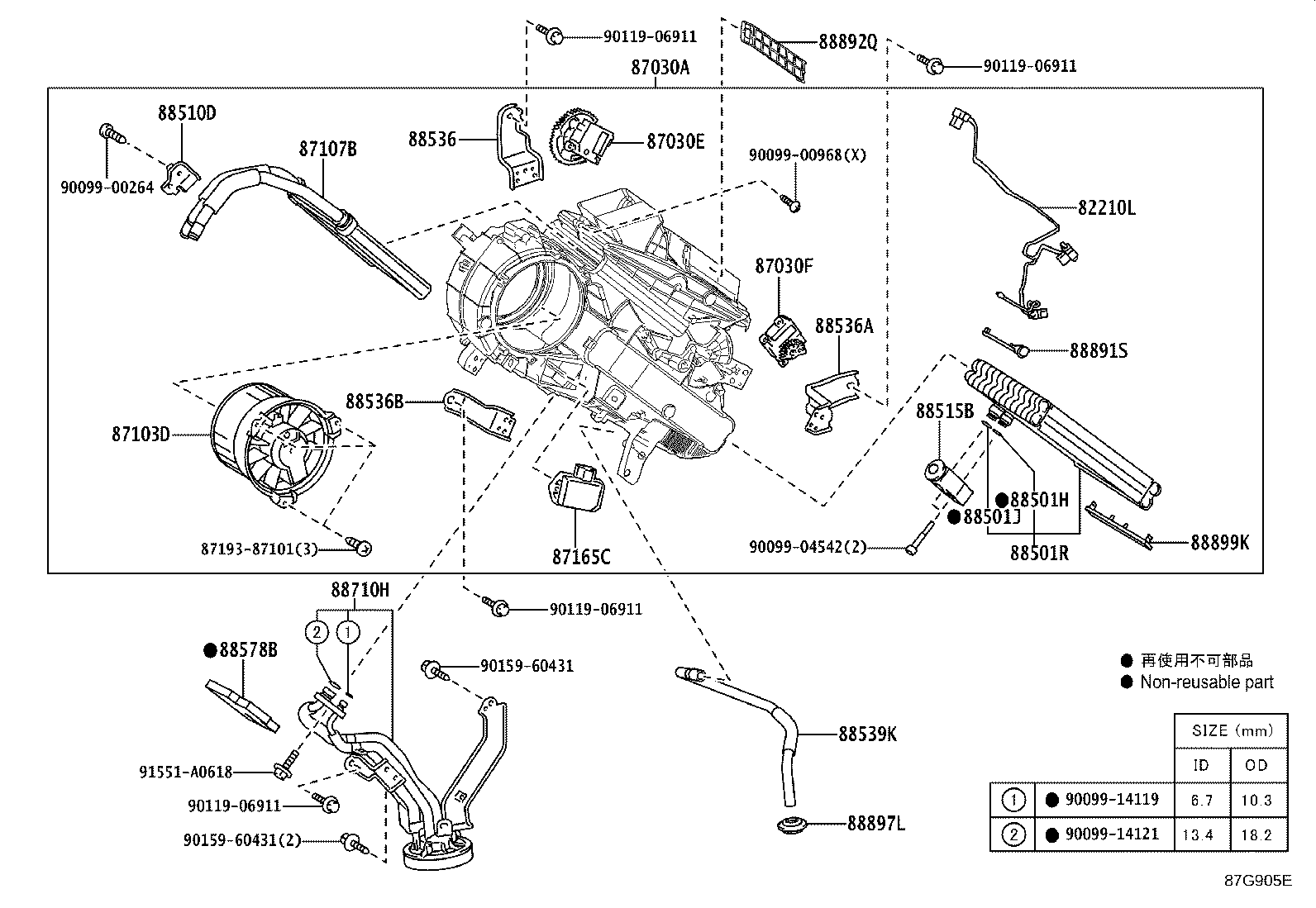

Figure 87G947B 87G947B 2017-12 → 2019-08 Figure 87I012B 87I012B 2019-08 → — Figure 87G948B 87G948B 2018-03 → 2019-08 Figure 87I013B 87I013B 2019-08 → — Figure 87G946E 87G946E 2018-03 → 2019-08 Figure 87I015B 87I015B 2019-08 → — Figure 87G905E 87G905E 2017-12 → 2019-08 Figure 87I081B 87I081B 2019-08 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
82210L Harness Assy, Air Conditioner, NO.2
87030A Unit Assy, Cooling, Rear
87030E Damper Servo Sub-assy, Rear Cooling Unit, NO.1
87030F Damper Servo Sub-assy, Rear Cooling Unit, NO.2
87050 Radiator Assy, Air Conditioner
87050C Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
87050D Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
87050E Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
87103B Motor Sub-assy, Blower W/Fan
87103D Motor Sub-assy, Blower W/Fan(FOR REAR)
87107A Unit Sub-assy, Heater Radiator
87107B Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87114L Cover, Heater, NO.2
87128 Grommet, Heater
87130D Blower Assy
87130K Damper Servo Sub-assy, Blower, NO.1
87130M Screw(FOR BLOWER)
87139C Filter, Clean Air
87165C Control, Blower Motor
87710G Quick Heater Assy
88501 Evaporator Sub-assy, Cooler, NO.1
88501F O-ring, Cooler Evaporator NO.1(DISCHARGE)
88501G O-ring, Cooler Evaporator NO.1(SUCTION)
88501H O-ring, Cooler Evaporator NO.2(DISCHARGE)
88501J O-ring, Cooler Evaporator NO.2(SUCTION)
88501R Evaporator Sub-assy (REAR)
88510D Clamp, Cooler Unit
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88536B Bracket, Cooling Unit, NO.3
88539G Grommet (FOR COOLER UNIT DRAIN HOSE)
88539J Hose, Drain Cooler
88539K Hose, Drain Cooler
88548B Case, Air Filter
88578B Packing, Cooling Unit, NO.1
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
88710H Tube & Accessory Assy, Air Conditioner
88891S Cover, Cooler, NO.1
88892Q Plate, Cooler
88897L Grommet (FOR DRAIN HOSE)
88897M Grommet (FOR HEATER PIPE)
88899K Plate, Cover
88899L Parts, Cooling Unit
88899M Plate, Cover(FOR AIR FILTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
