Heating & Air Conditioning - Water Piping

15 part groups · 12 illustrations

Illustrations

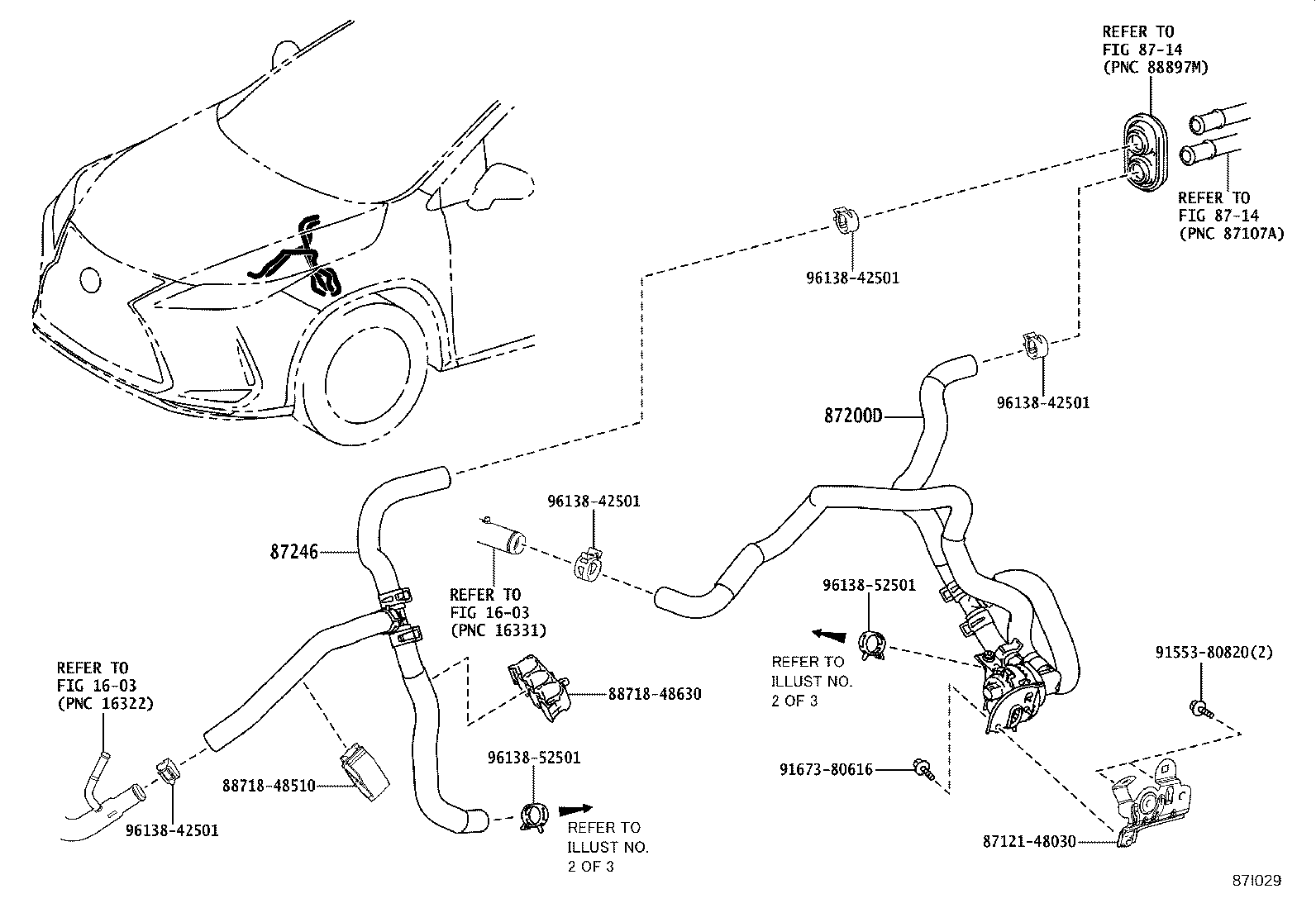

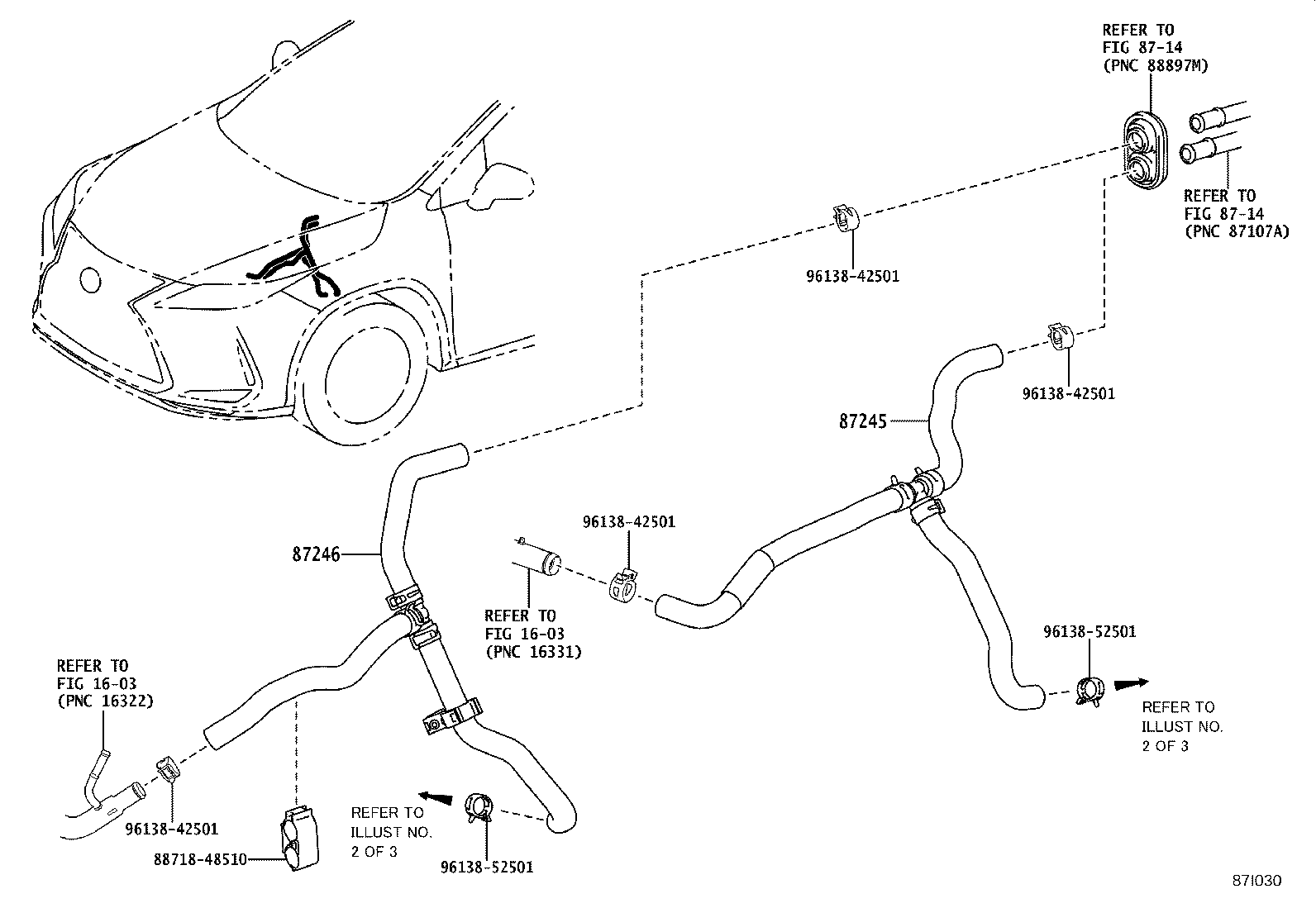

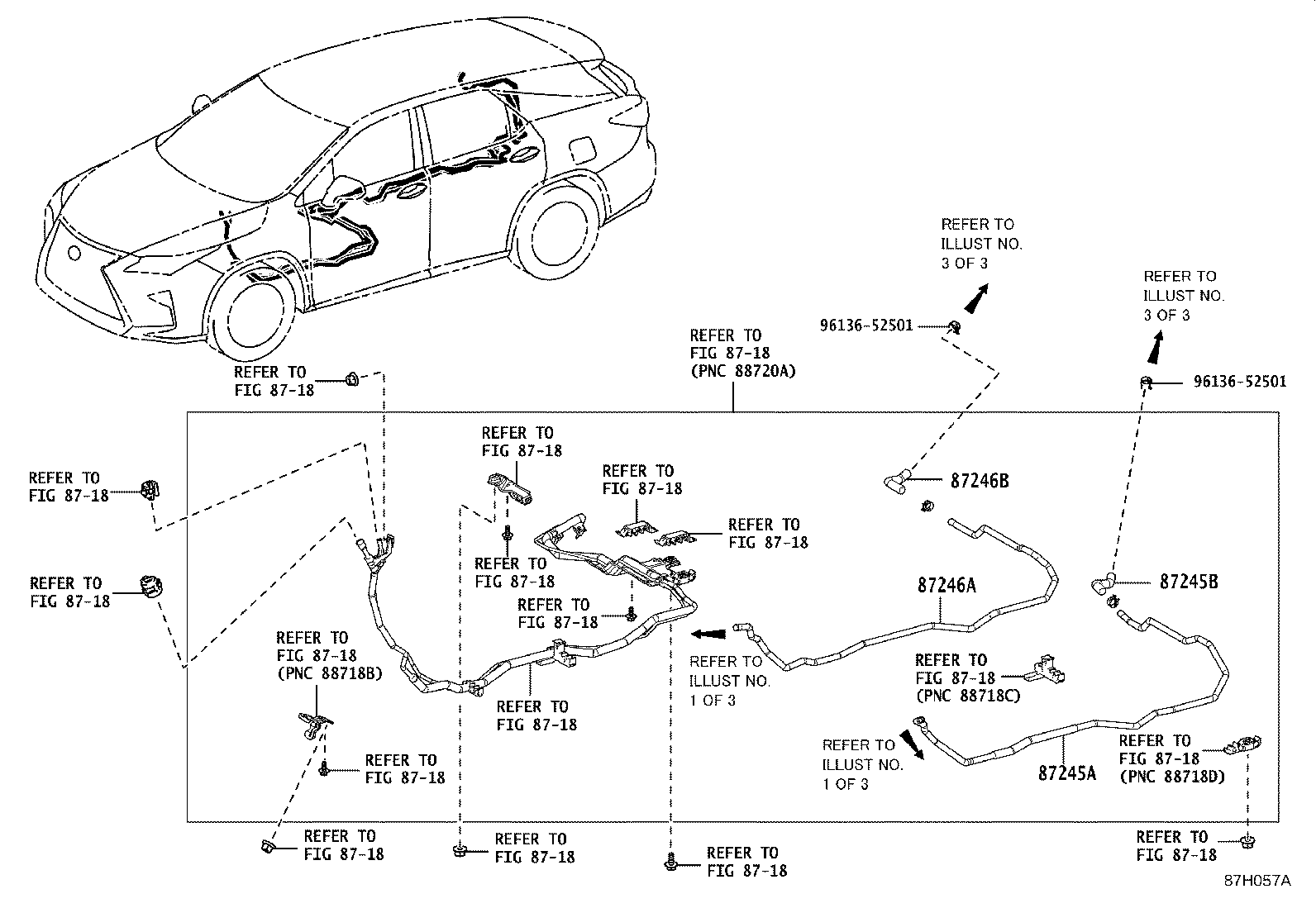

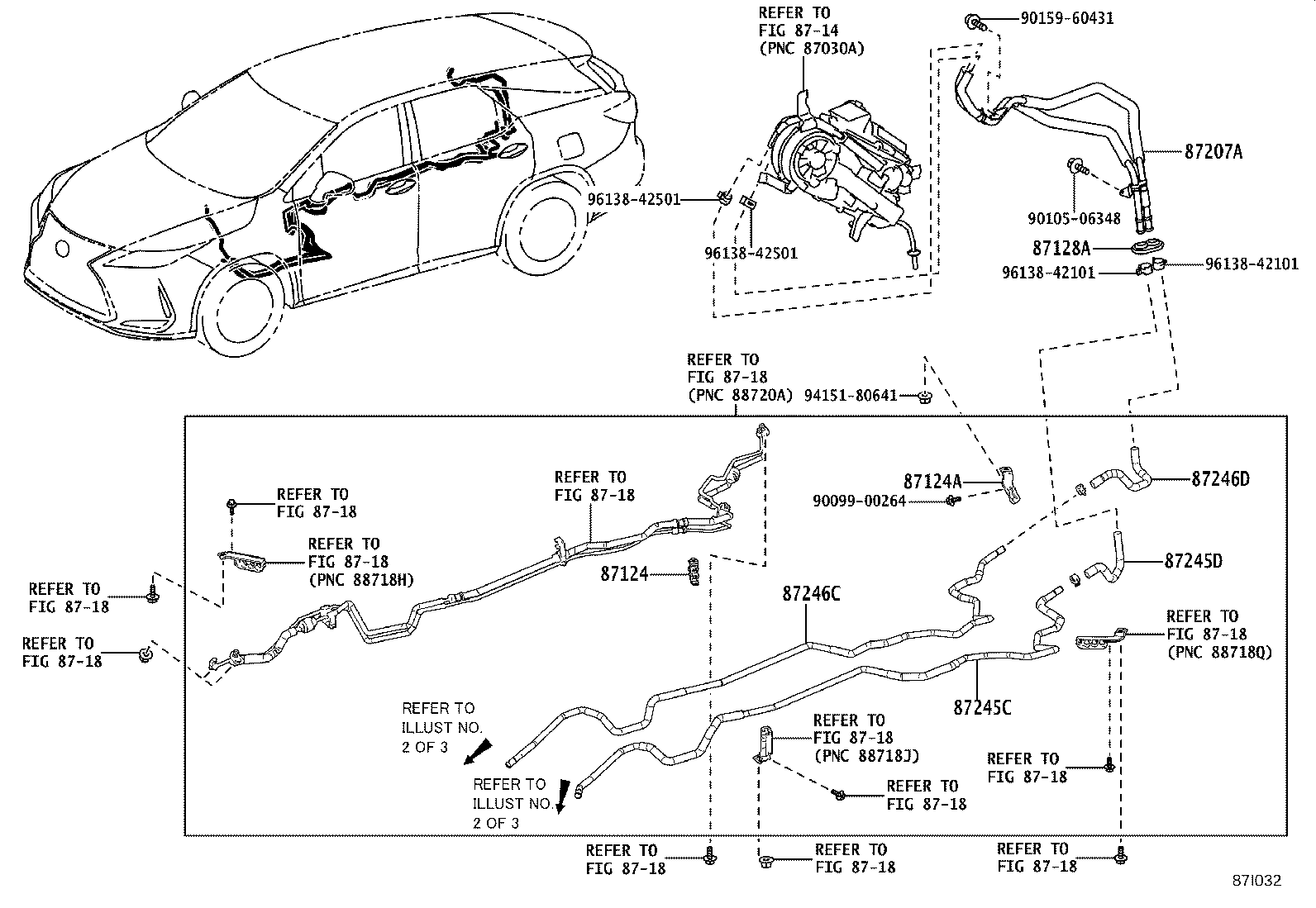

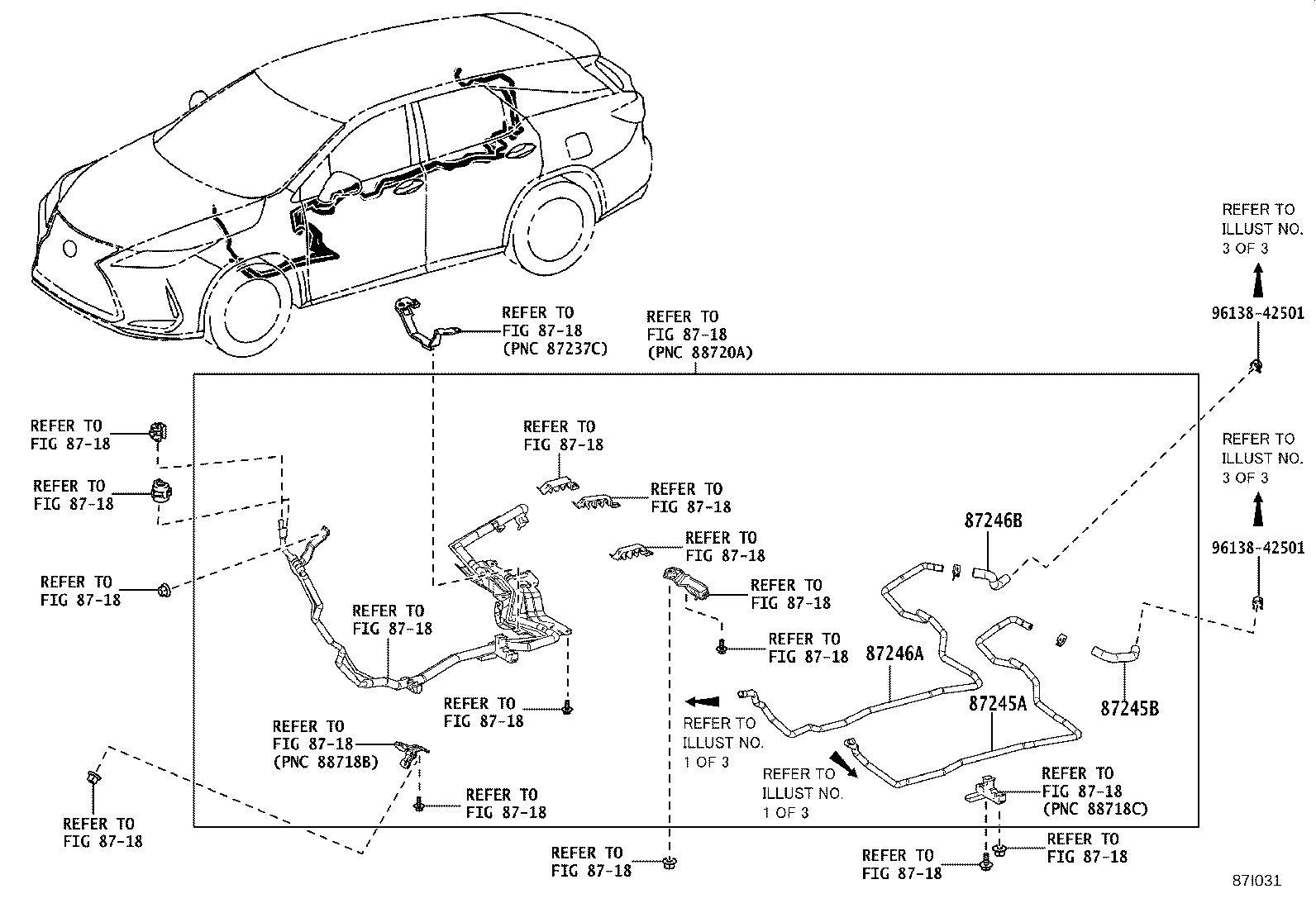

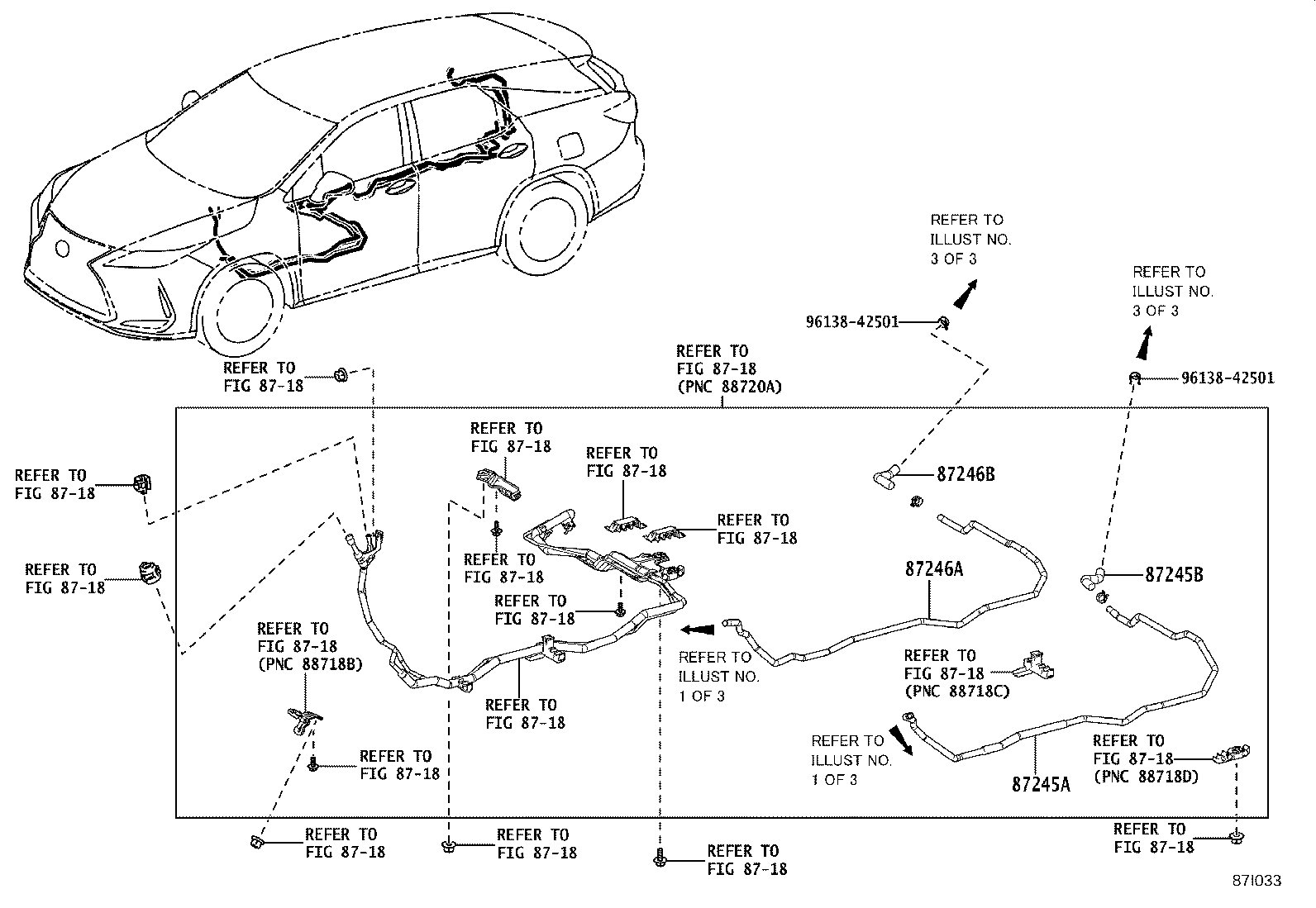

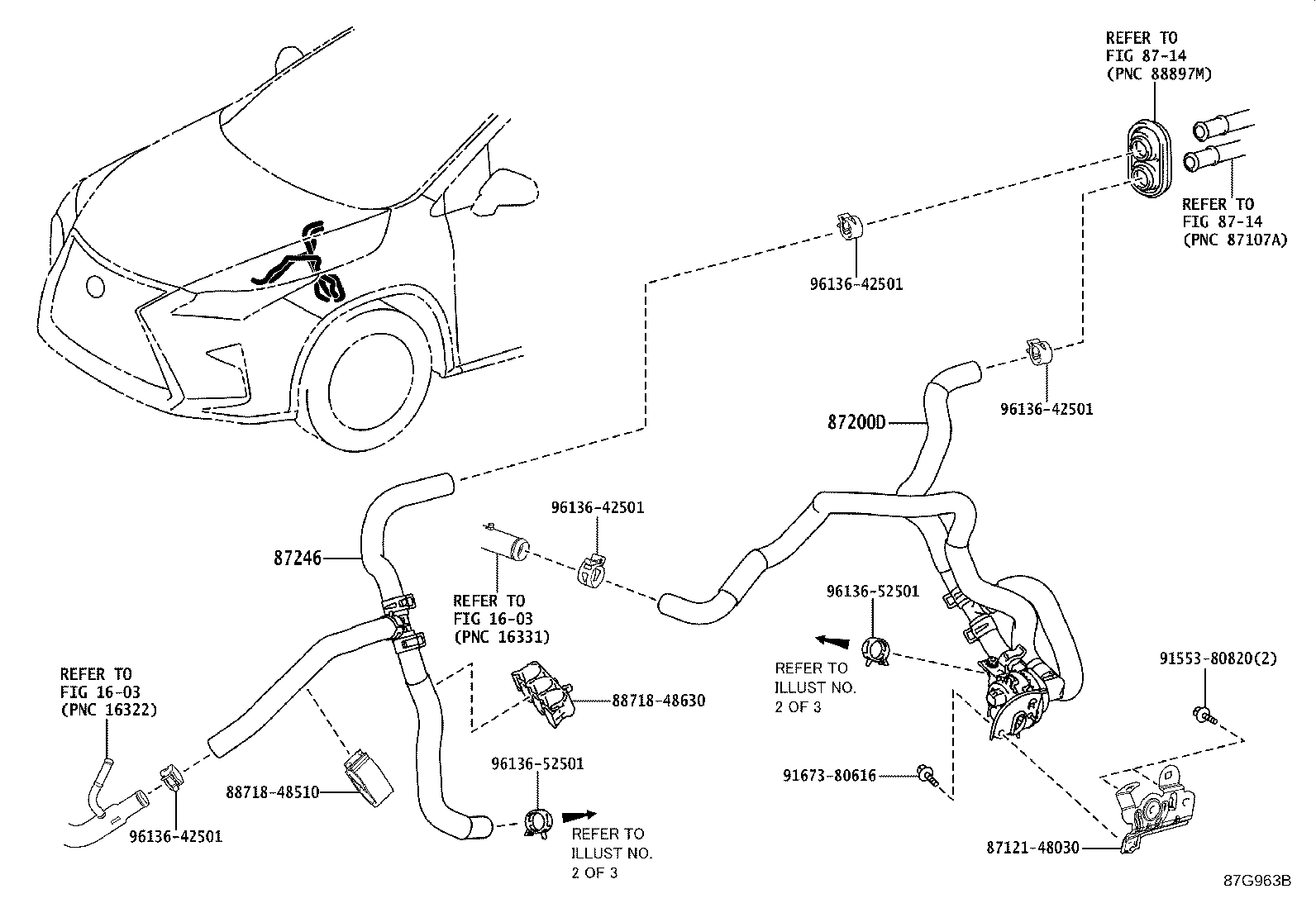

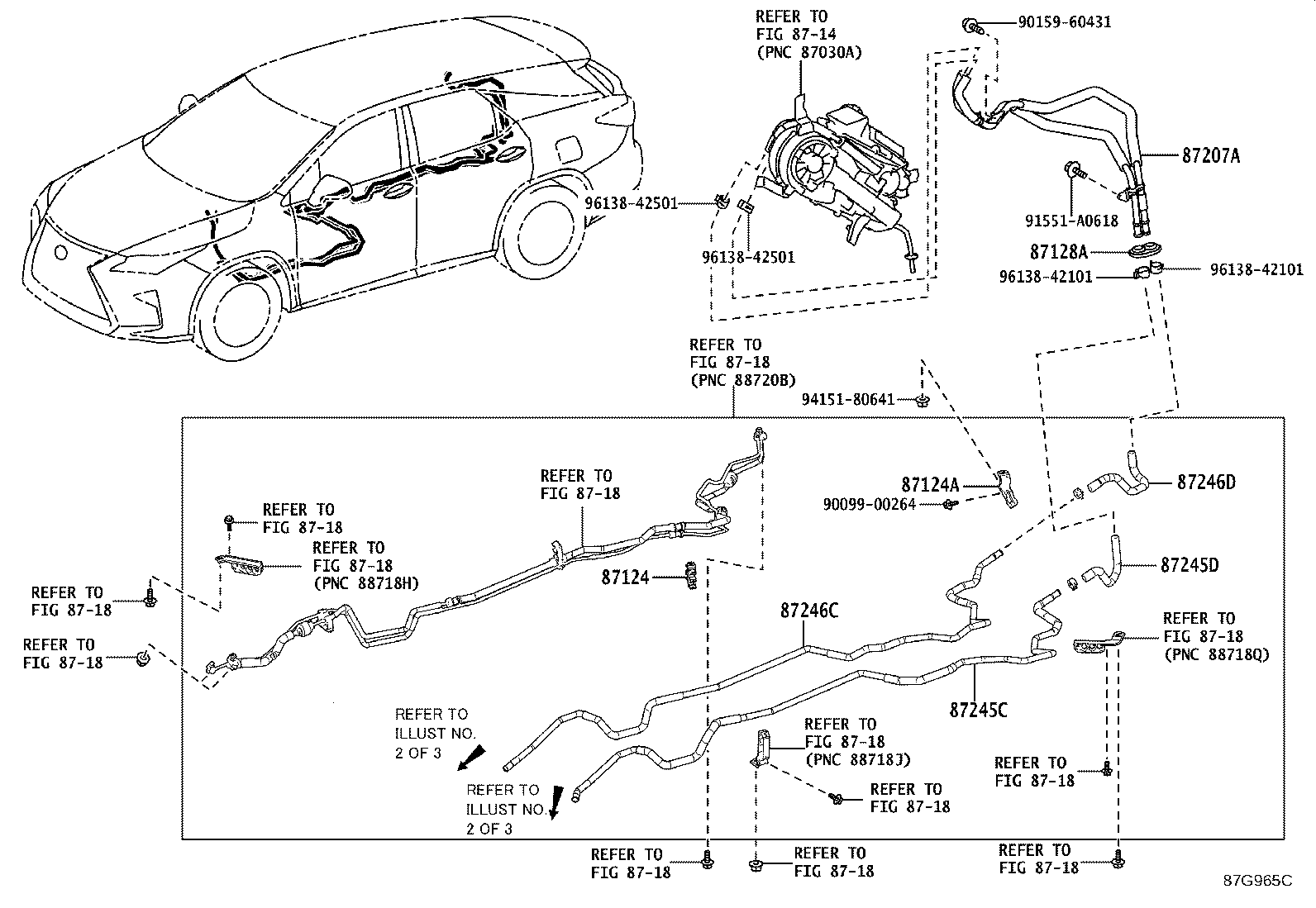

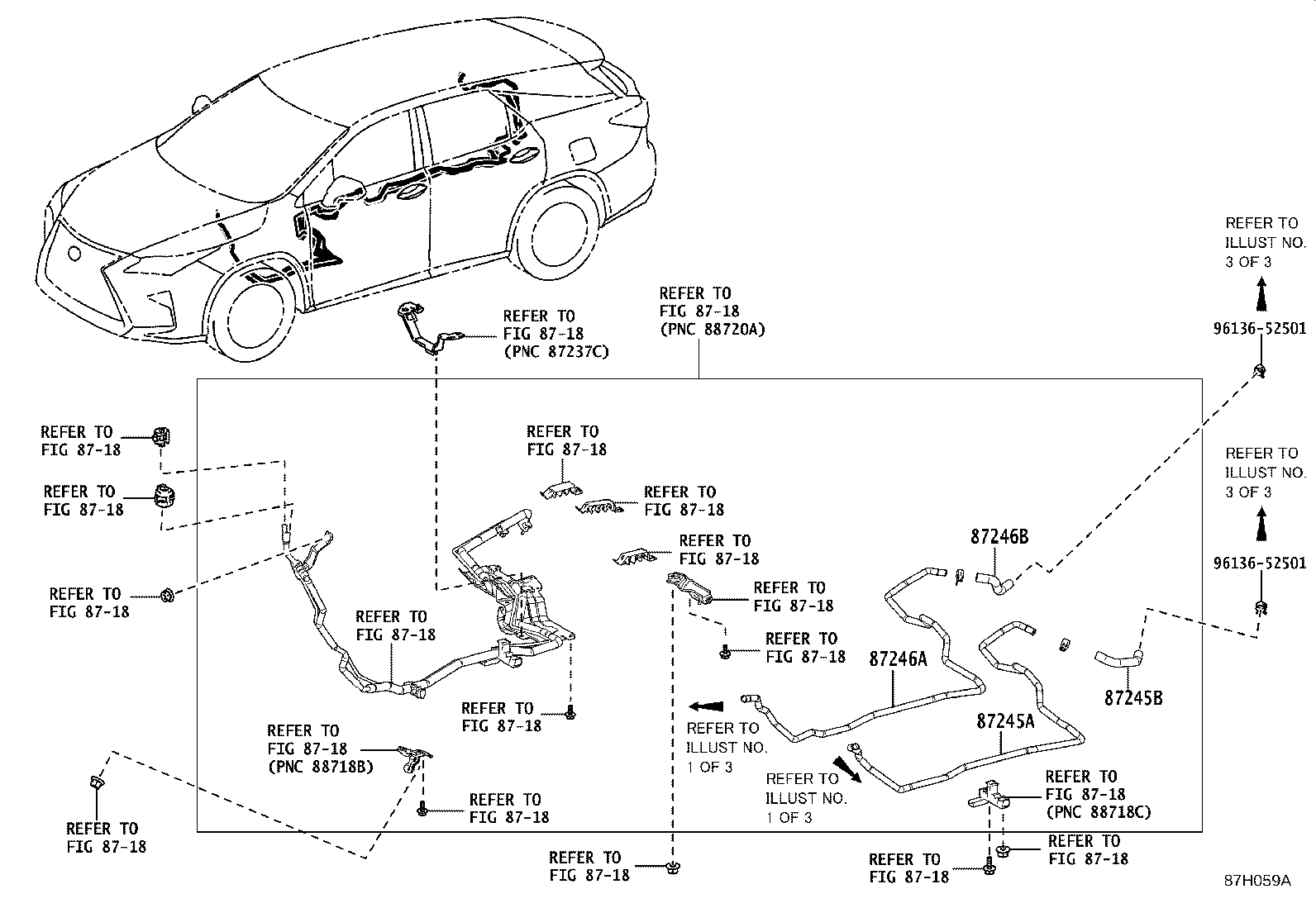

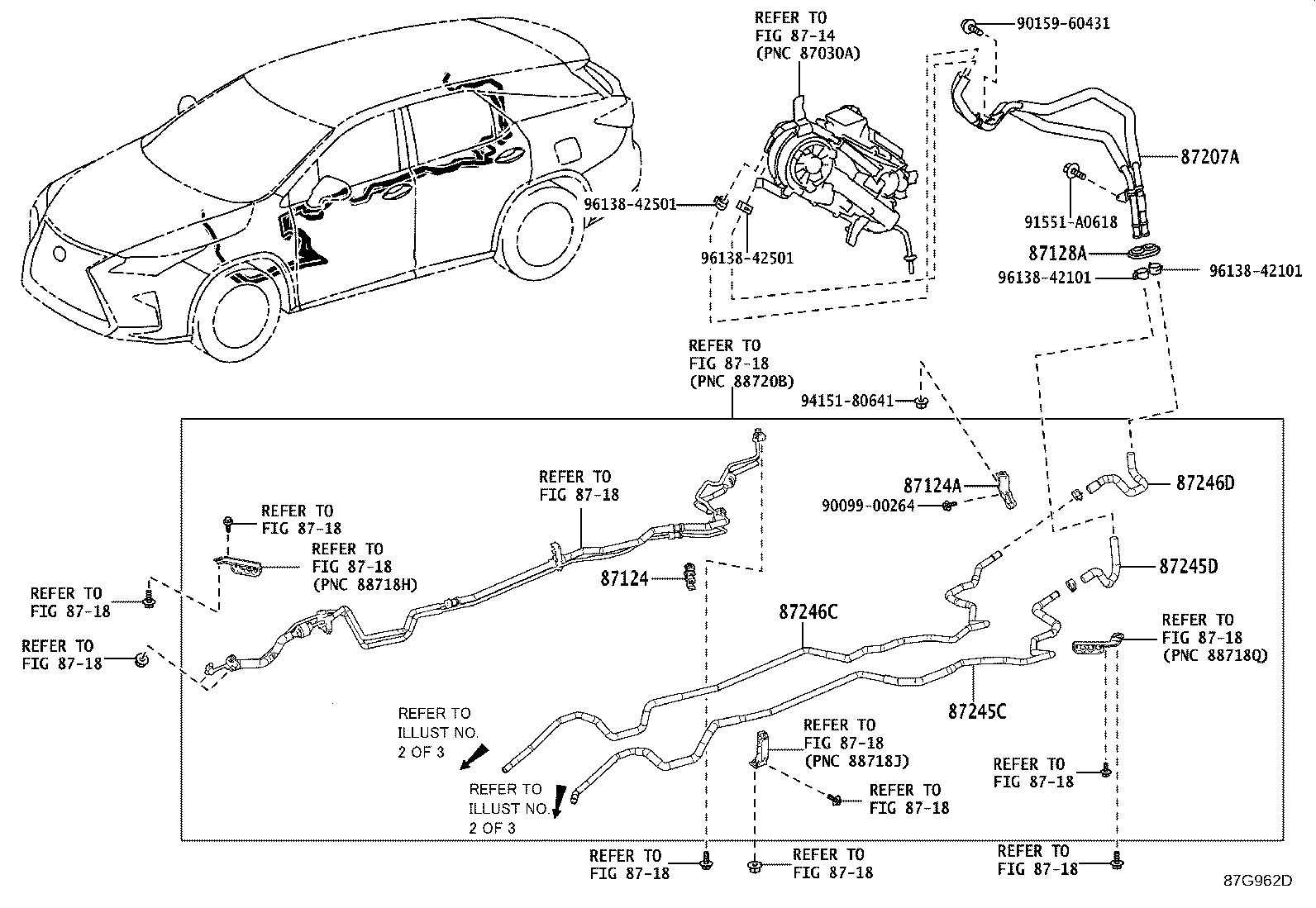

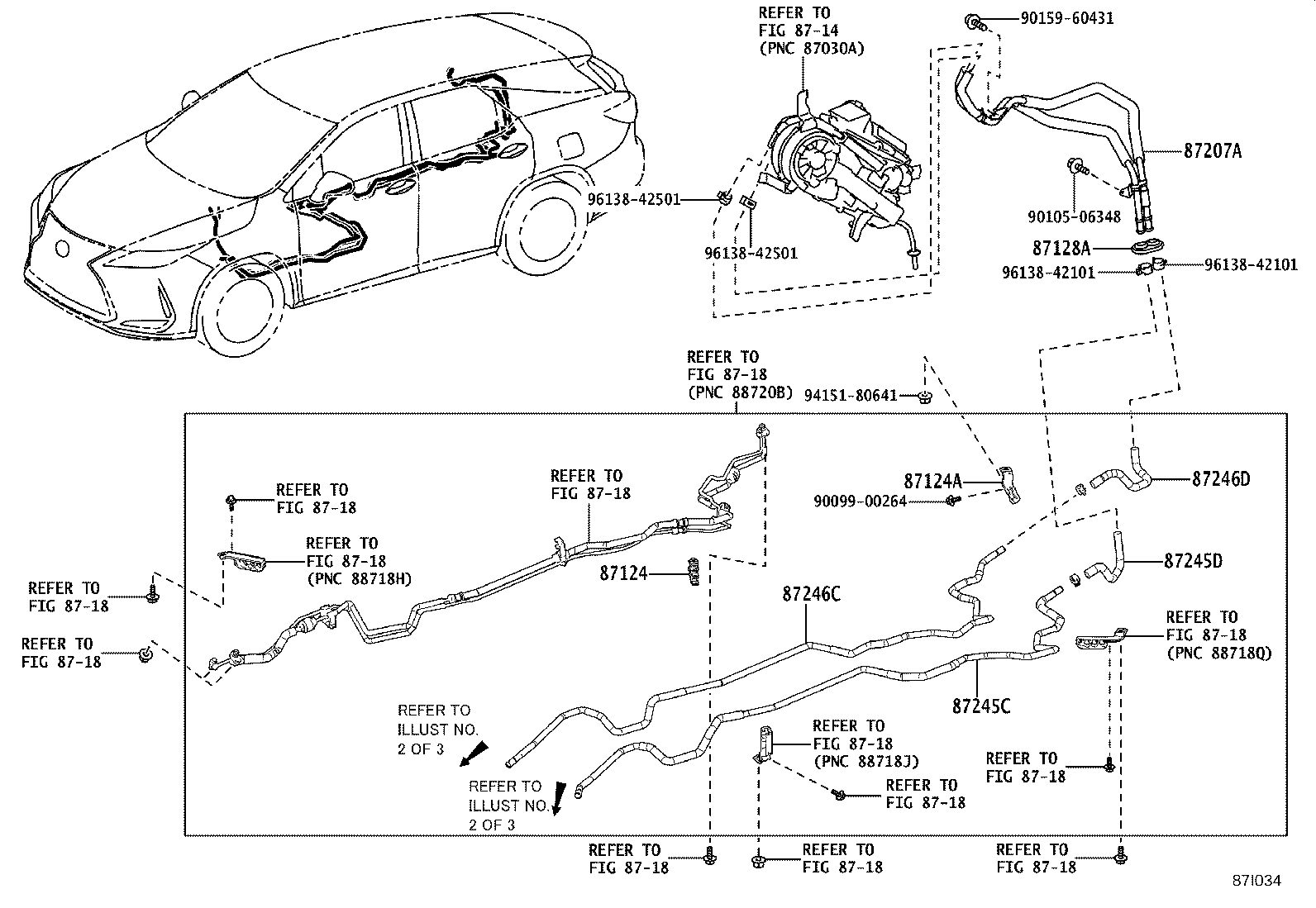

Figure 87G964B 87G964B 2017-12 → 2019-08 Figure 87I030 87I030 2019-08 → — Figure 87G963B 87G963B 2018-03 → 2019-08 Figure 87I029 87I029 2019-08 → — Figure 87H057A 87H057A 2017-12 → 2019-08 Figure 87I033 87I033 2019-08 → — Figure 87H059A 87H059A 2017-12 → 2019-08 Figure 87I031 87I031 2019-08 → — Figure 87G965C 87G965C 2017-12 → 2019-08 Figure 87I034 87I034 2019-08 → — Figure 87G962D 87G962D 2018-03 → 2019-08 Figure 87I032 87I032 2019-08 → —

Part groups

PNCDescription
87124 Clamp, Heater
87124A Clamp, Heater
87128A Grommet, Heater
87200D Accessory Assy, Heater
87207A Pipe & Hose Sub-assy, Water A
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
