Toyota Lexus RX400H

2005-03 → 2008-12 · chassis MHU38 · catalogue 524210 · Europe

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

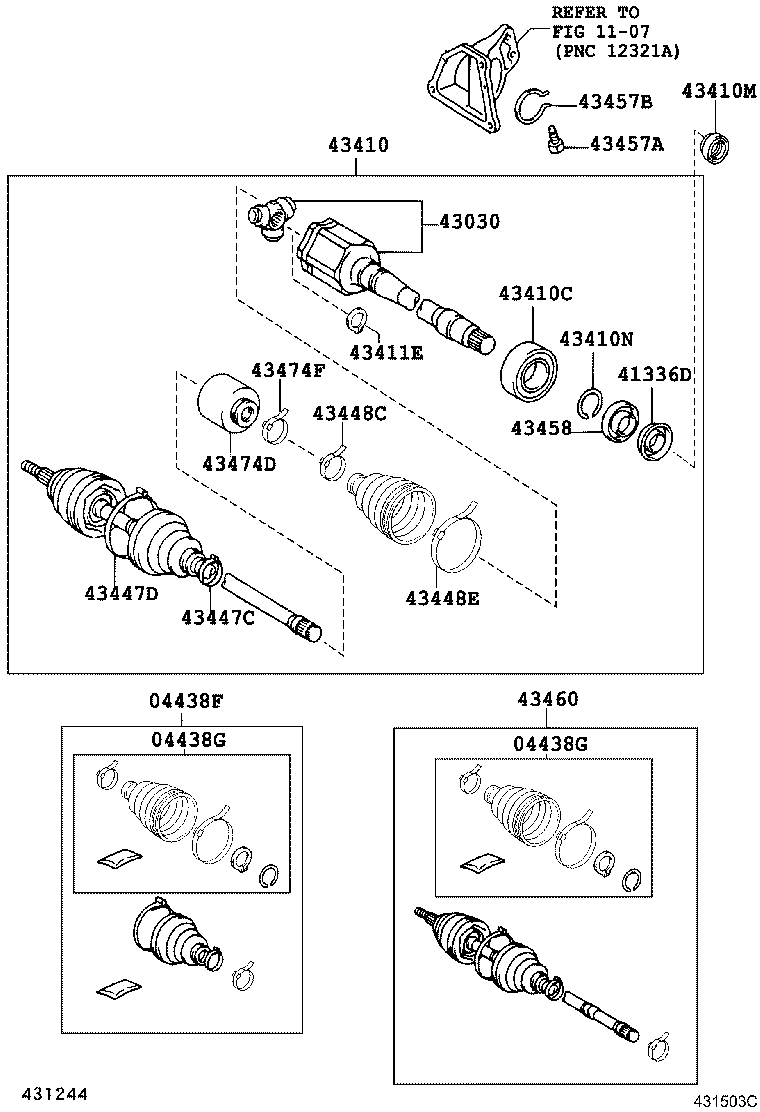

Exploded illustration 431503C 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (1 parts) 43030 — JOINT ASSY, FRONT DRIVE INBOARD, RH (1 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (1 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (1 parts) 43410C — BEARING (FOR FRONT DRIVE SHAFT) (1 parts) 43410N — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) (1 parts) 43458 — COVER, FRONT DRIVE SHAFT DUST (1 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (1 parts) 43457B — RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) (1 parts) 43457A — BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) (1 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (1 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (1 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (1 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (1 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (1 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (1 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (1 parts) 1107 — not listed in this catalogue 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (1 parts) 43474D — DAMPER, FRONT DRIVE SHAFT, RH (1 parts) 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (1 parts)
431503C · 20 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
19 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04427-48100 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2005-03 → 2008-12 ended
MHU38 —
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-48090 Boot Kit, Front Drive Shaft Inboard Joint, RH
2005-03 → 2008-12 ended
MHU38 —
41336D — Cover, Front Drive Shaft Dust, RH
41336-12020 Cover, Front Drive Shaft Dust, RH
2005-03 → 2008-12 ended
MHU38 —
43030 — Joint Assy, Front Drive Inboard, RH
43030-48040 Joint Assy, Front Drive Inboard, RH
2005-03 → 2008-12 ended
MHU38 —
43410 — Shaft Assy, Front Drive, RH
43410-48080 Shaft Assy, Front Drive, RH
2005-03 → 2008-12 ended
MHU38 —
43410C — Bearing (FOR FRONT DRIVE SHAFT)
90363-41001 Bearing (FOR FRONT DRIVE SHAFT)
2005-03 → 2008-12 ended
MHU38 —
43410M — Oil Seal, Front Drive Shaft, RH
90311-40029 Oil Seal, Front Drive Shaft, RH
2005-03 → 2008-12 ended
MHU38 —
43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
90520-38015 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2005-03 → 2008-12 ended
MHU38 —
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-48010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2005-03 → 2008-12 ended
MHU38 —
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-48070 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2005-03 → 2008-12 ended
MHU38 —
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-48080 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2005-03 → 2008-12 ended
MHU38 —
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-22020 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2005-03 → 2008-12 ended
MHU38 —
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42346-22010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2005-03 → 2008-12 ended
MHU38 —
43457A — Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2005-03 → 2008-12 ended
MHU38 —
43457B — Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
90521-78002 Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
2005-03 → 2008-12 ended
MHU38 —
43458 — Cover, Front Drive Shaft Dust
43458-12010 Cover, Front Drive Shaft Dust
2005-03 → 2008-12 ended
MHU38 —
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43460-49375 Shaft Assy, Front Drive Outboard Joint, RH
2005-03 → 2008-12 ended
MHU38 —
43474D — Damper, Front Drive Shaft, RH
43474-48020 Damper, Front Drive Shaft, RH
2005-03 → 2008-12 ended
MHU38 —
43474F — Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2005-03 → 2008-12 ended
MHU38 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
