Toyota Lexus RX400H
2005-03 → 2008-12 · chassis MHU38 · catalogue 524210 · Europe
Supported model
Data version 2009-07

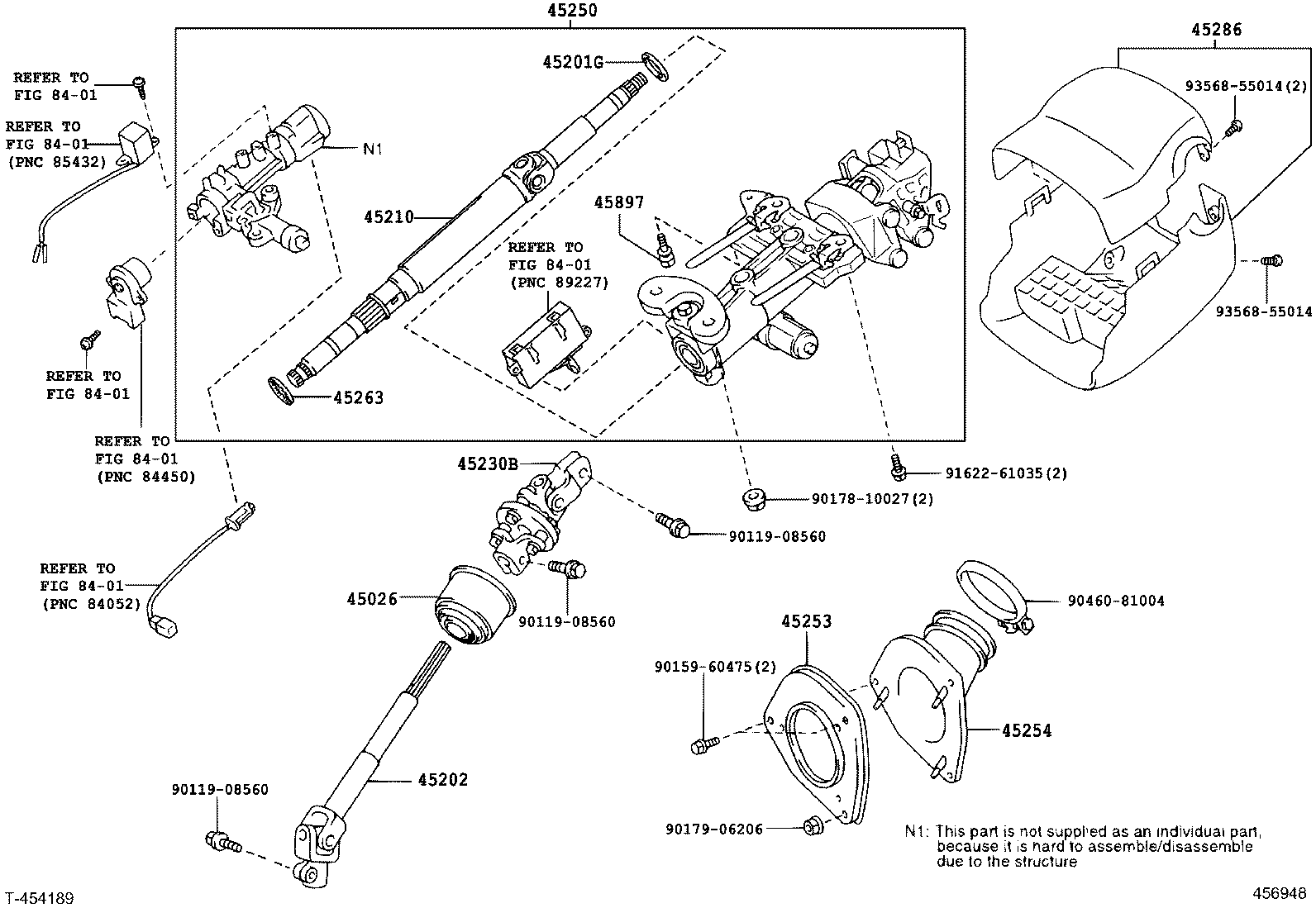

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45026 — Cover Sub-assy, Steering Column Hole, NO.2 | ||||
| 45026-48050 |
Cover Sub-assy, Steering Column Hole, NO.2
2005-03 → 2008-12
ended
|
MHU38 | — | |
| 45201G — Spring, Compression(FOR STEERING MAIN SHAFT) | ||||
| 45820-50010 note |
Spring, Compression(FOR STEERING MAIN SHAFT)
2005-03 → 2008-12
ended
|
MHU38 | — | |
| 45202 — Shaft Sub-assy, Steering Intermediate | ||||
| 45202-48070 |
Shaft Sub-assy, Steering Intermediate
2005-03 → 2008-12
ended
|
MHU38 RHD | — | |
| 45202-48080 |
Shaft Sub-assy, Steering Intermediate
2005-03 → 2008-12
ended
|
MHU38 LHD | — | |
| 45210 — Shaft Assy, Steering Main | ||||
| 45210-48020 |
Shaft Assy, Steering Main
2005-03 → 2008-12
ended
|
MHU38 | — | |
| 45210-48040 note |
Shaft Assy, Steering Main
2005-03 → 2008-12
ended
|
MHU38 | — | |
| 45230B — Joint Assy, Steering Shaft Universal | ||||
| 45230-48050 |
Joint Assy, Steering Shaft Universal
2005-03 → 2008-12
ended
|
MHU38 | — | |
| 45250 — Column Assy, Steering | ||||
| 45250-48050 |
Column Assy, Steering
2005-03 → 2008-12
ended
|
MHU38 | — | |
| 45250-48110 note |
Column Assy, Steering
2005-03 → 2008-12
ended
|
MHU38 | — | |
| 45253 — Cover, Steering Column Hole | ||||
| 45253-48030 |
Cover, Steering Column Hole
2005-03 → 2008-12
ended
|
MHU38 RHD | — | |
| 45253-48040 |
Cover, Steering Column Hole
2005-03 → 2008-12
ended
|
MHU38 LHD | — | |
| 45254 — Shield, Steering Column Hole | ||||
| 45254-48030 |
Shield, Steering Column Hole
2005-03 → 2008-12
ended
|
MHU38 RHD | — | |
| 45254-48040 |
Shield, Steering Column Hole
2005-03 → 2008-12
ended
|
MHU38 LHD | — | |
| 45263 — Ring, Steering Column, NO.1 | ||||
| 45263-30010 note |
Ring, Steering Column, NO.1
2005-03 → 2008-12
ended
|
MHU38 | — | |
| 45286 — Cover, Steering Column | ||||
| 45286-48900-B0 note |
Cover, Steering Column
2005-03 → 2008-12
ended
|
MHU38 | — | |
| 45286-48900-C0 note |
Cover, Steering Column
2005-03 → 2008-12
ended
|
MHU38 | — | |
| 45286-48902-B0 note |
Cover, Steering Column
2005-03 → 2008-12
ended
|
MHU38 | — | |
| 45286-48902-C0 note |
Cover, Steering Column
2005-03 → 2008-12
ended
|
MHU38 | — | |
| 45897 — Bolt, Steering Lock Set | ||||
| 45897-12020 |
Bolt, Steering Lock Set
2005-03 → 2008-12
ended
|
MHU38 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
