Toyota Lexus RX400H
2005-03 → 2008-12 · chassis MHU38 · catalogue 524210 · Europe
Supported model
Data version 2009-07

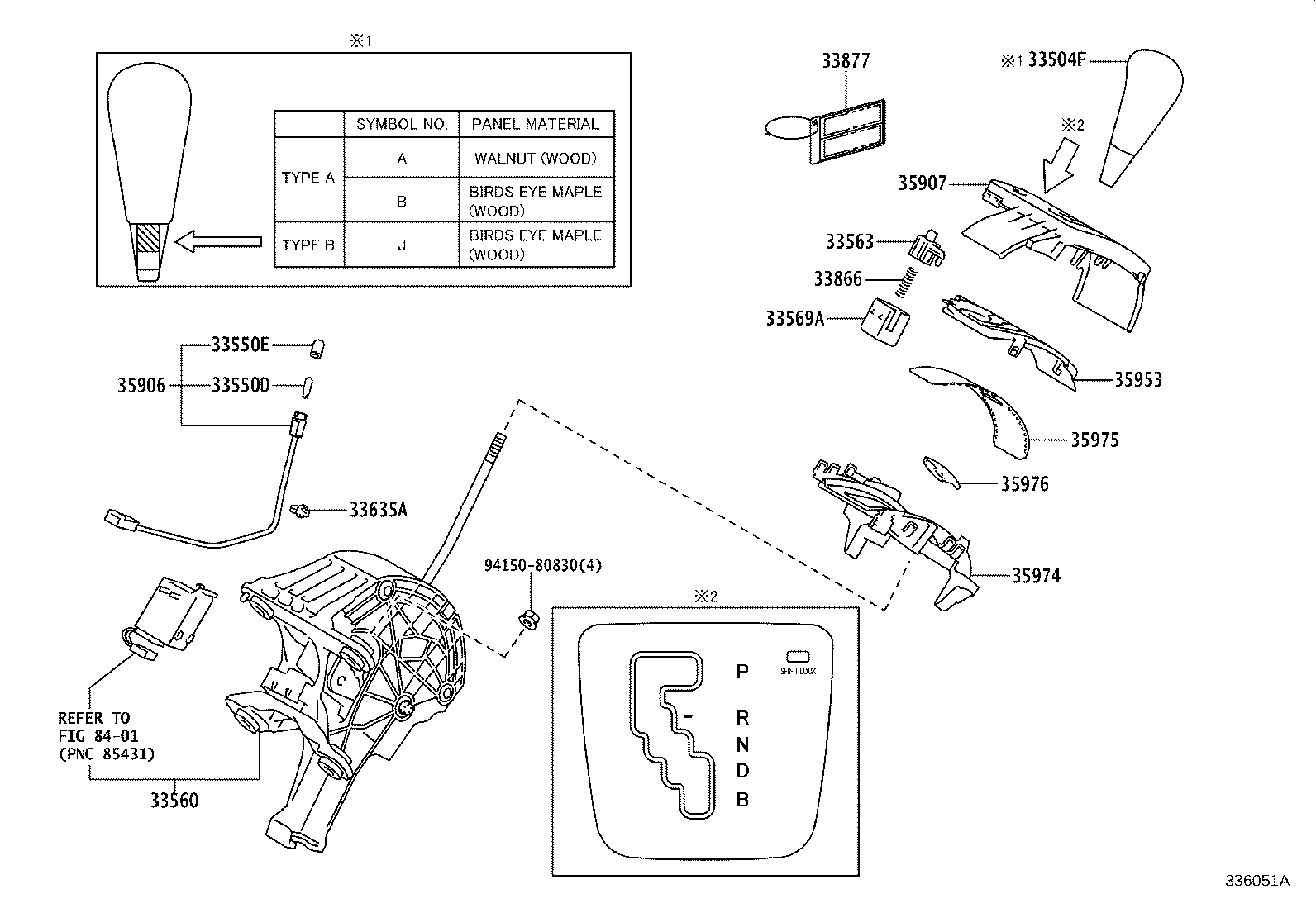

Shift Lever & Retainer
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33504F | Knob Sub-assy, Shift Lever |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33560 | Unit Assy, Shift Lock Control |
| 33563 | Button, Shift Lock Release |
| 33569A | Guide, Shift Lock Release Button |
| 33635A | Guide, Wire, NO.1 (FOR SHIFT LEVER) |
| 33820B | Cable Assy, Transmission Control |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 33826A | Bracket, Transmission Control Cable, NO.2 |
| 33827 | Bracket, Transmission Control Cable, NO.3 |
| 33866 | Spring, Shift Lock Release |
| 33877 | Label, Shift Lock Information, NO.1 |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35907 | Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT) |
| 35953 | Guide, Position Indicator Light |
| 35974 | Housing, Position Indicator, Lower |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976 | Cover, Slide, NO.2 (FOR POSITION INDICATOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
