Toyota Lexus RX400H

2005-03 → 2008-12 · chassis MHU38 · catalogue 524210 · Europe

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

21 part groups · 2 illustrations

Illustrations

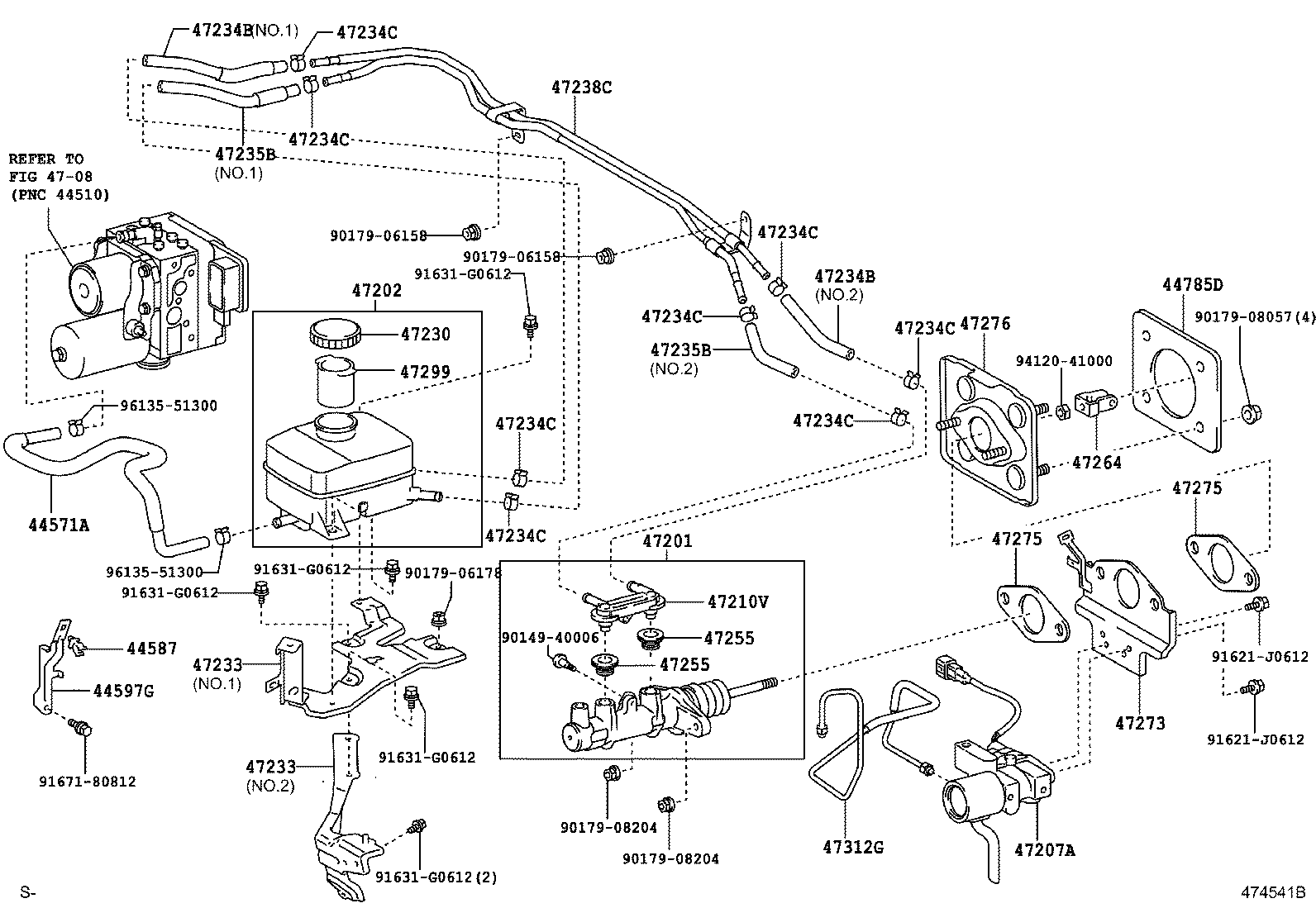

Figure 474540F 474540F 2005-03 → 2008-12 Figure 474541B 474541B 2005-03 → 2008-12

Part groups

PNCDescription
44571A Hose, Brake Actuator, NO.1
44587 Clamp, Brake Actuator Hose
44597G Bracket, Brake Actuator, NO.7
44785D Gasket, Brake Master Cylinder
47201 Cylinder Sub-assy, Brake Master
47202 Reservoir Sub-assy, Brake Master Cylinder
47207A Cylinder Sub-assy, Brake Stroke Simulator
47210V Union(FOR BRAKE MASTER CYLINDER)
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47233 Bracket, Reservoir
47234B Tube, Reservoir, NO.1
47234C Clip(FOR RESERVOIR TUBE NO.1)
47235B Tube, Brake Master Cyrinder Reservoir, NO.2
47238C Tube, Reservoir
47255 Grommet, Master Cylinder Reservoir
47264 Clevis, Master Cylinder Push Rod
47273 Bracket, Brake Stroke Simulator
47275 Gasket, Brake Master Cylinder
47276 Bracket, Brake Master Cylinder
47299 Strainer, Brake Master Cylinder Reservoir
47312G Tube, Brake Stroke Simulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
