Toyota Lexus RX400H

2005-03 → 2008-12 · chassis MHU38 · catalogue 524210 · Europe

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

34 part groups · 3 illustrations

Illustrations

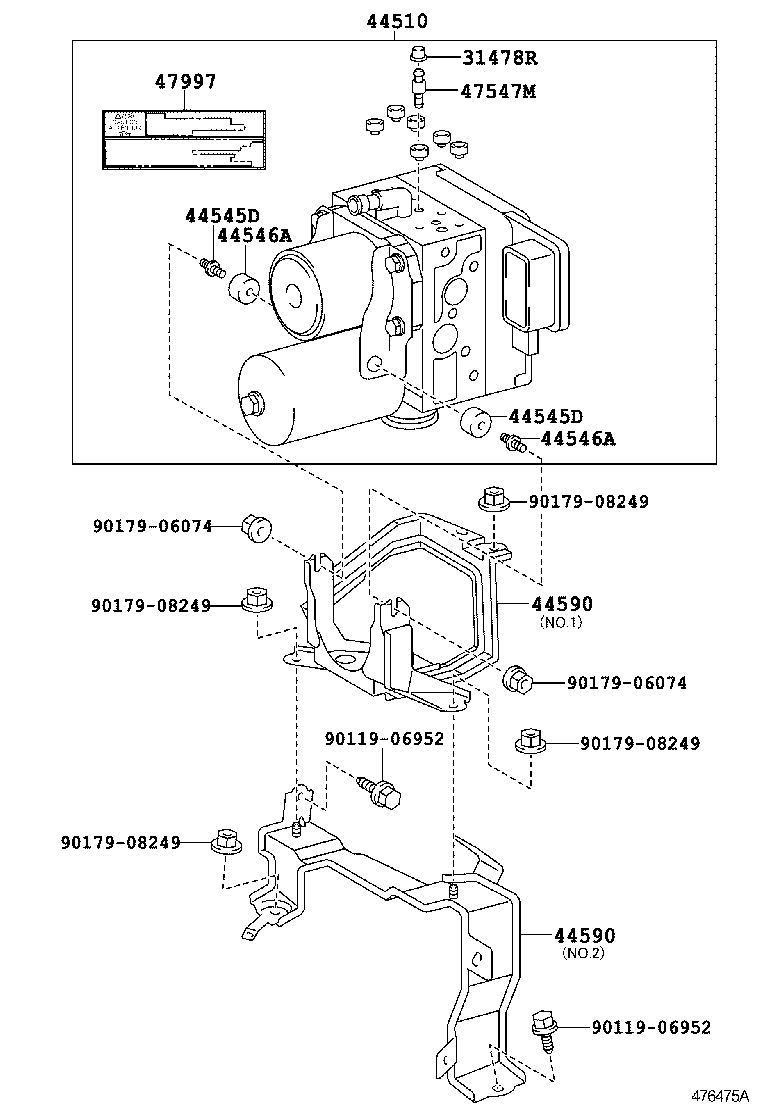

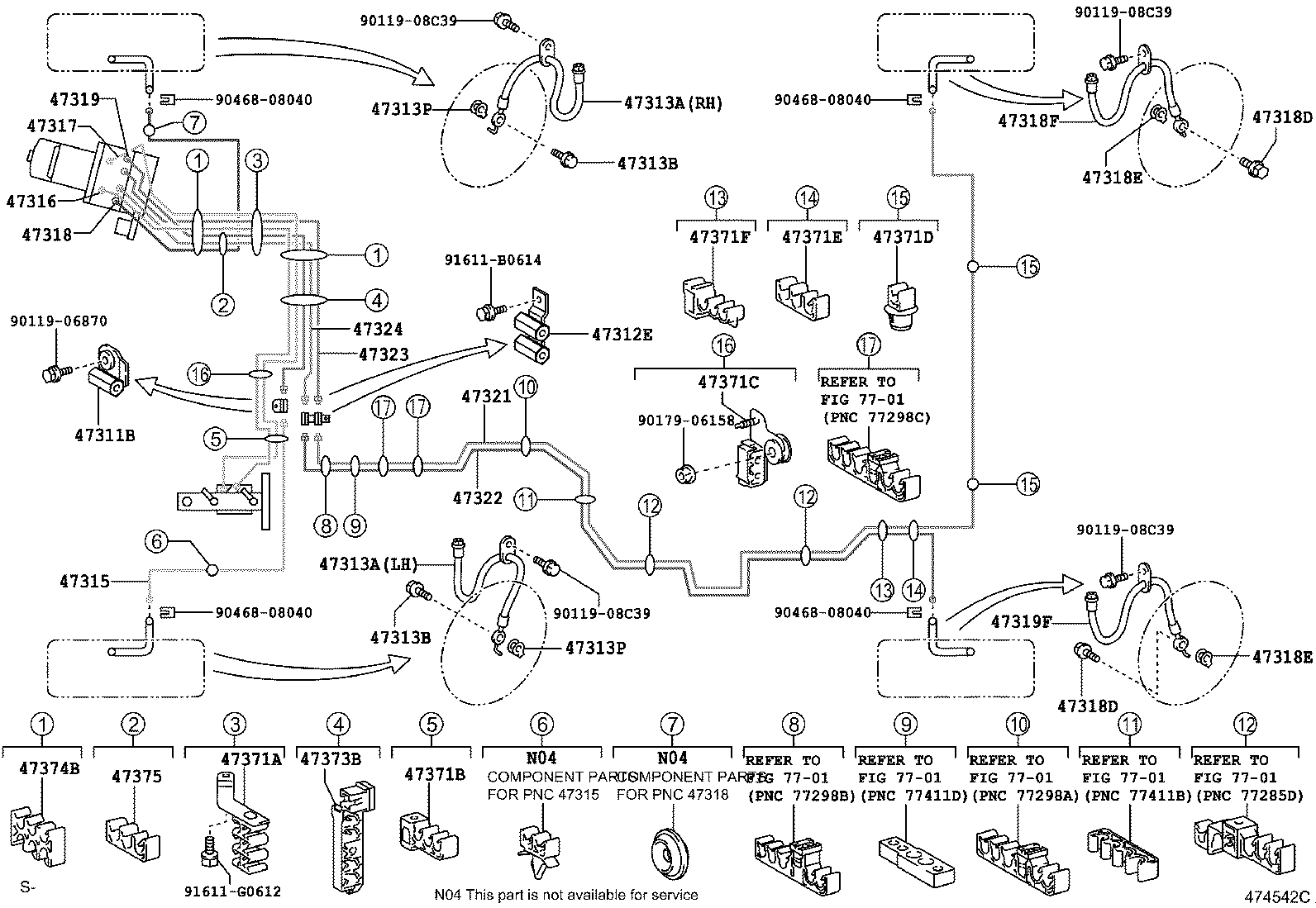

Figure 474534C 474534C 2005-03 → — Figure 474542C 474542C 2005-03 → — Figure 476475A 476475A 2005-03 → —

Part groups

PNCDescription
31478R Cap, Bleeder Plug(FOR BRAKE ACTUATOR)
44510 Actuator Assy, Brake
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44590 Bracket Assy, Brake Actuator
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319 Tube, Front Brake, NO.9
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371C Clamp, Brake Tube, NO.7
47371D Clamp, Brake Tube, NO.8
47371E Clamp, Brake Tube, NO.9
47371F Clamp, Brake Tube, NO.10
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47547M Plug, Bleeder(FOR BRAKE ACTUATOR)
47997 Label, Brake Booster Accumlator Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
