Toyota Lexus RX400H

2005-03 → 2008-12 · chassis MHU38 · catalogue 524210 · Europe

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

37 part groups · 8 illustrations

Illustrations

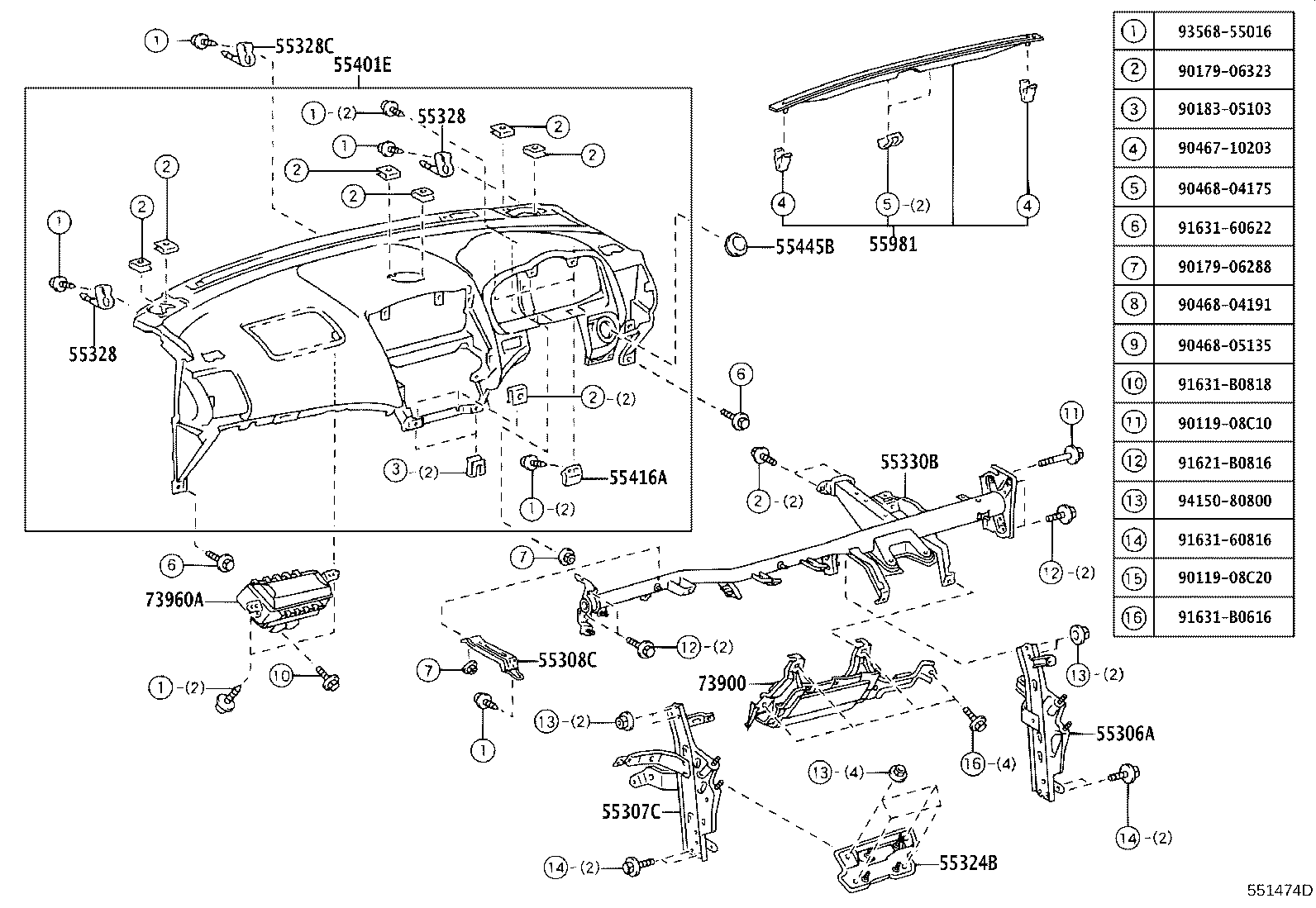

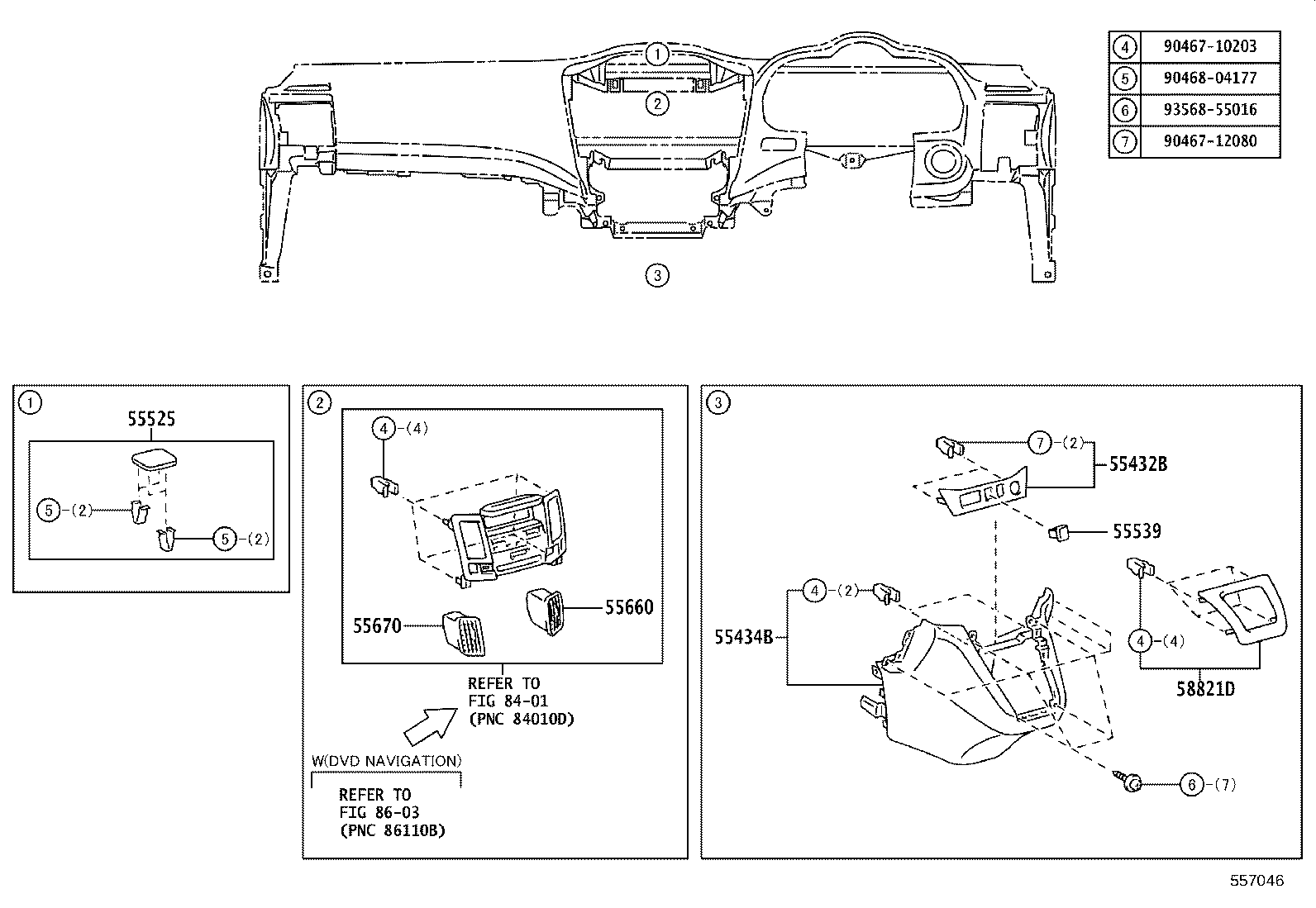

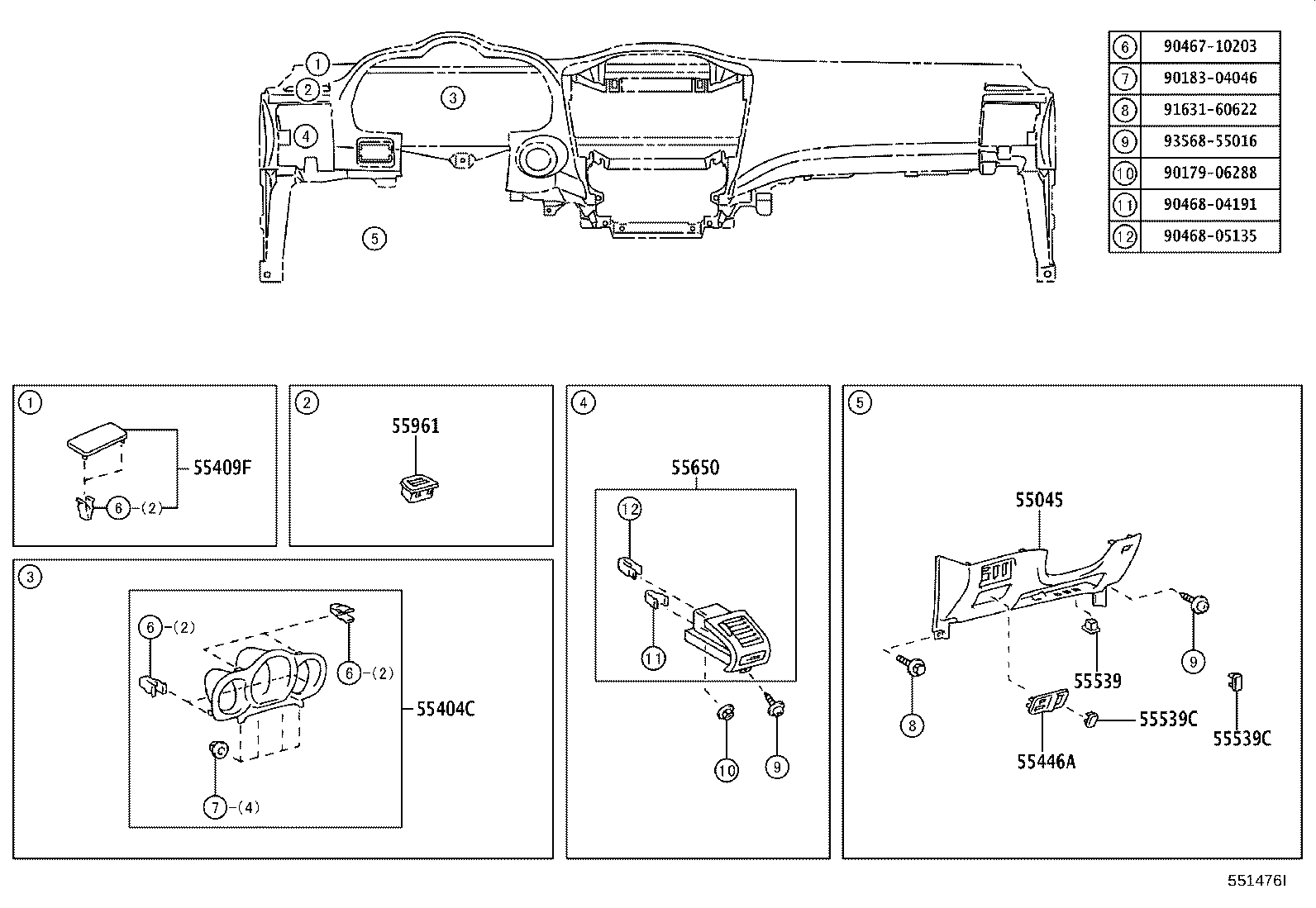

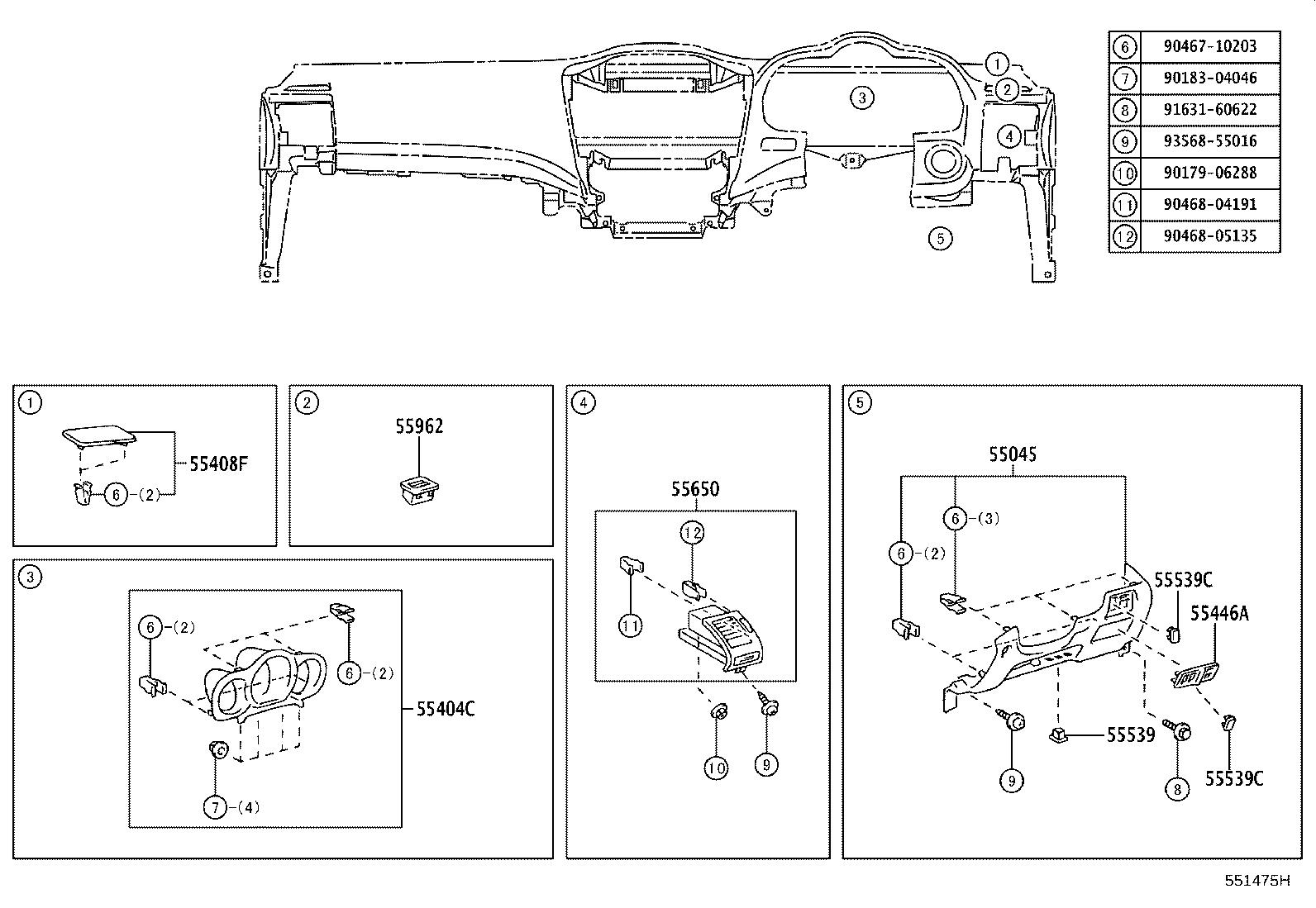

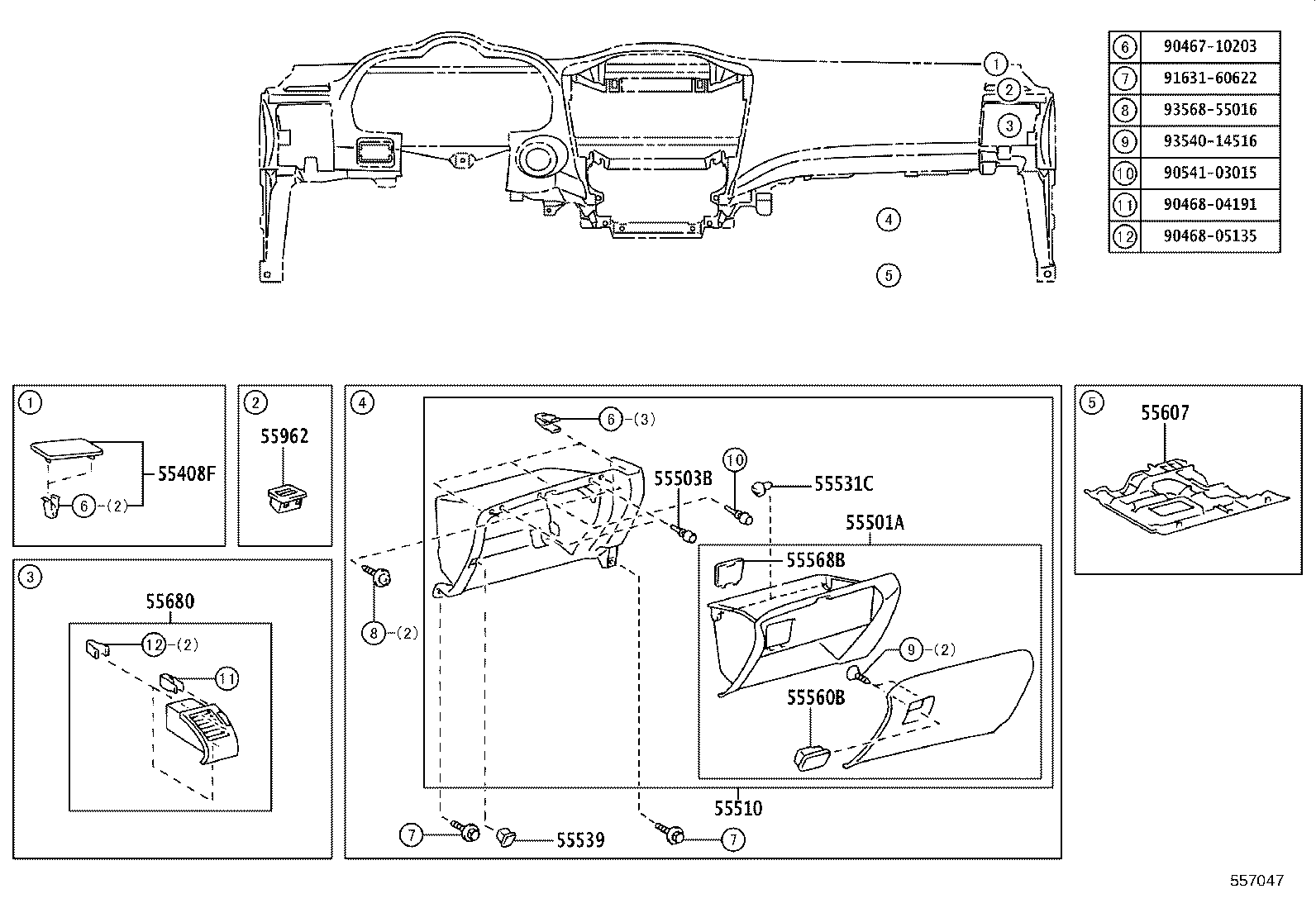

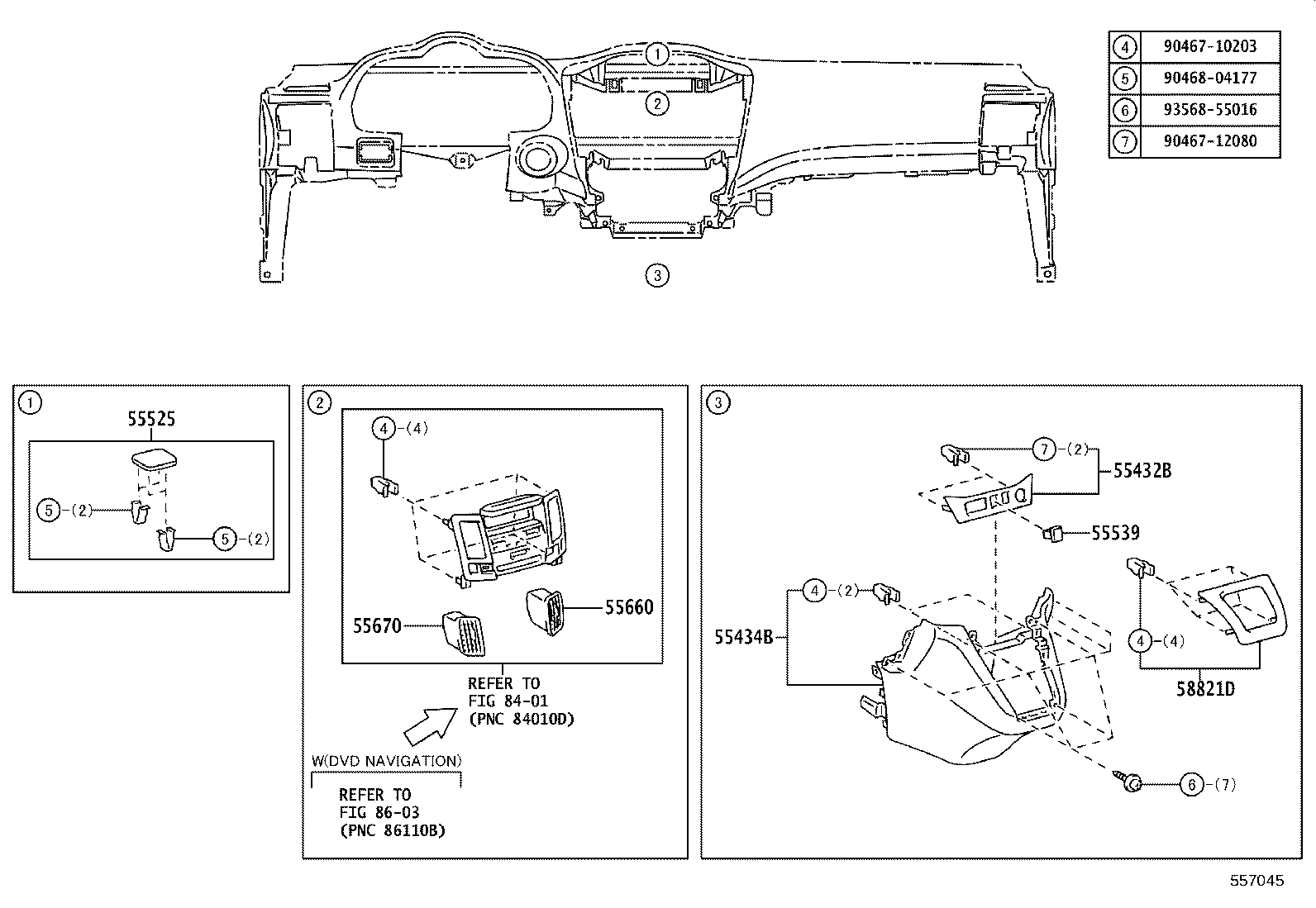

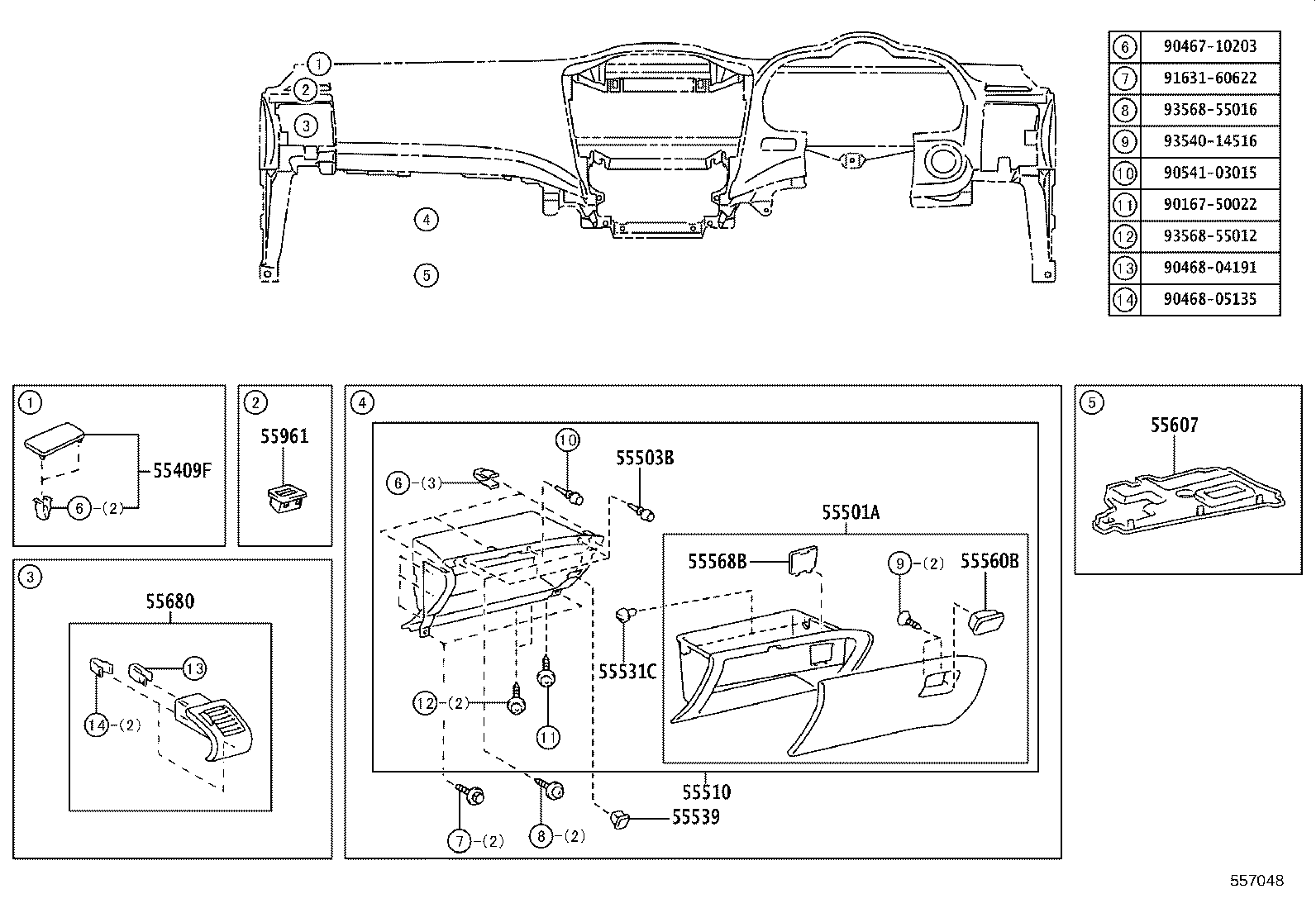

Figure 551477A 551477A 2005-03 → — Figure 551474D 551474D 2005-03 → — Figure 551476I 551476I 2005-03 → — Figure 551475H 551475H 2005-03 → — Figure 557045 557045 2005-03 → — Figure 557046 557046 2005-03 → — Figure 557047 557047 2005-03 → — Figure 557048 557048 2005-03 → —

Part groups

PNCDescription
55045 Panel Sub-assy, Instrument Panel Finish, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55308C Bracket Sub-assy, Instrument Panel, Center
55324B Bracket, Instrument Panel, NO.4
55328 Pin, Instrument Panel, NO.1
55328C Pin, Instrument Panel, NO.2
55330B Reinforcement Assy, Instrument Panel
55401E Pad Sub-assy, Instrument Panel Safety
55404C Panel Sub-assy, Instrument Cluster Finish, NO.2
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55416A Retainer, Meter Hood, NO.1
55432B Panel, Instrument Panel Finish, Lower
55434B Panel, Instrument Panel Finish, Lower Center
55445B Plate, Instrument Panel Finish
55446A Base, Switch Hole, NO.1
55501A Door Sub-assy, Glove Compartment
55503B Cushion(FOR GLOVE COMPARTMENT)
55510 Door Assy, Glove Compartment
55525 Cover, Speaker Hole, NO.1
55531C Pin, Glove Door Stopper
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55560B Lock Assy, Glove Compartment Door
55568B Plate, Glove Compartment Door Finish
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55680 Register Assy, Instrument Panel, Lower NO.1
55961 Nozzle, Side Defroster, NO.1
55962 Nozzle, Side Defroster, NO.2
55981 Garnish, Defroster Nozzle, NO.1
58821D Panel, Console, Upper Front
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
