Toyota Lexus RX400H

2005-03 → 2008-12 · chassis MHU38 · catalogue 524210 · Europe

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

17 part groups · 2 illustrations

Illustrations

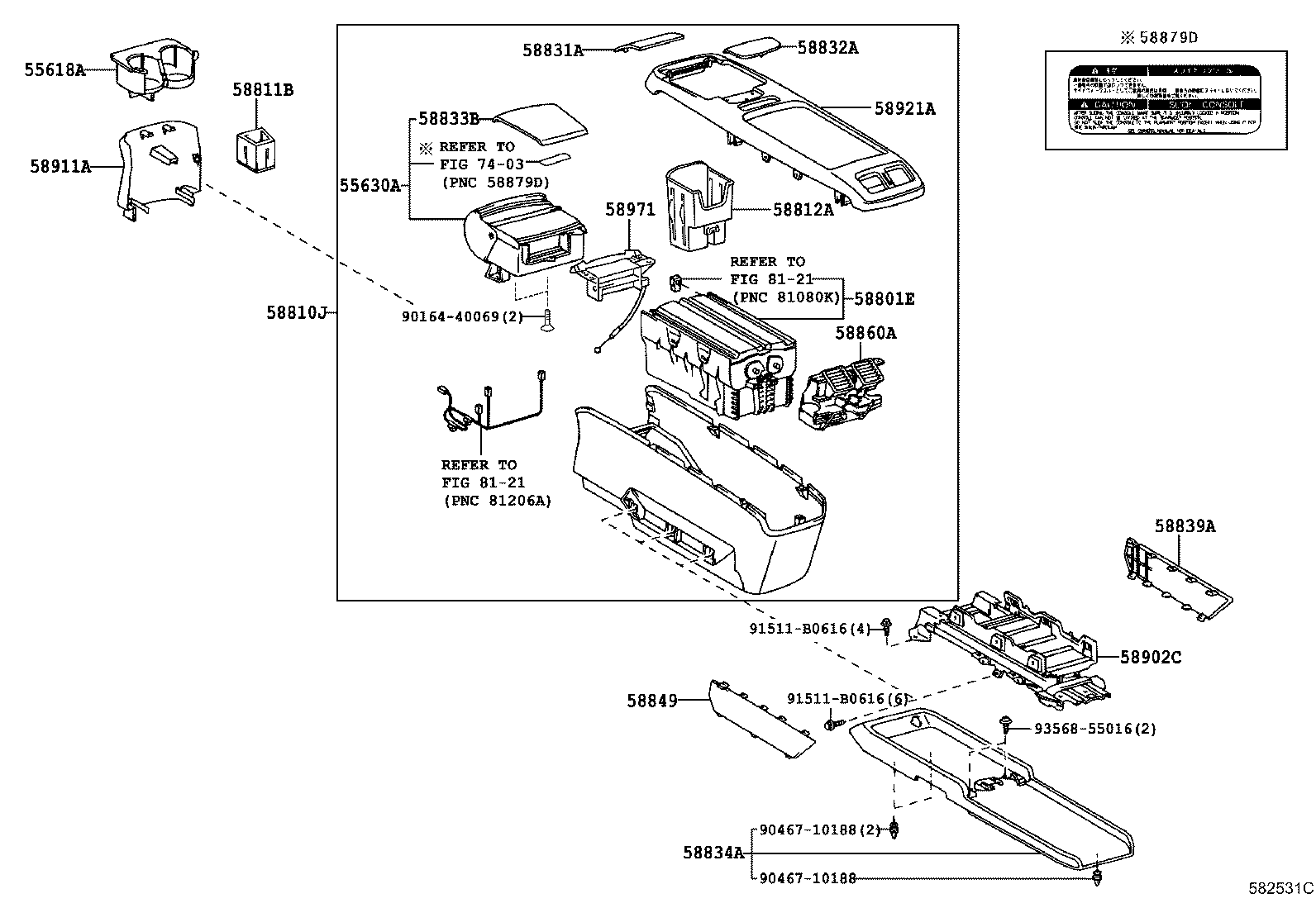

Figure 582287B 582287B 2005-03 → 2006-01 Figure 582531C 582531C 2006-01 → —

Part groups

PNCDescription
55618A Holder, Console Box Cup
55630A Holder, Rear Console Box, Cup
58801E Box Sub-assy, Console, Upper
58810J Box Assy, Console
58811B Box, Console
58812A Box, Console, Lower
58831A Garnish, Console Upper Panel, Front
58832A Garnish, Console Upper Panel, Rear
58833B Garnish, Console Upper Panel, NO.1
58834A Cover, Console, Lower
58839A Cover, Console Box Hole
58849 Cover, Console Box Hole, NO.2
58860A Register Assy, Console Box
58902C Bracket Sub-assy, Console Box Mounting
58911A Panel, Box Side, NO.1
58921A Panel, Rear Console, Upper
58971 Lock, Console Compartment Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
