Toyota Lexus RX400H
2005-03 → 2008-12 · chassis MHU38 · catalogue 524210 · Europe
Supported model
Data version 2009-07
Battery & Battery Cable

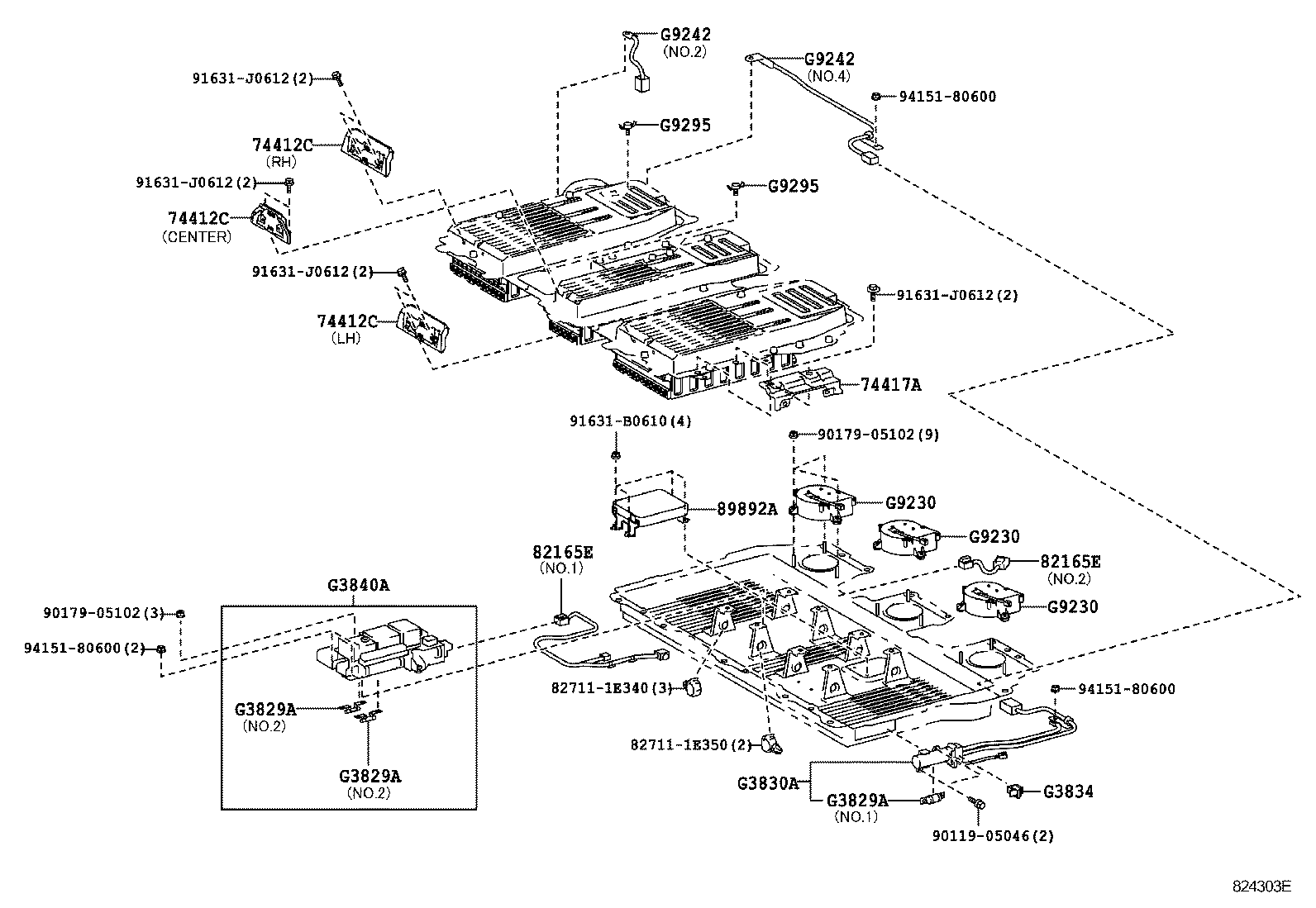

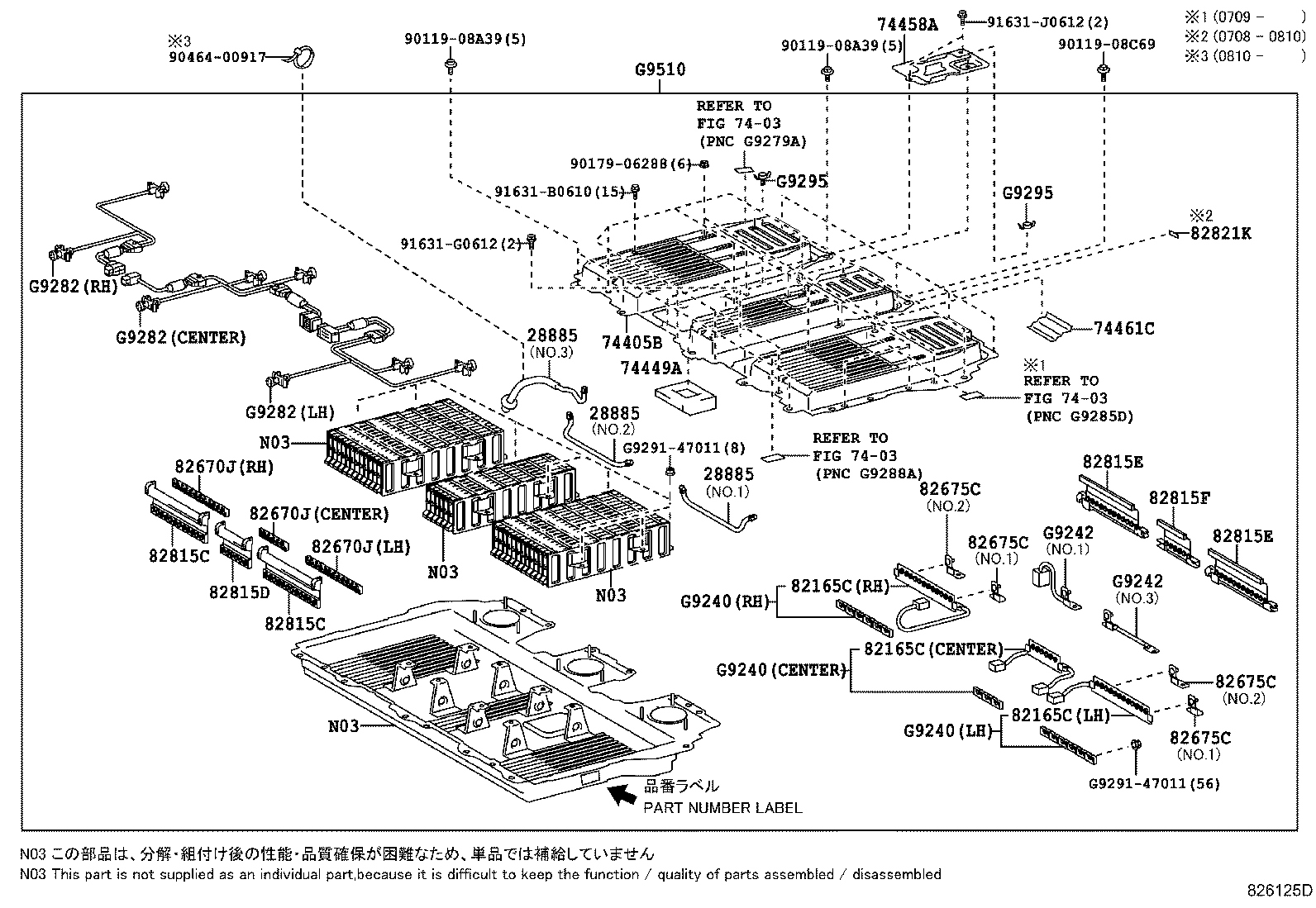

32 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 28800 | Battery |
| 28800A | Terminal, Battery Positive |
| 28800D | Cover, Connector(FOR BATTERY TERMINAL) |
| 28885 | Hose, Battery Room Ventilation |
| 28898 | Plate, Battery |
| 28899 | Insulator, Battery |
| 74405B | Cover Sub-assy, Battery |
| 74412C | Duct, Battery Carrier |
| 74417A | Bracket, Battery Carrier |
| 74449A | Packing, Battery, NO.2 |
| 74458A | Lid, Battery Cover, NO.1 |
| 74461C | Cover, Battery |
| 82165C | Wire, Frame, NO.2 |
| 82165E | Wire, Battery Pack |
| 82670J | Block Assy, Junction |
| 82675C | Terminal, Junction |
| 82815C | Cover, Wiring Harness Protector, NO.1 |
| 82815D | Cover, Wiring Harness Protector, NO.2 |
| 82815E | Cover, Wiring Harness Protector, NO.3 |
| 82815F | Cover, Wiring Harness Protector, NO.4 |
| 82821K | Cover, Connector |
| 89892A | Sensor, Battery Voltage |
| G3829A | Fuse, Electric Vehicle |
| G3830A | Plug Assy, Electric Vehicle Battery |
| G3834 | Grip, Service Plug |
| G3840A | Relay Assy, Hybrid Vehicle |
| G9230 | Blower Assy, Battery Cooling |
| G9240 | Junction Block Assy, Battery W/Cable |
| G9242 | Cable, Main Battery |
| G9282 | Thermistor, Hybrid Battery |
| G9295 | Bracket, EV Battery Water Tank |
| G9510 | Battery Assy, HV Supply |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
