Toyota Lexus RX400H

2005-03 → 2008-12 · chassis MHU38 · catalogue 524210 · Europe

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

13 part groups · 2 illustrations

Illustrations

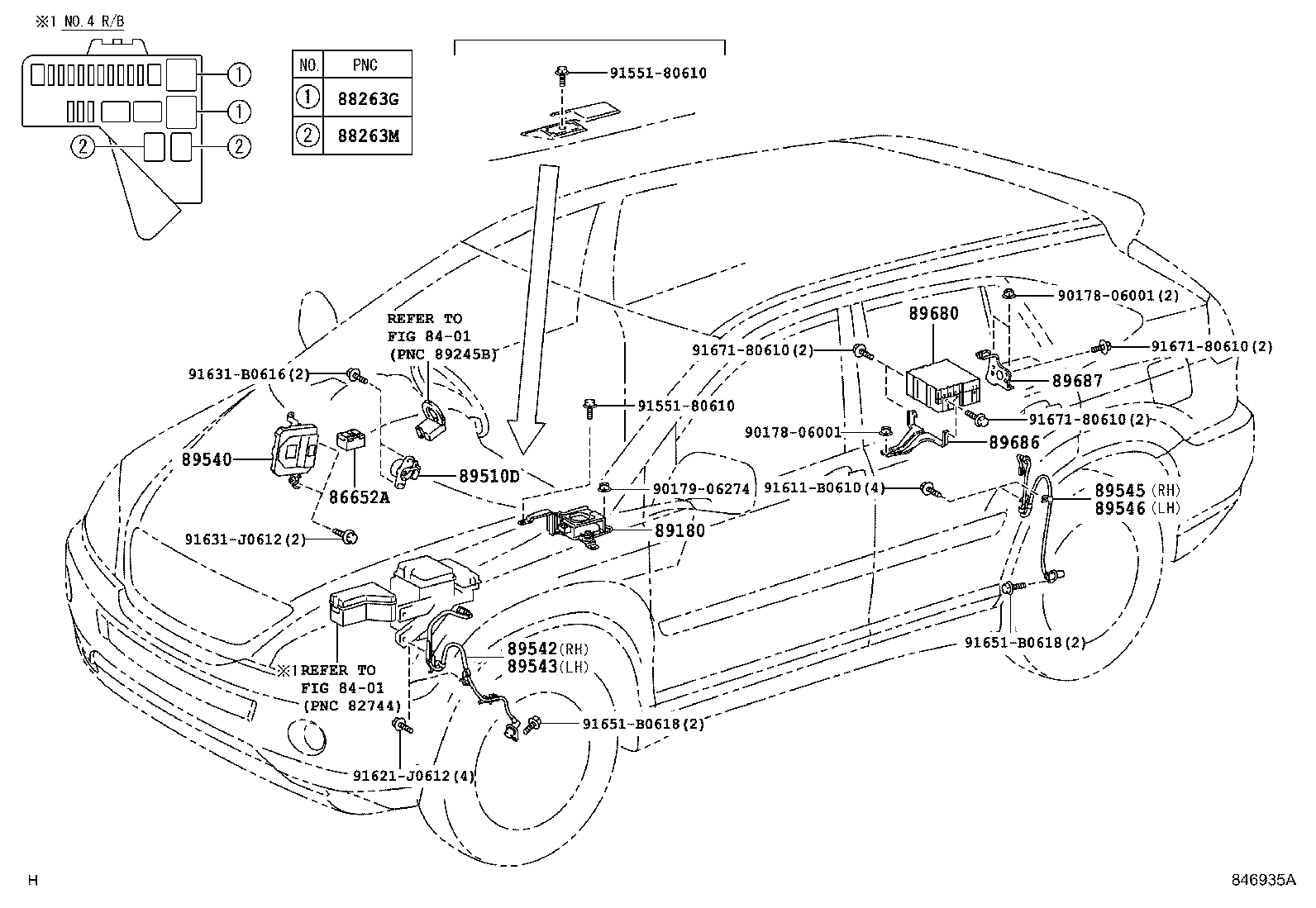

Figure 846964A 846964A 2005-03 → — Figure 846935A 846935A 2005-03 → —

Part groups

PNCDescription
86652A Buzzer Assy, Skid Control
88263G Relay, Skid Control
88263M Relay, Abs Solenoid
89180 Sensor Assy, Yawrate
89510D Sensor Assy, Brake Pedal Stroke
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89680 Supply Assy, Brake Control Power
89686 Bracket, Brake Control Power Supply, NO.1
89687 Bracket, Brake Control Power Supply, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
