Toyota Lexus RX400H

2005-03 → 2008-12 · chassis MHU38 · catalogue 524210 · Europe

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

23 part groups · 3 illustrations

Illustrations

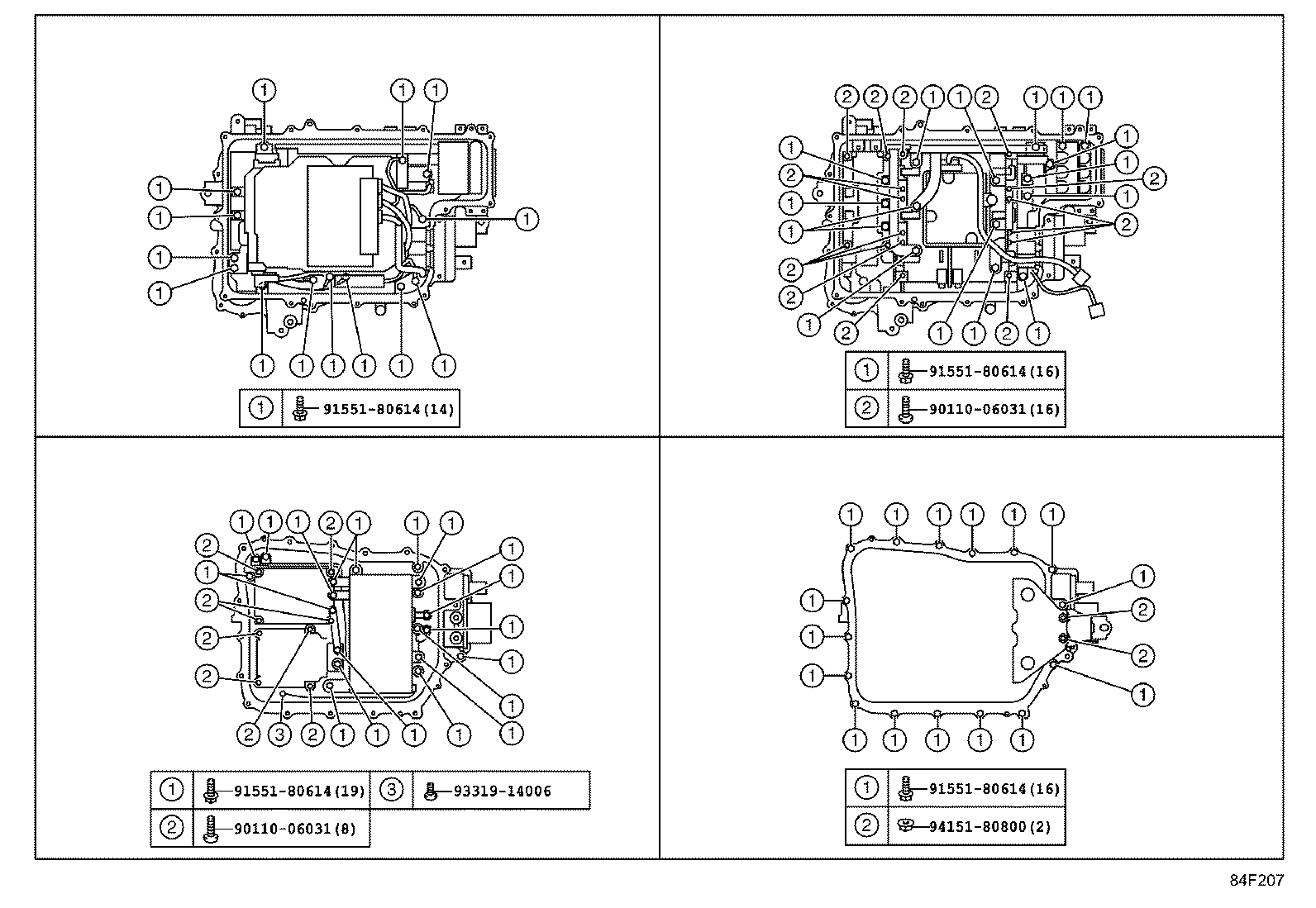

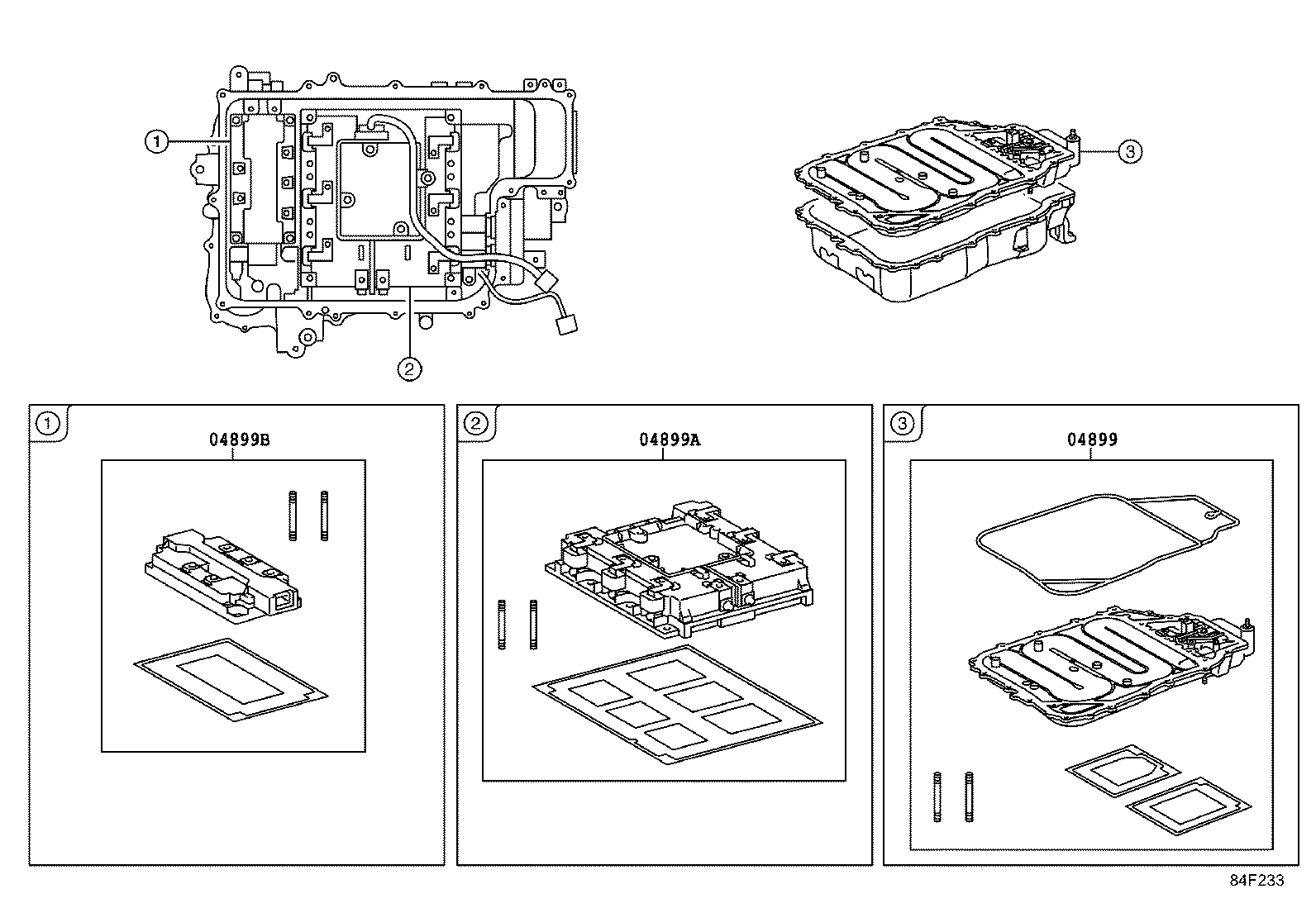

Figure 84F232A 84F232A 2005-03 → — Figure 84F233 84F233 2005-03 → — Figure 84F207 84F207 2005-03 → —

Part groups

PNCDescription
04899 Converter Kit, HV
04899A Transistor Kit, Power Module Intelligent(FRONT IPM)
04899B Transistor Kit, Power Module Intelligent(REAR IPM)
53796B Cover, Engine Room Side, LH NO.2
53796C Clip(FOR ENGINE ROOM SIDE COVER LH)
82610F Block Assy, Fuse
87245S Hose, Inverter Water, NO.1
87245U Clamp OR Clip (FOR WATER HOSE)
88605X Harness Sub-assy, Wiring Air Conditioner
88605Y Bracket, Cooler
89882 Computer, Motor Generator Control
G3829C Fuse, Electric Vehicle
G4845 Sensor, Circuit Breaker, NO.1
G9200 Inverter Assy, W/Converter
G9209 Tank Sub-assy, Inverter Reserve
G9214 Bracket, Inverter, NO.1
G9215 Bracket, Inverter, NO.2
G9217 Bracket, Inverter, NO.4
G9221 Cover, Inverter
G9231 Gasket, Inverter Cover
G9247 Sensor, Inverter Current, NO.1
G9257 Bracket, Inverter, NO.5
G9258A Cap, Inverter Reserve Tank
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
