Toyota Lexus RX400H

2005-03 → 2008-12 · chassis MHU38 · catalogue 524210 · Europe

Supported model Data version 2009-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

7 part groups · 2 illustrations

Illustrations

862455 2005-03 → 2006-08

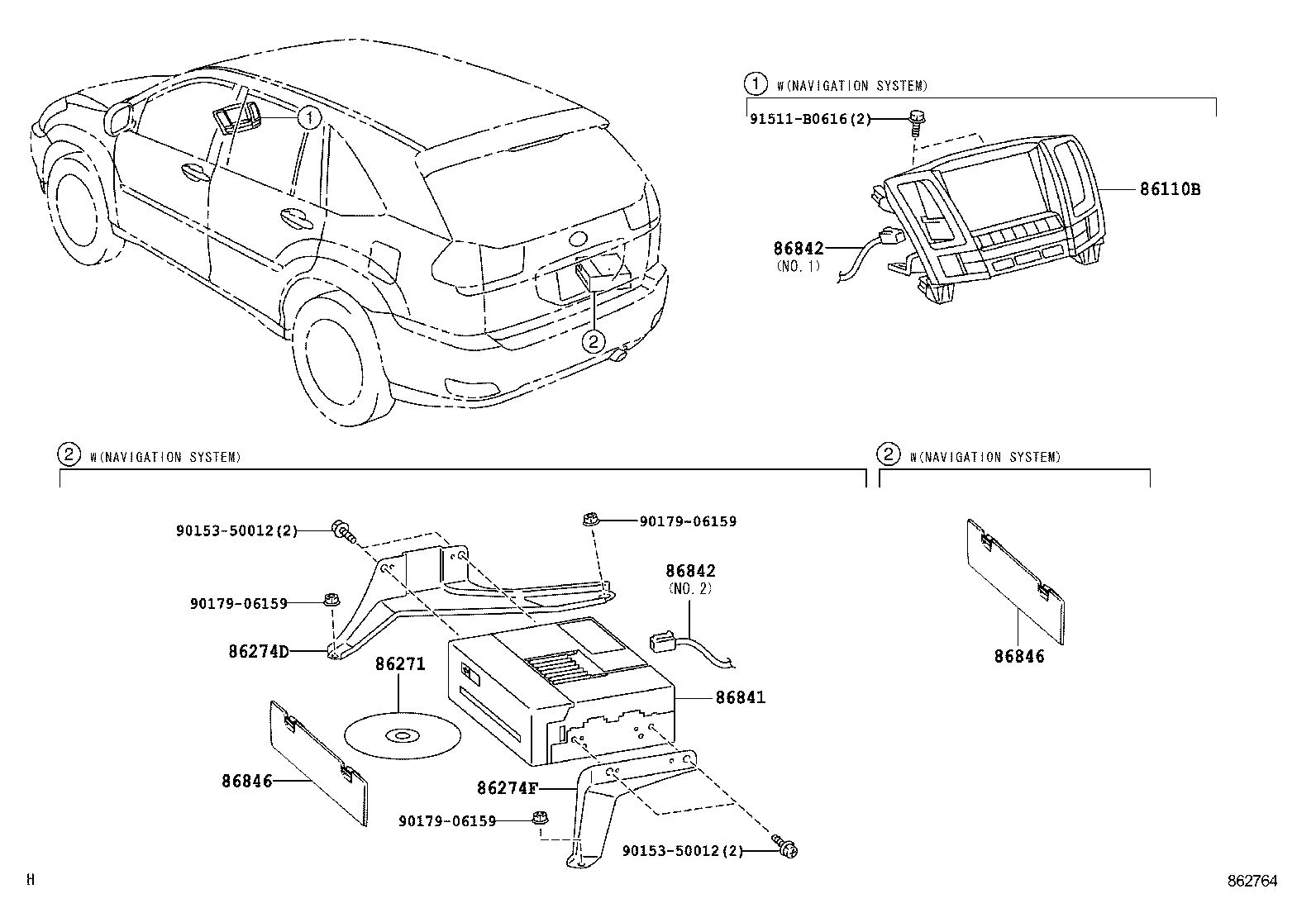

862764 2006-08 → —

Part groups

PNC	Description
86110B	Multi-display Assy
86271	Disc, Disc Player
86274D	Bracket, Disc Player
86274F	Bracket, Disc Player, NO.2
86841	Computer, Navigation
86842	Wire, Navigation, NO.1
86846	Plate, Navigation Computer

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
