Factory parts data · Europe

Toyota Lexus RX400H

2005-03 → 2008-12 · chassis MHU38 · catalogue 524210 · Europe

Supported model Data version 2009-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

6 part groups · 2 illustrations

Illustrations

Figure 862458D

862458D 2005-03 → —

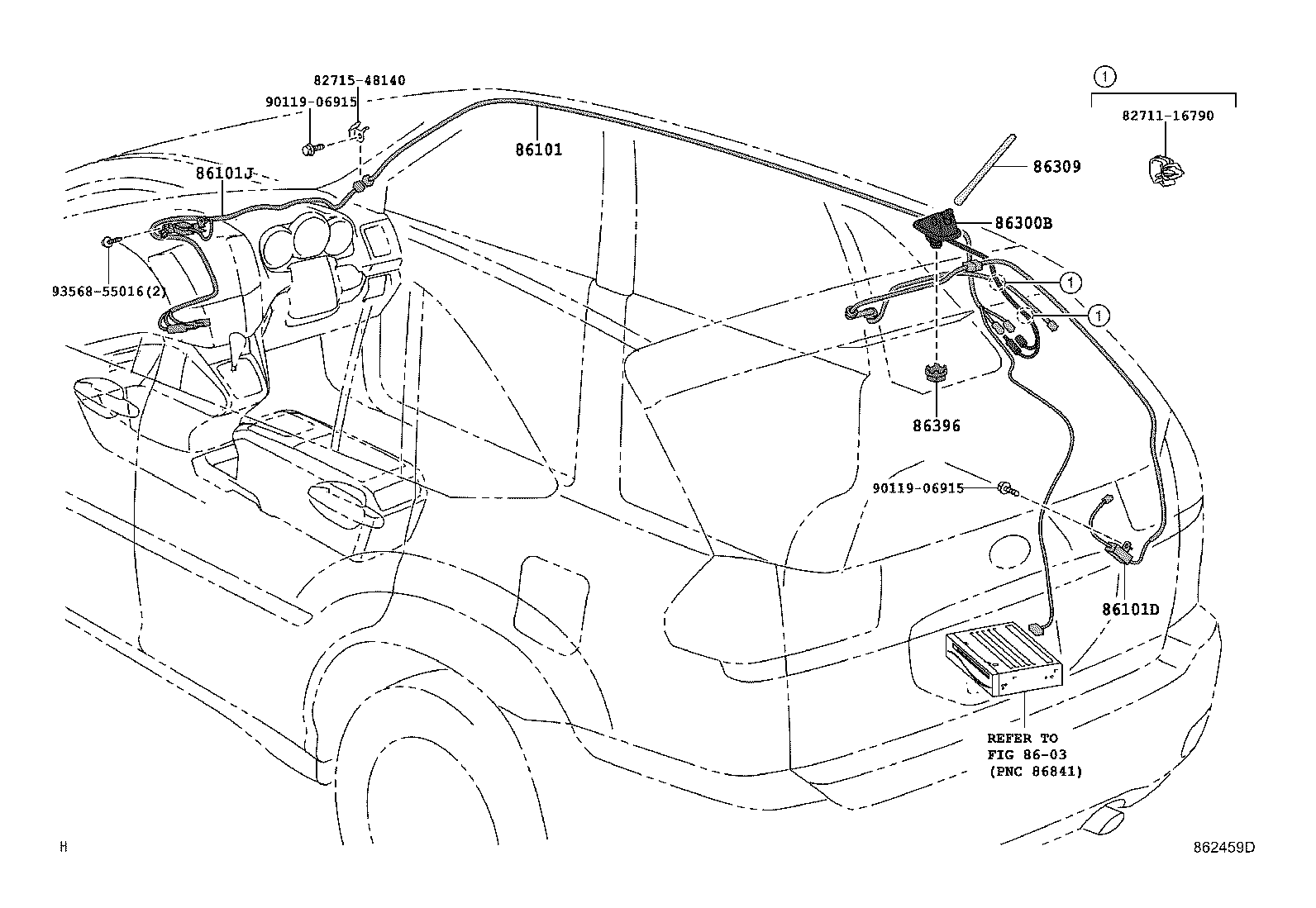

Figure 862459D

862459D 2005-03 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86101D	Cord Sub-assy, Antenna, NO.3
86101J	Cord Sub-assy, Antenna, NO.2
86300B	Antenna Assy, Amplifier, NO.1
86309	Pole Sub-assy, Pillar Antenna
86396	Nut, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
