Toyota Lexus RX400H
2005-03 → 2008-12 · chassis MHU38 · catalogue 524210 · Europe
Supported model
Data version 2009-07

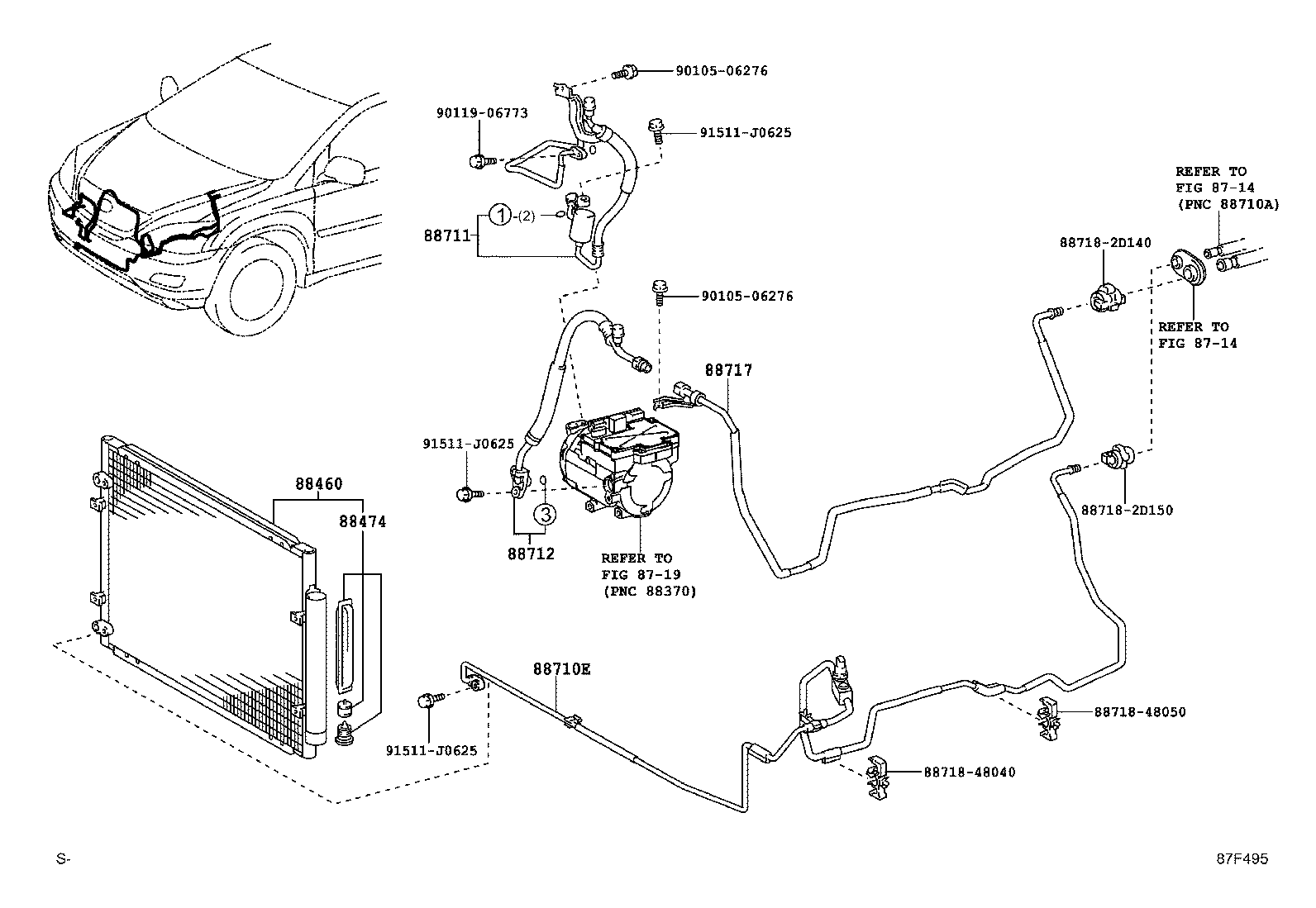

Heating & Air Conditioning - Cooler Piping
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88460 | Condenser Assy, Cooler |
| 88474 | Dryer, Cooler |
| 88710E | Tube & Accessory Assy, Air Conditioner |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88717 | Pipe, Cooler Refrigerant Suction, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
