Toyota Highlander/Kluger

2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

24 part groups · 3 illustrations

Illustrations

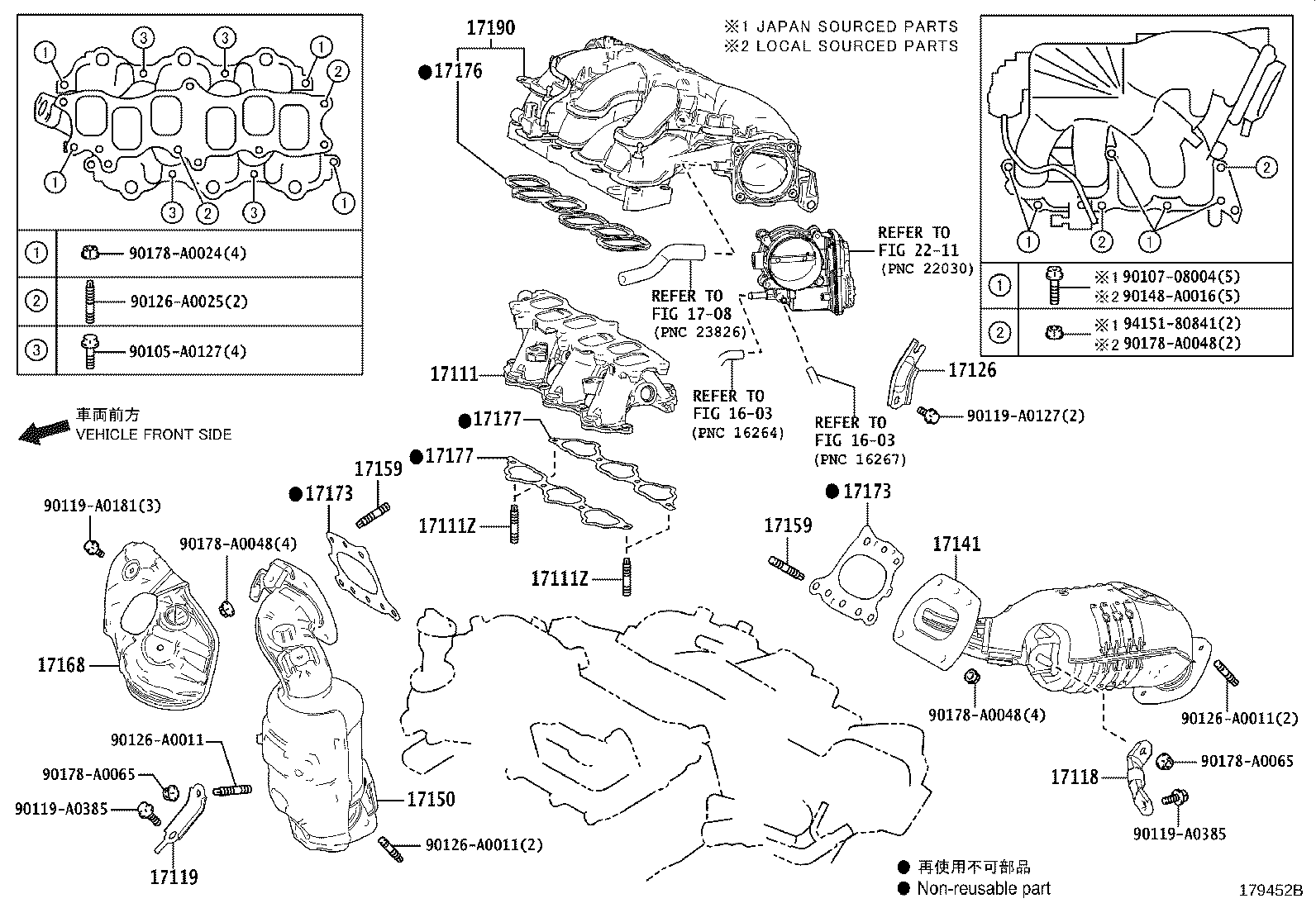

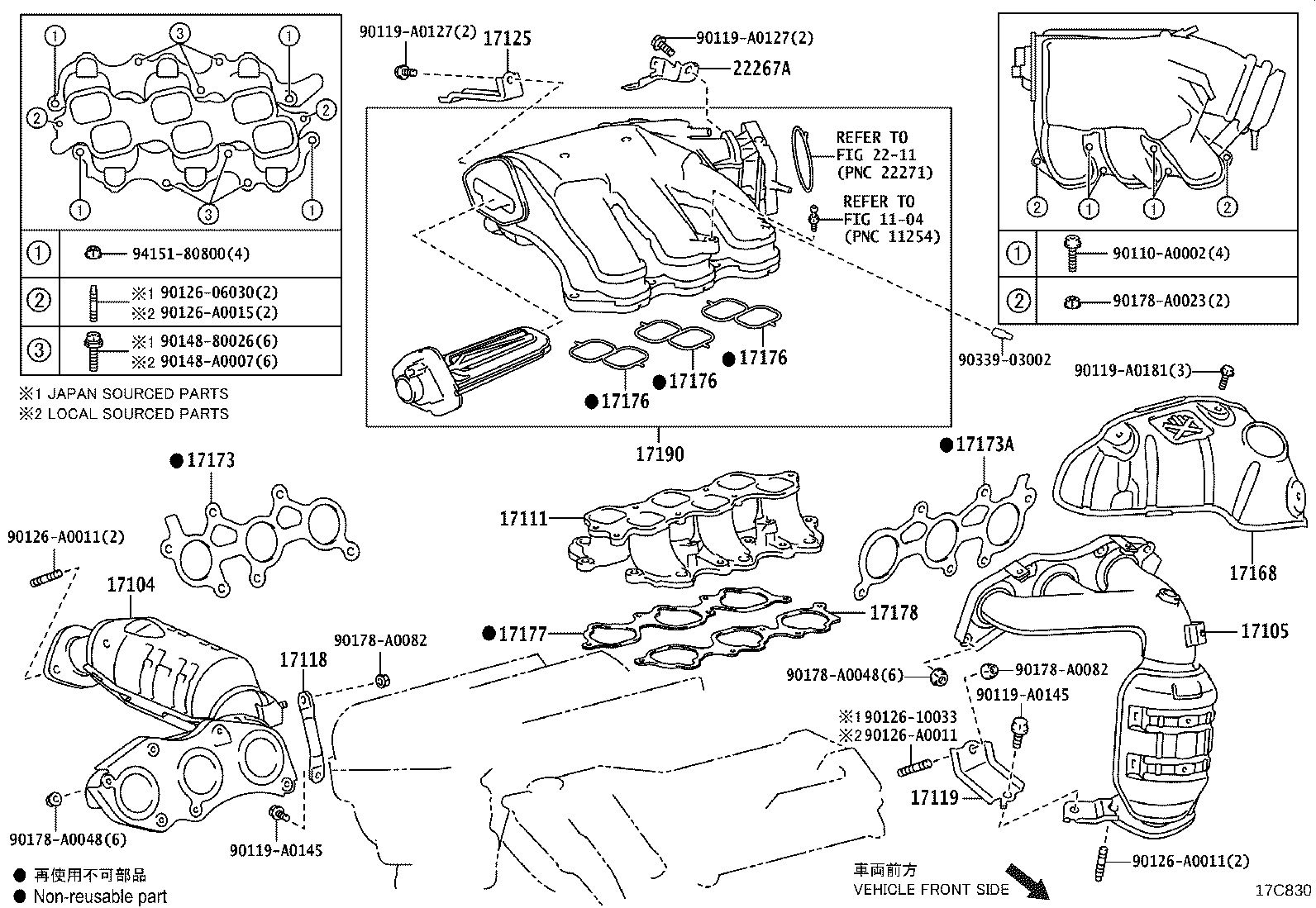

Figure 178207C 178207C 2013-12 → — Figure 17C830 17C830 2013-12 → 2016-11 Figure 179452B 179452B 2016-11 → —

Part groups

PNCDescription
17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17150 Manifold Assy, Exhaust, LH
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17190 Tank Assy, Intake Air Surge
17335 Actuator, Intake Air Control Valve
22267A Bracket, Throttle Body
25051 Converter Sub-assy, Exhaust Manifold
25586 Insulator, Manifold Converter, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
