Toyota Highlander/Kluger

2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

19 part groups · 3 illustrations

Illustrations

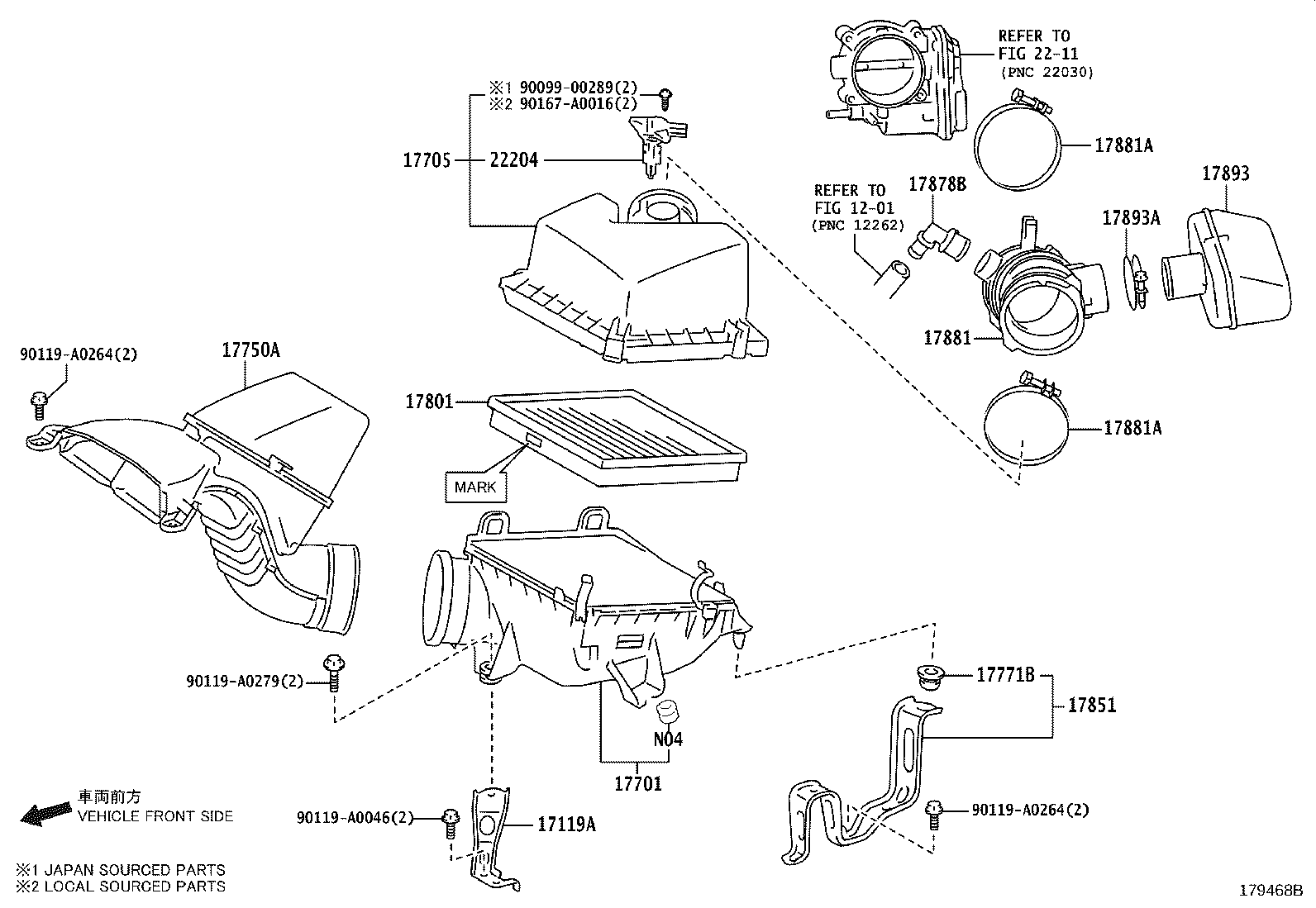

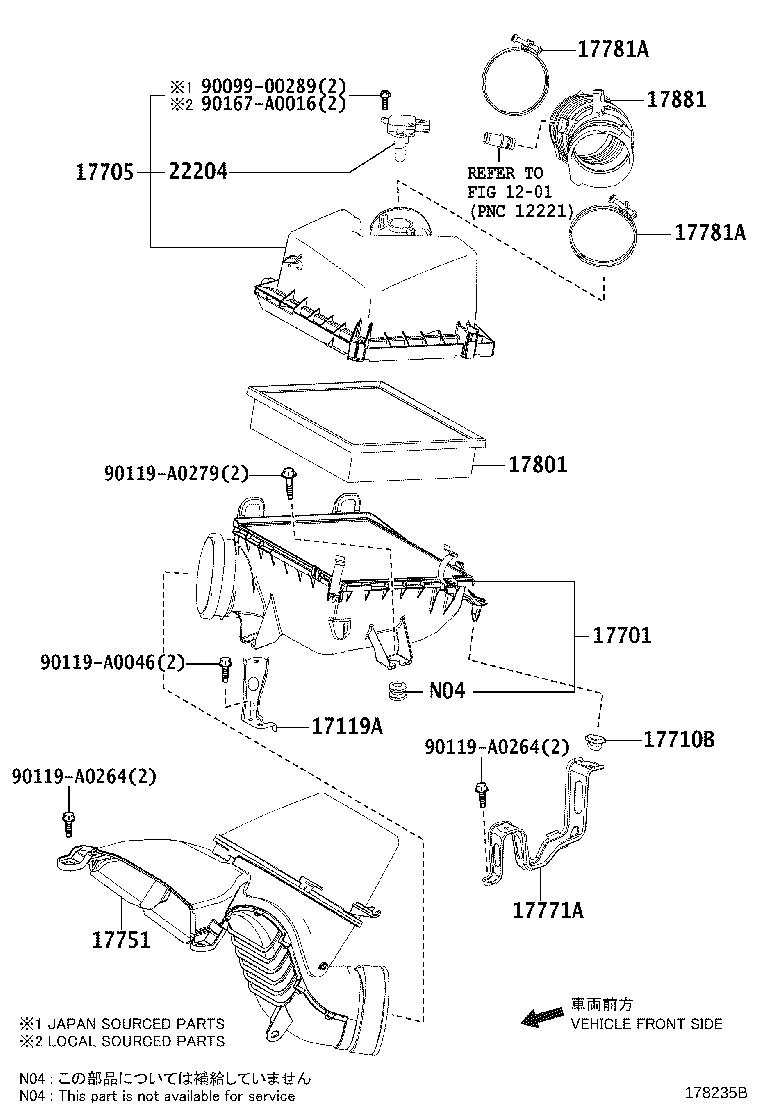

Figure 178208A 178208A 2013-12 → — Figure 178235B 178235B 2013-12 → 2016-11 Figure 179468B 179468B 2016-11 → —

Part groups

PNCDescription
17119A Bracket, Air Cleaner
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17750A Inlet Assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17771A Bracket, Air Cleaner
17771B Grommet(FOR AIR CLEANER BRACKET)
17781A Clamp, Hose
17801 Element Sub-assy, Air Cleaner Filter
17851 Bracket, Air Cleaner Support
17878B Tube, Ventilation
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
17893A Clamp, Hose
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
