Toyota Highlander/Kluger

2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

18 part groups · 3 illustrations

Illustrations

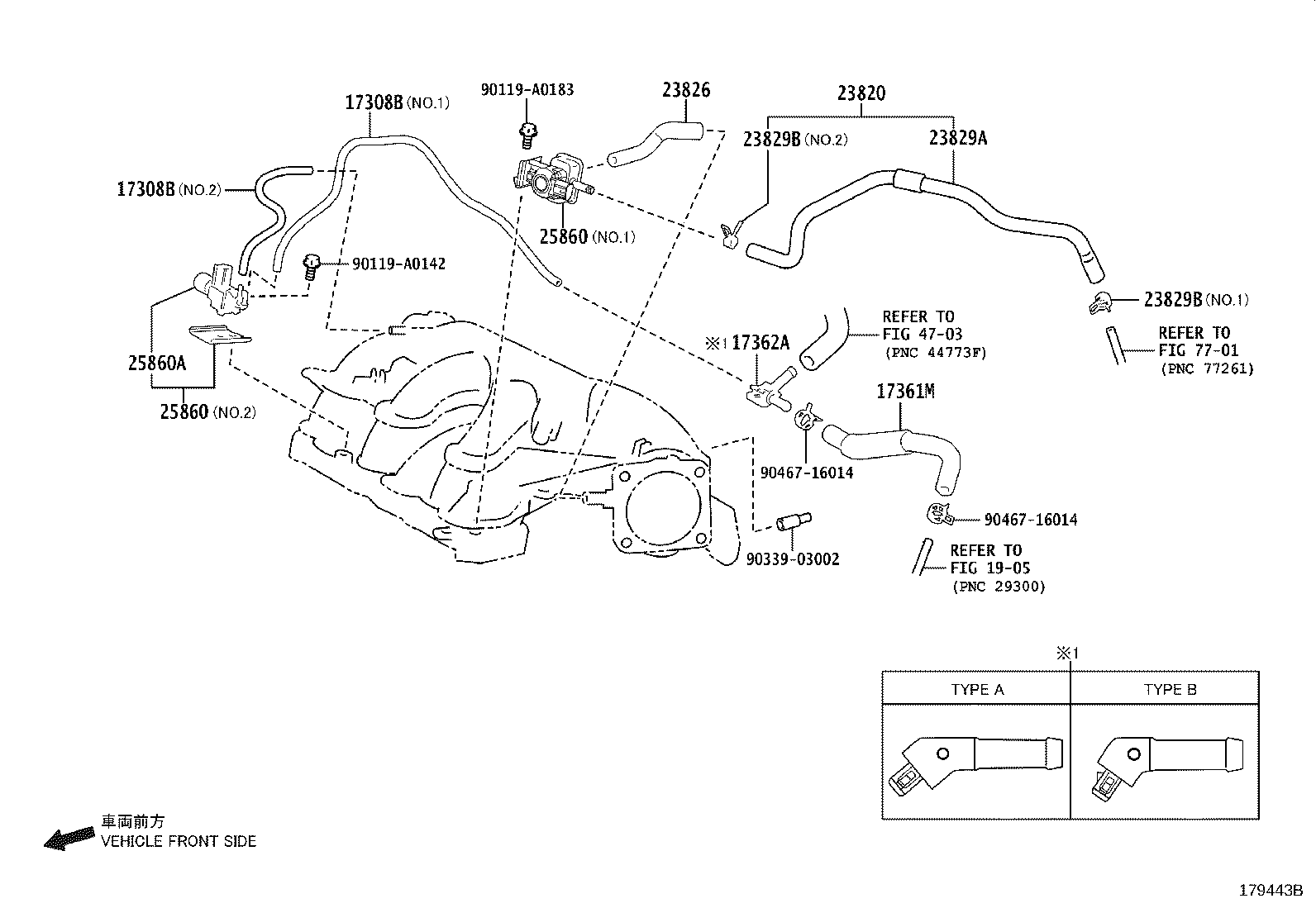

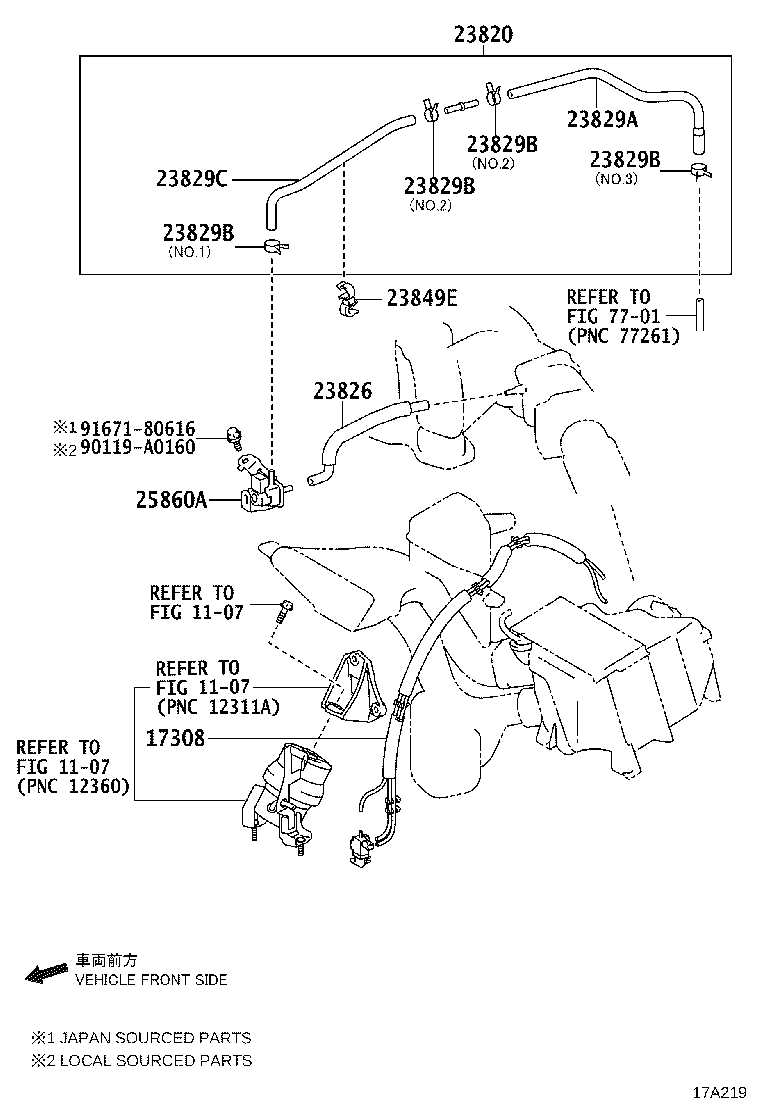

Figure 178209B 178209B 2013-12 → — Figure 17A219 17A219 2013-12 → 2016-11 Figure 179443B 179443B 2016-11 → —

Part groups

PNCDescription
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17308B Hose Sub-assy, Vacuum
17361M Tube, Air
17362A Tube, Air, NO.2
17650 Valve Assy, Vacuum Switching
23285A Valve, Check, NO.1
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
23829C Hose, Fuel Vapor Feed, NO.2
23830 Hose Assy, Fuel Vapor Feed, NO.2
23849E Support, Fuel Hose Clamp
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
