Toyota Highlander/Kluger

2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

27 part groups · 3 illustrations

Illustrations

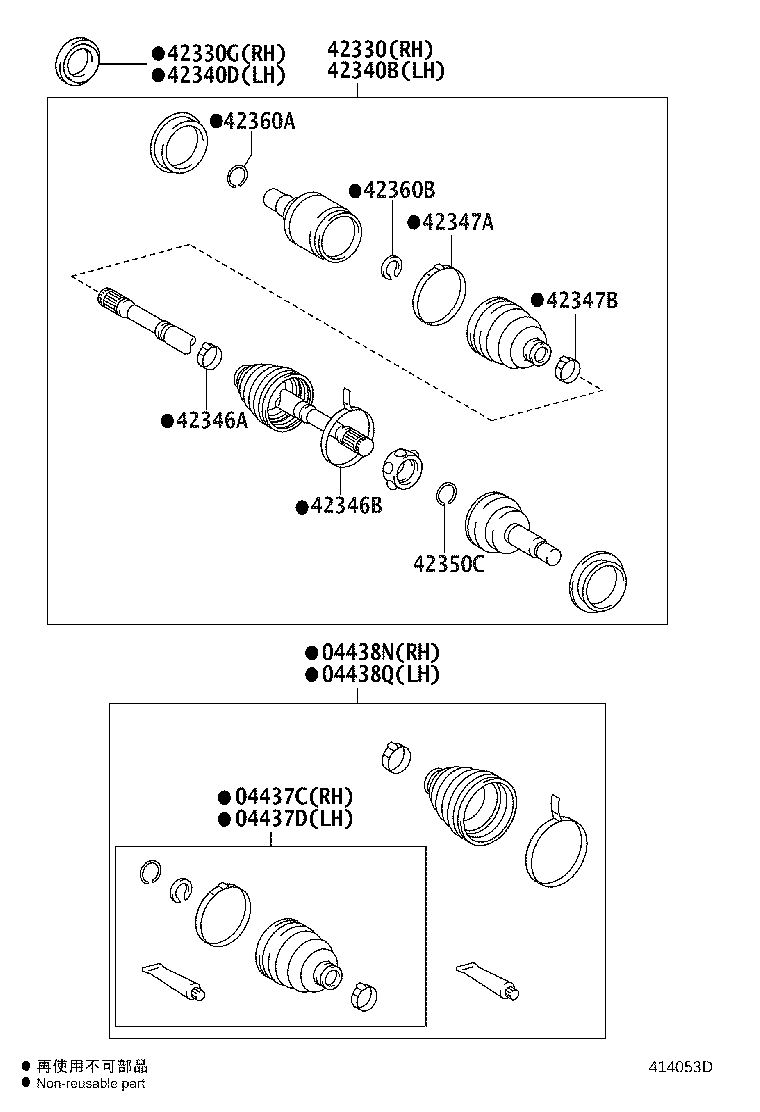

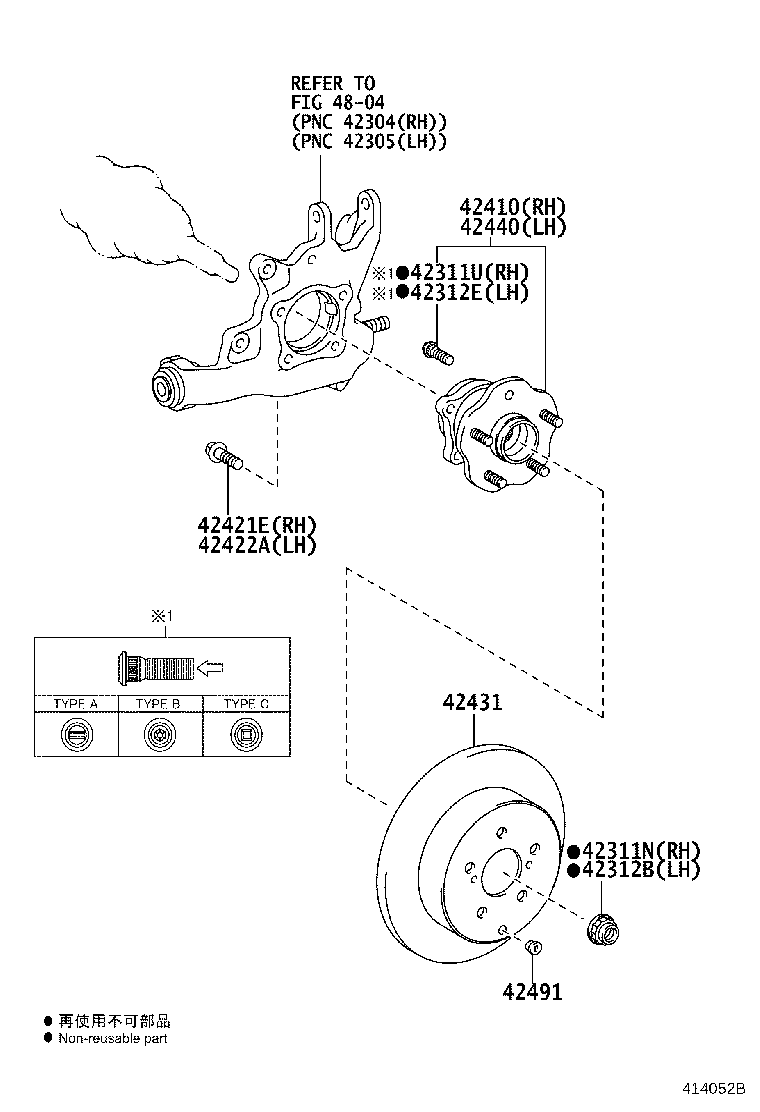

Figure 414051C 414051C 2013-12 → — Figure 414052B 414052B 2013-12 → — Figure 414053D 414053D 2013-12 → —

Part groups

PNCDescription
04437C Boot Kit, Rear Drive Shaft Inboard Joint, RH
04437D Boot Kit, Rear Drive Shaft Inboard Joint, LH
04438N Boot Kit, Rear Drive Shaft, IN & Outboard Joint, RH
04438Q Boot Kit, Rear Drive Shaft, IN & Outboard Joint, LH
42311N Nut(FOR REAR AXLE SHAFT RH)
42311U Bolt, Hub(FOR REAR AXLE RH)
42312B Nut(FOR REAR AXLE SHAFT LH)
42312E Bolt, Hub(FOR REAR AXLE LH)
42330 Shaft Assy, Rear Drive, RH
42330G Oil Seal, Rear Drive Shaft, RH
42340B Shaft Assy, Rear Drive, LH
42340D Oil Seal, Rear Drive Shaft, LH
42346A Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42346B Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
42347A Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42347B Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42350C Ring, Snap (FOR REAR DRIVE SHAFT OUTBOARD JOINT)
42360A Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT)
42360B Ring, Snap (FOR REAR DRIVE SHAFT INBOARD JOINT)
42410 Hub & Bearing Assy, Rear Axle, RH
42421E Bolt (FOR REAR AXLE BEARING CASE RH)
42422A Bolt (FOR REAR AXLE BEARING CASE LH)
42431 Disc, Rear
42440 Hub & Bearing Assy, Rear Axle, LH
42450A Hub & Bearing Assy, Rear Axle, RH
42450B Hub & Bearing Assy, Rear Axle, LH
42491 Plug, Shoe Adjusting Hole (FOR PARKING BRAKE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
