Toyota Highlander/Kluger

2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

16 part groups · 5 illustrations

Illustrations

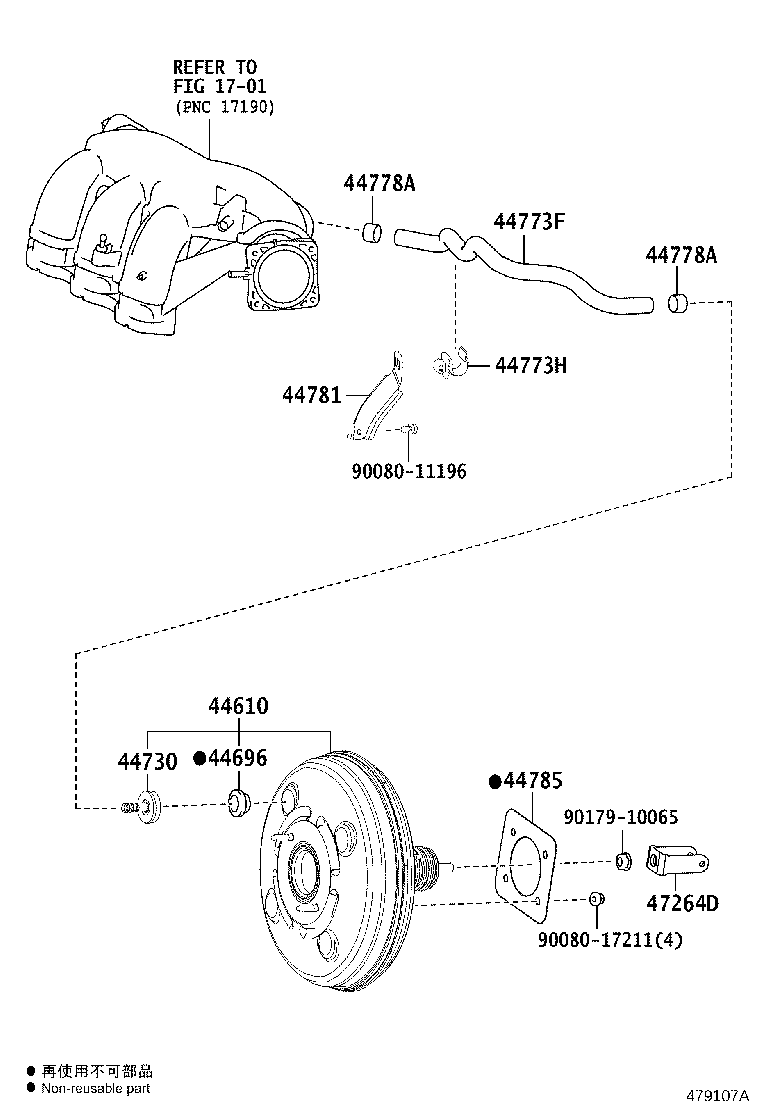

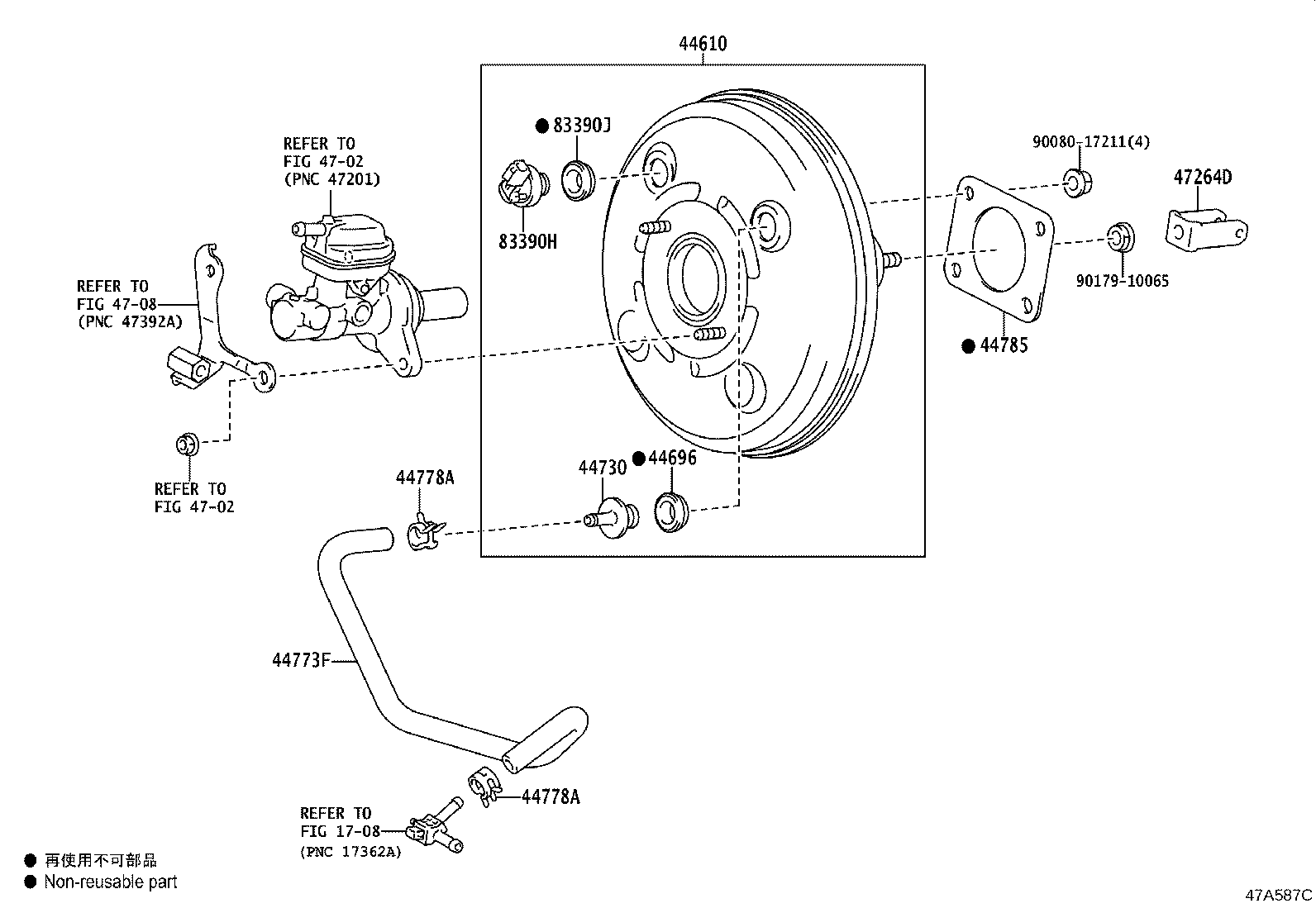

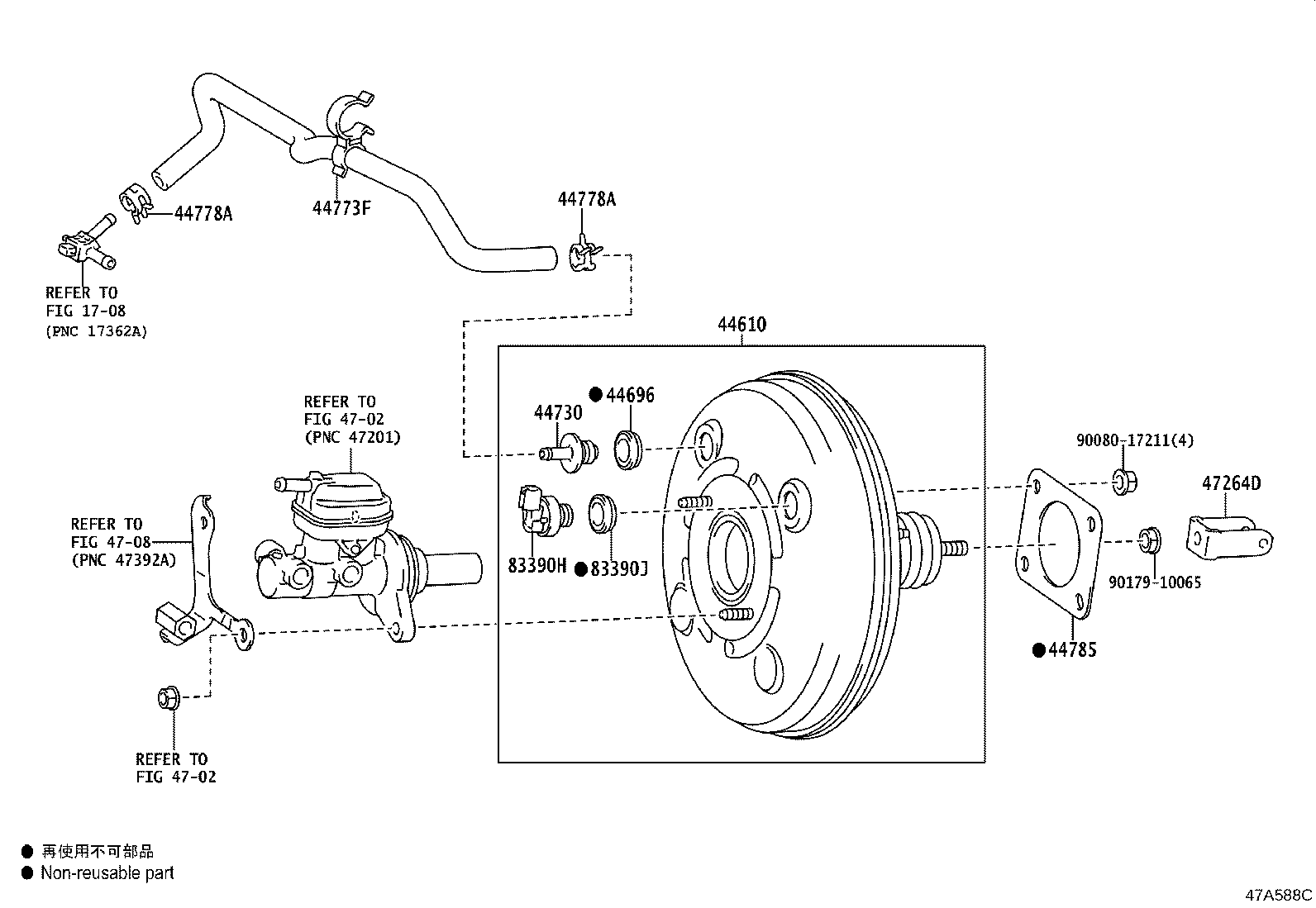

Figure 479106C 479106C 2013-12 → — Figure 479108A 479108A 2013-12 → 2016-11 Figure 479107A 479107A 2013-12 → 2016-11 Figure 47A587C 47A587C 2016-11 → — Figure 47A588C 47A588C 2016-11 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44772 Hose, Check Valve TO Connector Tube
44773F Hose, Union TO Check Valve
44773H Clamp(FOR UNION TO CHECK VALVE HOSE)
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774C Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774E Hose, Union TO Connector Tube
44777 Connector, Vacuum Hose, NO.1
44778A Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
44781 Bracket, Hose
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
83390H Switch Assy, Vacuum Warning
83390J Grommet, Vacuum Warning Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
