Toyota Highlander/Kluger

2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

28 part groups · 4 illustrations

Illustrations

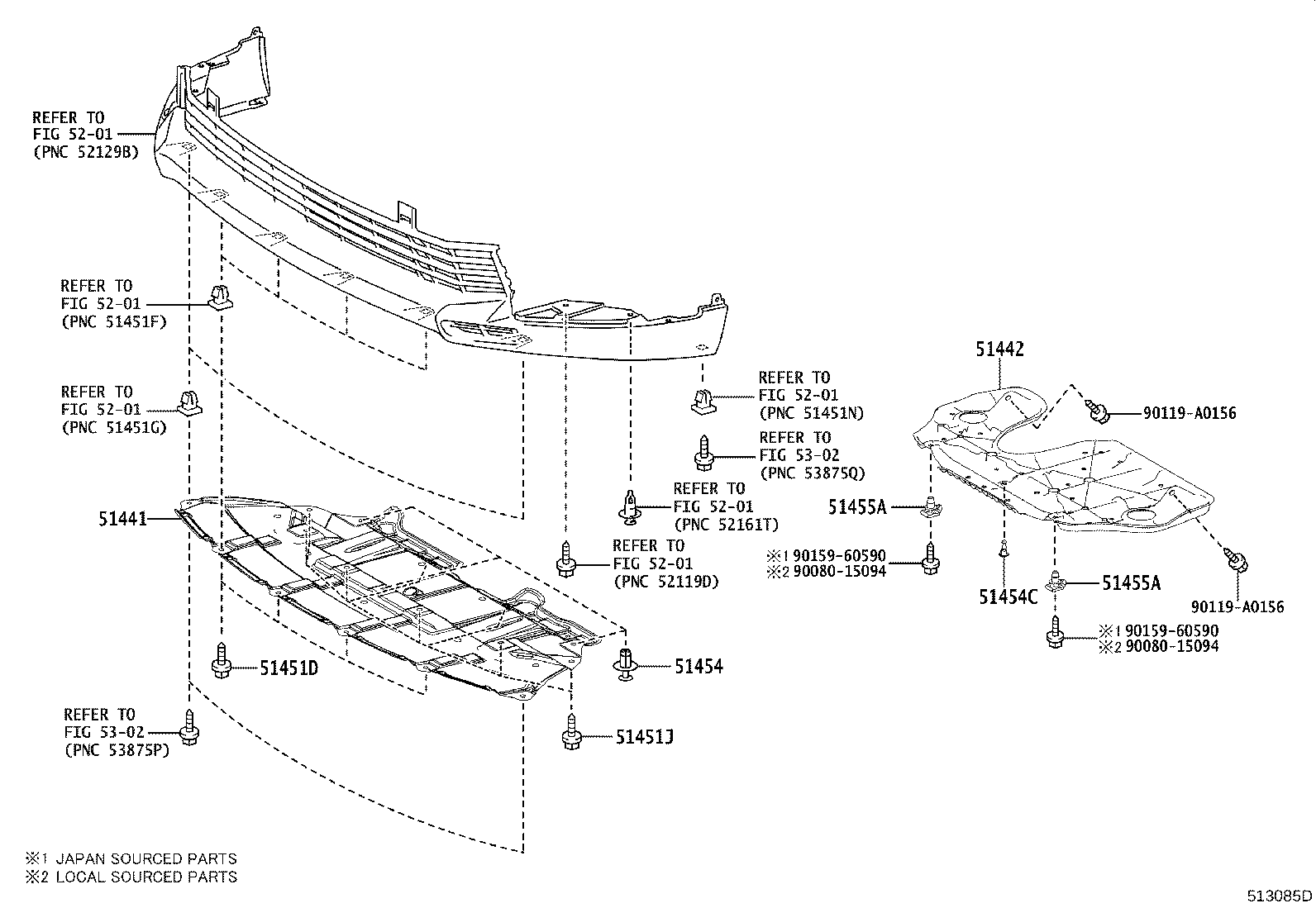

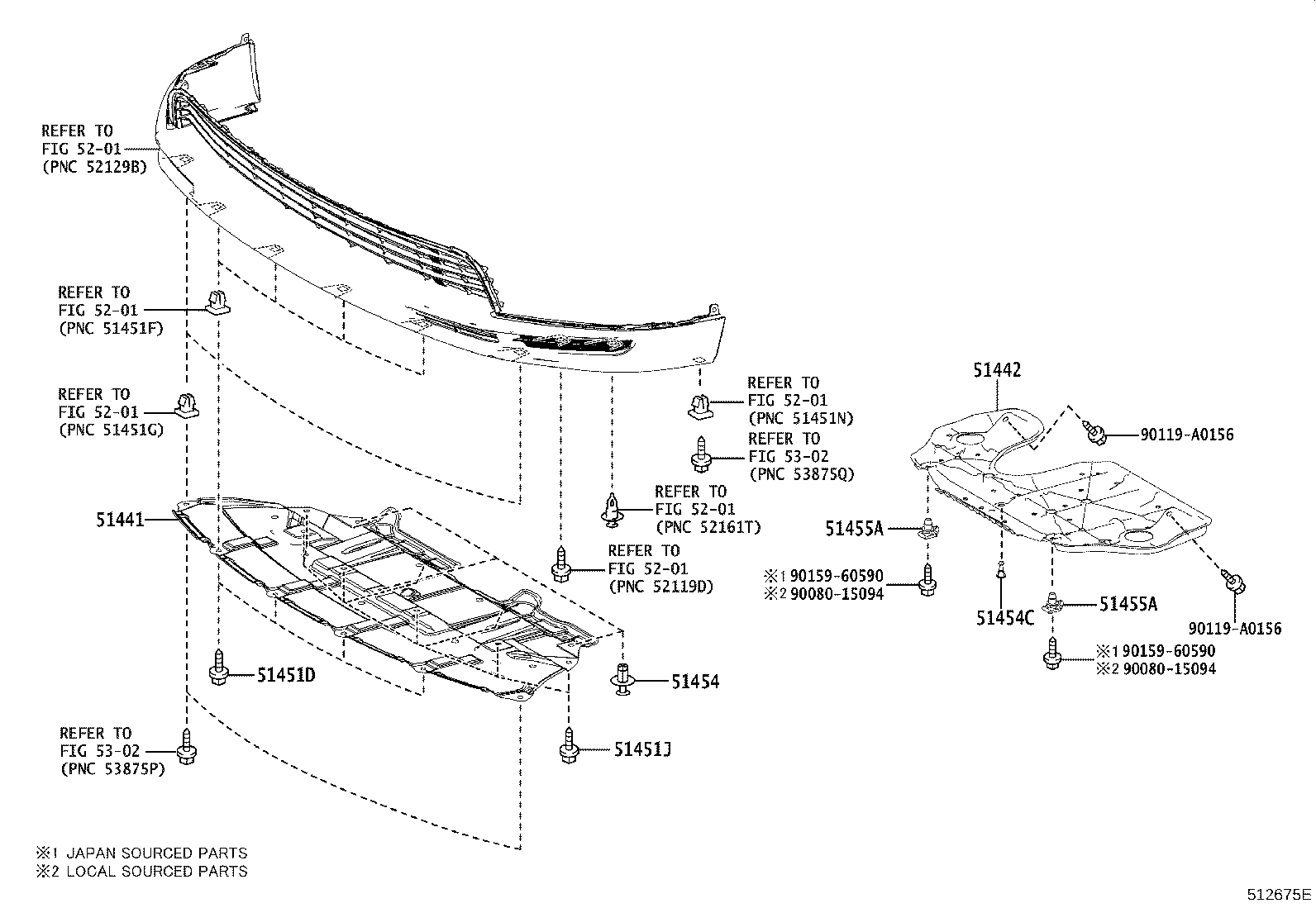

Figure 512694D 512694D 2013-12 → — Figure 512673A 512673A 2013-12 → — Figure 512675E 512675E 2013-12 → 2016-11 Figure 513085D 513085D 2016-11 → —

Part groups

PNCDescription
51035 Plate Sub-assy, Frame Side Rail, RH
51036 Plate Sub-assy, Frame Side Rail, LH
51100G Frame Assy, Front
51206A Member Sub-assy, Rear Suspension
51227B Damper, Front Suspension Member Dynamic
51229B Dumper, NO.2 Frame Crossmember Dynamic
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51451D Screw, NO.1
51451J Bolt, NO.1
51454 Clip
51454C Silencer, Engine Under Cover, Rear
51455A Seal, Engine Under Cover, NO.1
52211J Cushion, Front Suspension Member Body Mounting, Front
52213A Stopper, Front Suspension Member Body Mounting, Front
52215 Cushion, Front Suspension Member Body Mounting, Rear
52216B Stopper, Front Suspension Member Body Mounting, Rear
52217E Cushion, Front Suspension Member Body Mounting, Rear LH
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
52271D Cushion, Rear Suspension Member Body Mounting, Front
52272 Stopper, Rear Suspension Member, Upper
52273A Stopper, Rear Suspension Member, Lower RH
52274A Stopper, Rear Suspension Member, Lower LH
52275B Cushion, Rear Suspension Member Body Mount, Rear RH
52276A Cushion, Rear Suspension Member Body Mount, Rear LH
52277B Stopper, Rear Suspension Member, Rear Upper
53653B Brace, Rear Suspension, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
