Radiator Grille

3 part groups · 2 illustrations

Illustrations

Figure 534140B

534140B 2013-12 → 2016-11

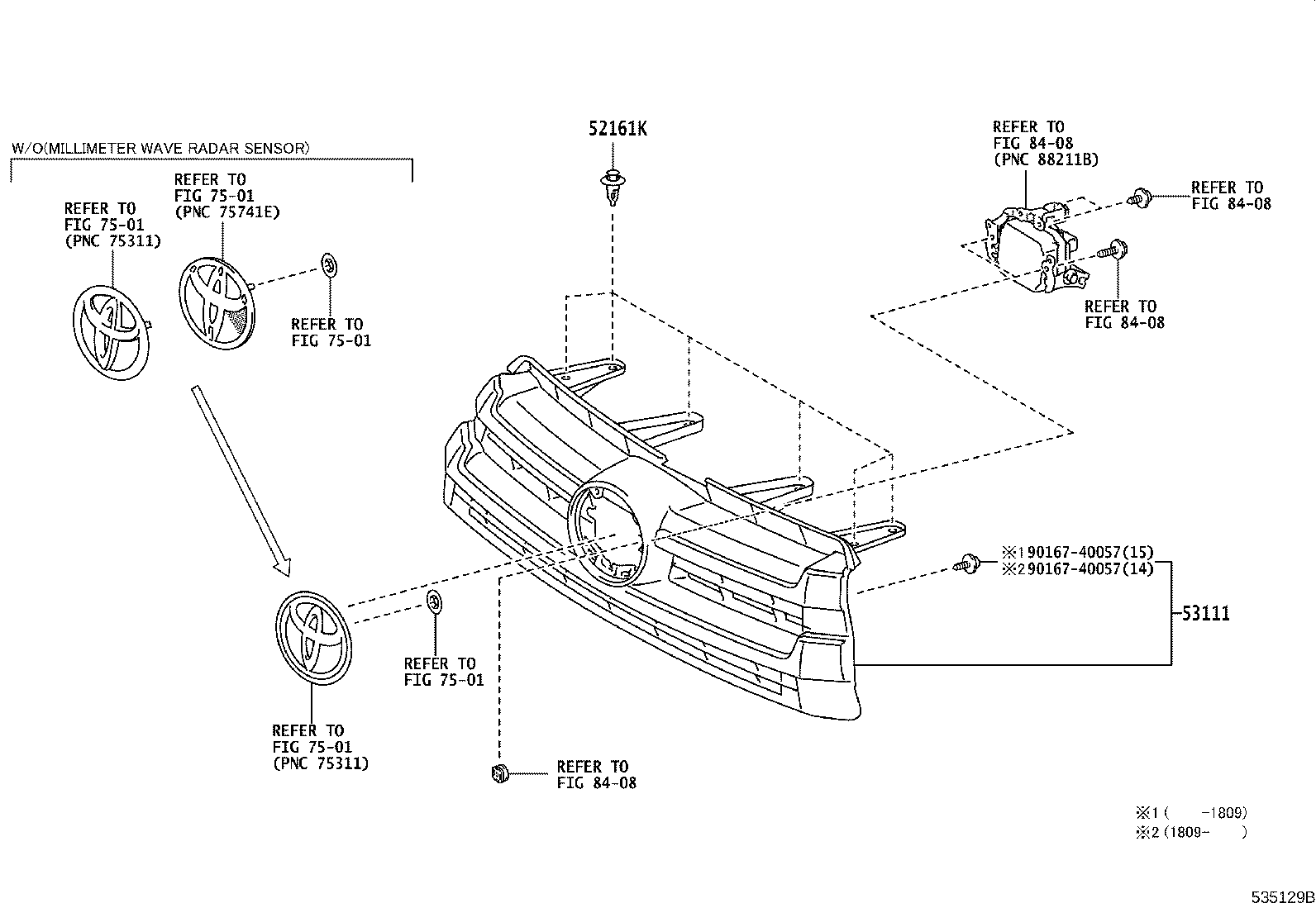

Figure 535129B

535129B 2016-11 → —

Part groups

PNC	Description
52161K	Piece, Front Bumper
53111	Grille, Radiator
53121A	Moulding, Radiator Grille

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
