Toyota Highlander/Kluger

2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

52 part groups · 26 illustrations

Illustrations

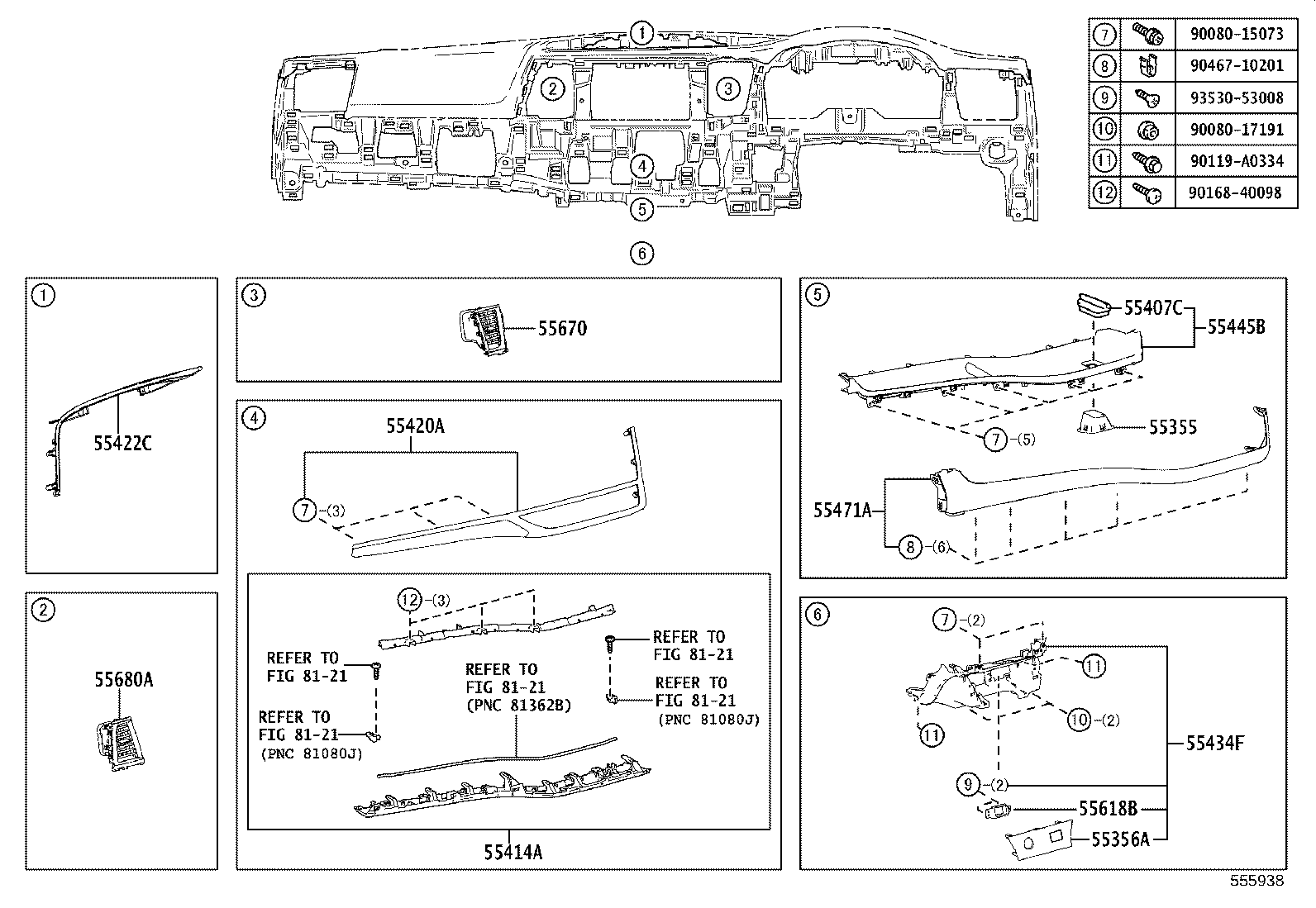

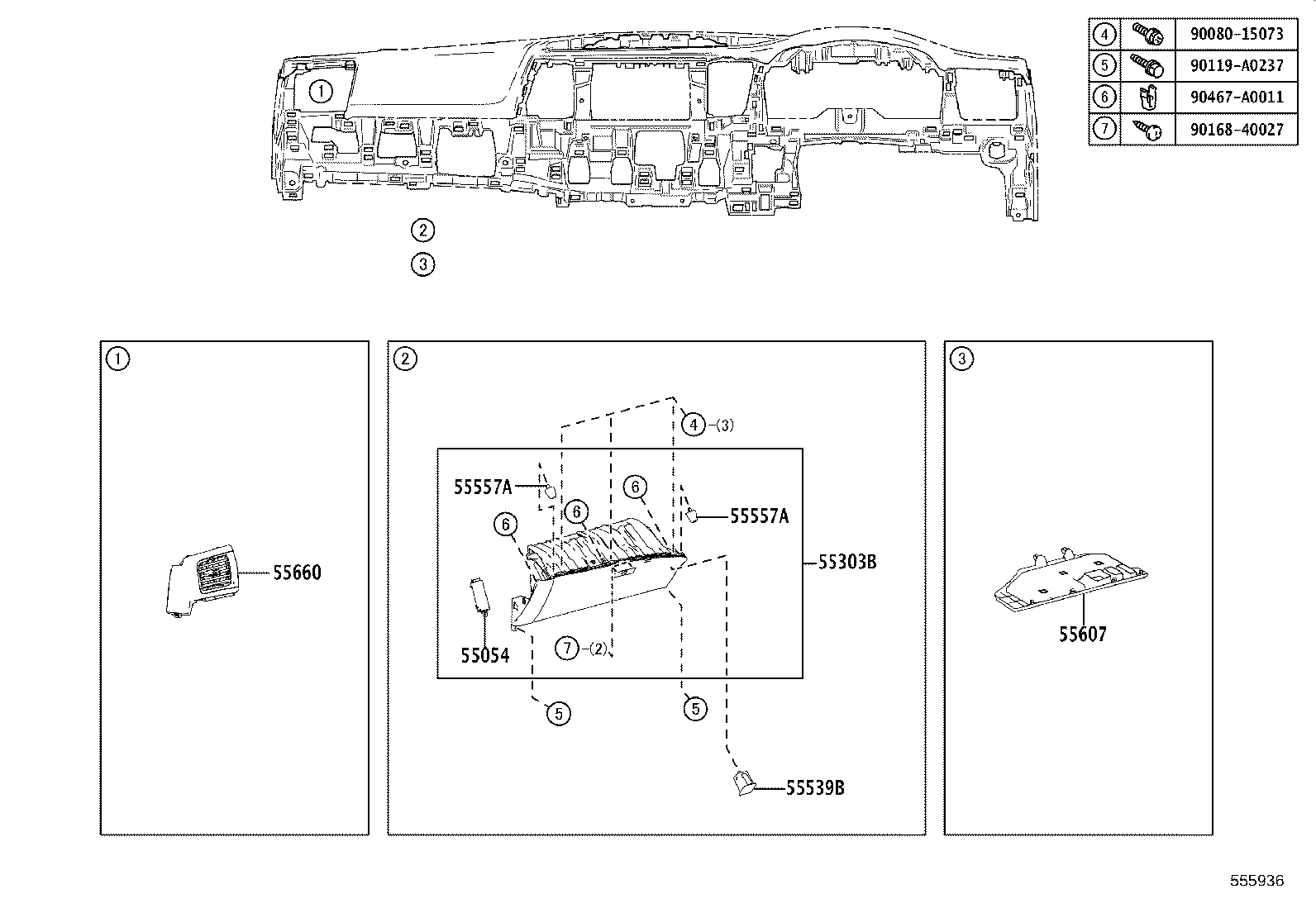

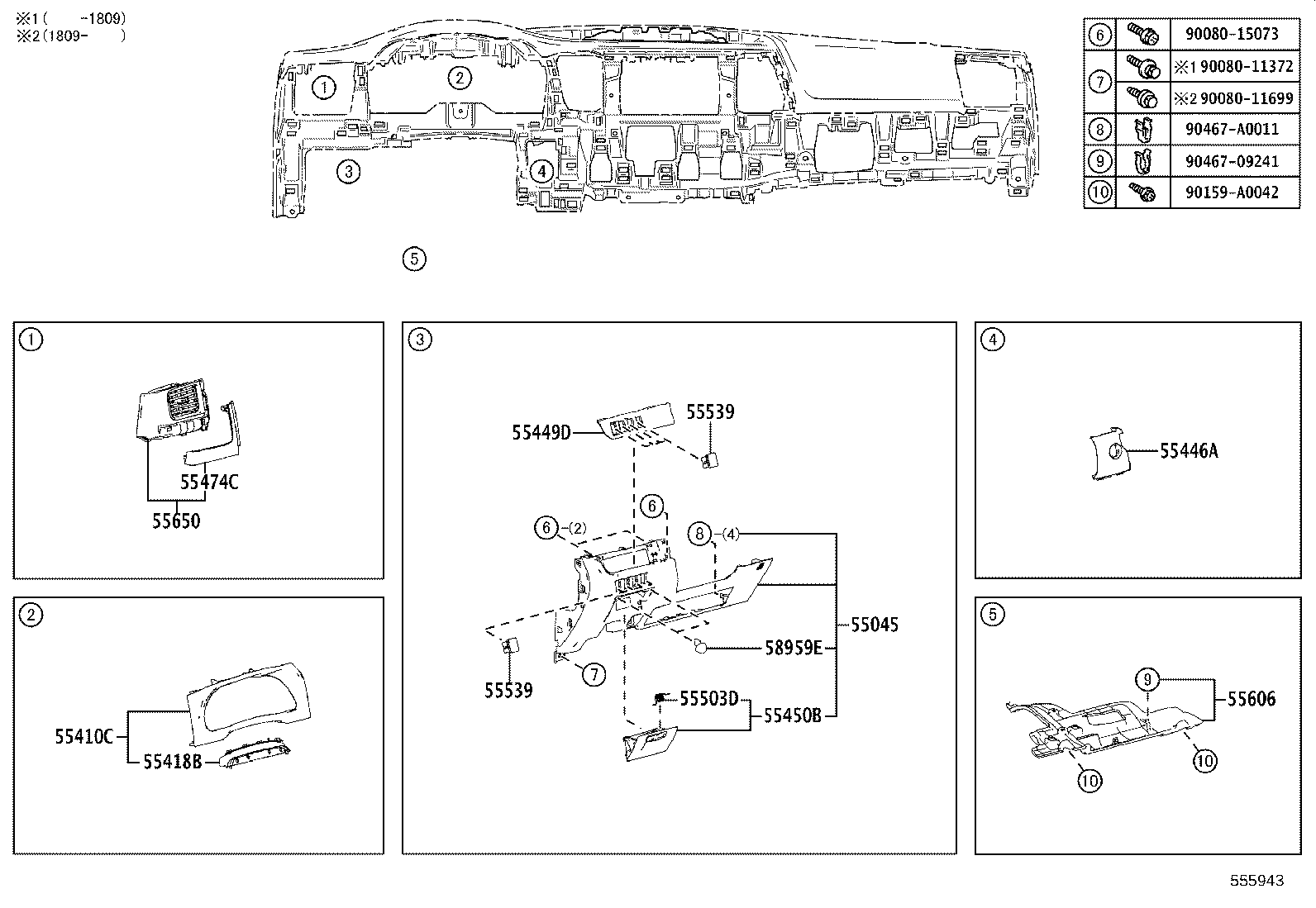

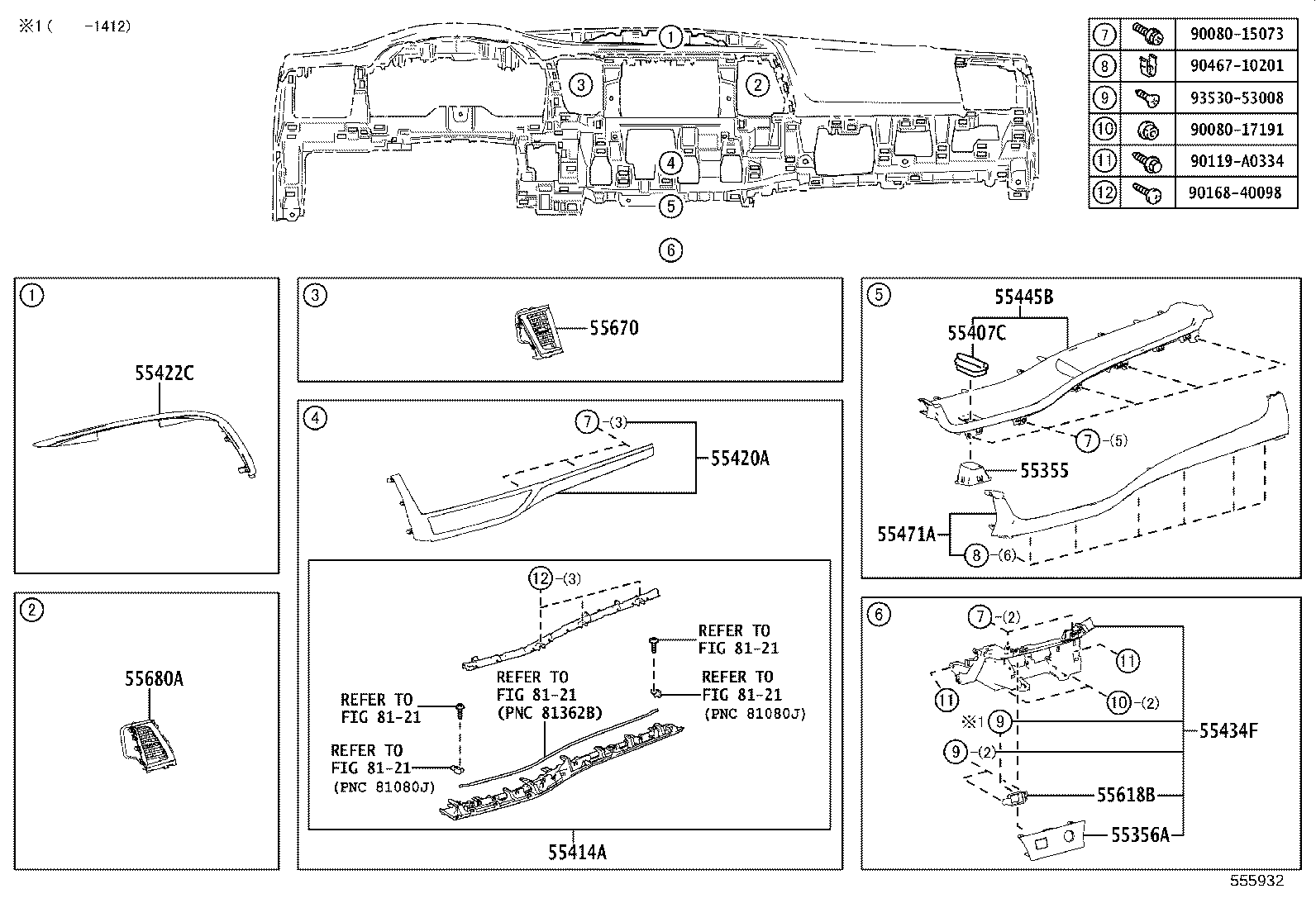

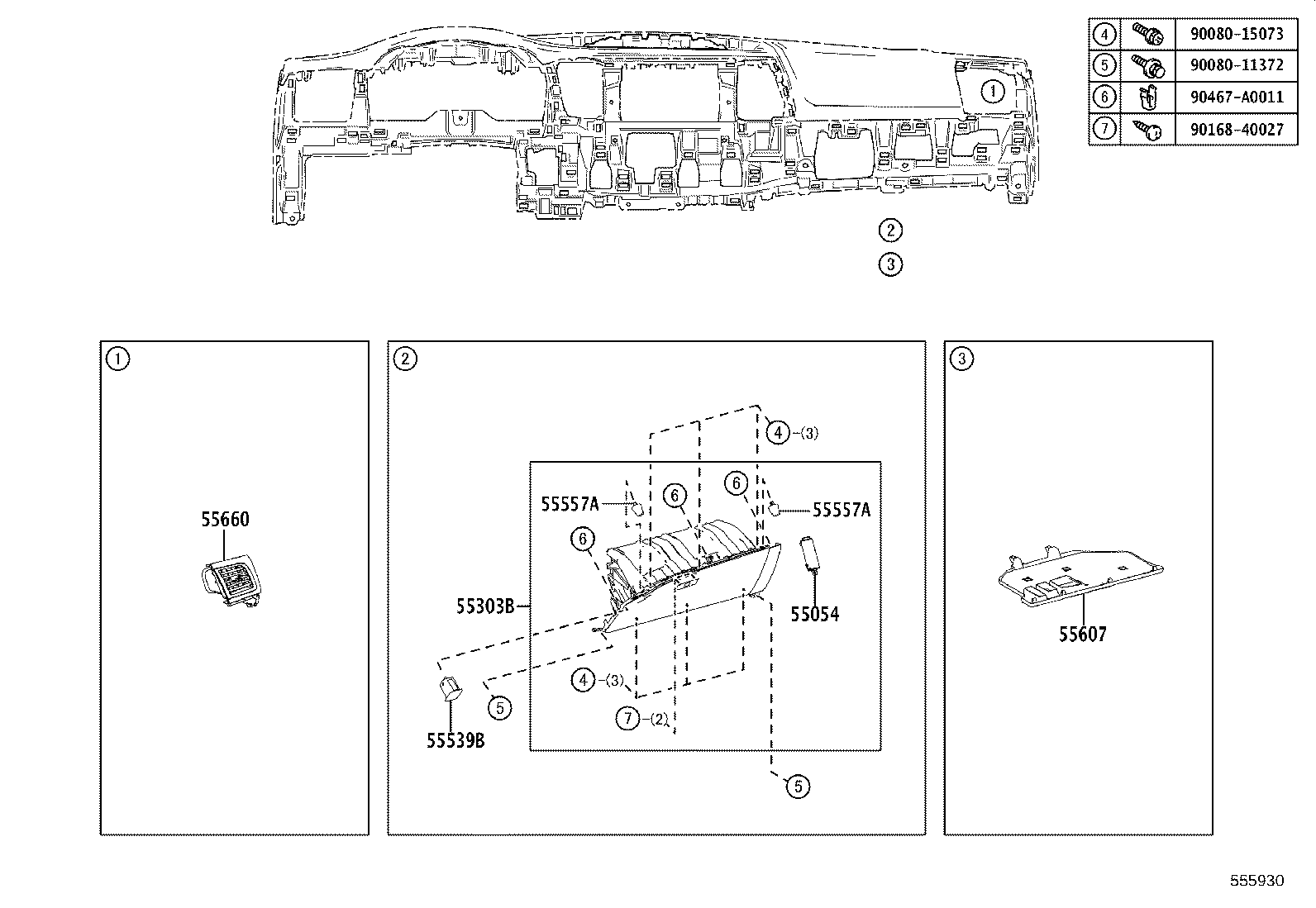

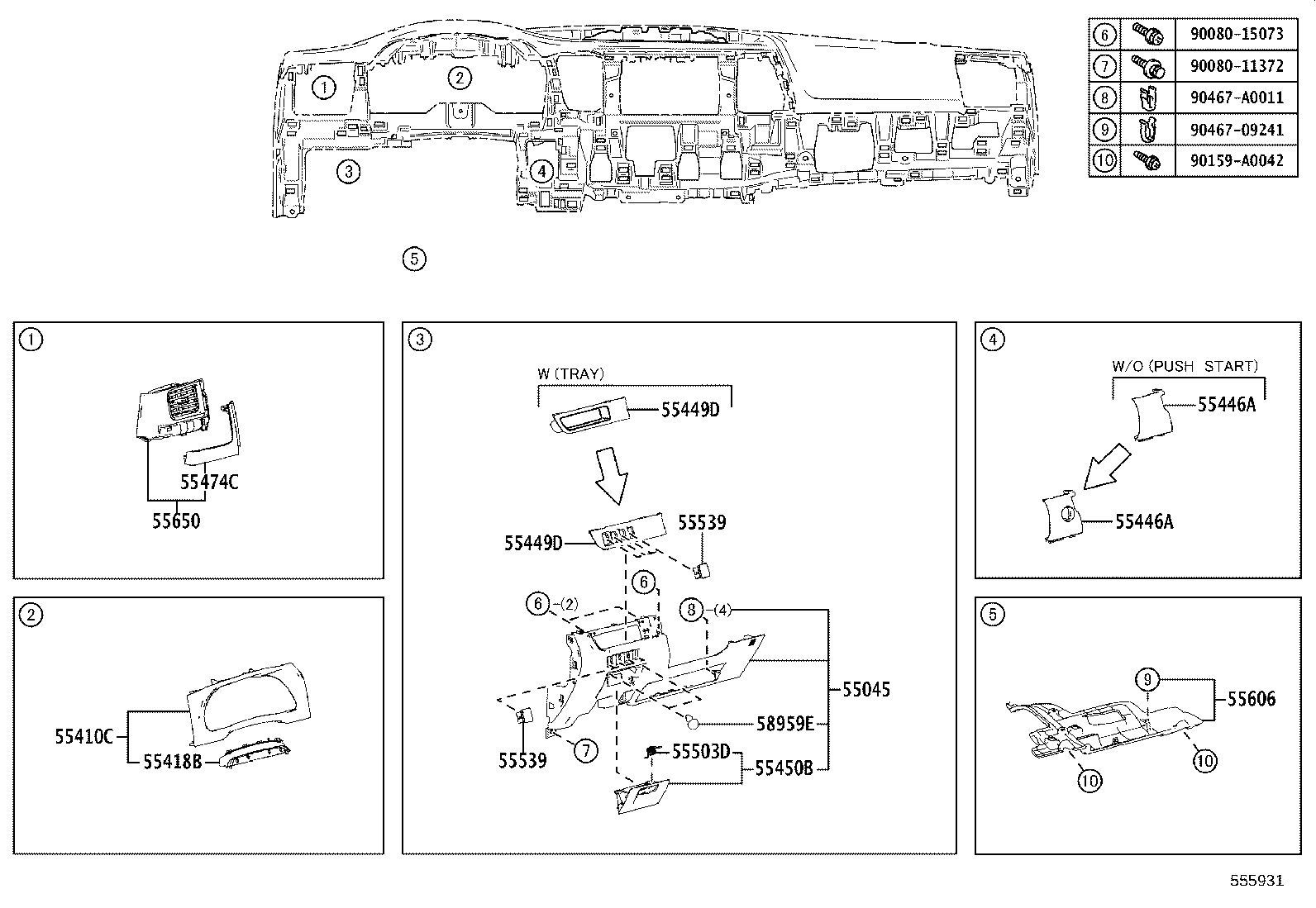

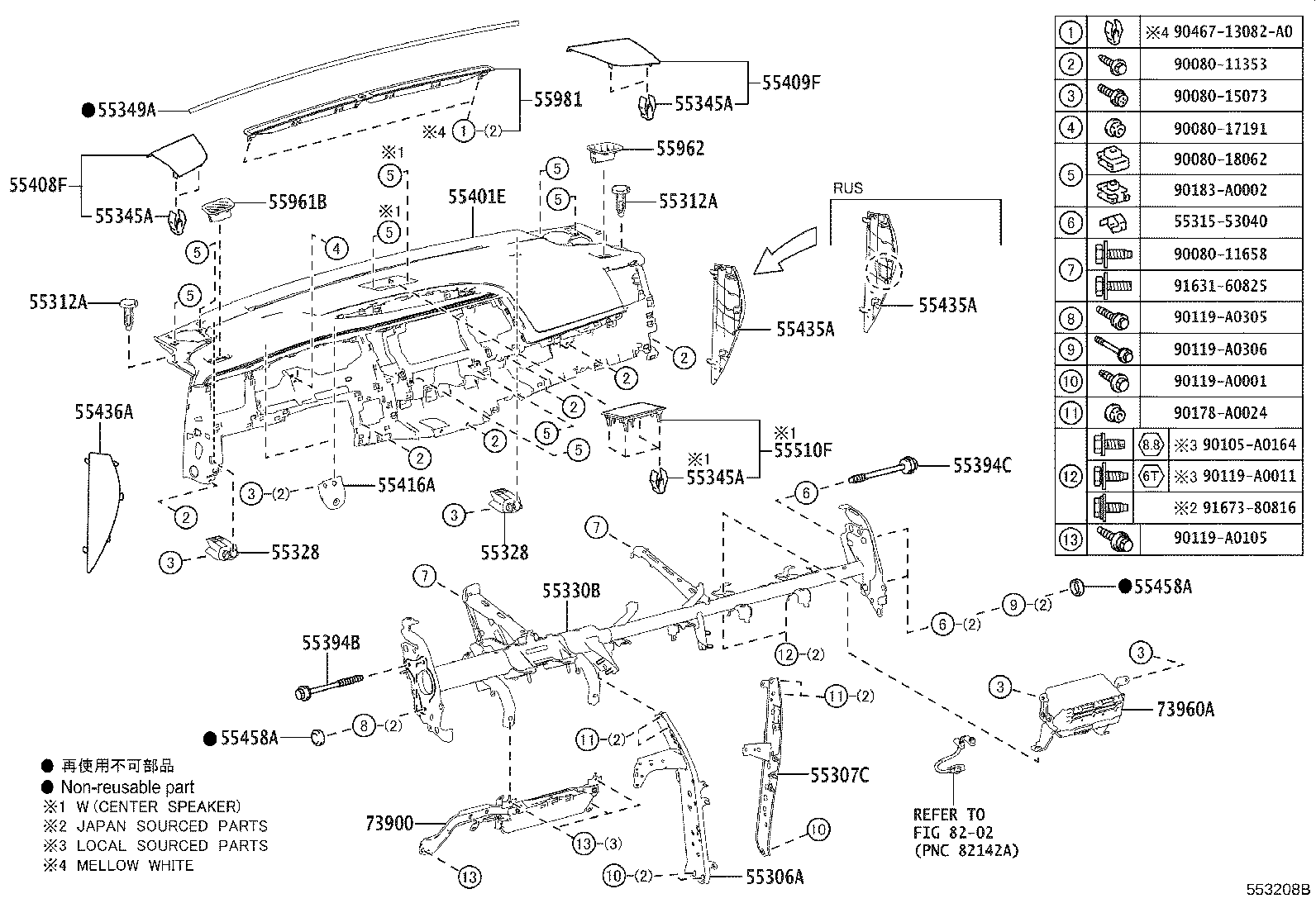

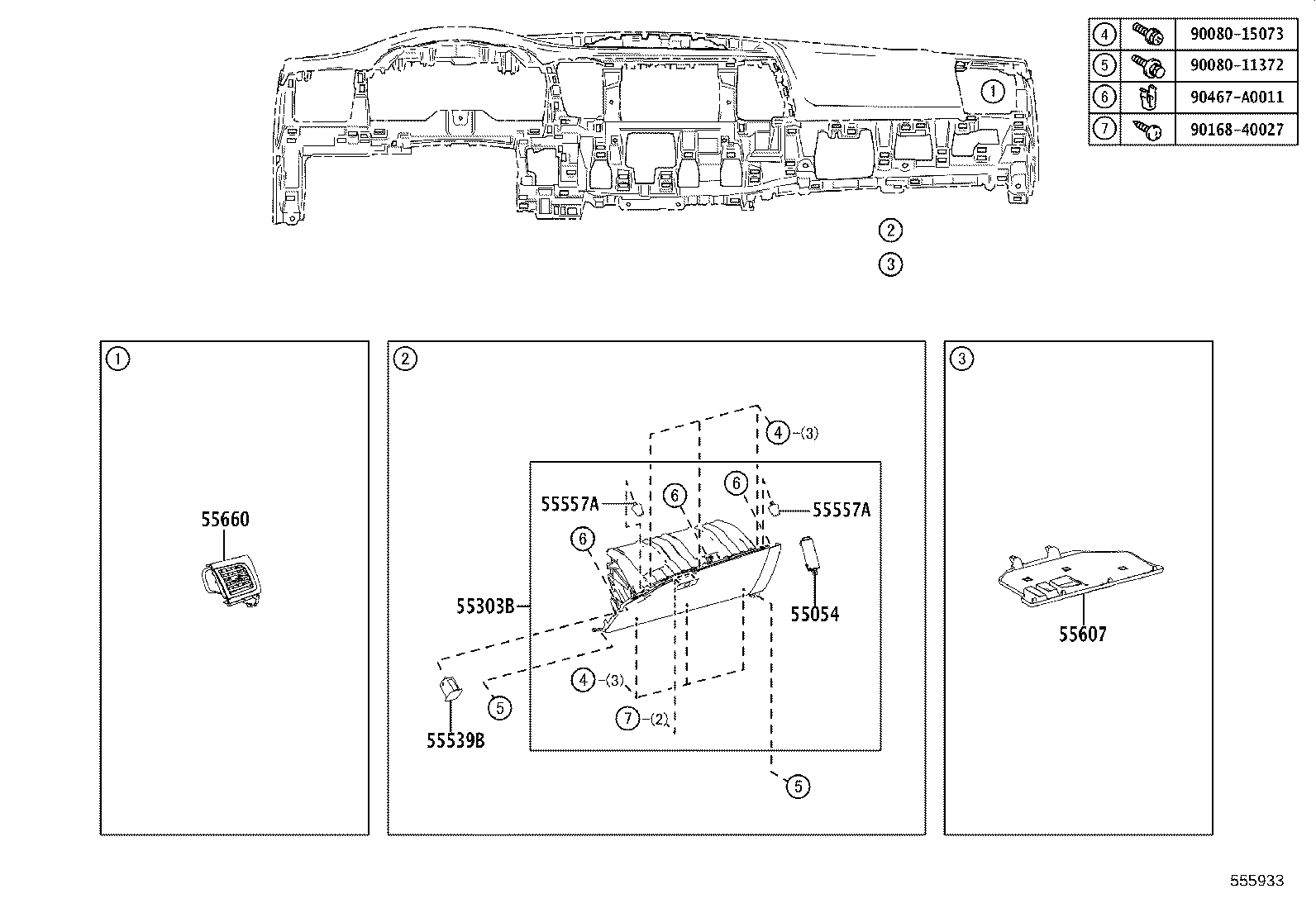

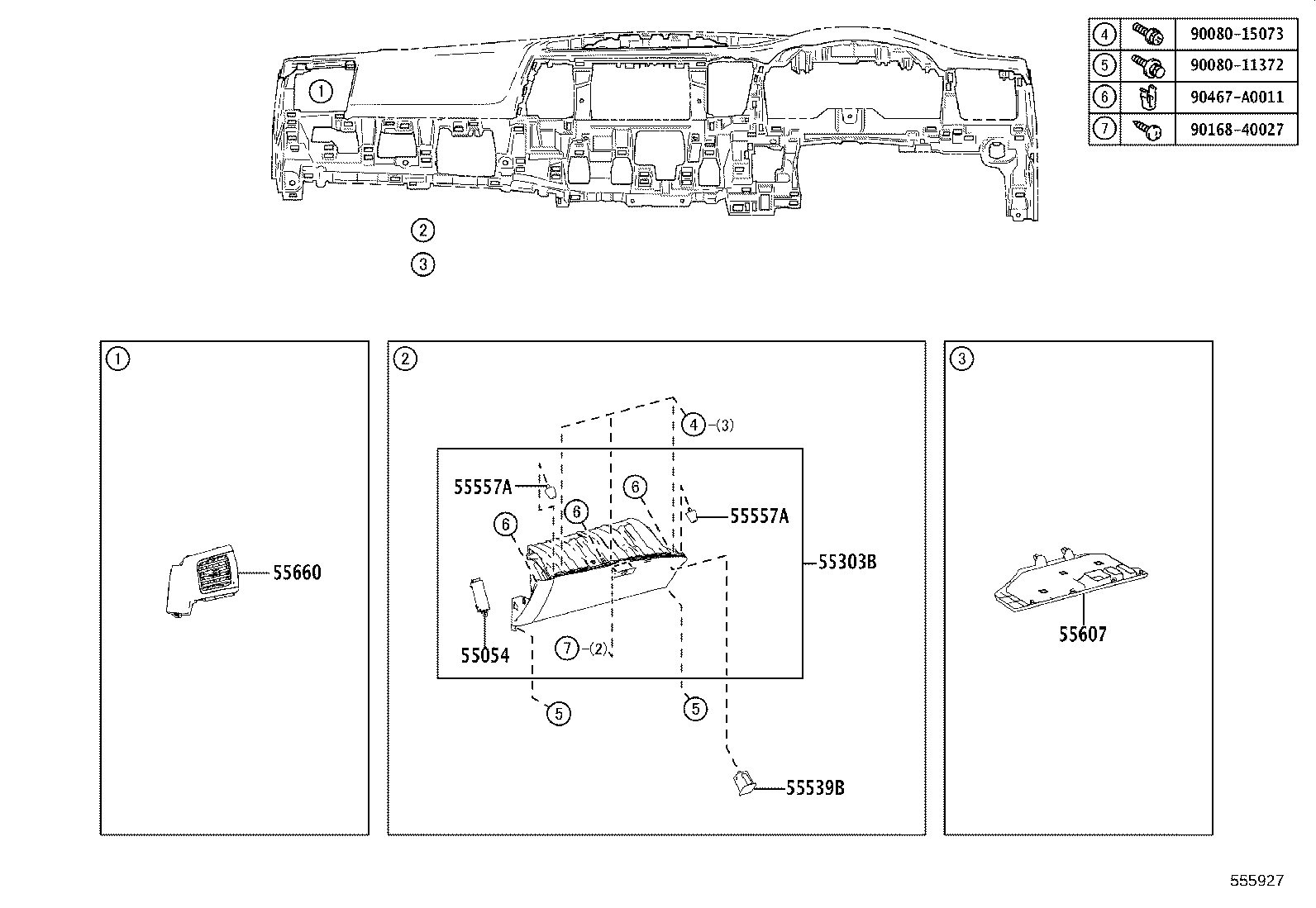

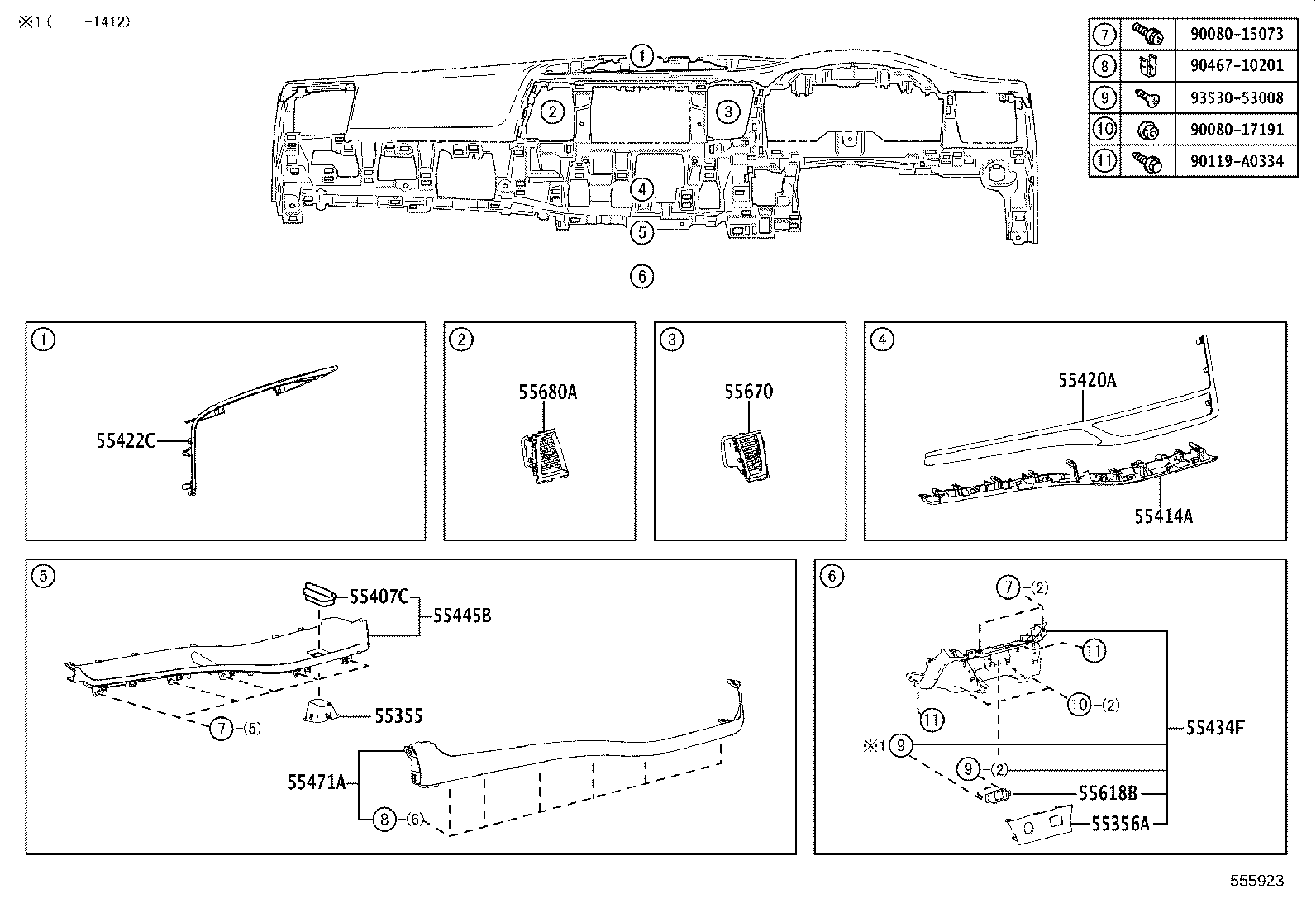

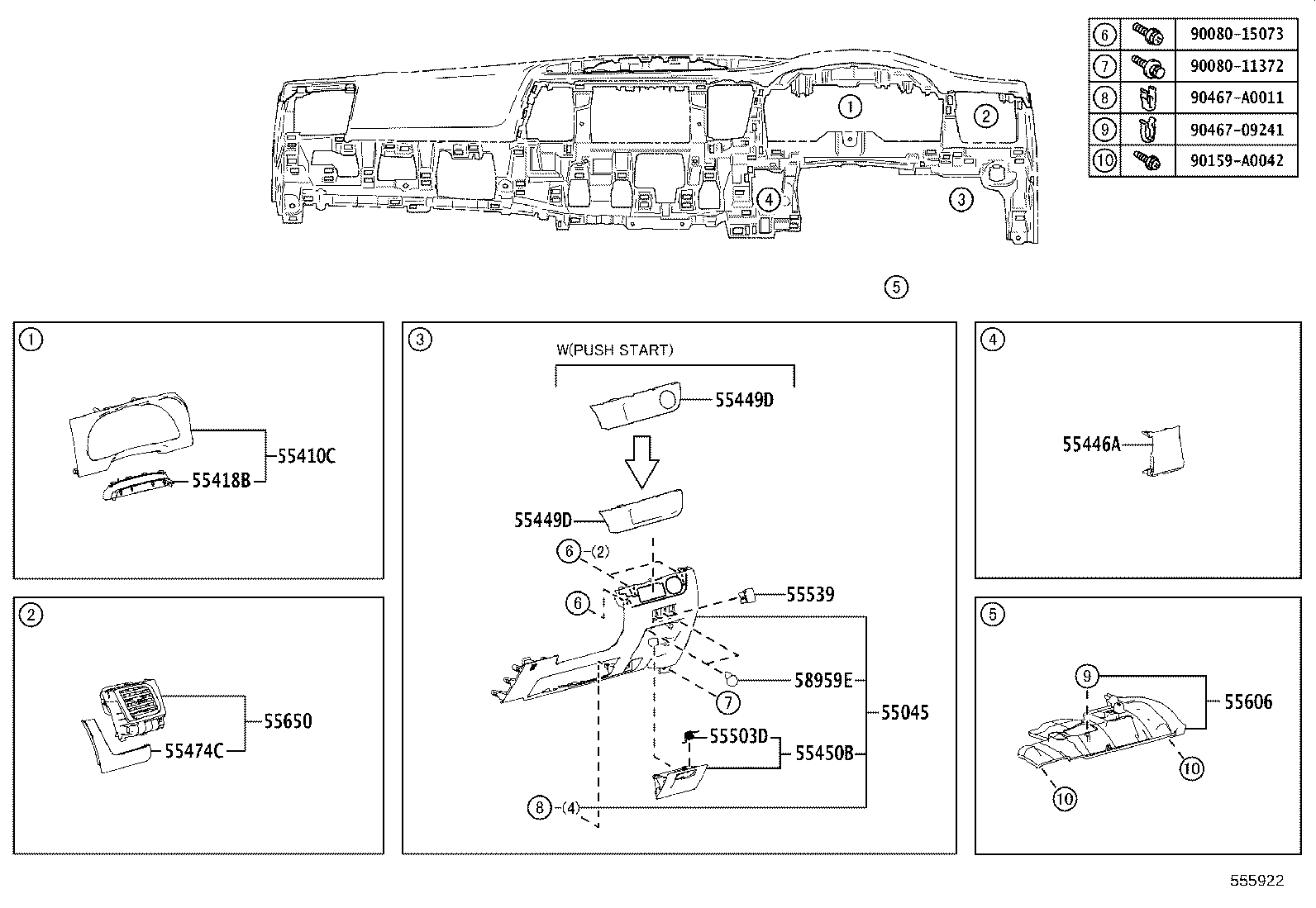

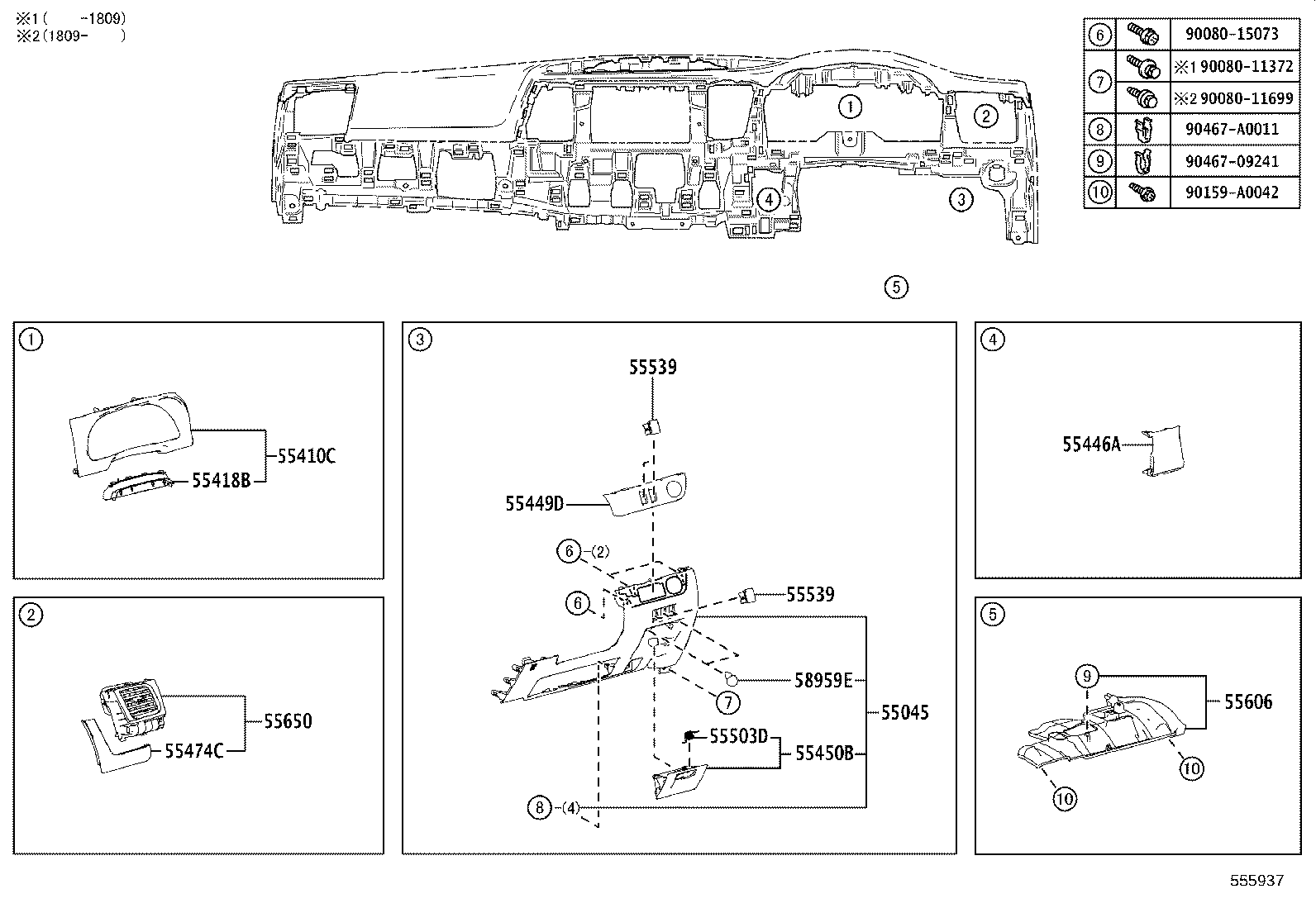

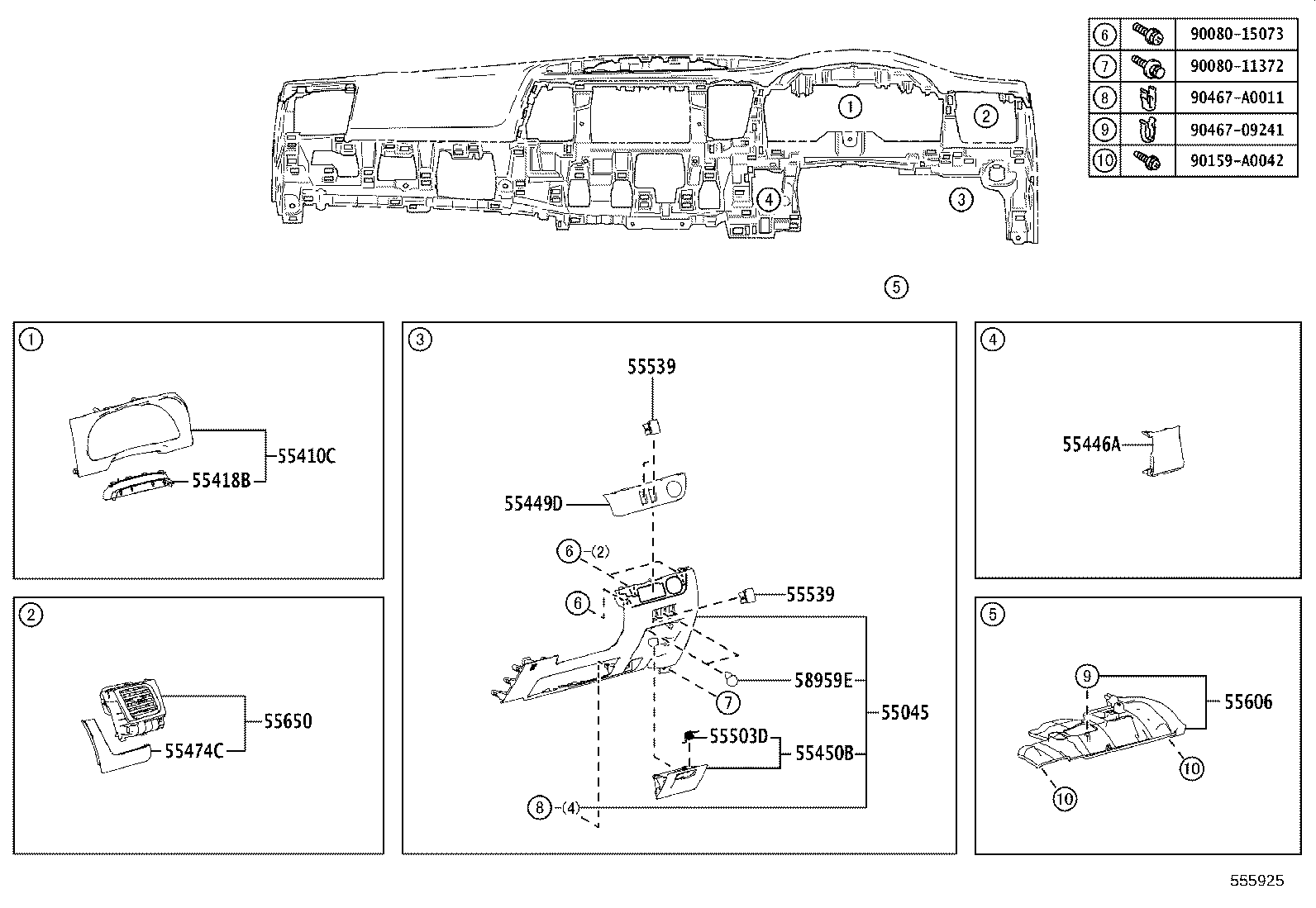

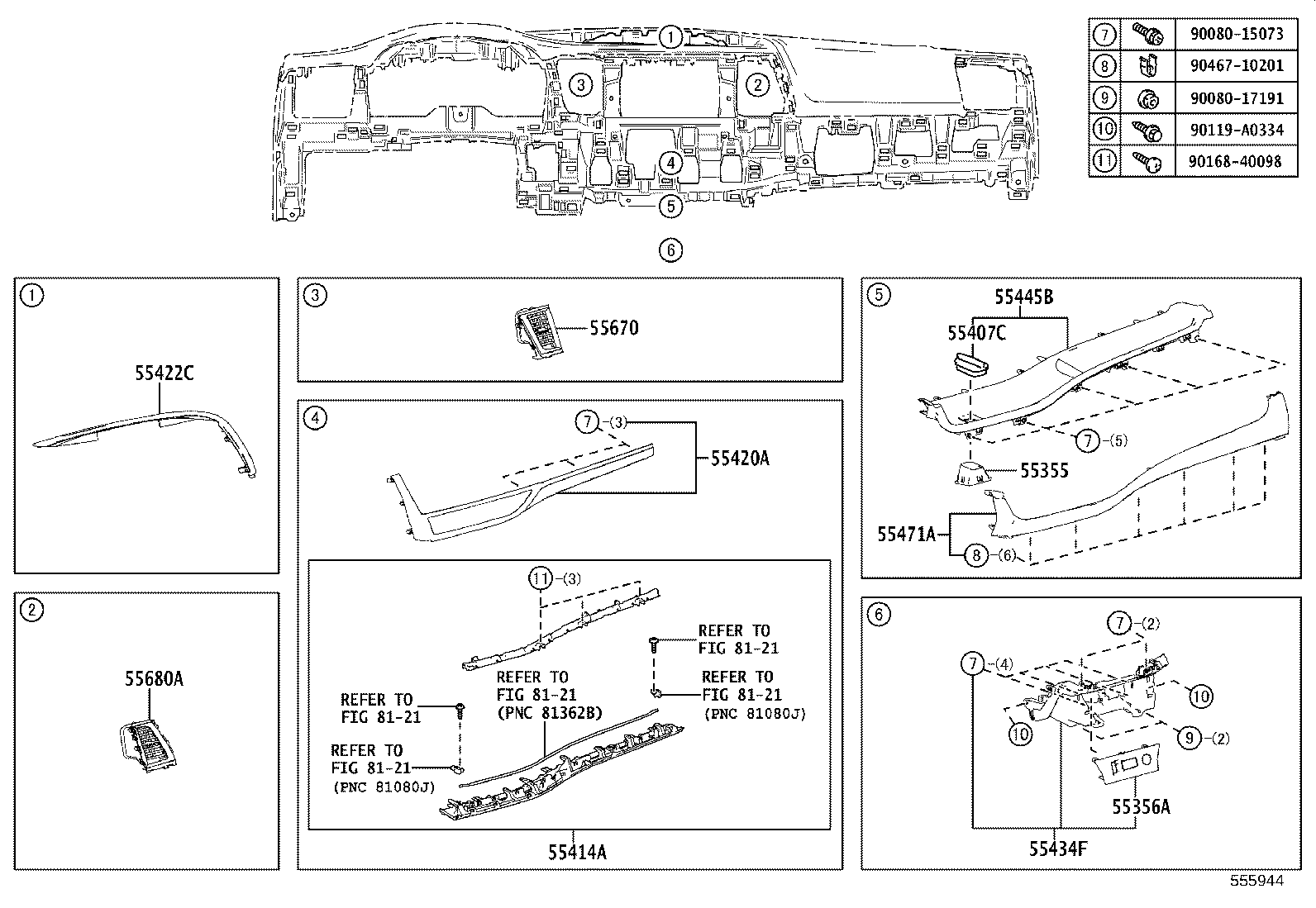

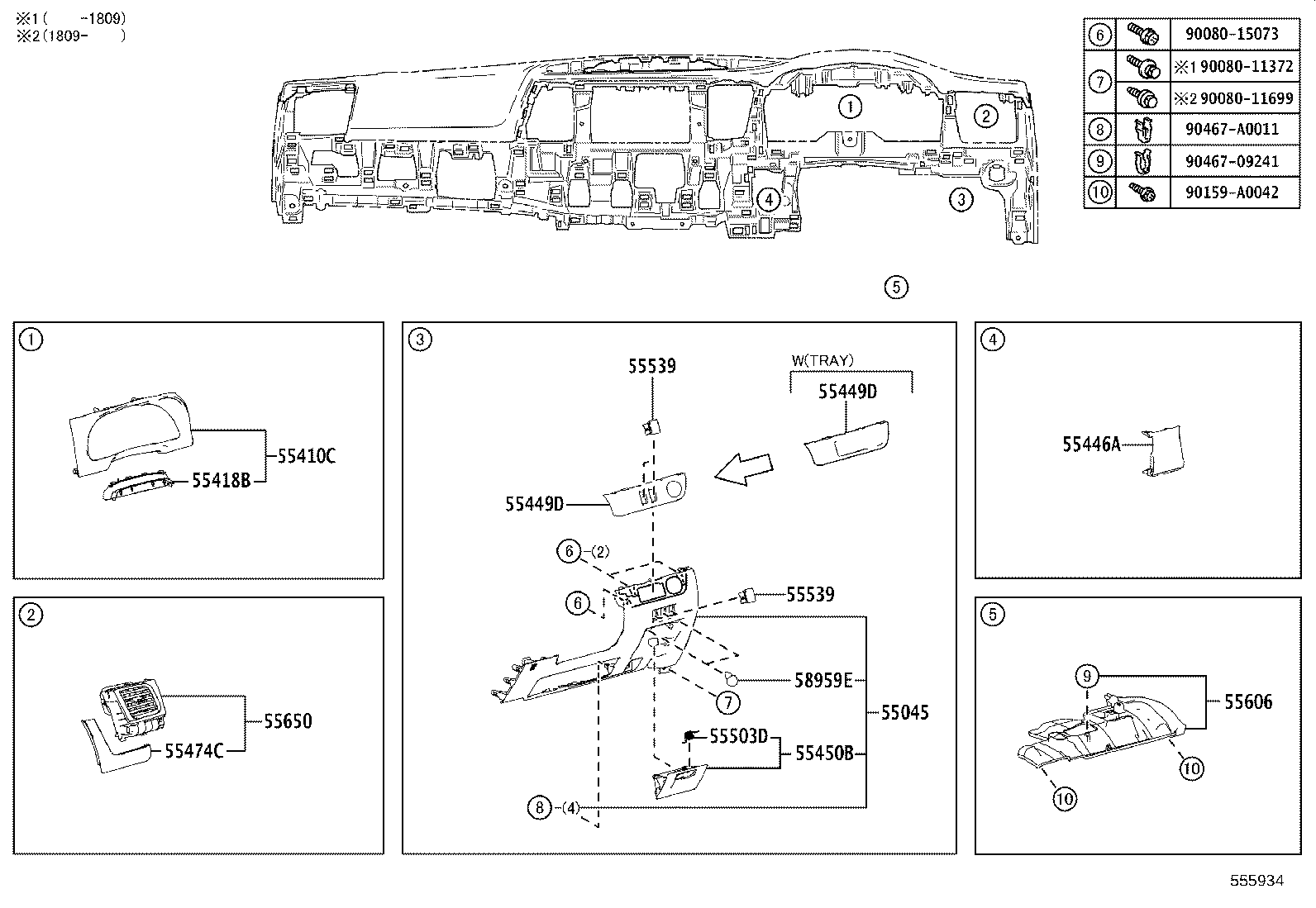

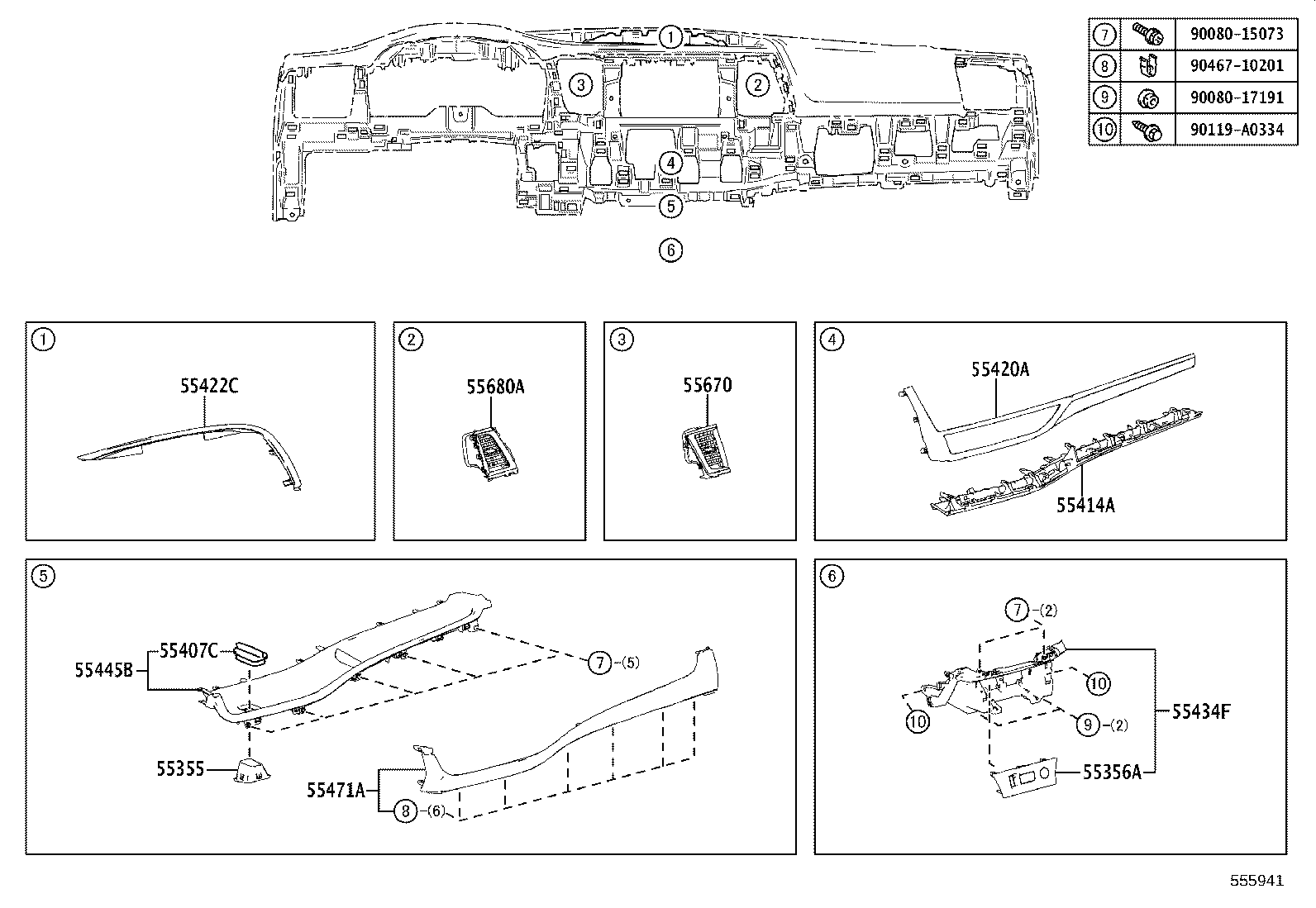

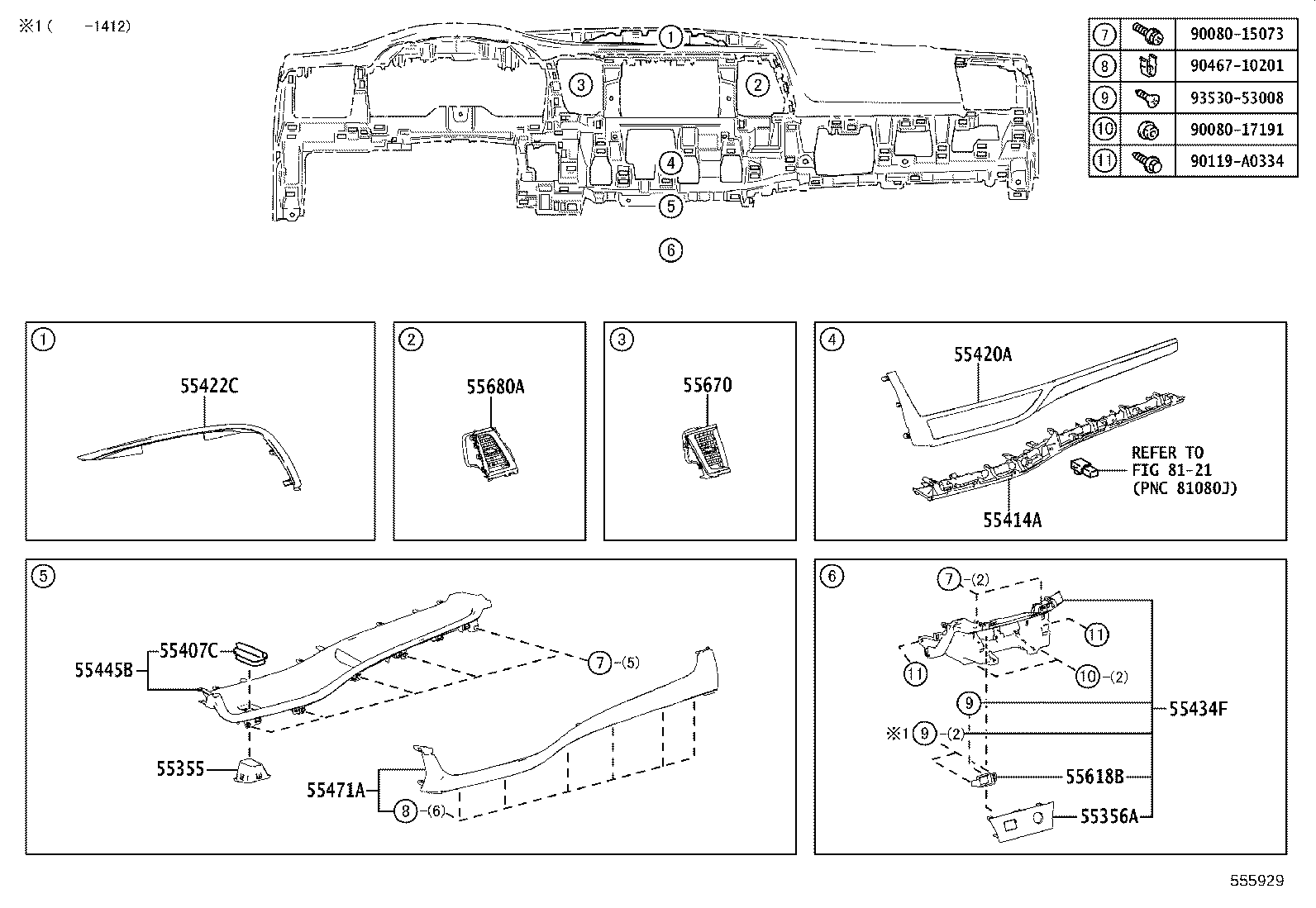

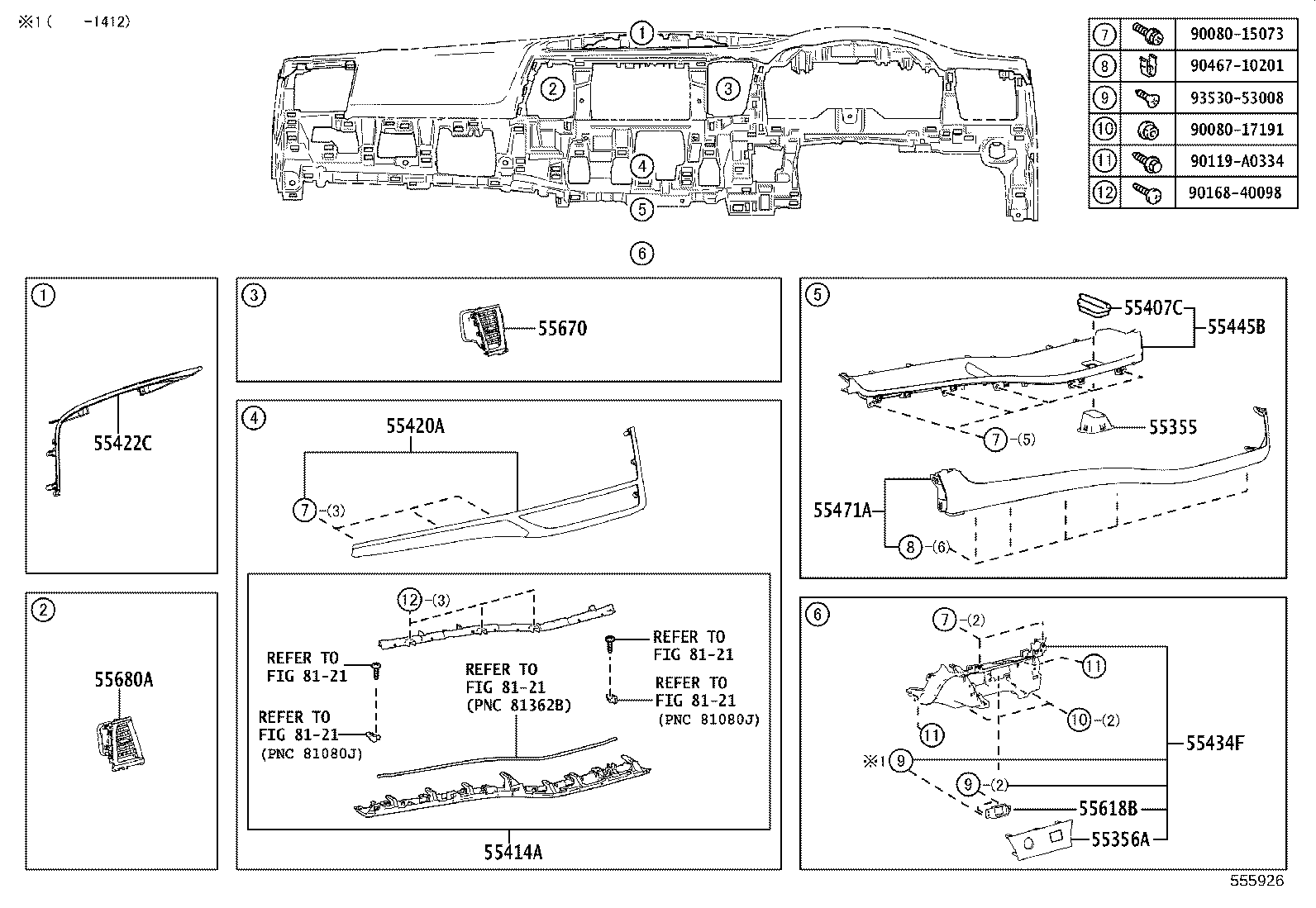

Figure 553206C 553206C 2013-12 → — Figure 553208B 553208B 2013-12 → — Figure 555922 555922 2013-12 → 2016-11 Figure 555923 555923 2013-12 → 2016-11 Figure 555924 555924 2013-12 → 2016-11 Figure 555925 555925 2013-12 → 2016-11 Figure 555926 555926 2013-12 → 2016-11 Figure 555927 555927 2013-12 → 2016-11 Figure 555928 555928 2013-12 → 2016-11 Figure 555929 555929 2013-12 → 2016-11 Figure 555930 555930 2013-12 → 2016-11 Figure 555931 555931 2013-12 → 2016-11 Figure 555932 555932 2013-12 → 2016-11 Figure 555933 555933 2013-12 → 2016-11 Figure 555934 555934 2016-11 → — Figure 555935 555935 2016-11 → — Figure 555936 555936 2016-11 → — Figure 555937 555937 2016-11 → — Figure 555938 555938 2016-11 → — Figure 555939 555939 2016-11 → — Figure 555940 555940 2016-11 → — Figure 555941 555941 2016-11 → — Figure 555942 555942 2016-11 → — Figure 555943 555943 2016-11 → — Figure 555944 555944 2016-11 → — Figure 555945 555945 2016-11 → —

Part groups

PNCDescription
55045 Panel Sub-assy, Instrument Panel Finish, Lower
55054 Stopper Sub-assy, Glove Compartment Door
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55312A Clip, Instrument Panel
55328 Pin, Instrument Panel, NO.1
55330B Reinforcement Assy, Instrument Panel
55345A Clip, Instrument Panel, NO.1
55349A Cushion, Instrument Panel
55355 Cushion, Instrument Panel, NO.1
55356A Plate, Instrument Panel, Lower
55394B Bolt, Instrument Panel
55394C Bolt, Instrument Panel
55401E Pad Sub-assy, Instrument Panel Safety
55407C Cover Sub-assy, Instrument, Lower
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55410C Panel Assy, Instrument Cluster Finish
55414A Panel, Instrument Cluster Finish, End
55416A Retainer, Meter Hood, NO.1
55418B Spacer,Meter Hood
55420A Panel Assy, Instrument Cluster Finish, Center
55422C Panel, Instrument Cluster Finish, Center Upper
55434F Panel, Instrument Panel Finish, Lower Center
55435A Panel, Instrument Panel Finish, End RH
55436A Panel, Instrument Panel Finish, End LH
55445B Plate, Instrument Panel Finish
55446A Base, Switch Hole, NO.1
55449D Base, Switch
55450B Box Assy, Coin
55458A Cap, Instrument Panel Safety Pad
55471A Ornament, Instrument Cluster Finish Panel
55474C Garnish, Instrument Cluster Finish Panel, NO.1
55503D Spring(FOR GLOVE COMPARTMENT)
55510F Cover Assy, Speaker Opening, NO.1
55539 Cover, Spare Switch Hole
55539B Cover, Spare Switch Hole, NO.2
55557A Cushion, Glove Compartment Door Check
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55618B Base, Switch Hole, NO.3
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55680A Register Assy, Instrument Panel, NO.4
55961B Nozzle, Side Defroster, NO.1
55962 Nozzle, Side Defroster, NO.2
55981 Garnish, Defroster Nozzle, NO.1
58959E Cushion, Console Compartment Door
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
