Toyota Highlander/Kluger
2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · Europe
Supported model
Data version 2019-11

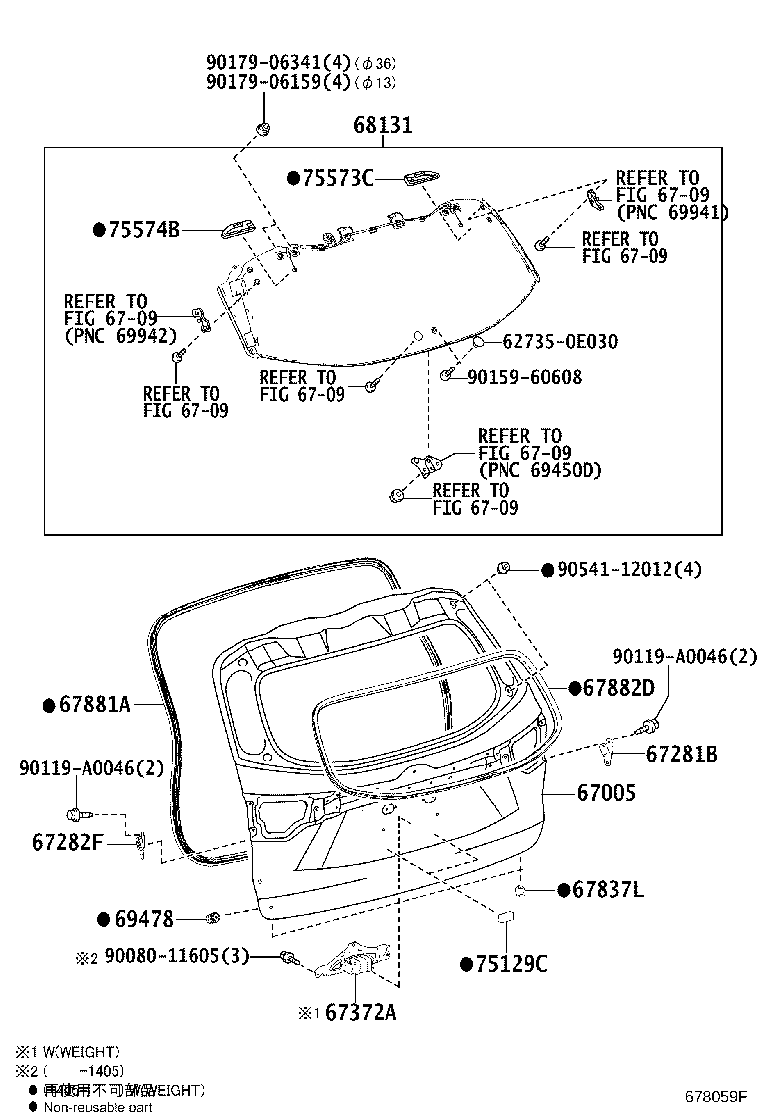

Back Door Panel & Glass
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 64780A | Panel Assy, Back Door Trim |
| 64783A | Trim, Back Window Panel, Upper |
| 64791B | Cover, Back Door Trim |
| 64791C | Cover, Back Door Trim, RH |
| 64792 | Cover, Back Door Trim, LH |
| 64798 | Cover, Back Door Lock |
| 67005 | Panel Sub-assy, Back Door |
| 67281B | Stopper, Back Door, Lower |
| 67282F | Stopper, Back Door, Lwr LH |
| 67372A | Weight, Back Door |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67765A | Cover, Back Door Service Hole, NO.1 |
| 67766 | Cover, Back Door Service Hole, NO.2 |
| 67837L | Seal, Door Dust Proof |
| 67881A | Weatherstrip, Back Door |
| 67882D | Weatherstrip, Back Door, NO.2 |
| 68131 | Glass, Back Door |
| 69478 | Cushion, Back Door Lower Stopper |
| 69806 | Bracket Sub-assy, Back Door Glass Guide |
| 74811D | Handle, Door Pull |
| 75129C | Cushion, Rear Licence Plate |
| 75573C | Moulding, Back Window, Outside |
| 75574B | Moulding, Back Window, Outside LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
