Toyota Highlander/Kluger

2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

23 part groups · 3 illustrations

Illustrations

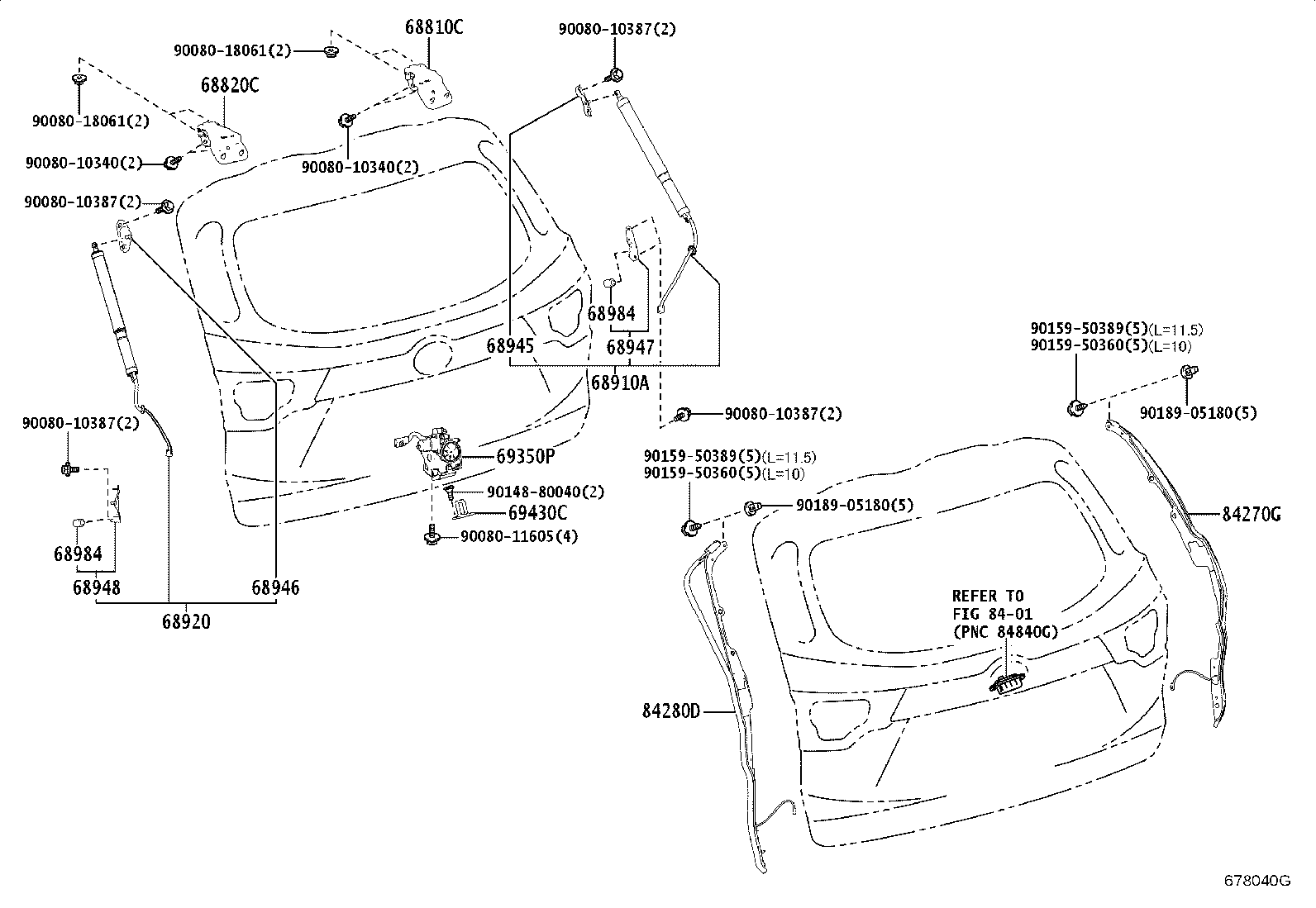

Figure 678039G 678039G 2013-12 → — Figure 678040G 678040G 2013-12 → — Figure 678060D 678060D 2013-12 → —

Part groups

PNCDescription
62735N Retainer, Back Door Hinge
68810C Hinge Assy, Back Door, RH
68820C Hinge Assy, Back Door, LH
68910A Unit Assy Set, Power Back Door, RH
68920 Unit Assy Set, Power Back Door, LH
68930 Stay Assy, Back Window, RH
68940 Stay Assy, Back Window, LH
68945 Bracket, Back Door Damper Stay, Upper RH
68946 Bracket, Back Door Damper Stay, Upper LH
68947 Bracket, Back Door Damper Stay, Lower RH
68948 Bracket, Back Door Damper Stay, Lower LH
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
68961J Bolt, Back Window Stay
68984 Stopper, Back Door Stay
69350P Lock Assy, Back Door, W/Courtesy Lamp Switch
69370E Lock Assy, Back Window
69430C Striker Assy, Back Door Lock
69450D Striker Assy, Back Window Lock
69941 Brackt, Back Door Glass Guide, Upper RH
69942 Brackt, Back Door Glass Guide, Upper LH
84270G Sensor Assy, Power Back Door, RH
84280D Sensor Assy, Power Back Door, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
